Schematic and Routing Diagrams

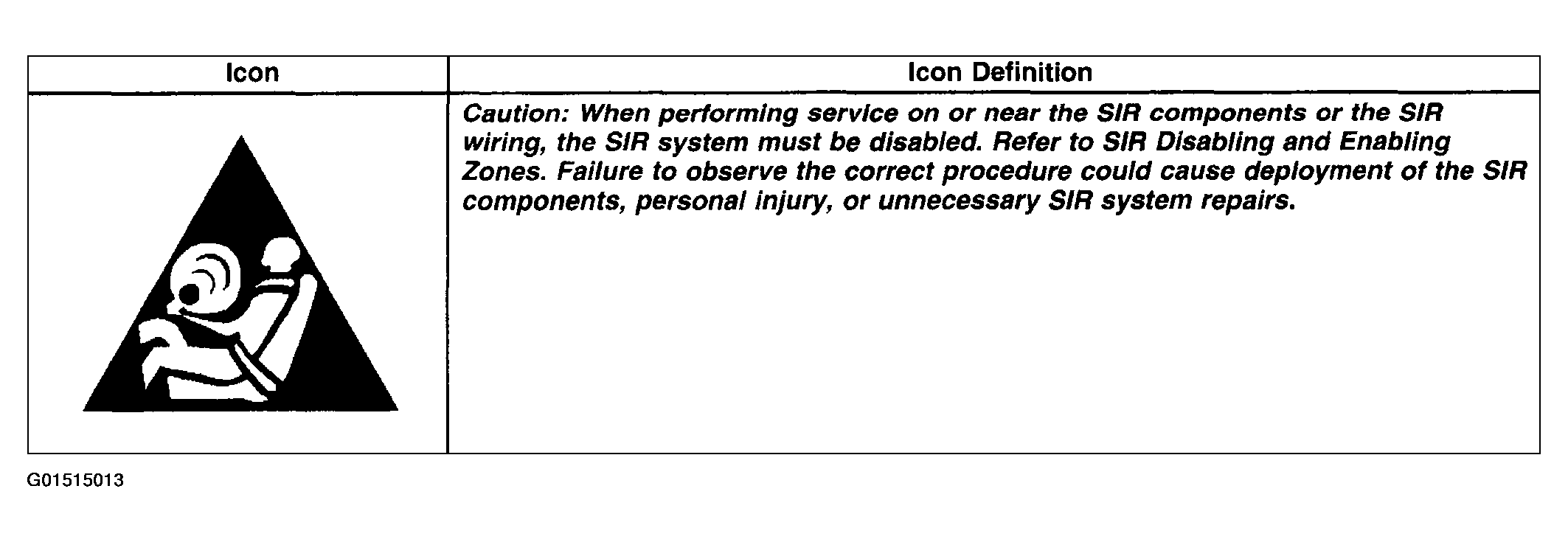

Fig 1: Seat Belt Schematic Icon Definition
G01515013Courtesy of GENERAL MOTORS CORP.

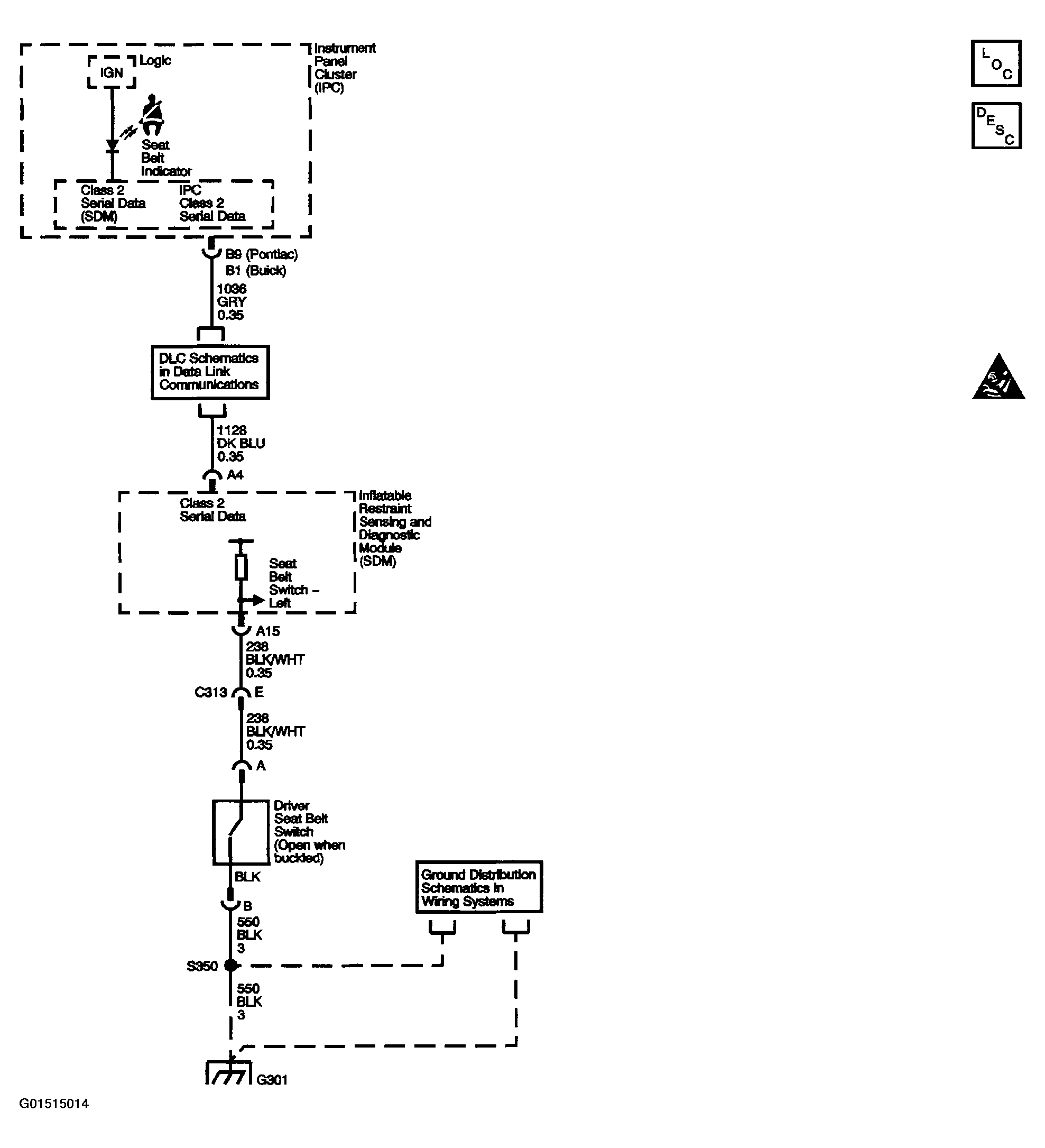

Fig 2: Seat Belt Schematic
G01515014Courtesy of GENERAL MOTORS CORP.
