Installation Procedure

  1. Install the steering gear heat shield.
  2. Install the steering gear heat shield bolts.

    Tighten

    Tighten the steering gear heat shield bolts to 14 N.m (124 Ib. in).

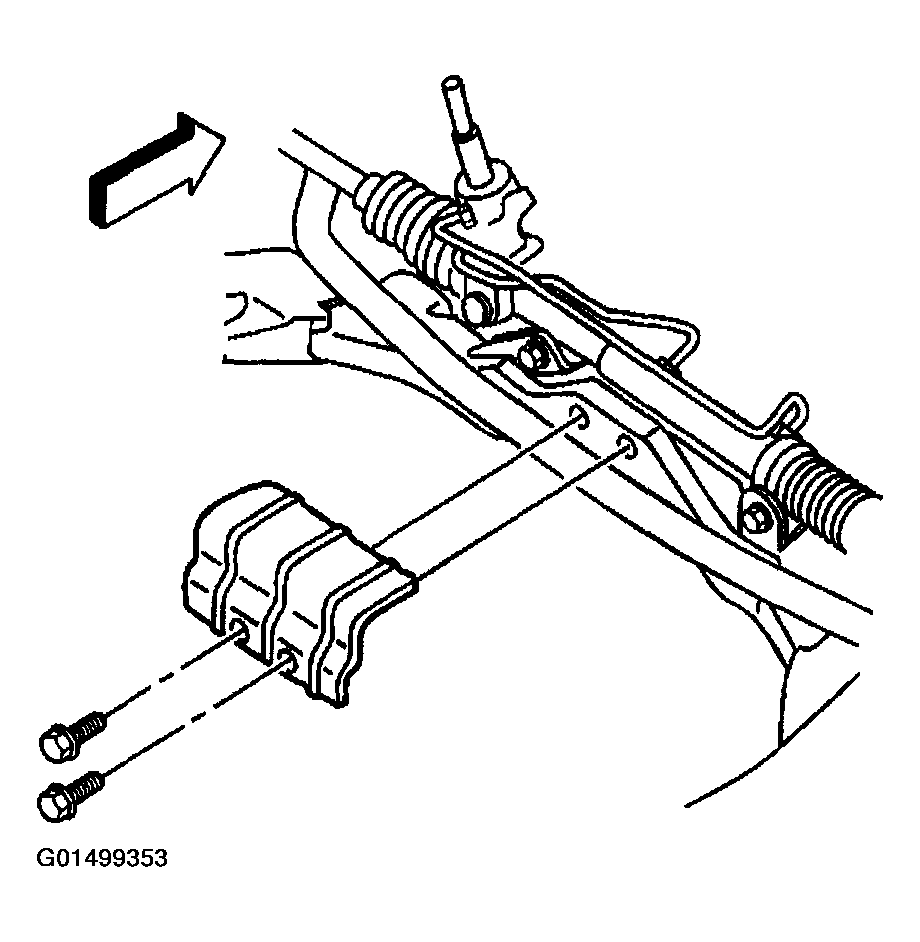

    Fig 1: Installing Steering Gear Heat Shield
    G01499353Courtesy of GENERAL MOTORS CORP.
  3. If the vehicle is equipped with all wheel drive, install the right side engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
  4. Lower the vehicle.
    Fig 2: Installing Right Side Engine Splash Shield
    G01499354Courtesy of GENERAL MOTORS CORP.
