Removal Procedure

  1. Remove the power steering pump from the engine for clearance. Refer to POWER STEERING PUMP REPLACEMENT  .
  2. Use the J 25034-C  in order to remove the pump pulley.

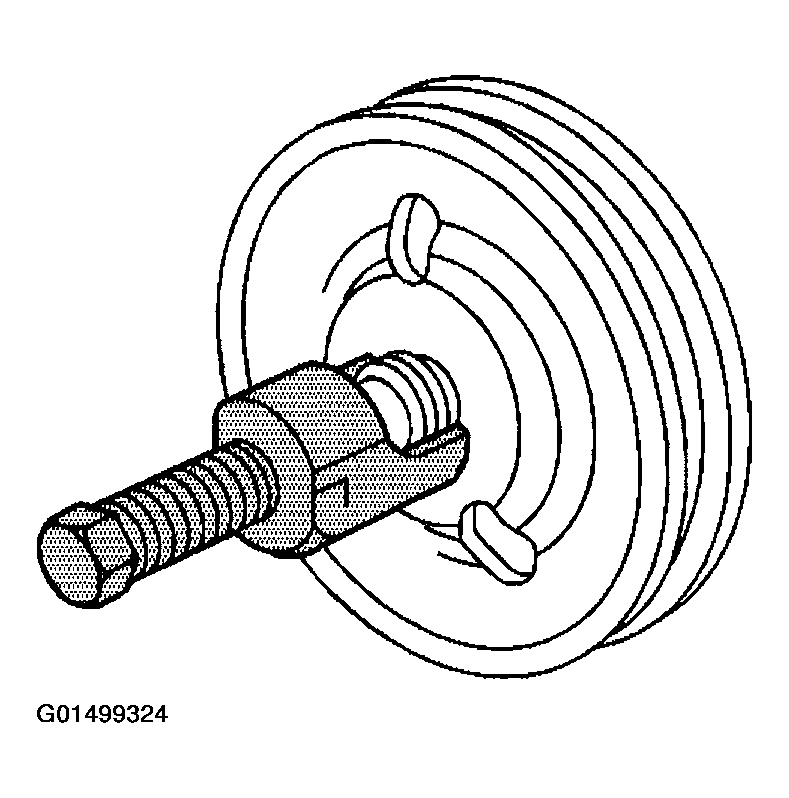

    Fig 1: Removing Power Steering Pump Pulley
    G01499324Courtesy of GENERAL MOTORS CORP.
