Removal Procedure

  1. Remove the wiring harness from the wiring harness retainer located on the power steering pump reservoir.
  2. Remove the accessory drive belt from the power steering pump pulley. Refer to DRIVE BELT REPLACEMENT .
  3. Remove the power steering pressure hose from the power steering pump.

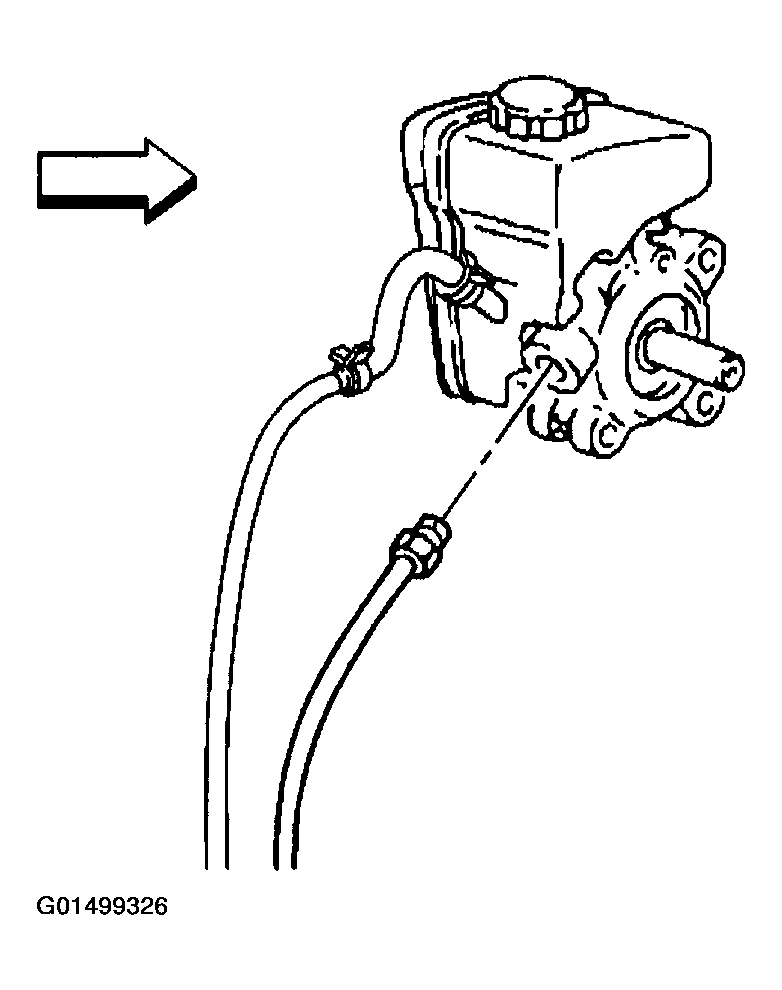

    Fig 1: Removing Power Steering Pressure Hose From Power Steering Pump
    G01499326Courtesy of GENERAL MOTORS CORP.
  4. Remove the power steering return hose from the power steering pump.

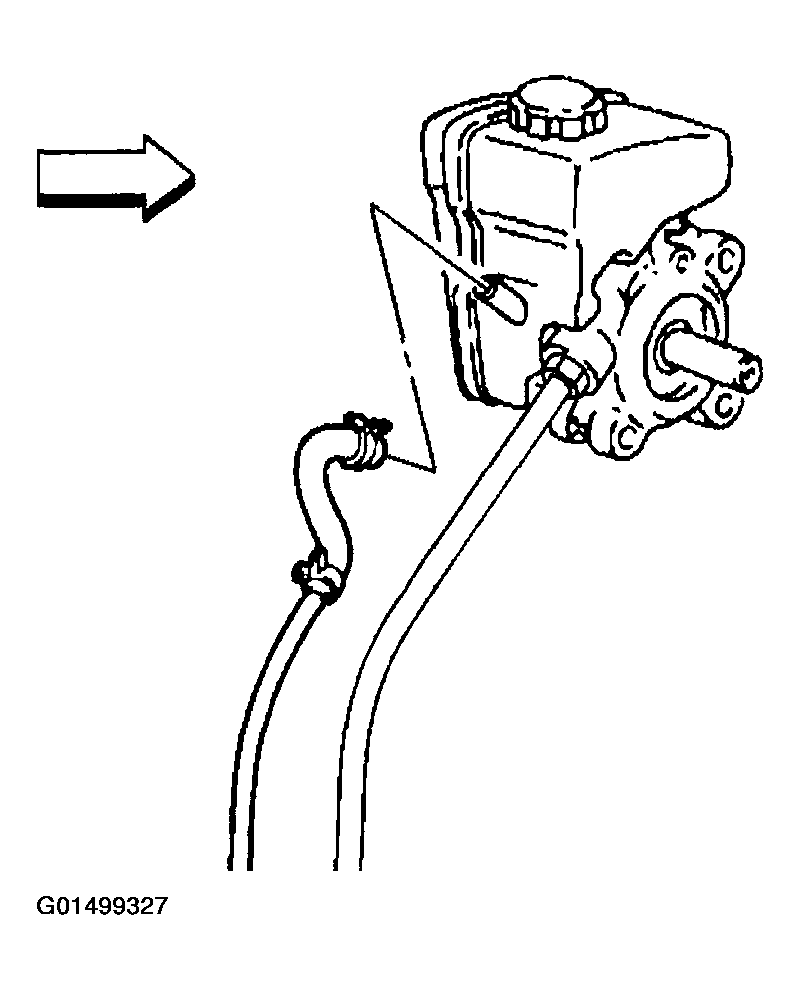

    Fig 2: Removing Power Steering Return Hose From Power Steering Pump
    G01499327Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump mounting bolts from the power steering pump.
  6. Remove the power steering pump from the vehicle.
  7. Remove the power steering pump pulley from the pump. Refer to POWER STEERING PULLEY REPLACEMENT  .
  8. Remove the power steering pump reservoir from the power steering pump. Refer to Power Steering Reservoir Replacement - Off Vehicle (CB Series)  .

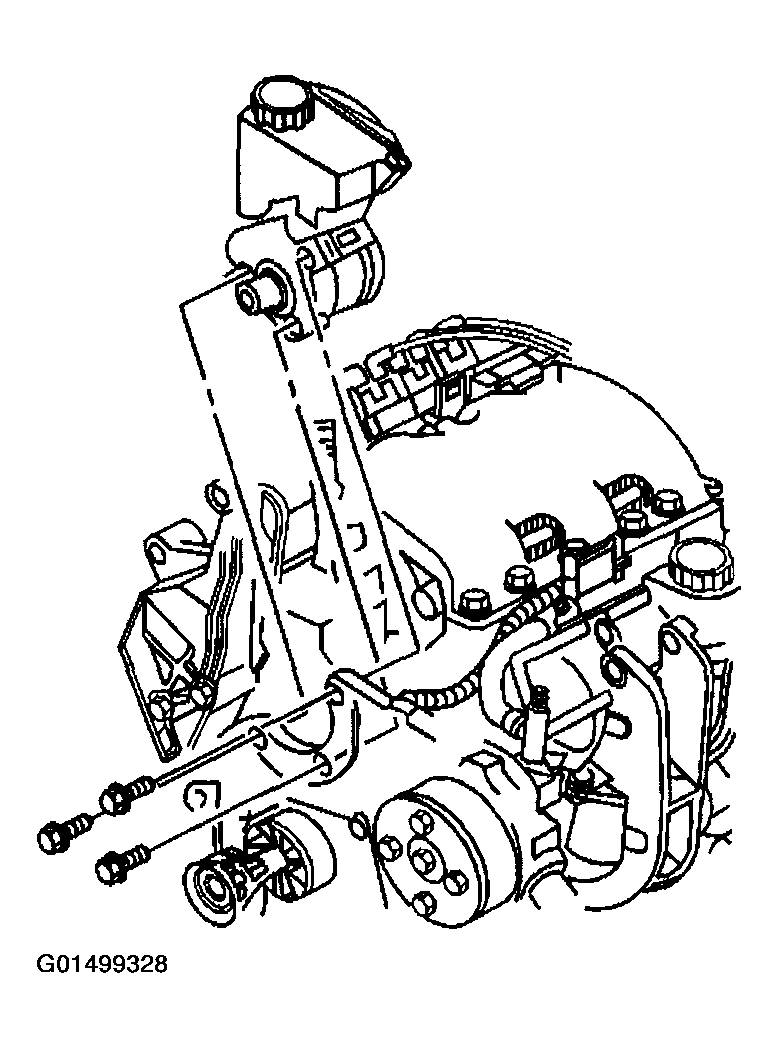

    Fig 3: Removing Power Steering Pump
    G01499328Courtesy of GENERAL MOTORS CORP.
