Front Toe Adjustment
- Remove the power steering gear seal small clamps.
- Ensure that the steering wheel is centered and the wheels are in the straight ahead position.

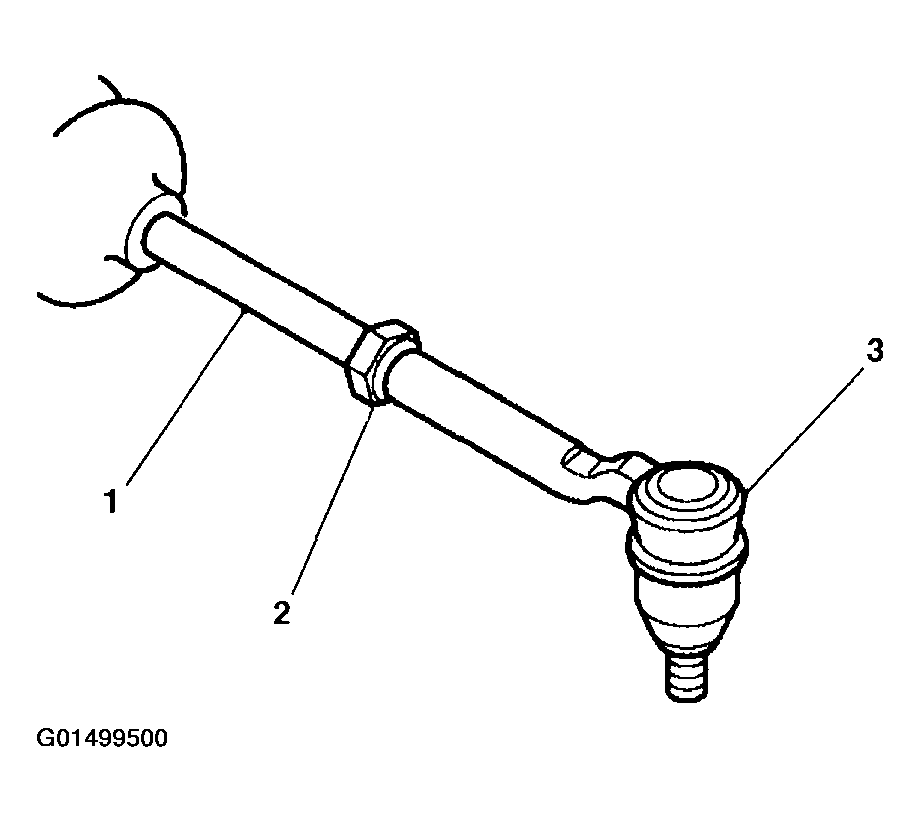

- Loosen the left and right tie rod jam nuts (2).
Important: Ensure that the number of threads showing on both inner tie rod ends are approximately equal.
- Rotate the inner tie rods in order to obtain the proper toe angle of 0 degrees.
- Install the tie rod end jam nuts.
Tighten
Tighten the left and right tie rod jam nuts (2) to 68 N.m (50 lb ft).
Important: Ensure the power steering gear seal is not twisted.
- Install the power steering gear seal small clamps.
