Oil Cooler Flow Test: Clean-up

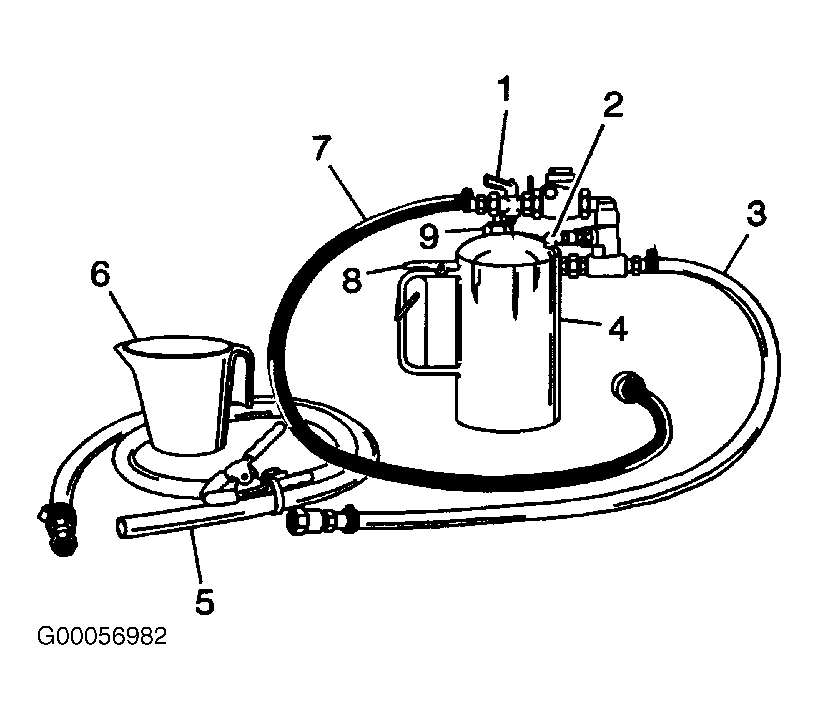

Disconnect the water supply hose (7) from the transmission oil cooler and line flusher and bleed any remaining air pressure from the flusher tank (4). See Figure . Remove the fill cap (9) from the transmission oil cooler and line flusher and return any unused flushing solution to its container. Rinse the transmission oil cooler and line flusher with water. DO NOT store the transmission oil cooler and line flusher with flushing solution in it. After every 3rd use, clean the transmission oil cooler and line flusher as described in the instructions included with the tool. Dispose of any waste water/solution and transmission fluid in accordance with local regulations.
