Forward Servo (AWD): Installation

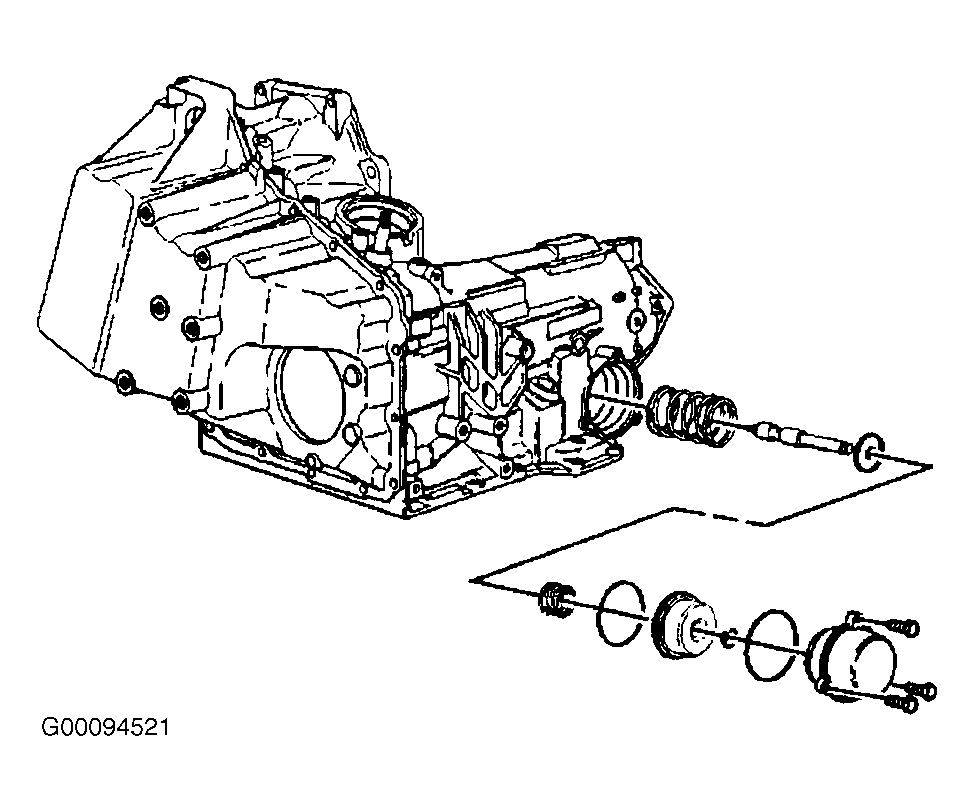

  1. Install the servo spring. See Figure .
  2. Install the servo piston assembly.
  3. Install the forward servo cover "O" ring.
  4. Install the forward servo cover.
  5. Install the transfer case. See appropriate OVERHAUL article.
  6. Install the transaxle. See appropriate OVERHAUL article.
