Center Console - Pontiac

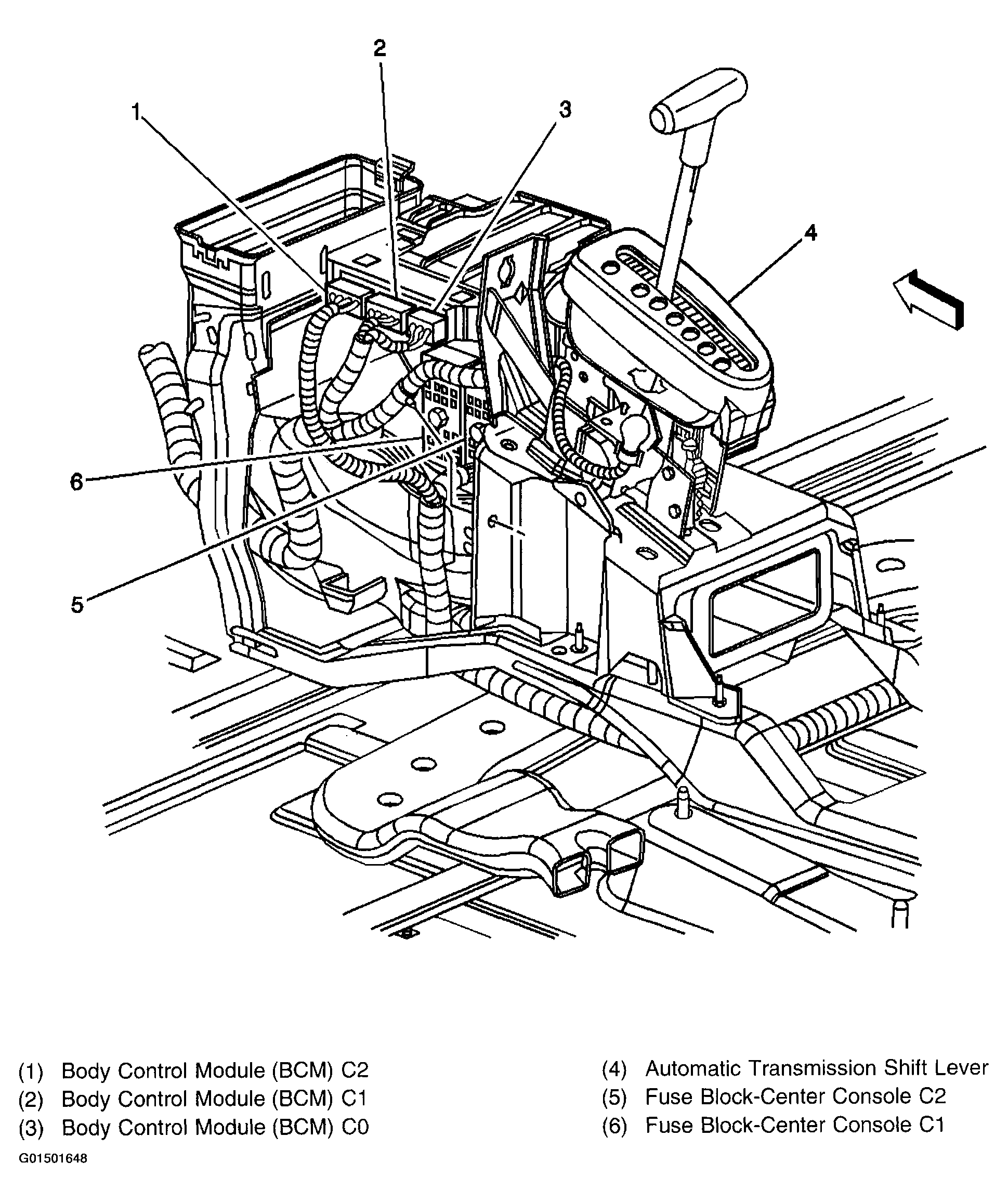

Fig 1: Locating Components On Center Console - Pontiac
G01501648Courtesy of GENERAL MOTORS CORP.
