A/T Shift Lock Control Solenoid - Buick

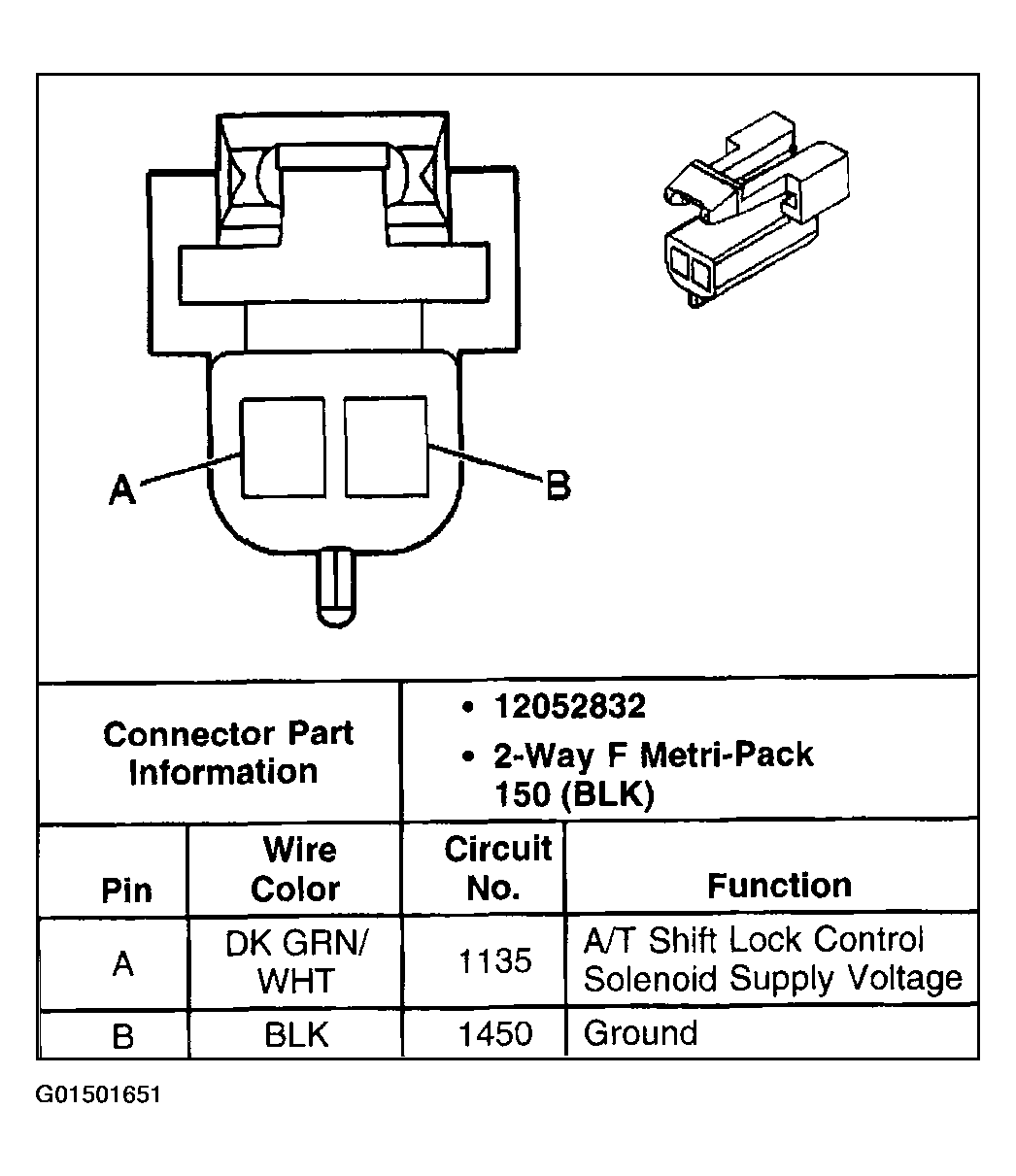

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector - Buick
G01501651Courtesy of GENERAL MOTORS CORP.
