Automatic Transmission Shift Lock Control Schematics (Buick)

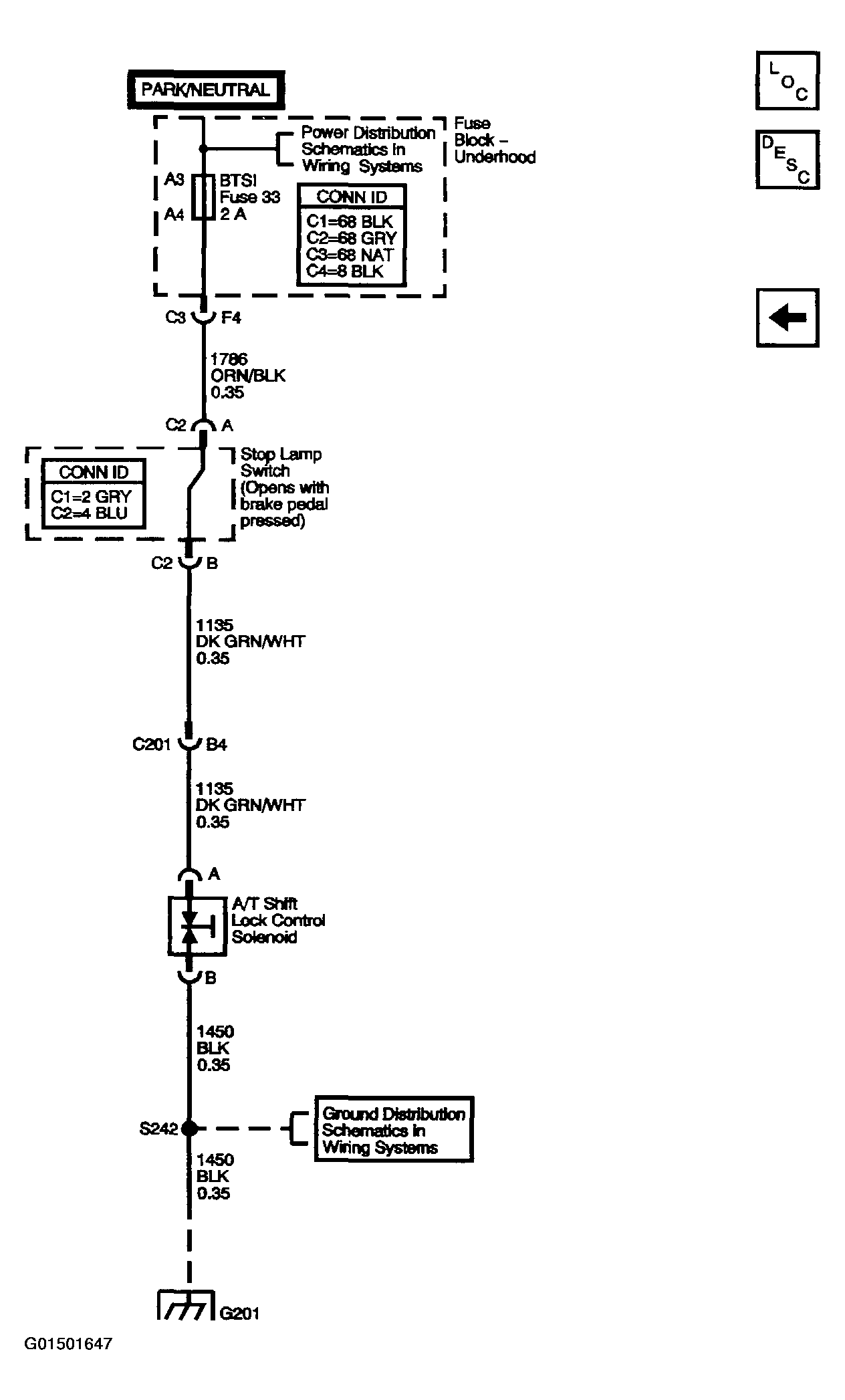

Fig 1: Automatic Transmission Shift Lock Control Schematics (Buick)
G01501647Courtesy of GENERAL MOTORS CORP.
