Automatic Transmission Shift Lock Control Schematics (Pontiac)

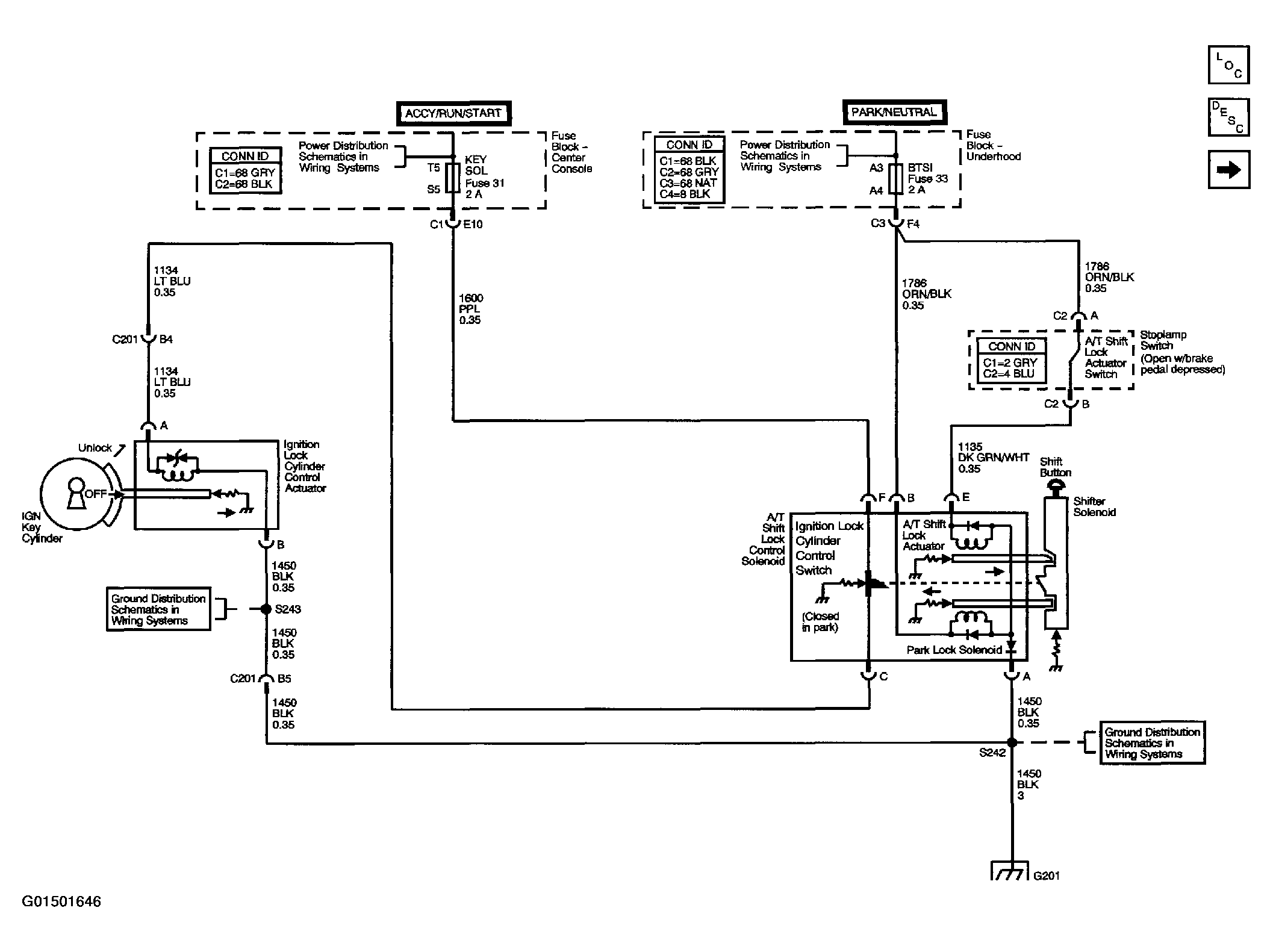

Fig 1: Automatic Transmission Shift Lock Control Schematics (Pontiac)
G01501646Courtesy of GENERAL MOTORS CORP.
