Removal Procedure

  1. Raise and support the vehicle.
  2. Disconnect the electrical connector from the speed sensor.
  3. Remove the speed sensor/vent hose bolt (3) from the transfer case.
  4. Reposition the pinion housing vent hose (2) and mounting bracket away from the speed sensor bolt boss.

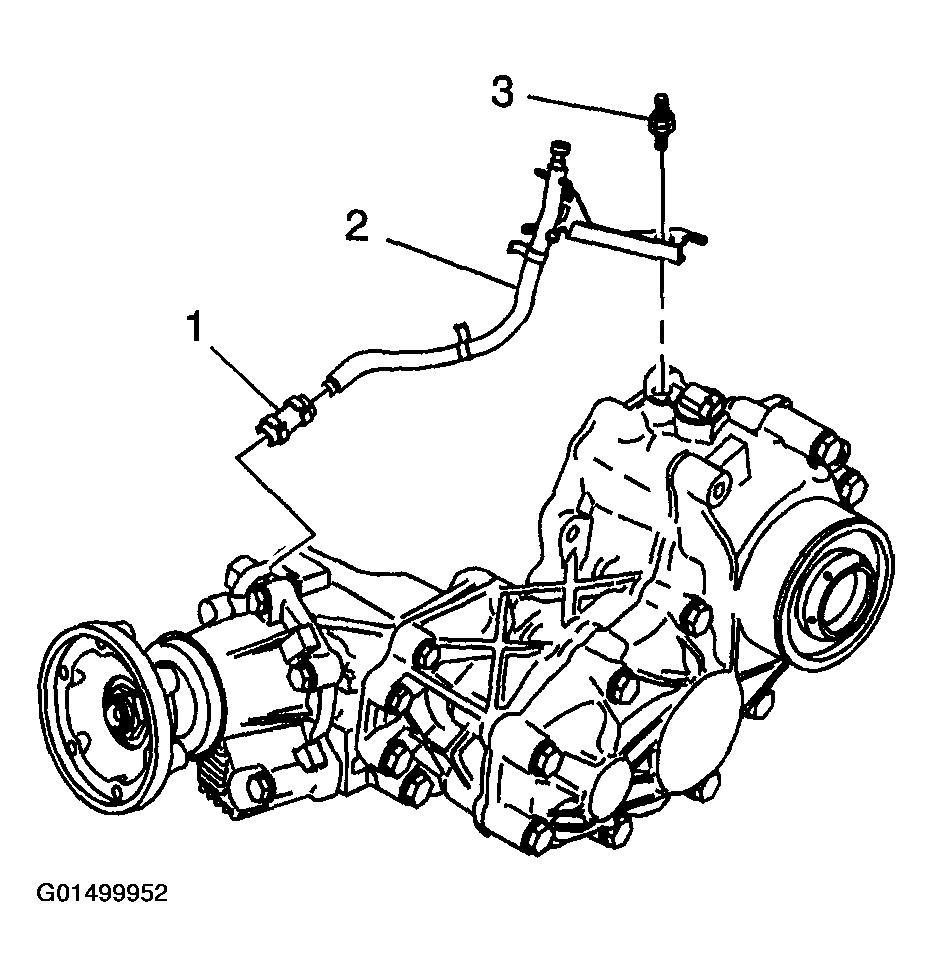

    Fig 1: Identifying Pinion Housing Vent Hose, Mounting Bracket & Speed Sensor Bolt
    G01499952Courtesy of GENERAL MOTORS CORP.
  5. Remove the speed sensor (1).
  6. Remove O-ring from the speed sensor, if necessary. The O-ring may be reused if it is not cut or damaged.

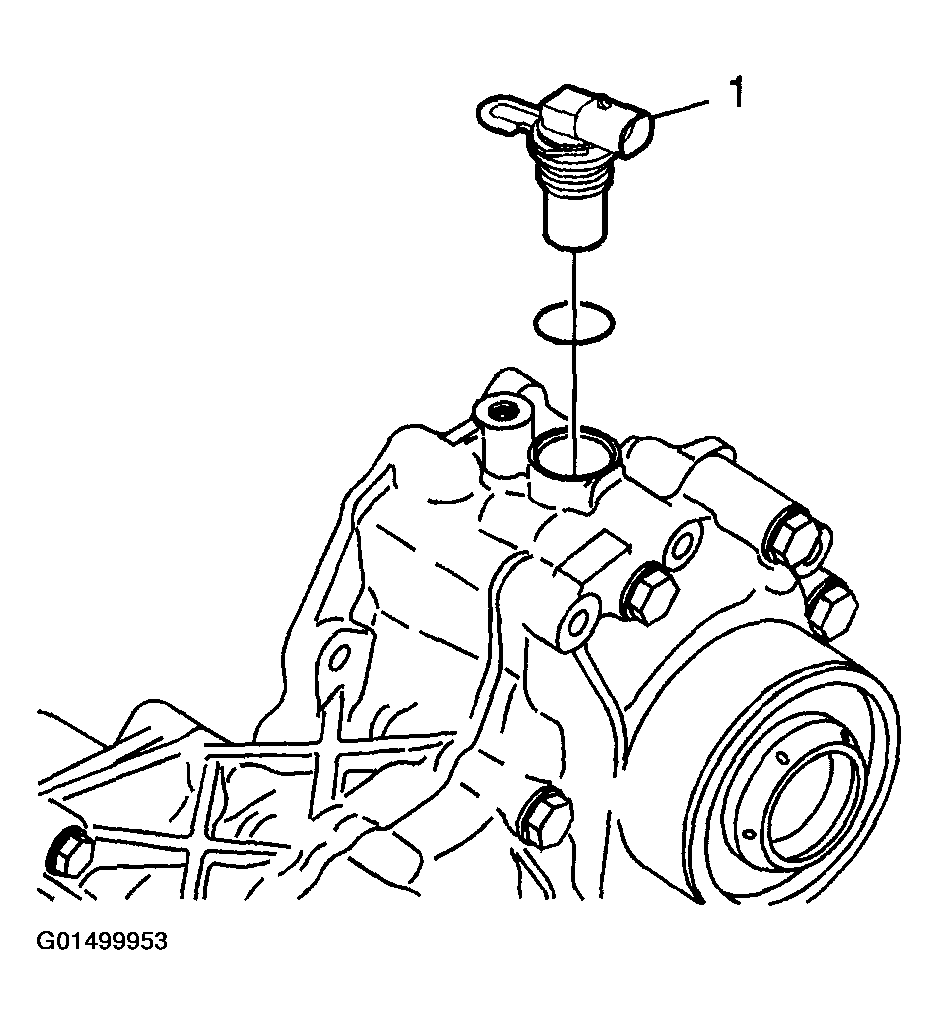

    Fig 2: Removing Speed Sensor
    G01499953Courtesy of GENERAL MOTORS CORP.
