Installation Procedure

Important:  Align the BCM to the console accessory wiring junction block.

1. Install the BCM (1) onto the console accessory wiring junction block.
2. Rotate the BCM retaining lever (2) to secure the BCM to the console accessory wiring junction block.
3. Install the console accessory wiring junction block. Refer to CONSOLE ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
4. Connect the negative battery cable.
5. Perform the new BCM setup. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION  .

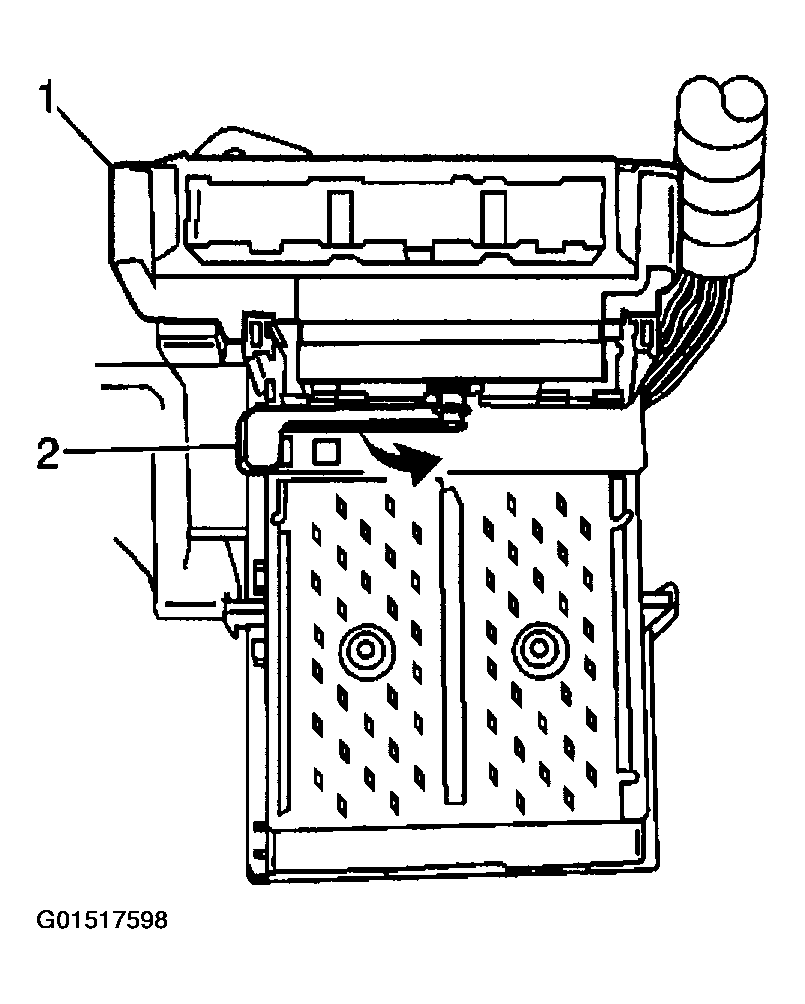

   Fig 1: Rotating Body Control Module Retaining Lever For Securing

   Courtesy of GENERAL MOTORS CORP.
