Engine Coolant Temperature Sensor

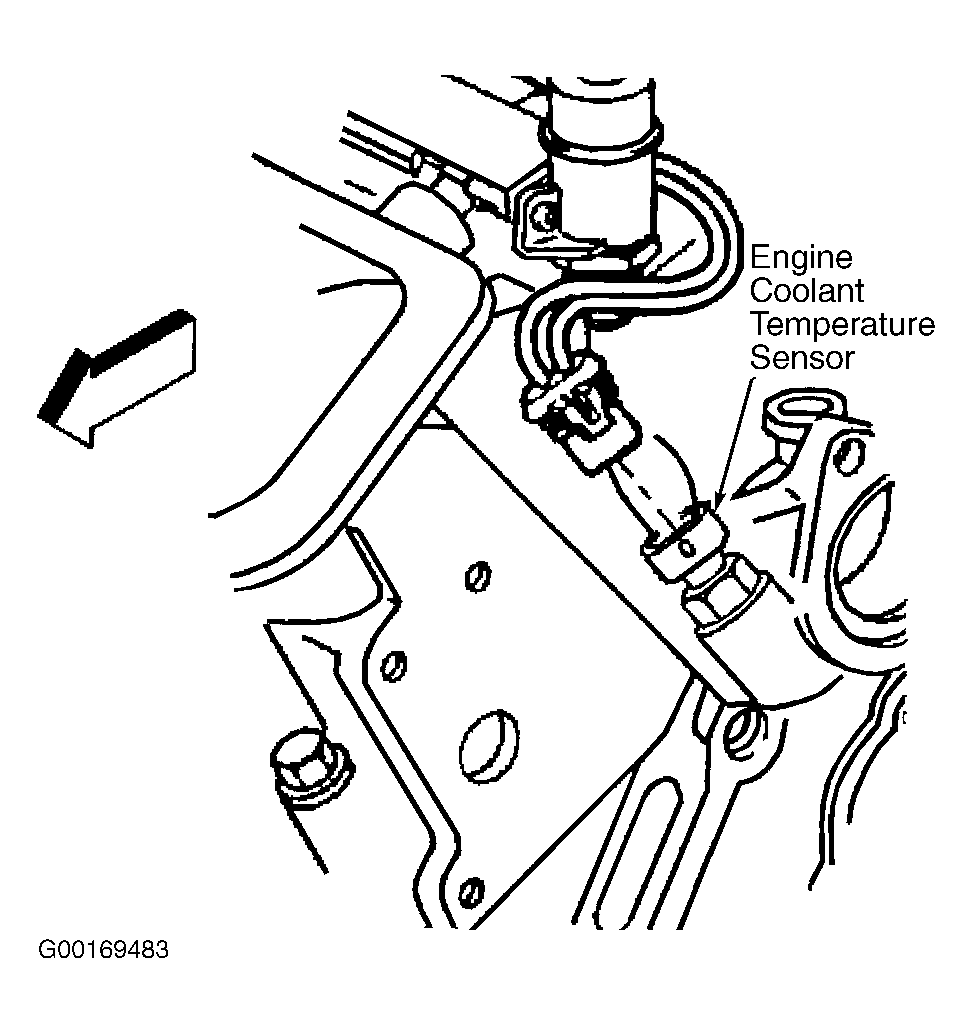

The Engine Coolant Temperature (ECT) sensor is a thermistor (temperature sensitive resistor) located in an engine coolant passage, near thermostat housing. See Fig 1 . The PCM supplies and monitors a 5-volt signal to ECT sensor. This monitored 5-volt signal is then modified by resistance of the ECT sensor. When coolant temperatures are low, ECT sensor resistance is high and the PCM sees a high monitored voltage signal. When coolant temperatures are high, ECT sensor resistance is low and the PCM sees a low monitored voltage. When fully warmed, ECT sensor should reflect a temperature of at least 185°F (85°C).
Coolant temperature input is used in the control of fuel delivery, ignition timing, idle speed, emission control devices and Torque Converter Clutch (TCC) application. An ECT sensor which is out of calibration will not set a DTC, but can cause fuel delivery and driveability problems. An ECT sensor circuit problem should set a related DTC.
