Removal Procedure

Important:  When replacing the height sensor a diagnostic system check must be performed.

1. Raise and support the vehicle.
2. Remove the automatic level control sensor electrical connector (1).
3. Remove the automatic level control sensor link from the ball stud.

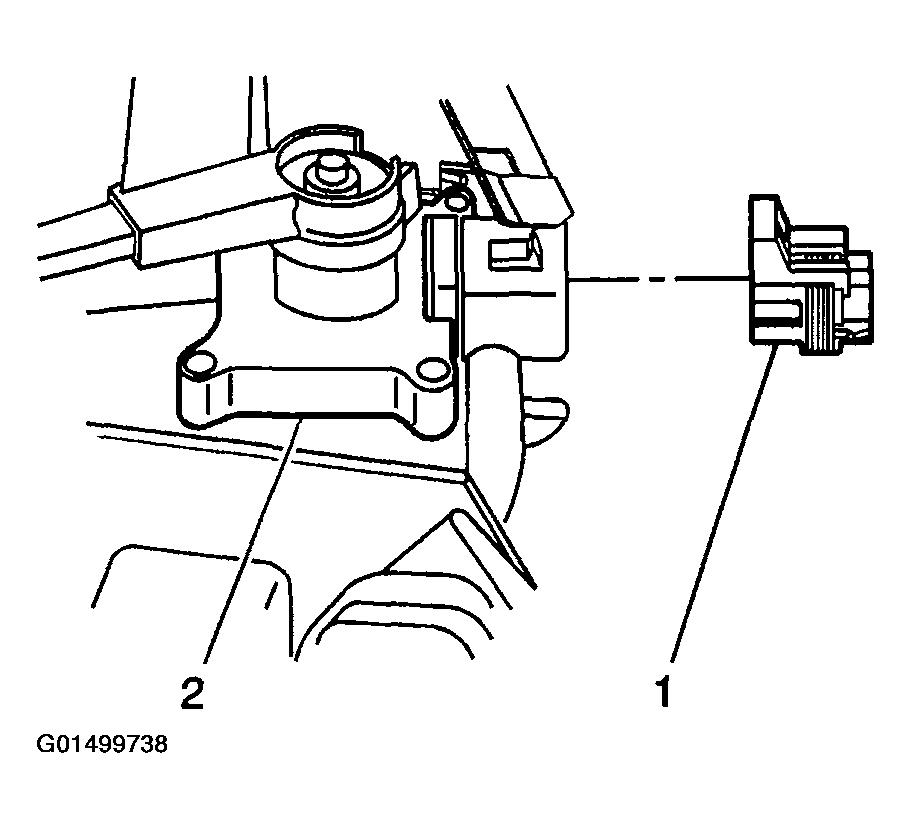

   Fig 1: Removing Automatic Level Control Sensor Electrical Connector

   Courtesy of GENERAL MOTORS CORP.
4. Remove the automatic level control height sensor bracket bolts (1).
5. Remove the automatic level control height sensor with the bracket from the vehicle.
6. Remove the automatic level control height sensor link from the height sensor arm.

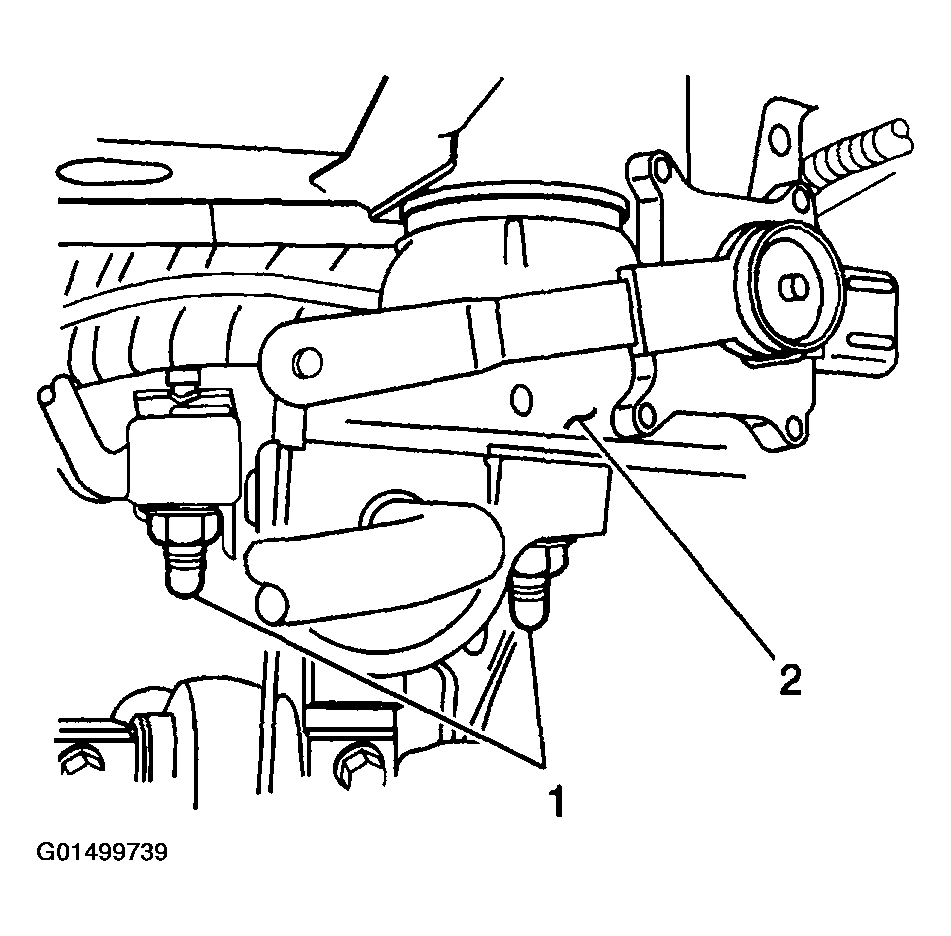

   Fig 2: Removing Automatic Level Control Height Sensor Bracket Bolts

   Courtesy of GENERAL MOTORS CORP.
