Test Description

The number below refers to the step number on the diagnostic table.

16. B+ voltage should be present on the serial data terminal when tested with a DMM, but should not illuminate the test lamp. An illuminated test lamp indicates a short to voltage in the serial data circuit.

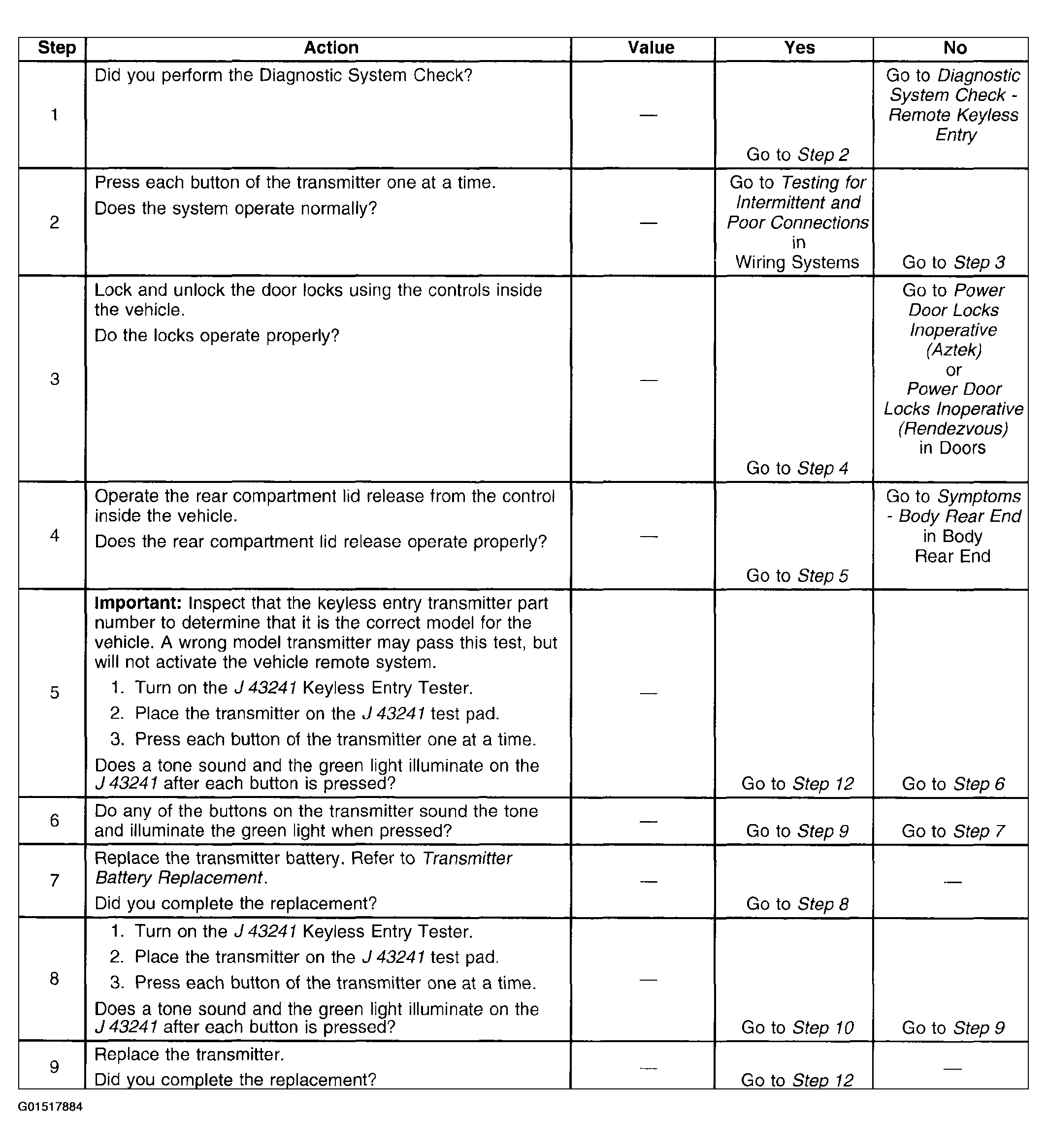

Fig 1: Keyless Entry System Inoperative Diagnosis (Steps 1-9)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Keyless Entry System Inoperative Diagnosis (Steps 10-20)

Courtesy of GENERAL MOTORS CORP.

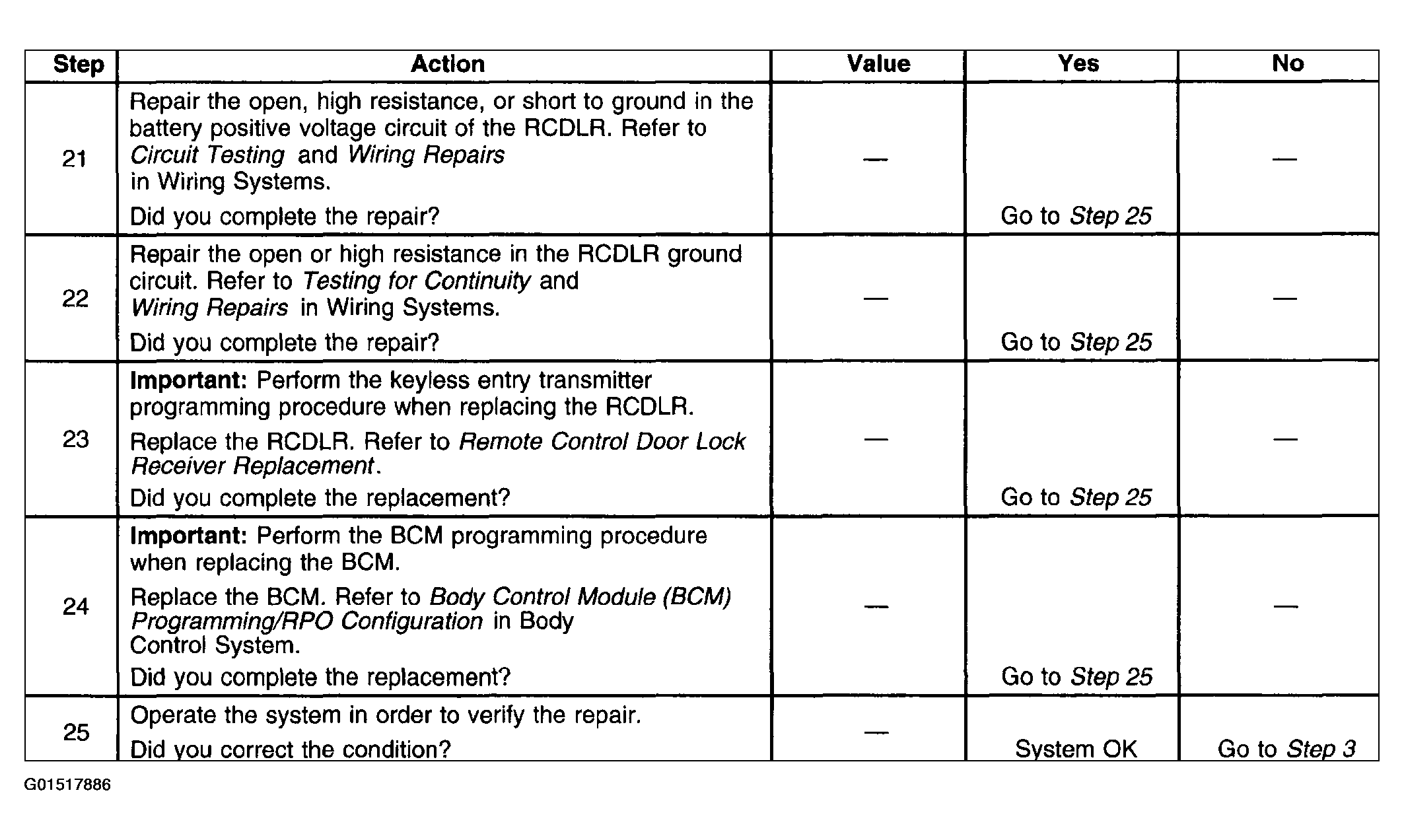

Fig 3: Keyless Entry System Inoperative Diagnosis (Steps 21-25)

Courtesy of GENERAL MOTORS CORP.
