Power Door Systems Connector End Views

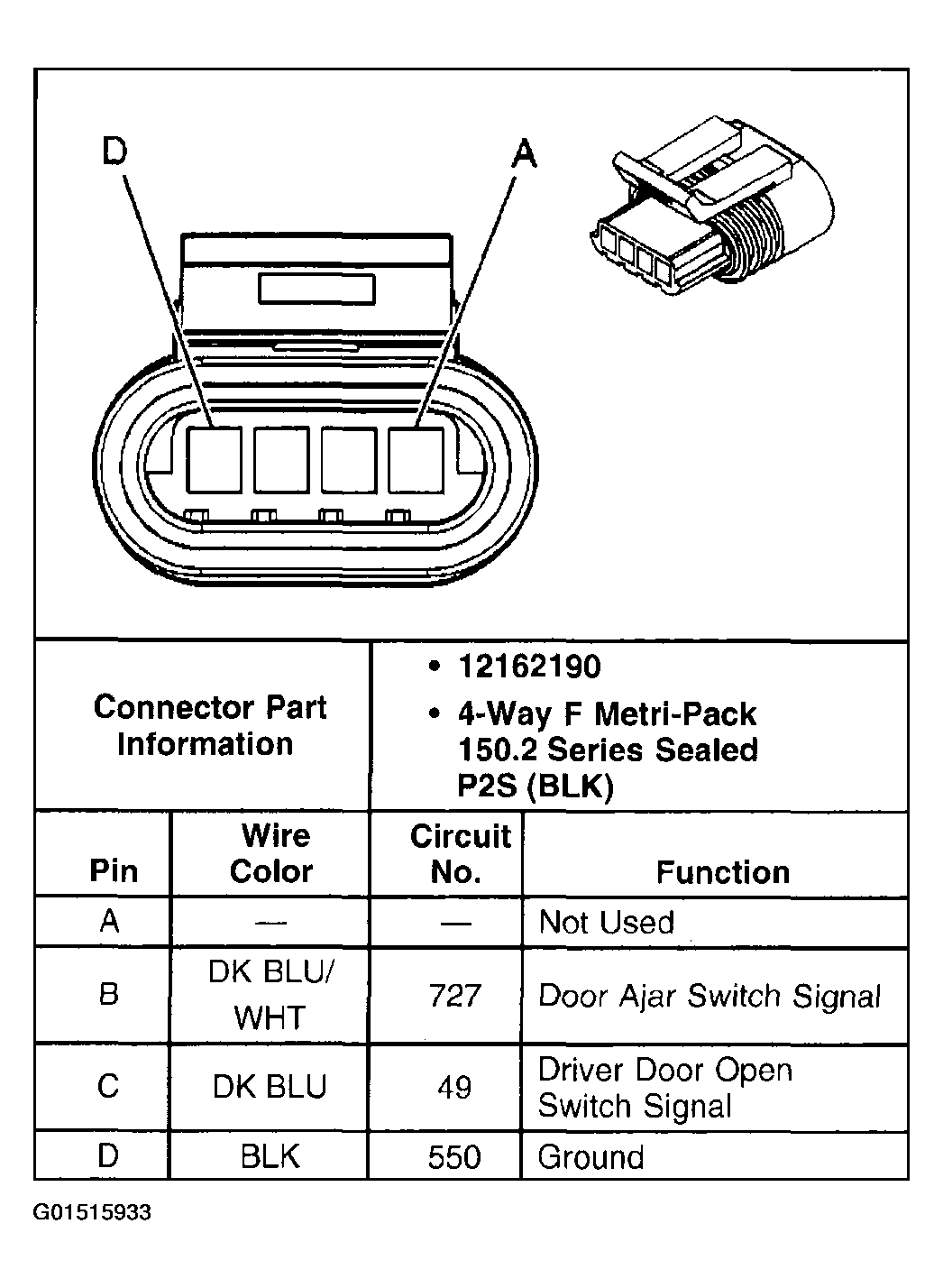

Fig 1: Identifying Driver Door Latch Connector Pins
G01515933Courtesy of GENERAL MOTORS CORP.

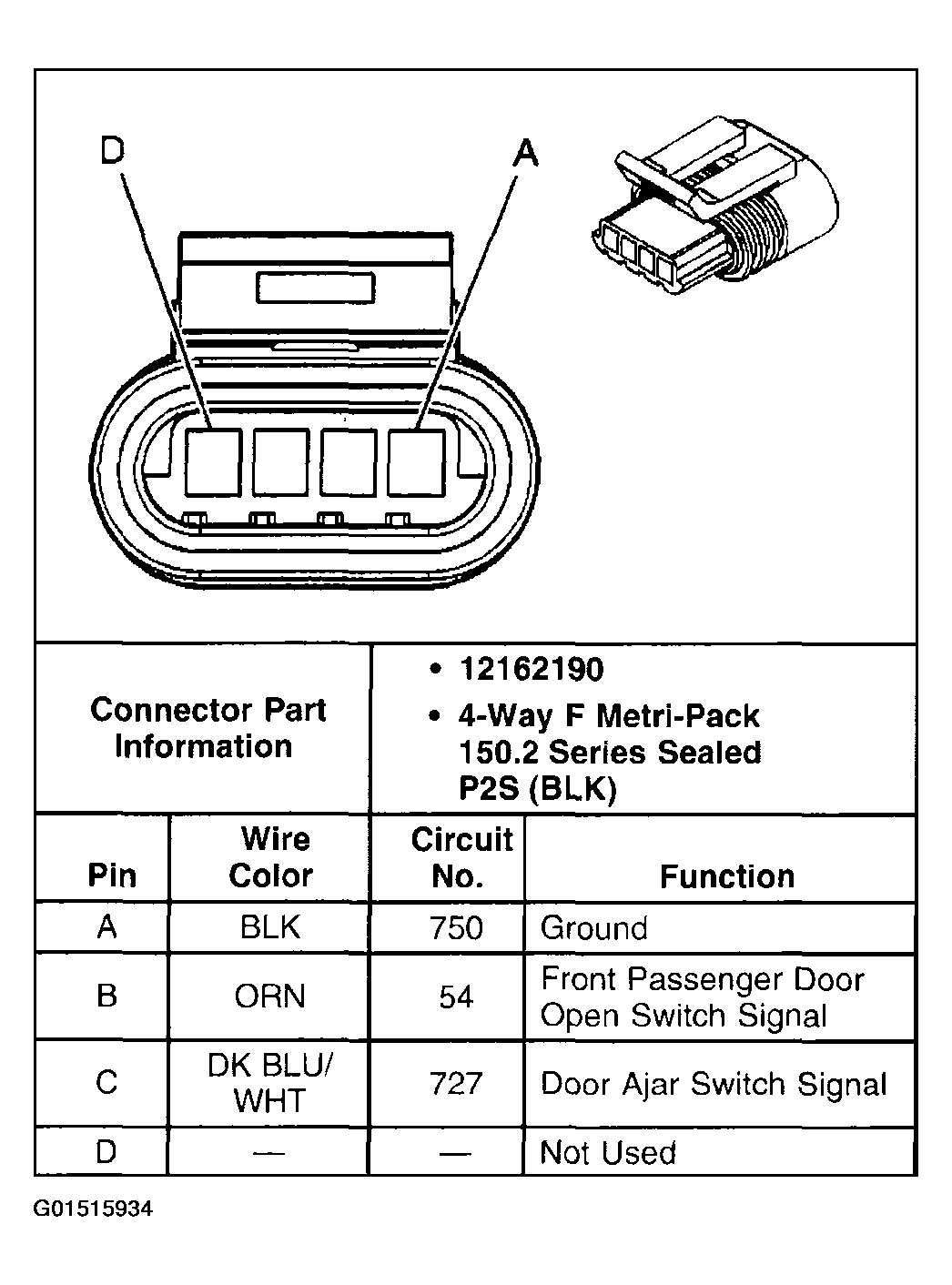

Fig 2: Identifying Front Passenger Door Latch Connector Pins
G01515934Courtesy of GENERAL MOTORS CORP.

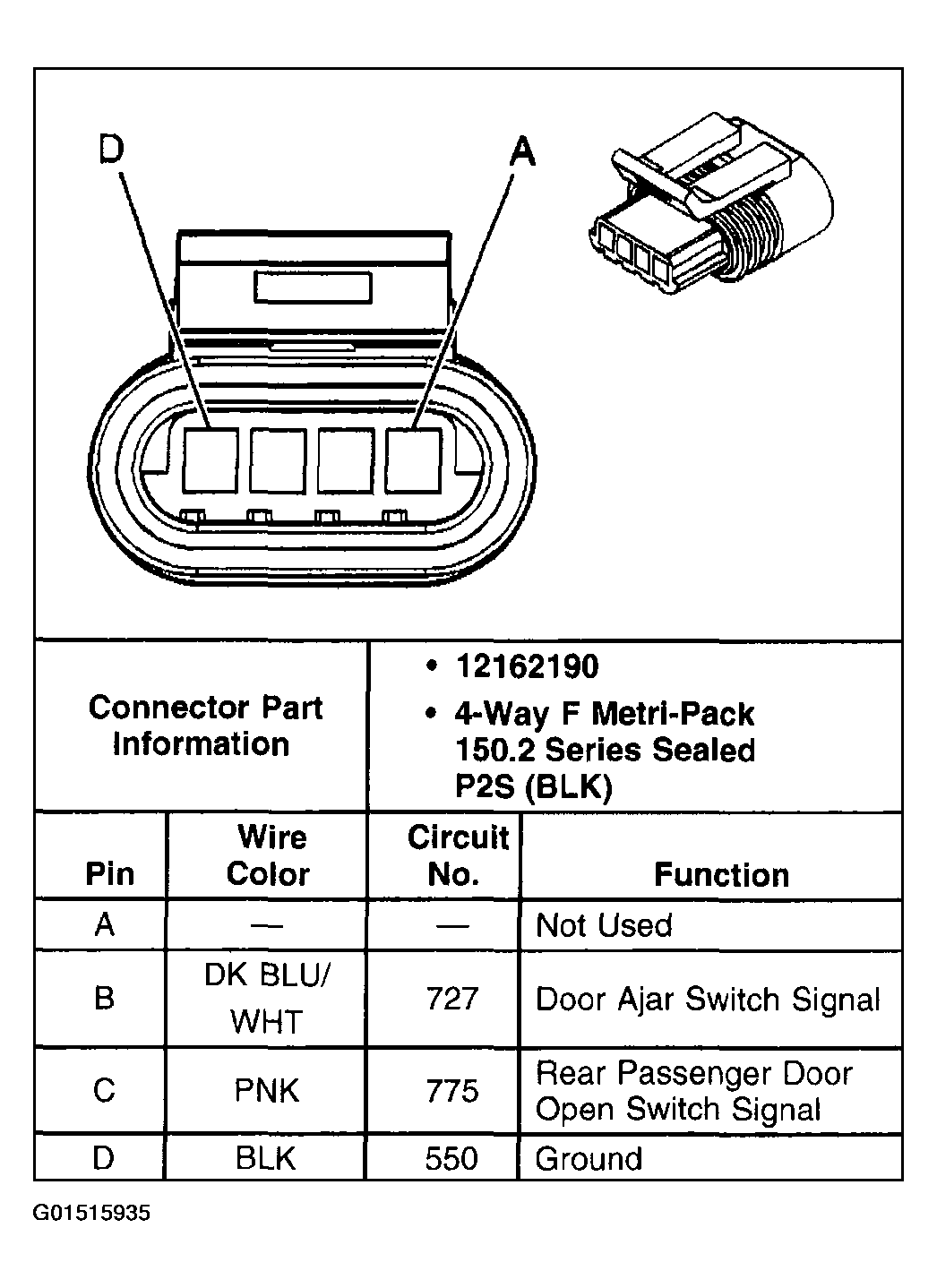

Fig 3: Identifying LR Door Latch Connector Pins
G01515935Courtesy of GENERAL MOTORS CORP.

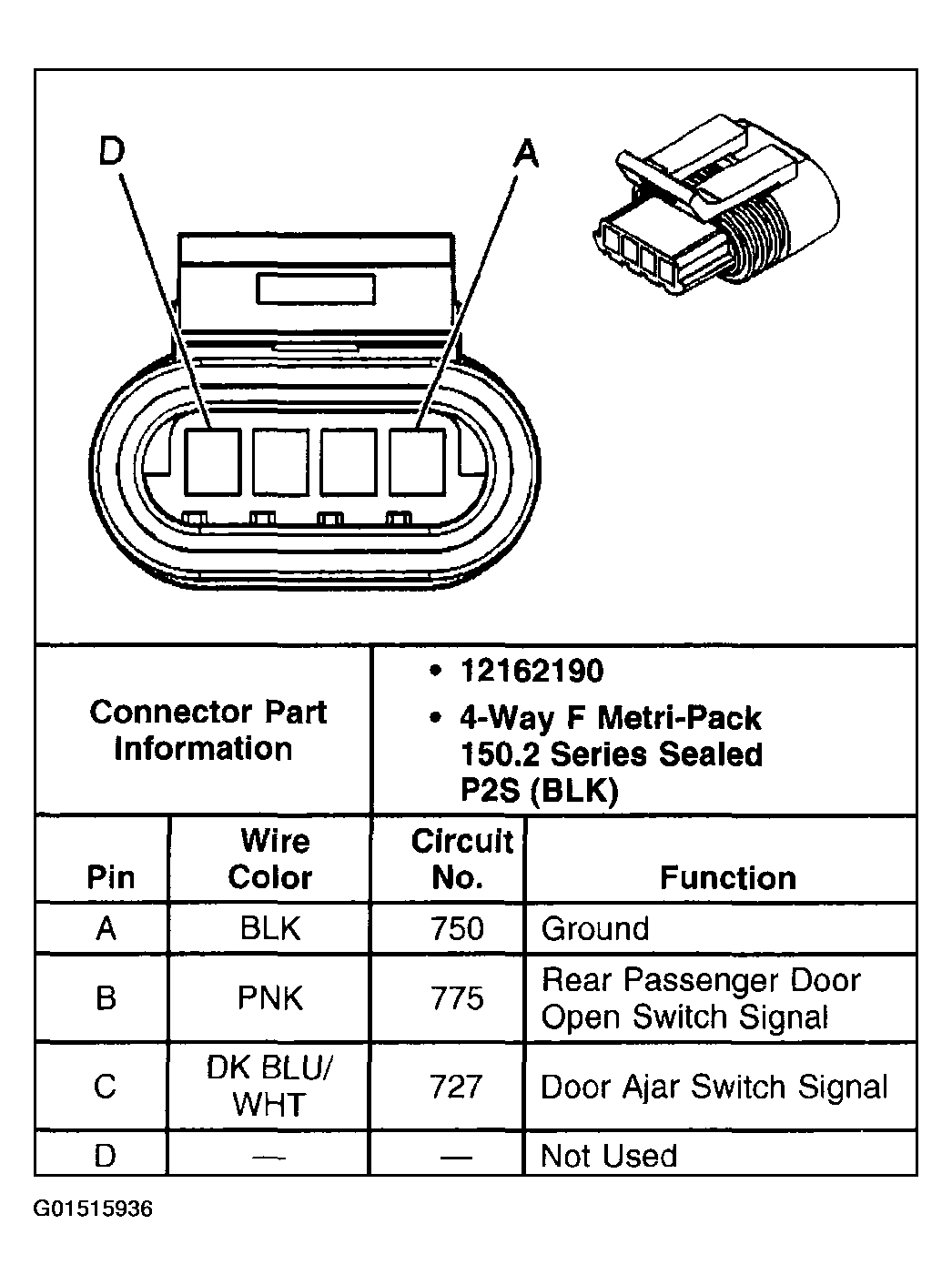

Fig 4: Identifying RR Door Latch Connector Pins
G01515936Courtesy of GENERAL MOTORS CORP.

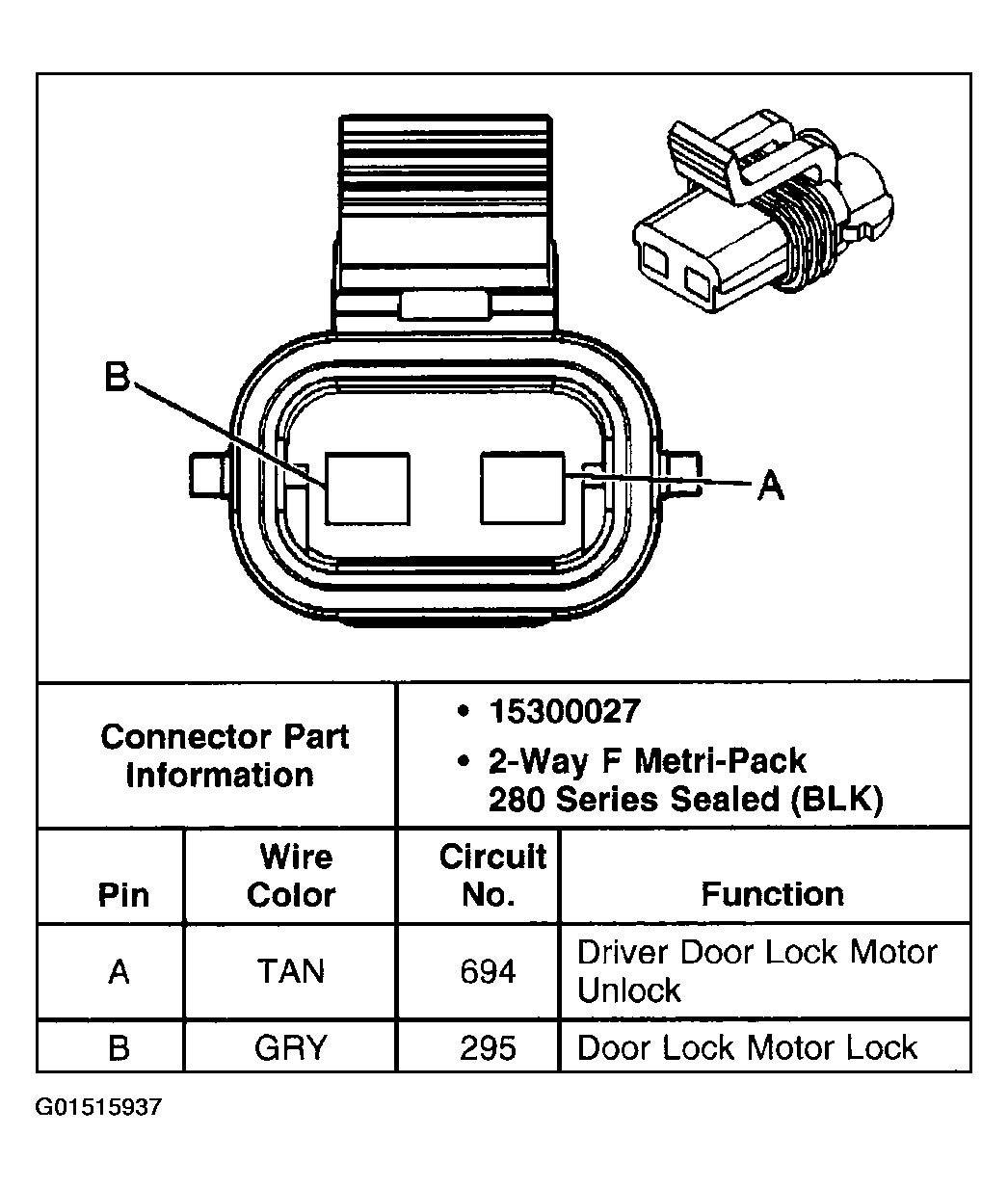

Fig 5: Identifying Driver Door Lock Actuator Connector Pins
G01515937Courtesy of GENERAL MOTORS CORP.

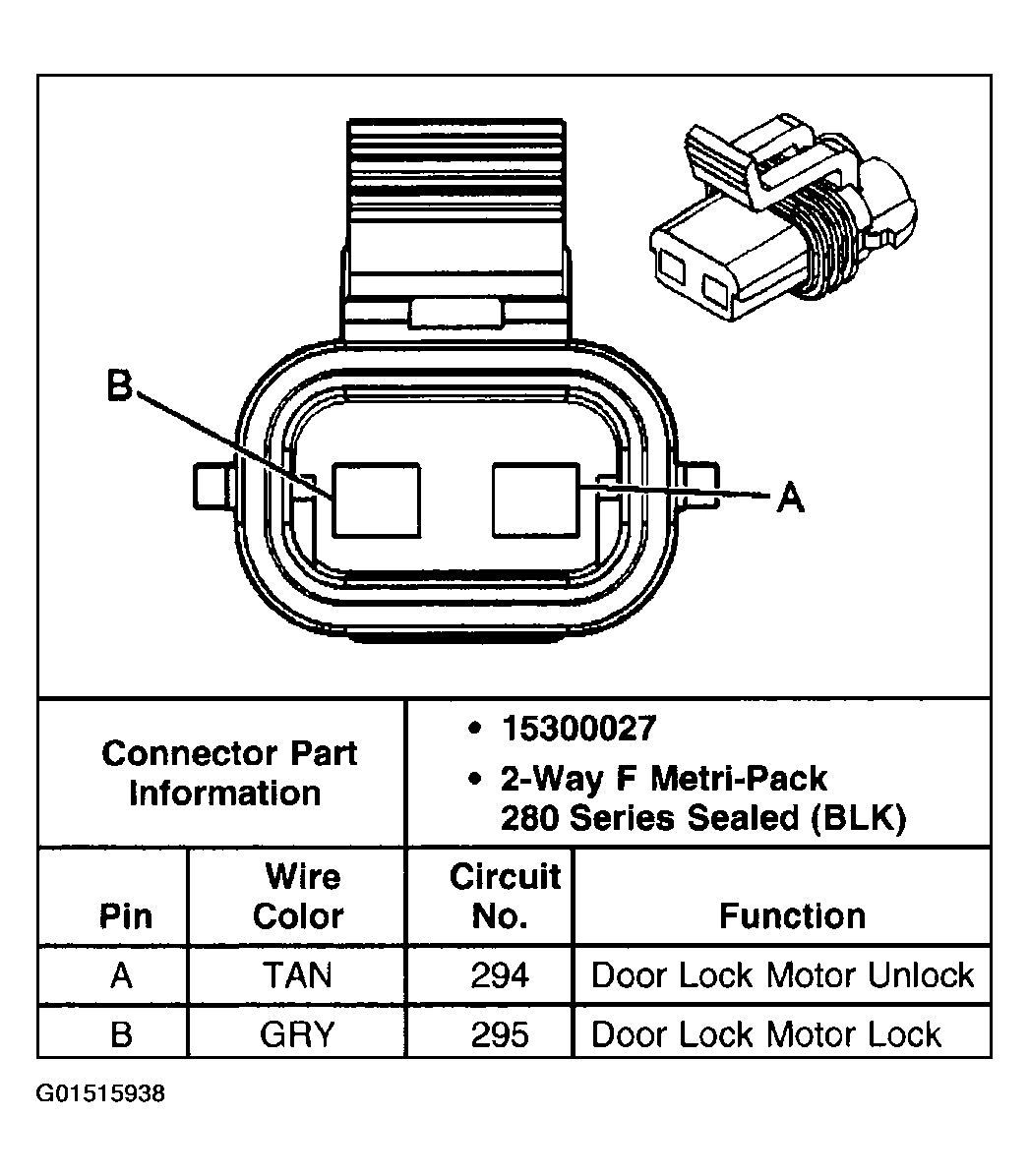

Fig 6: Identifying LR Door Lock Actuator Connector Pins
G01515938Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Front Passenger Door Lock Actuator Connector Pins
G01515939Courtesy of GENERAL MOTORS CORP.

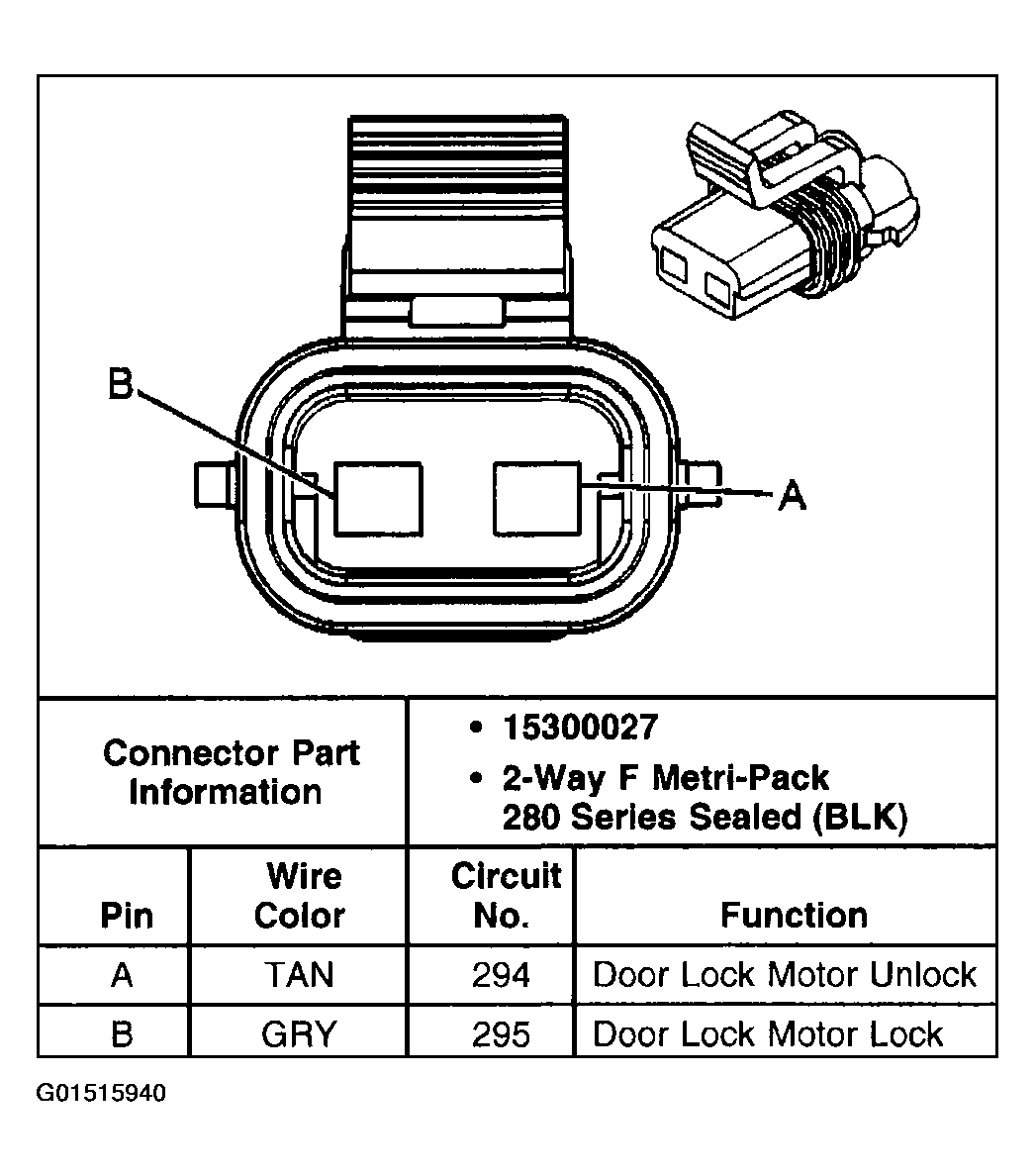

Fig 8: Identifying RR Door Lock Actuator Connector Pins
G01515940Courtesy of GENERAL MOTORS CORP.

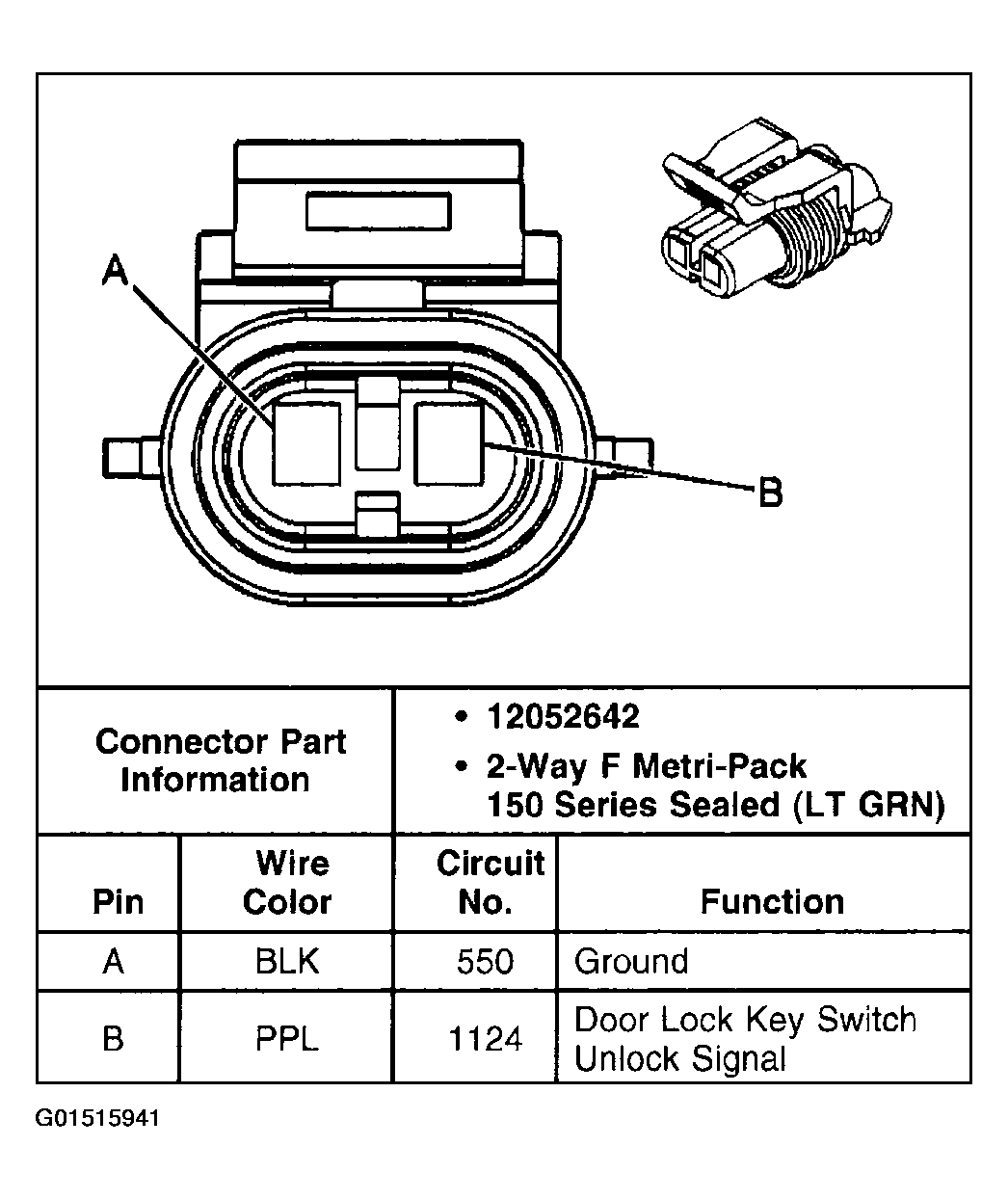

Fig 9: Identifying Driver Door Lock Cylinder Switch Connector Pins
G01515941Courtesy of GENERAL MOTORS CORP.

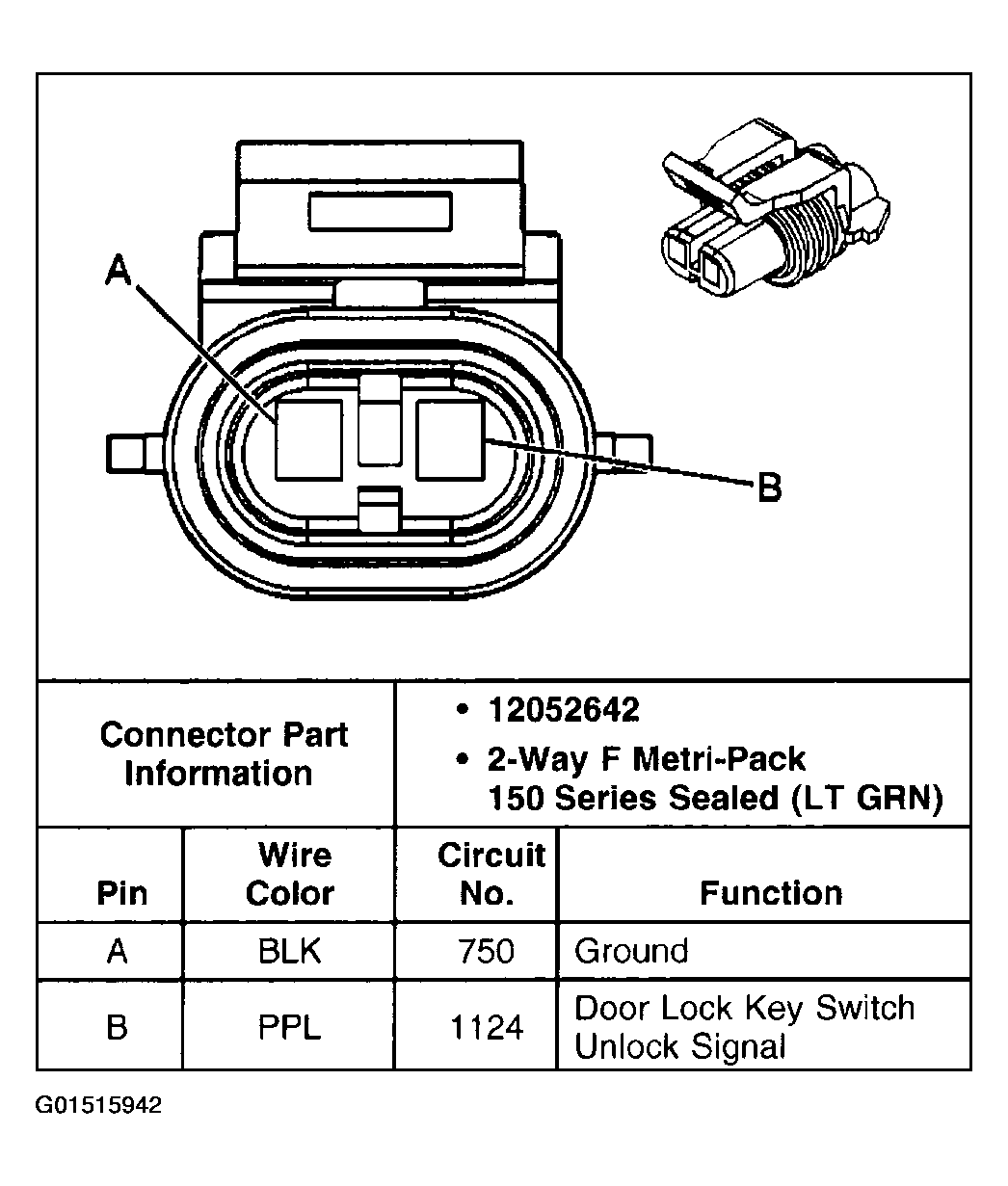

Fig 10: Identifying Front Passenger Door Lock Cylinder Switch Connector Pins
G01515942Courtesy of GENERAL MOTORS CORP.

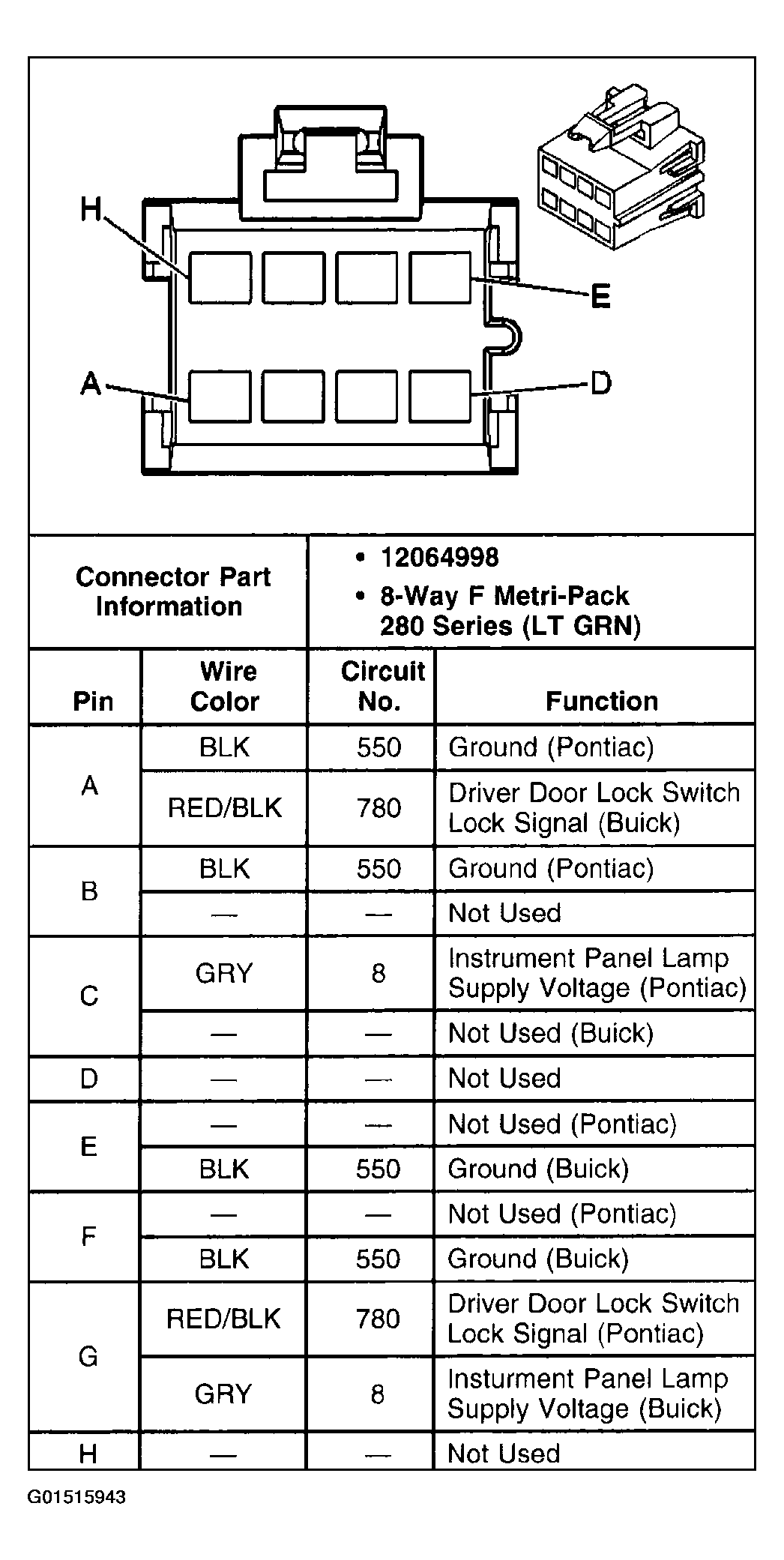

Fig 11: Identifying Driver Door Lock Switch Connector Pins
G01515943Courtesy of GENERAL MOTORS CORP.

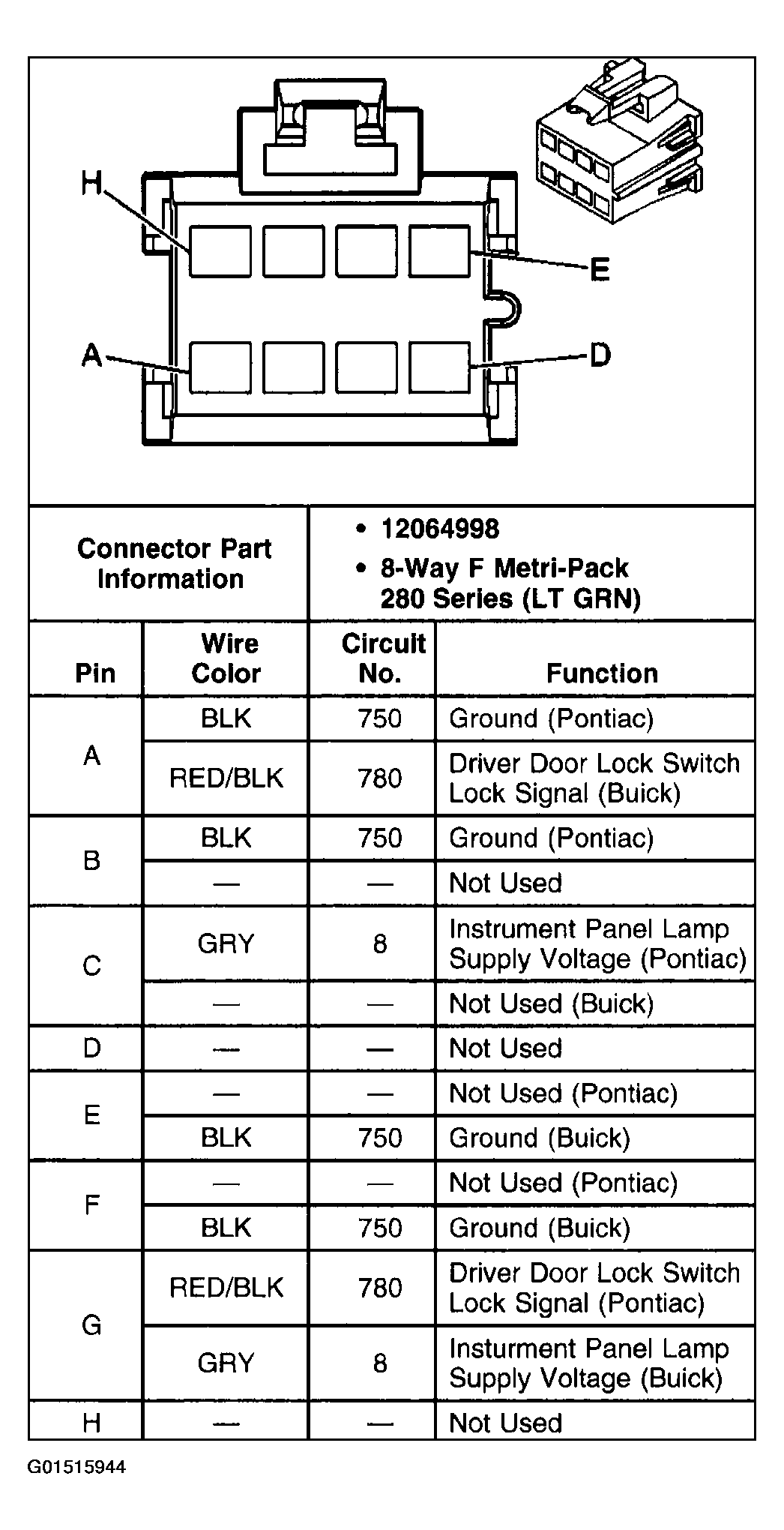

Fig 12: Identifying Front Passenger Door Lock Switch Connector Pins
G01515944Courtesy of GENERAL MOTORS CORP.

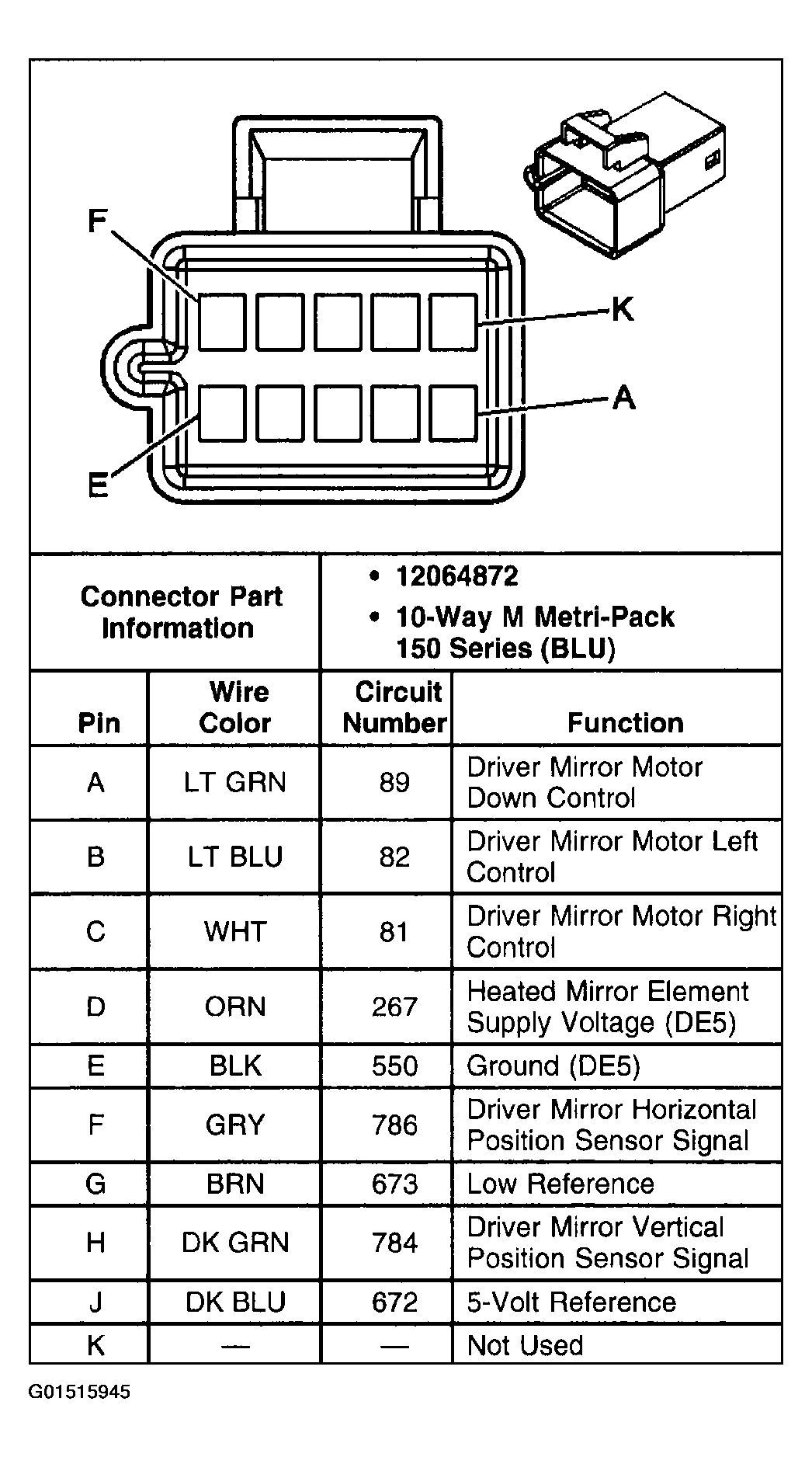

Fig 13: Identifying Driver (A43) Outside Rearview Mirror Connector Pins
G01515945Courtesy of GENERAL MOTORS CORP.

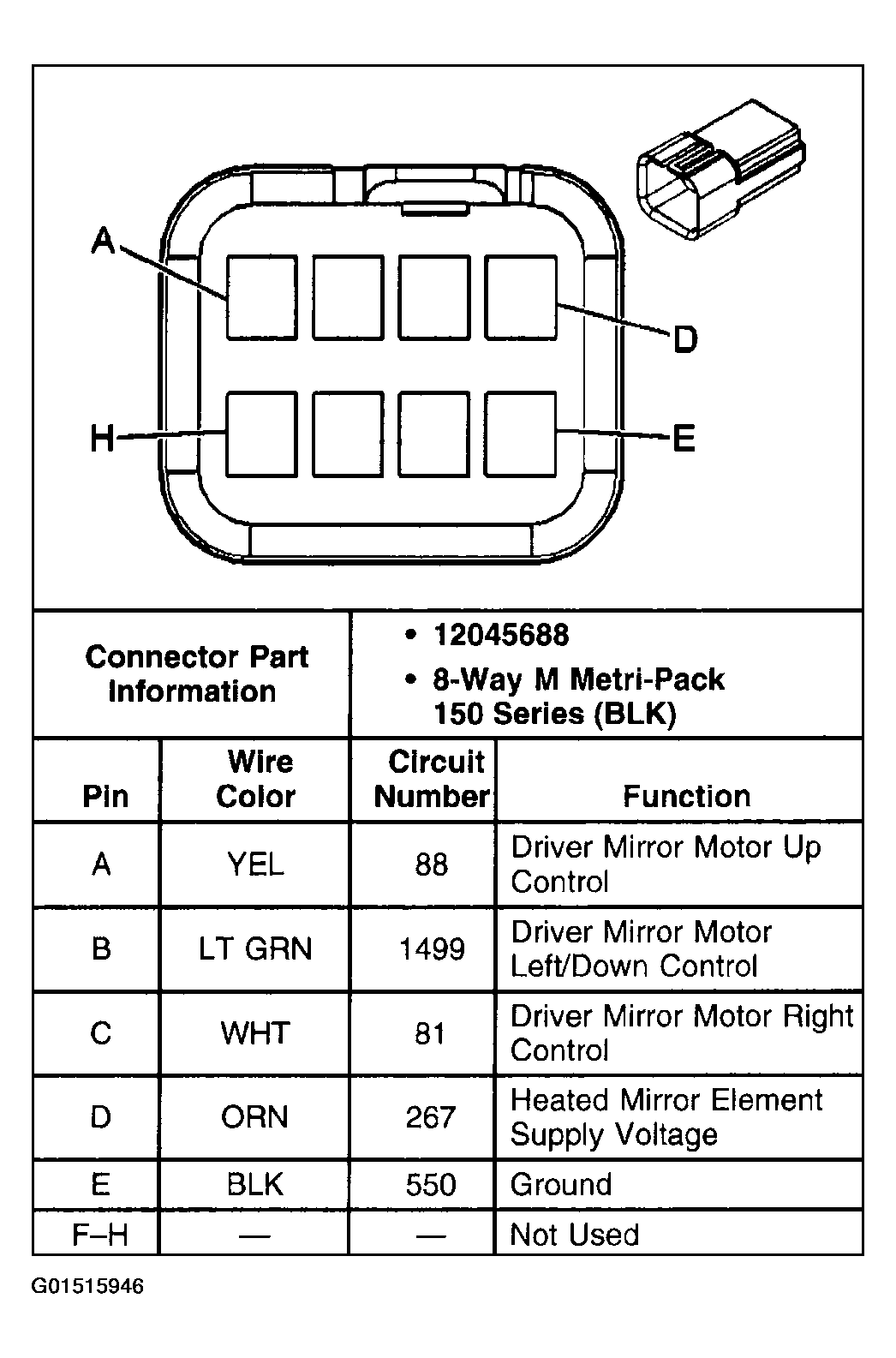

Fig 14: Identifying Driver (w/o A43) Outside Rearview Mirror Connector Pins
G01515946Courtesy of GENERAL MOTORS CORP.

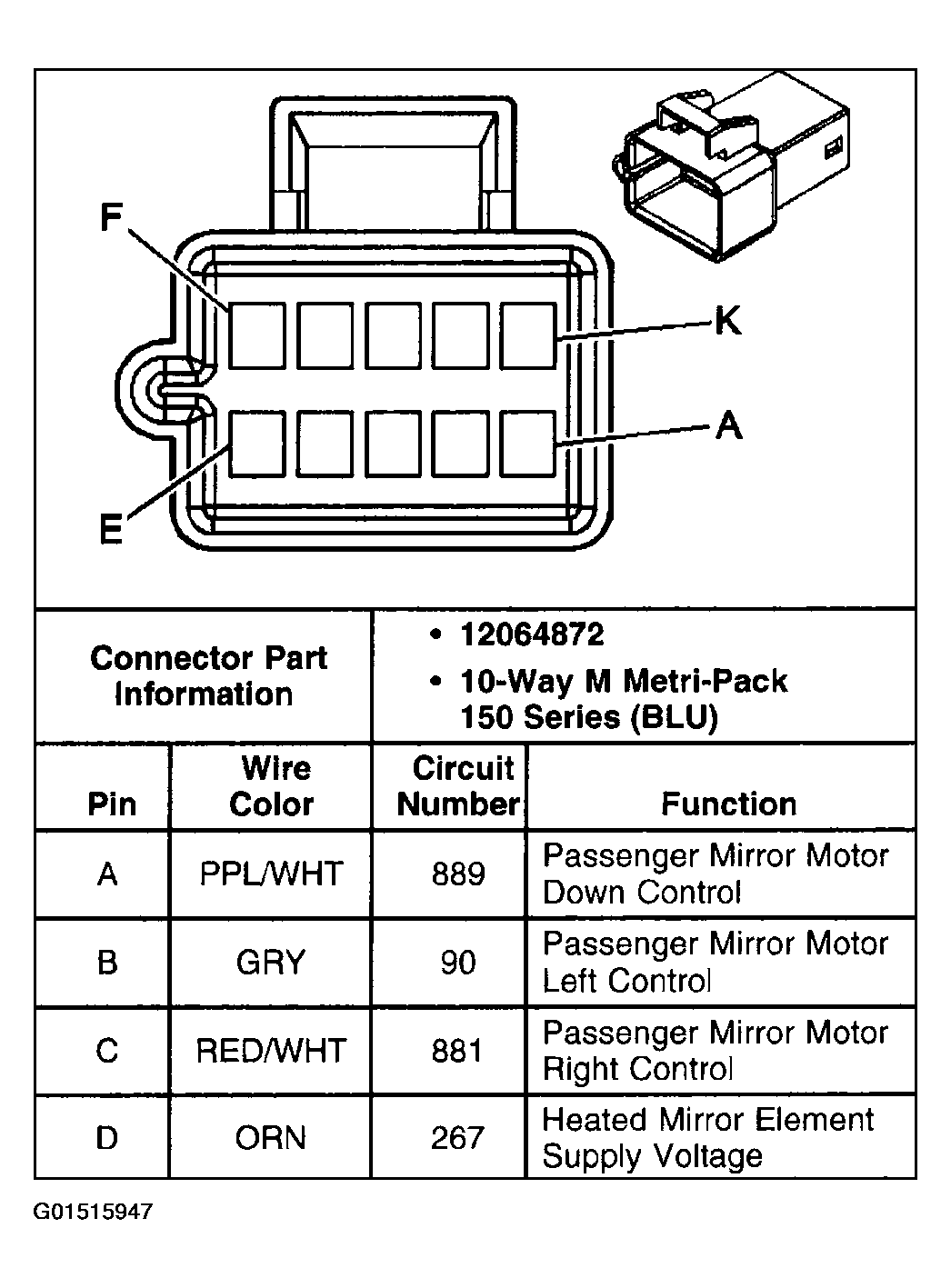

Fig 15: Identifying Passenger (A43) Outside Rearview Mirror Connector Pins (1 Of 2)
G01515947Courtesy of GENERAL MOTORS CORP.

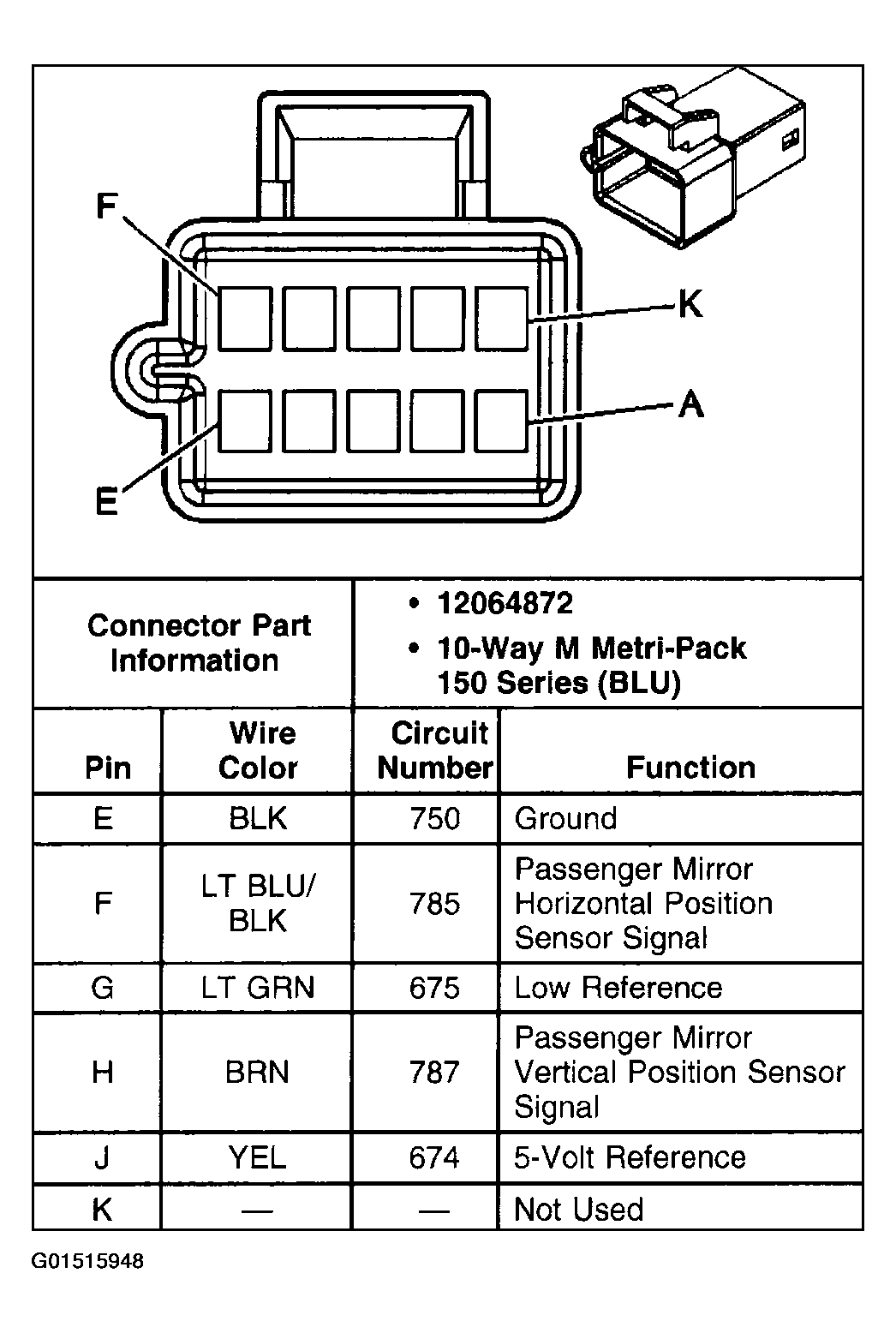

Fig 16: Identifying Passenger (A43) Outside Rearview Mirror Connector Pins (2 Of 2)
G01515948Courtesy of GENERAL MOTORS CORP.

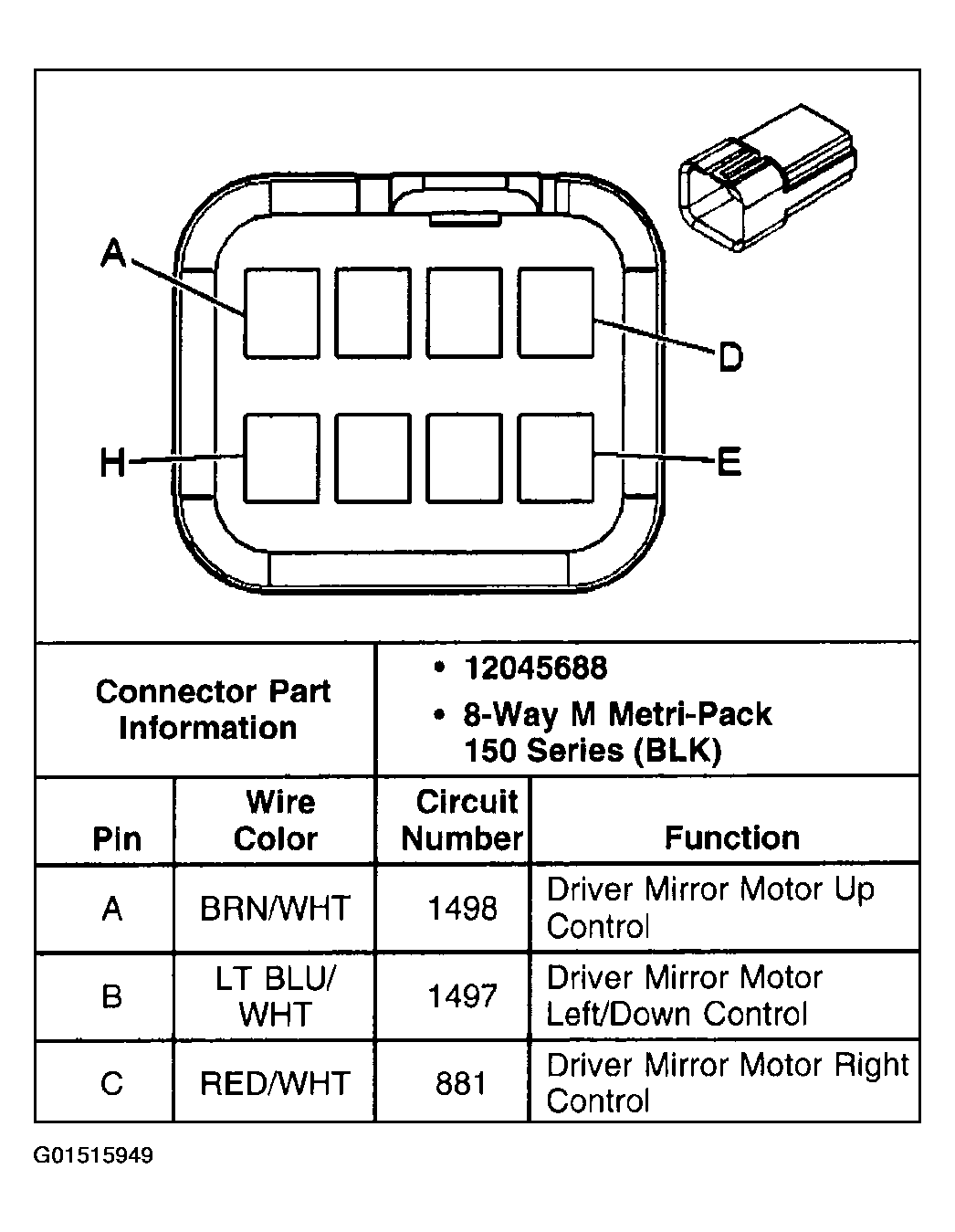

Fig 17: Identifying Passenger (w/o A43) Outside Rearview Mirror Connector Pins (1 Of 2)
G01515949Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Passenger (w/o A43) Outside Rearview Mirror Connector Pins (2 Of 2)
G01515950Courtesy of GENERAL MOTORS CORP.

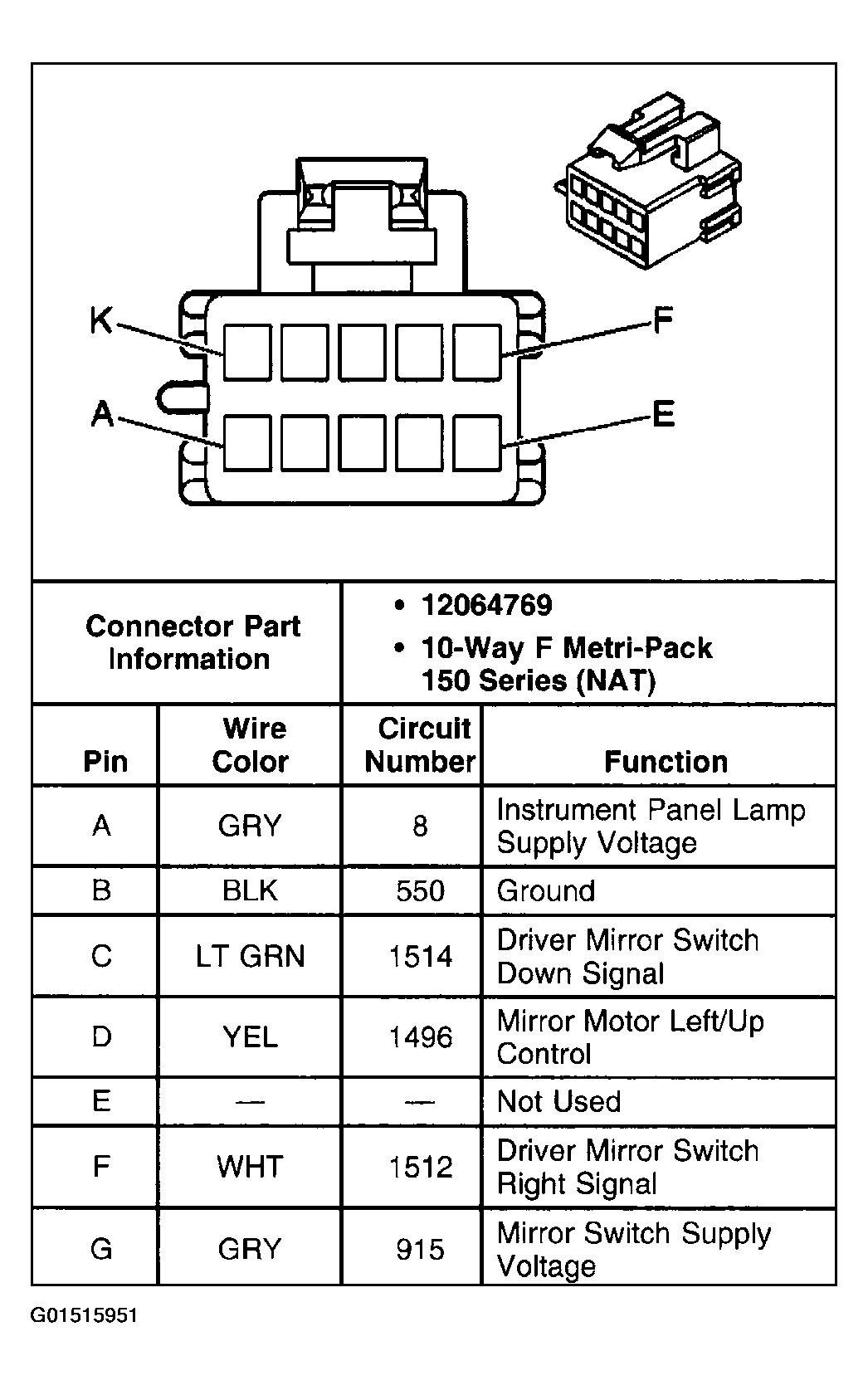

Fig 19: Identifying Outside Rearview Mirror Switch (A43) Connector Pins (1 Of 2)
G01515951Courtesy of GENERAL MOTORS CORP.

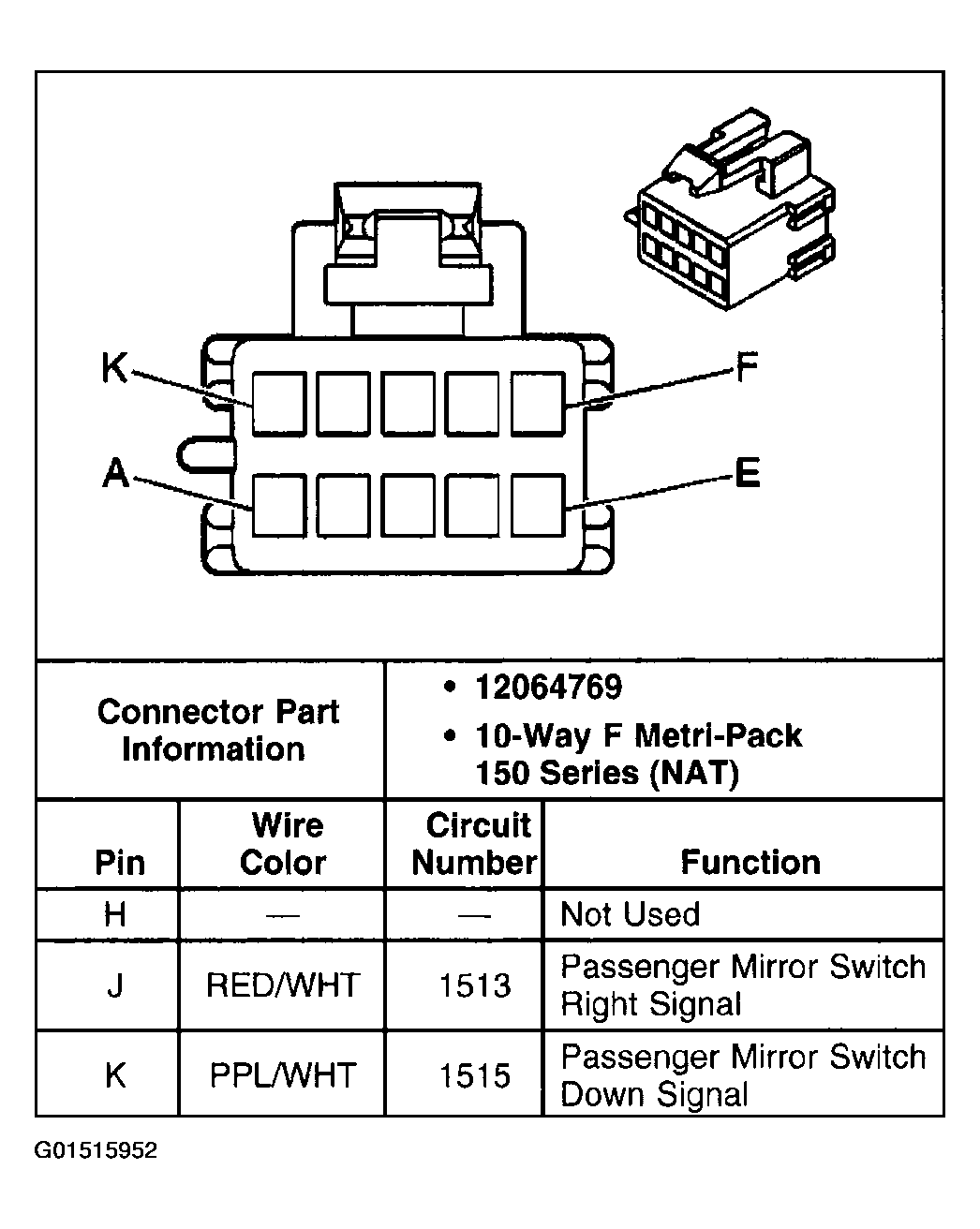

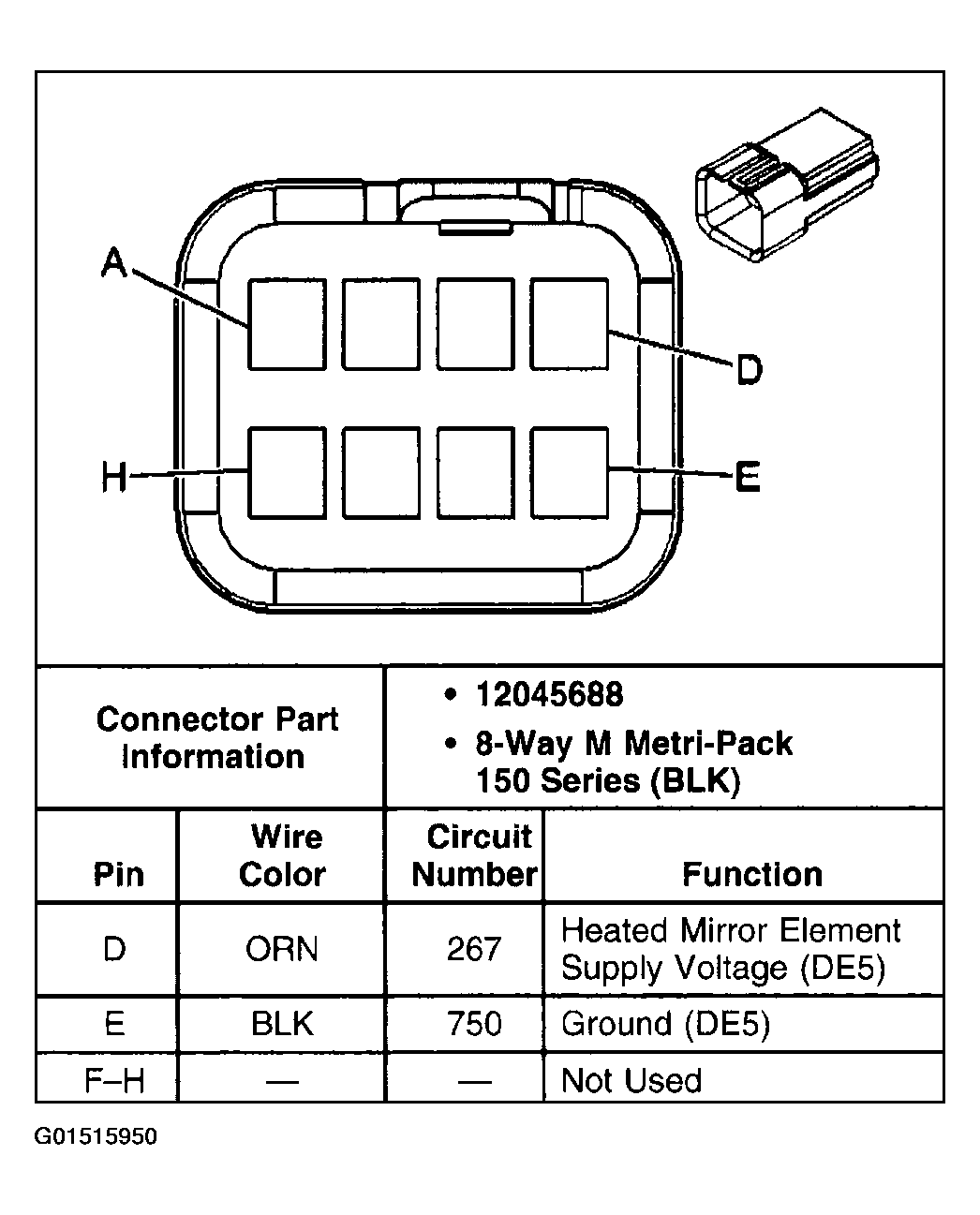

Fig 20: Identifying Outside Rearview Mirror Switch (A43) Connector Pins (2 Of 2)
G01515952Courtesy of GENERAL MOTORS CORP.

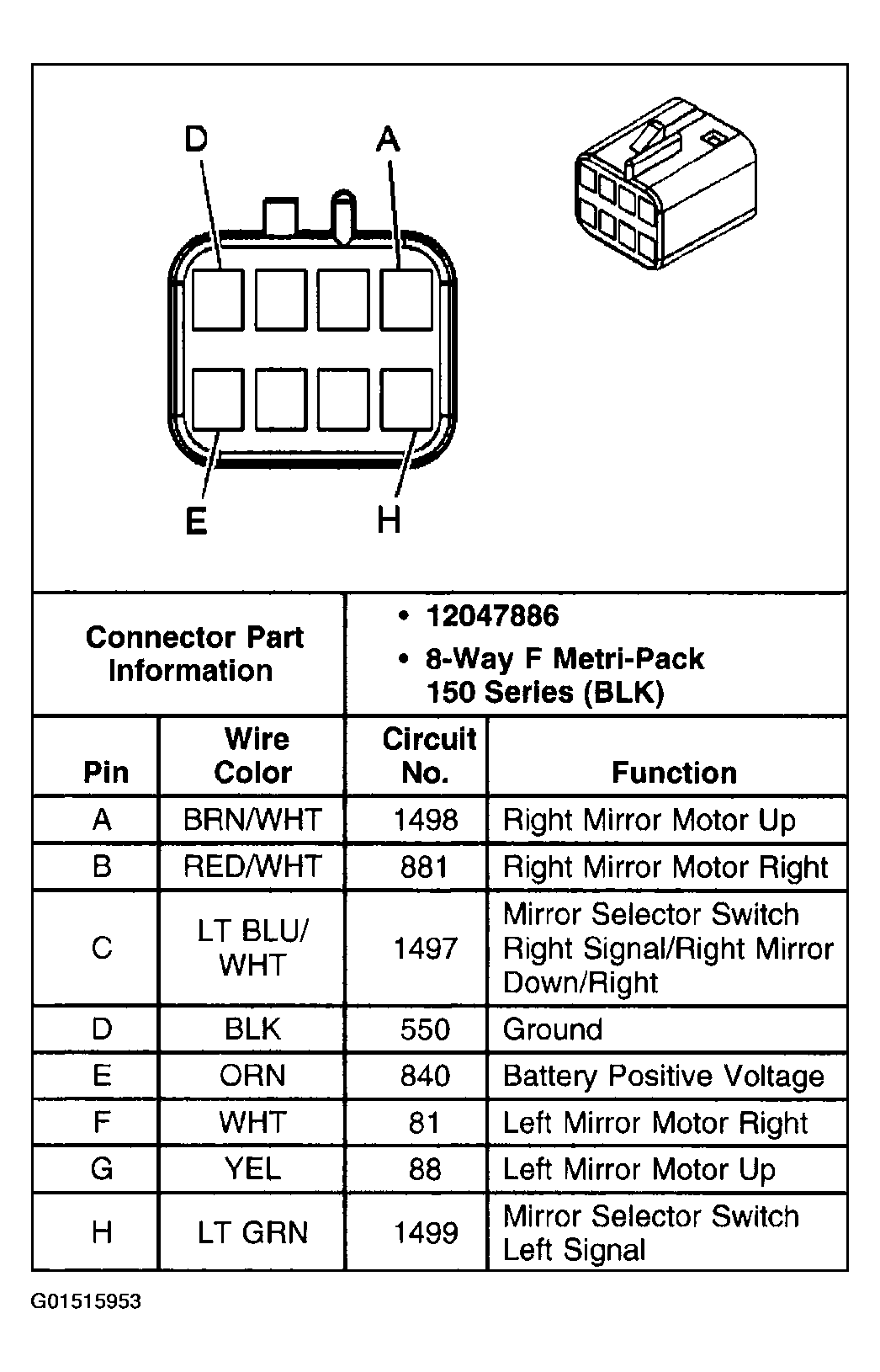

Fig 21: Identifying Outside Rearview Mirror Switch (w/o A43) Connectors Pins
G01515953Courtesy of GENERAL MOTORS CORP.

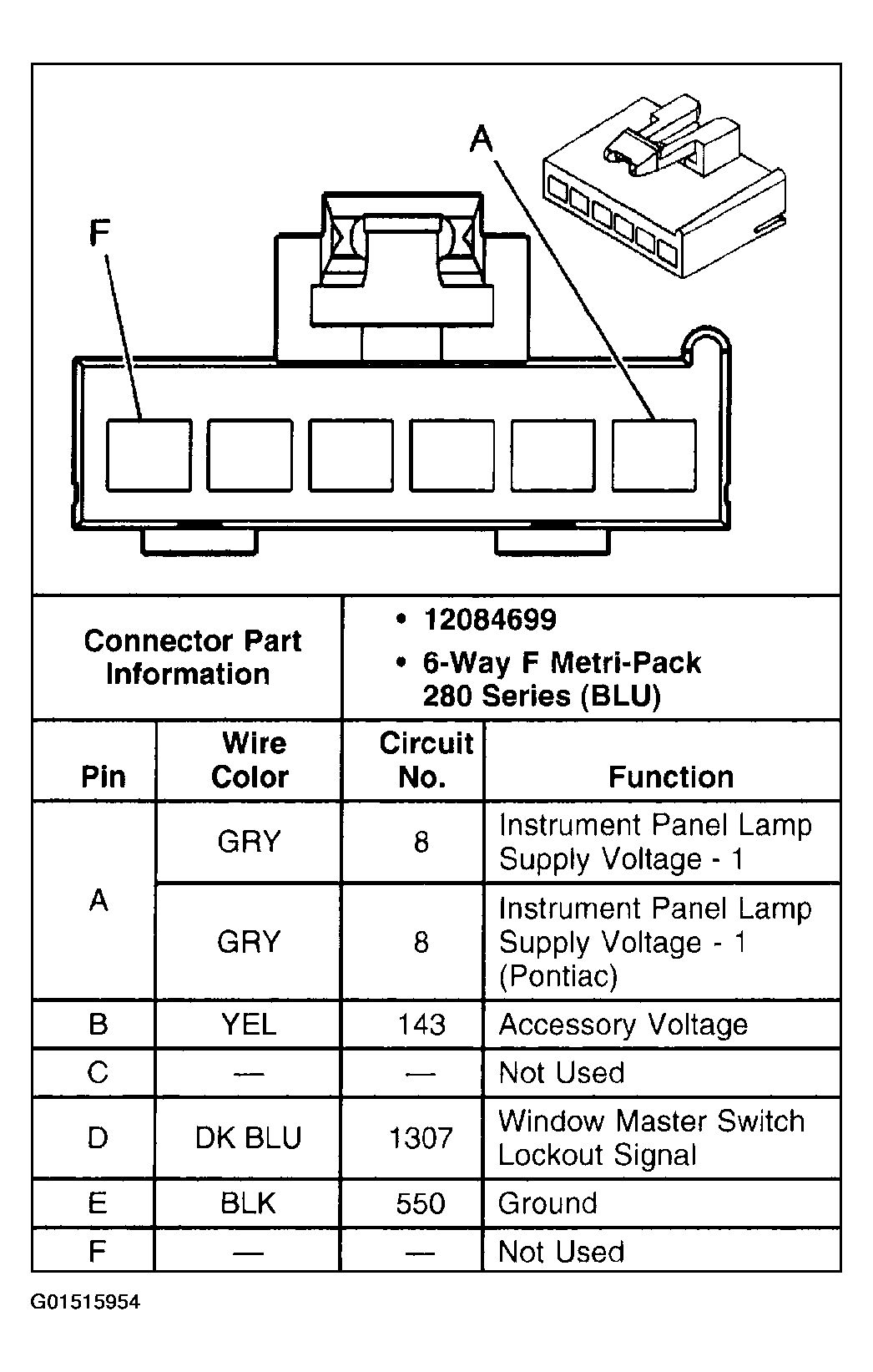

Fig 22: Identifying Window Master Switch Connector (C1) Pins
G01515954Courtesy of GENERAL MOTORS CORP.

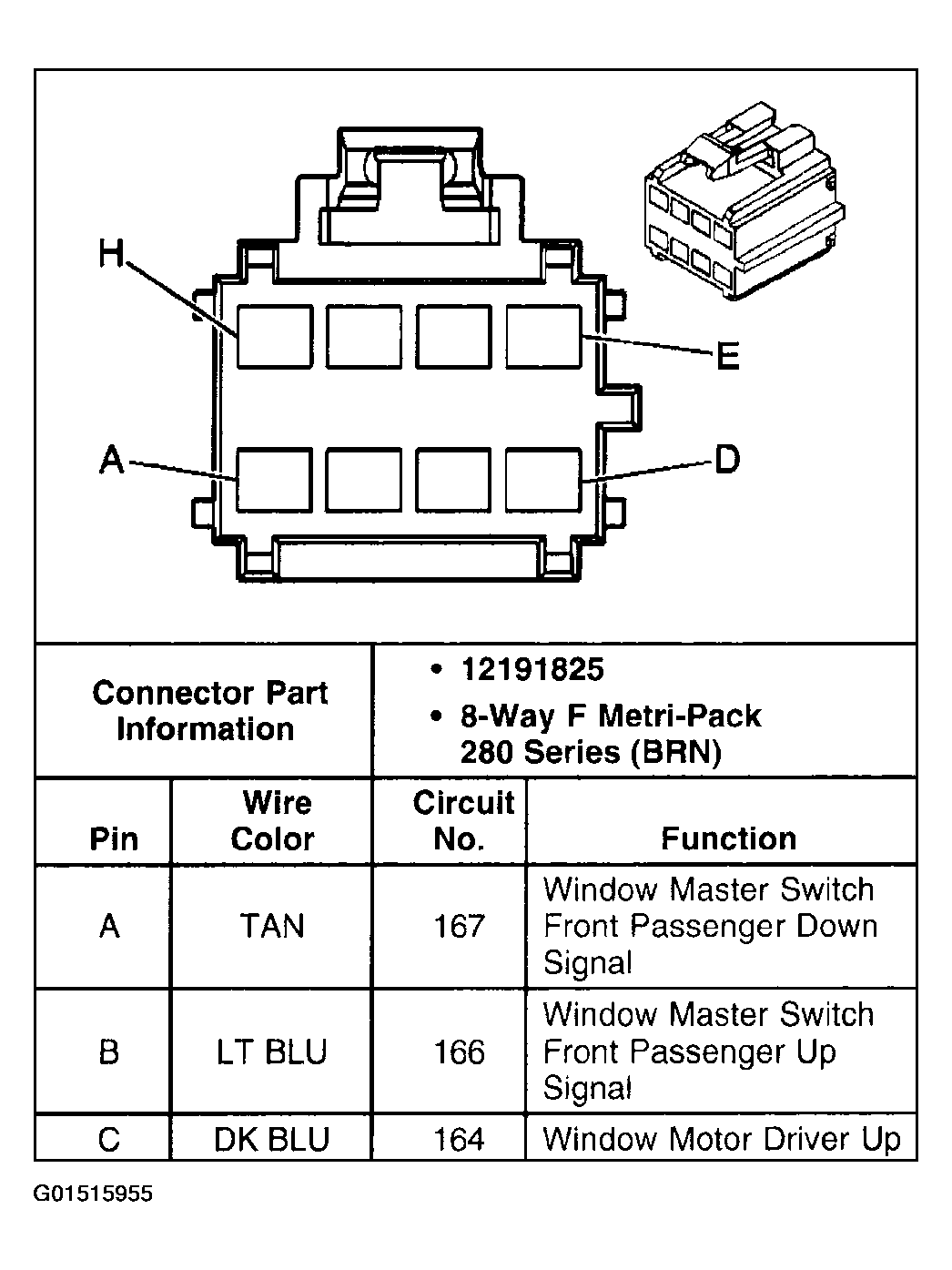

Fig 23: Identifying Window Master Switch Connector (C2) Pins (1 Of 2)
G01515955Courtesy of GENERAL MOTORS CORP.

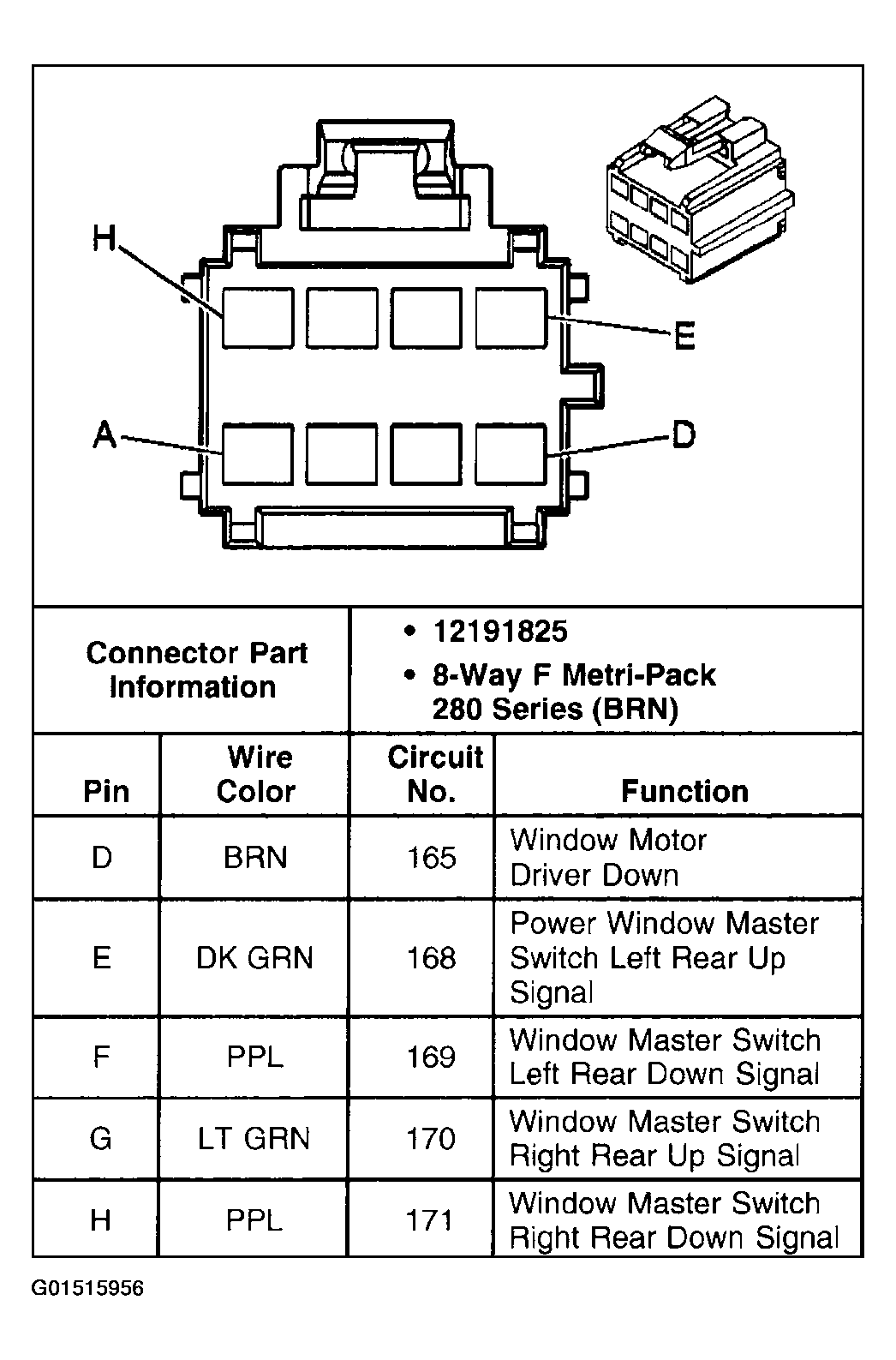

Fig 24: Identifying Window Master Switch Connector (C2) Pins (2 Of 2)
G01515956Courtesy of GENERAL MOTORS CORP.

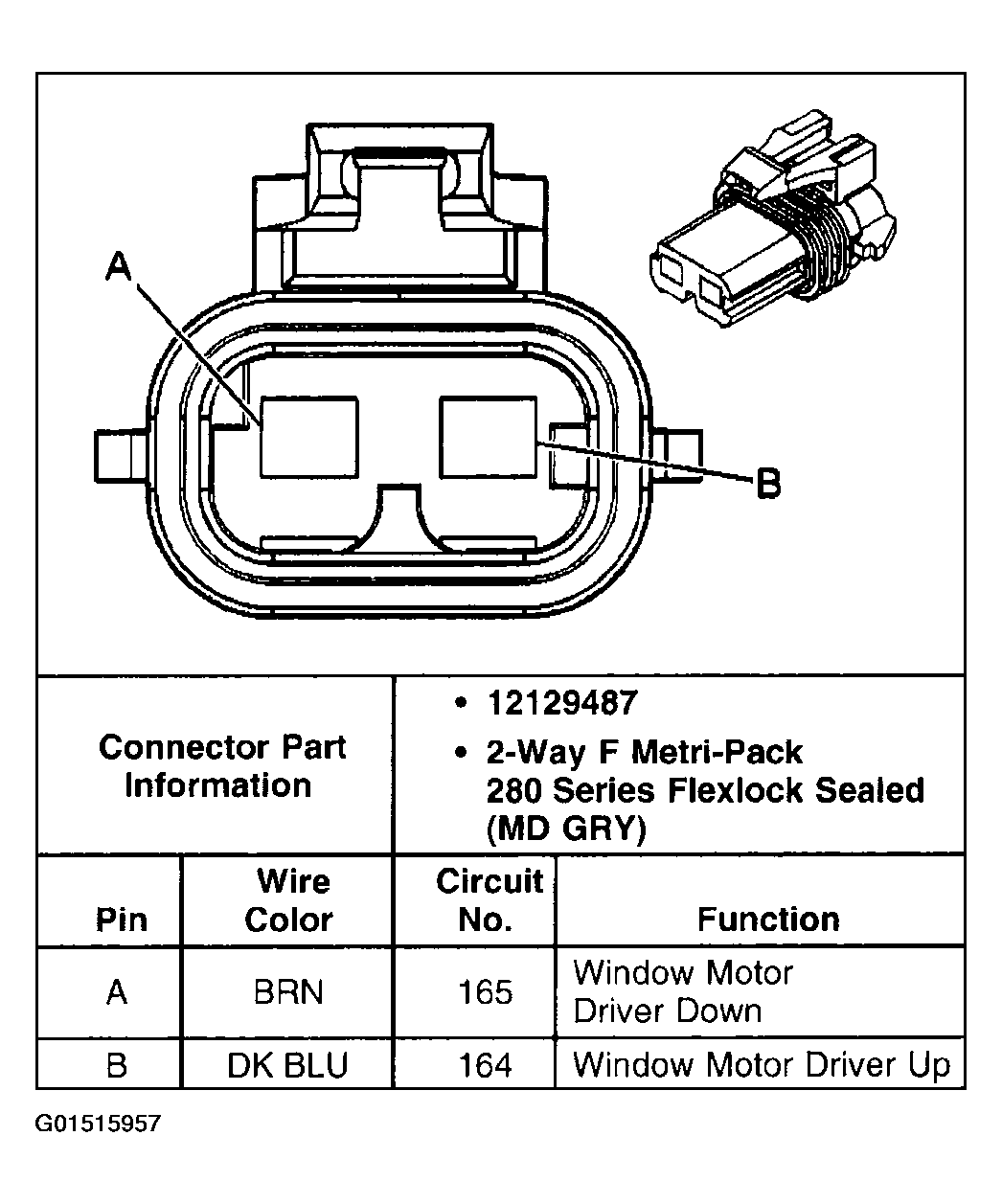

Fig 25: Identifying Driver Window Motor Connector Pins
G01515957Courtesy of GENERAL MOTORS CORP.

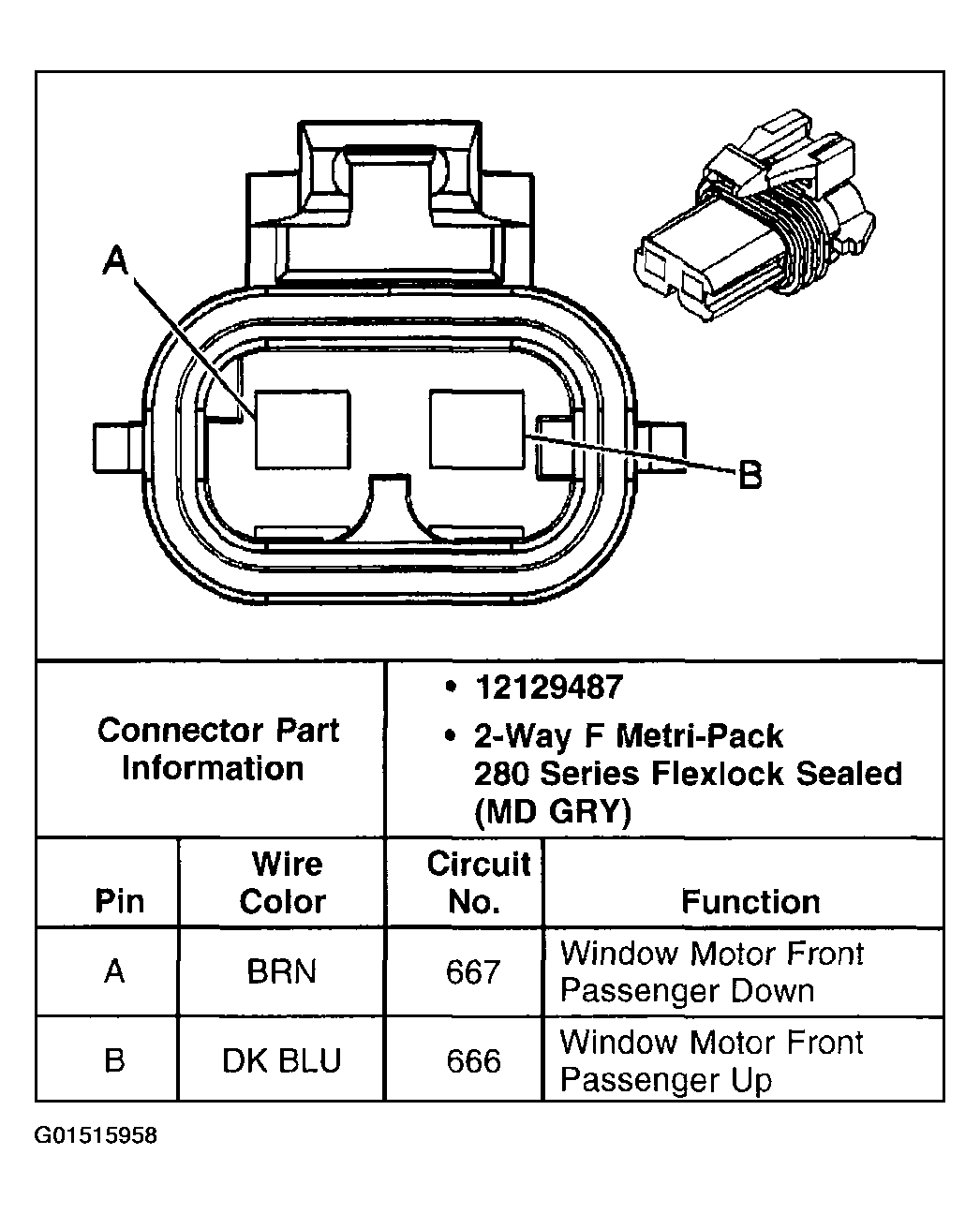

Fig 26: Identifying Front Passenger Window Motor Connector Pins
G01515958Courtesy of GENERAL MOTORS CORP.

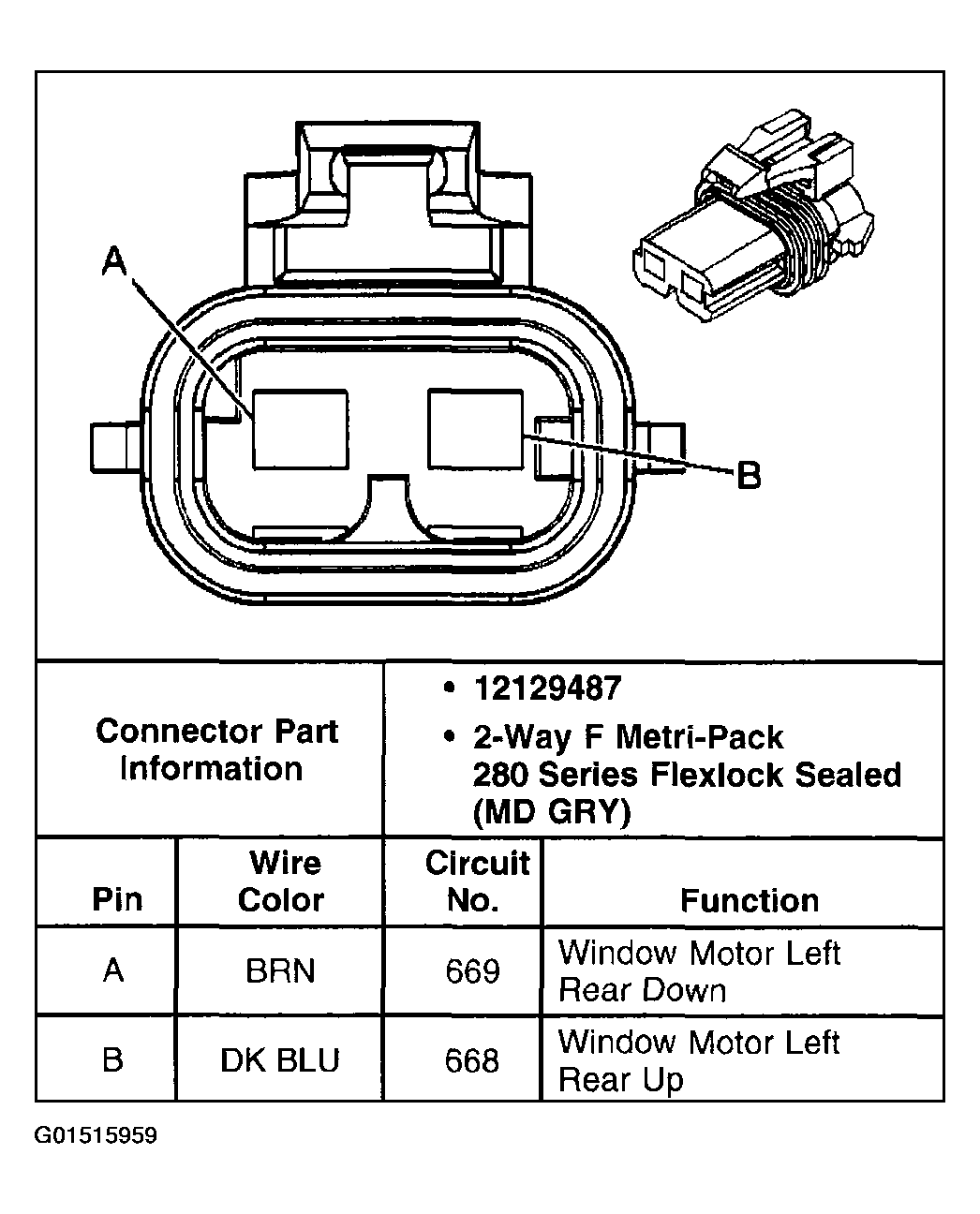

Fig 27: Identifying LR Window Motor Connector Pins
G01515959Courtesy of GENERAL MOTORS CORP.

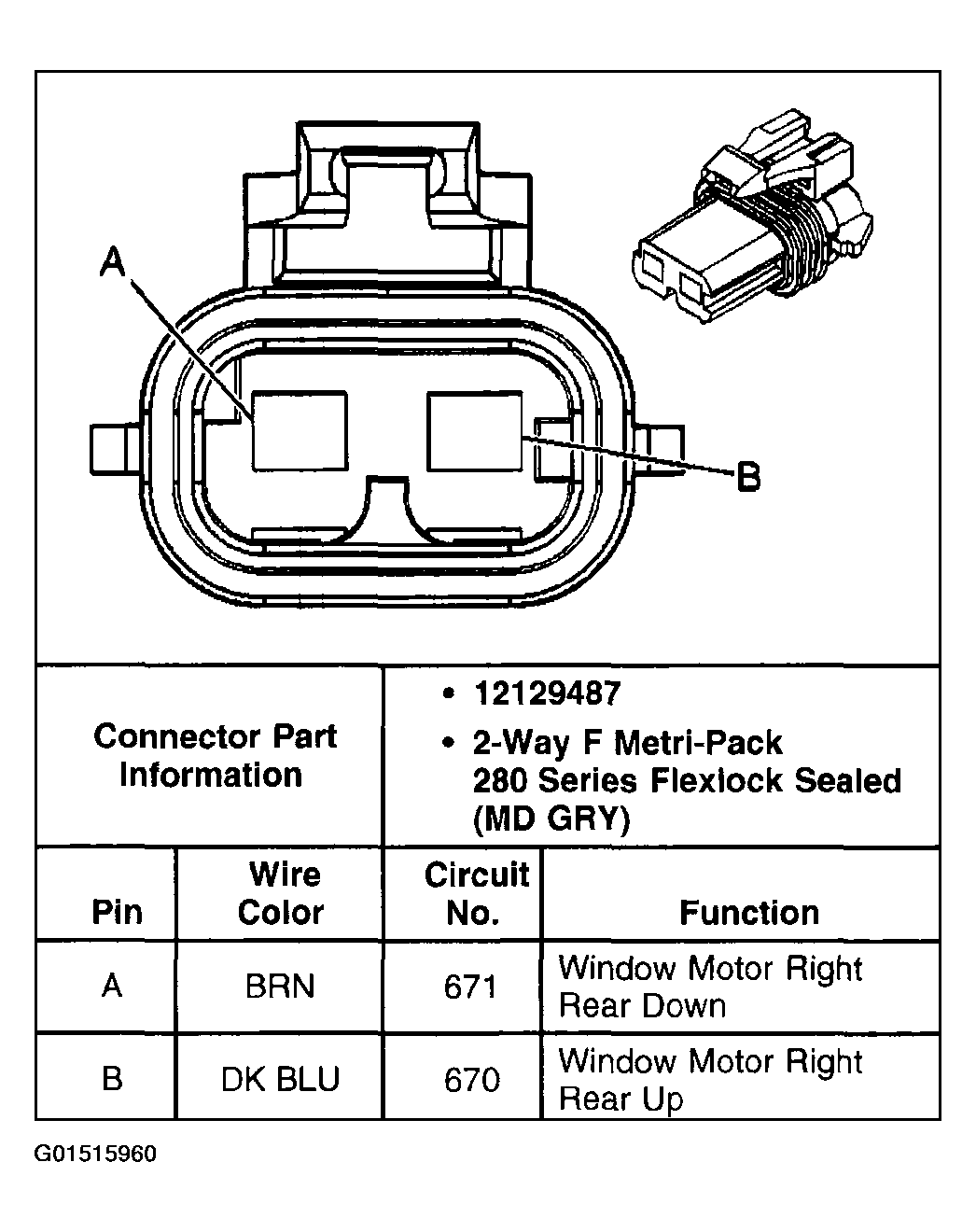

Fig 28: Identifying RR Window Motor Connector Pins
G01515960Courtesy of GENERAL MOTORS CORP.

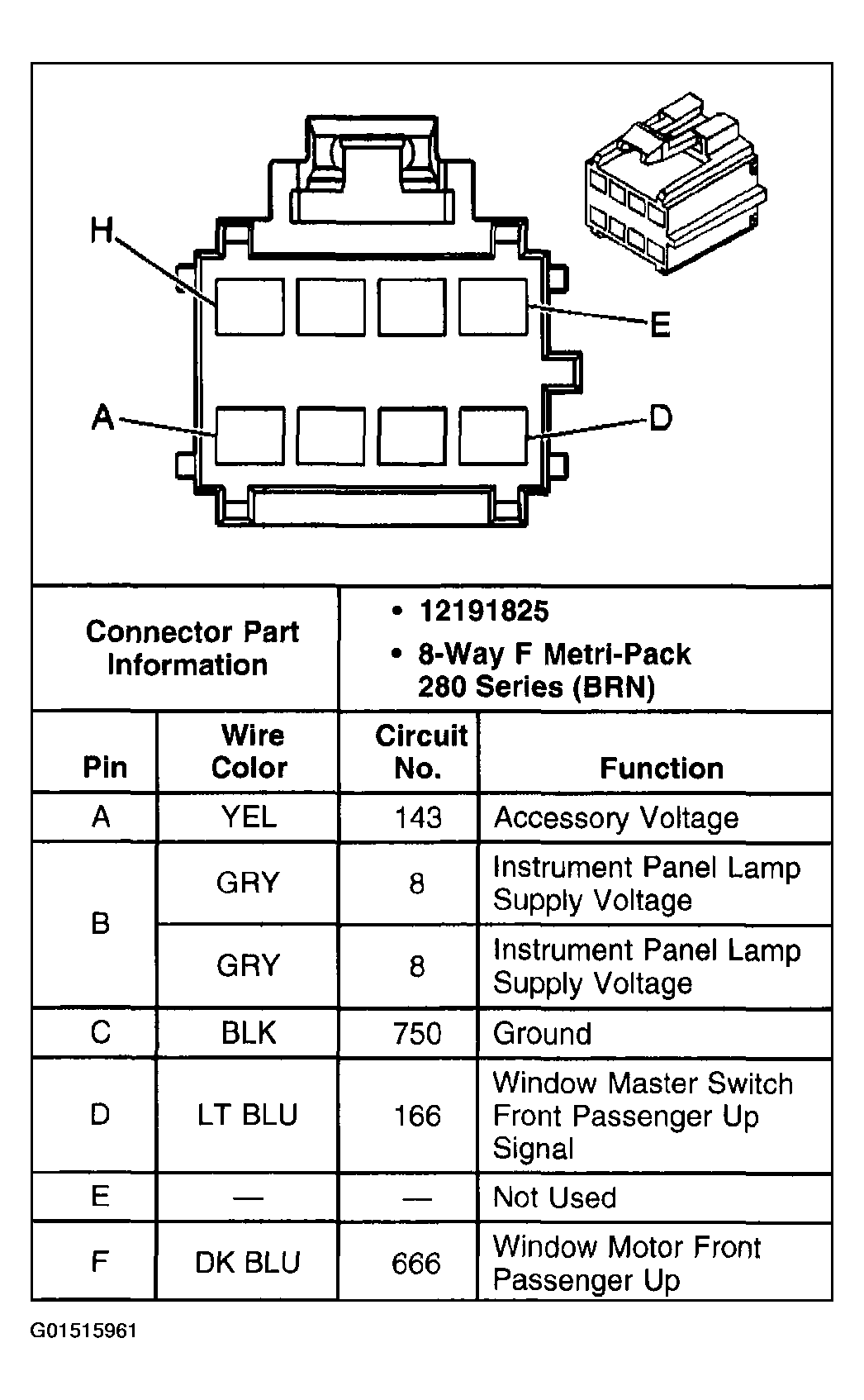

Fig 29: Identifying Front Passenger Window Switch Connector Pins (1 Of 2)
G01515961Courtesy of GENERAL MOTORS CORP.

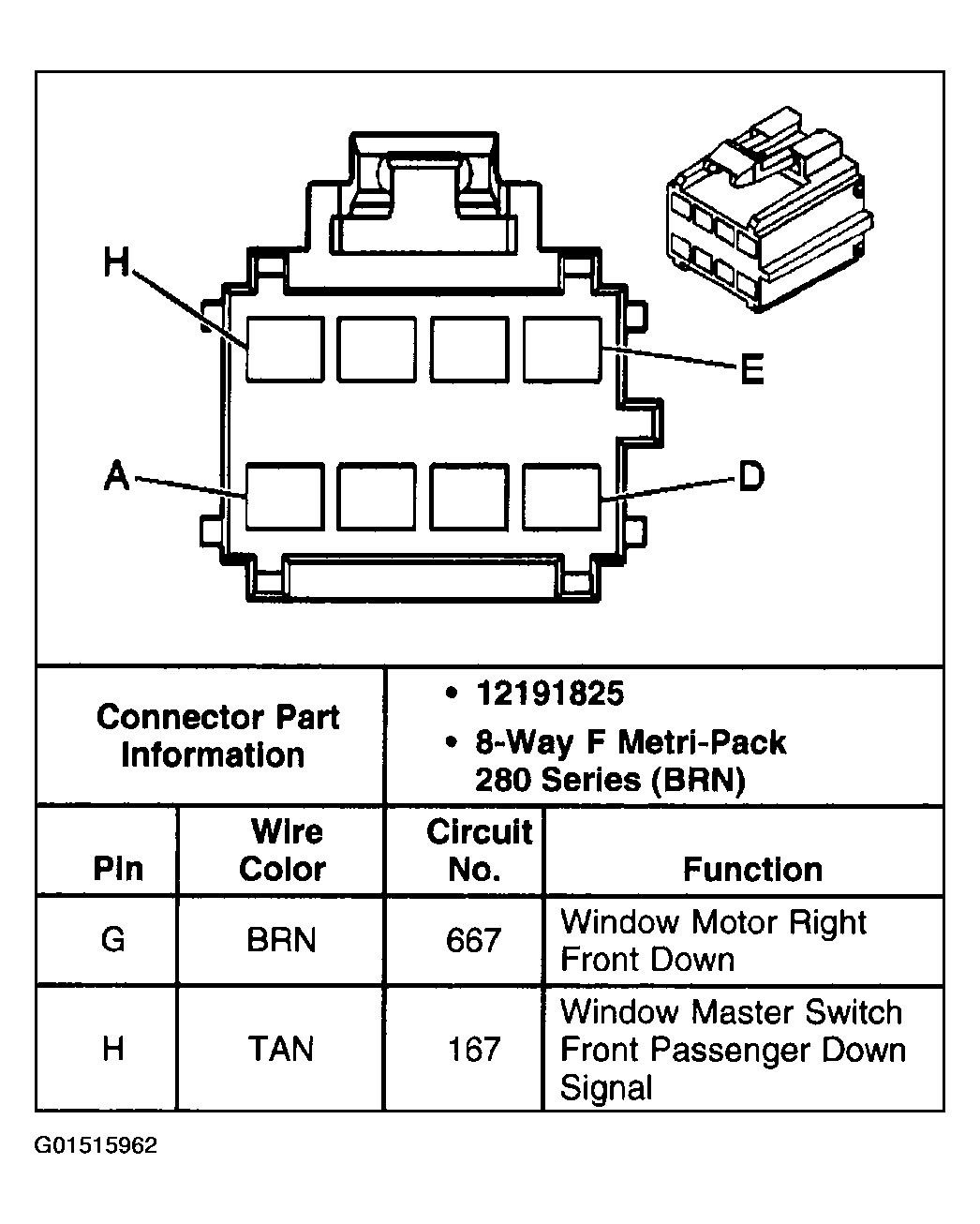

Fig 30: Identifying Front Passenger Window Switch Connector Pins (2 Of 2)
G01515962Courtesy of GENERAL MOTORS CORP.

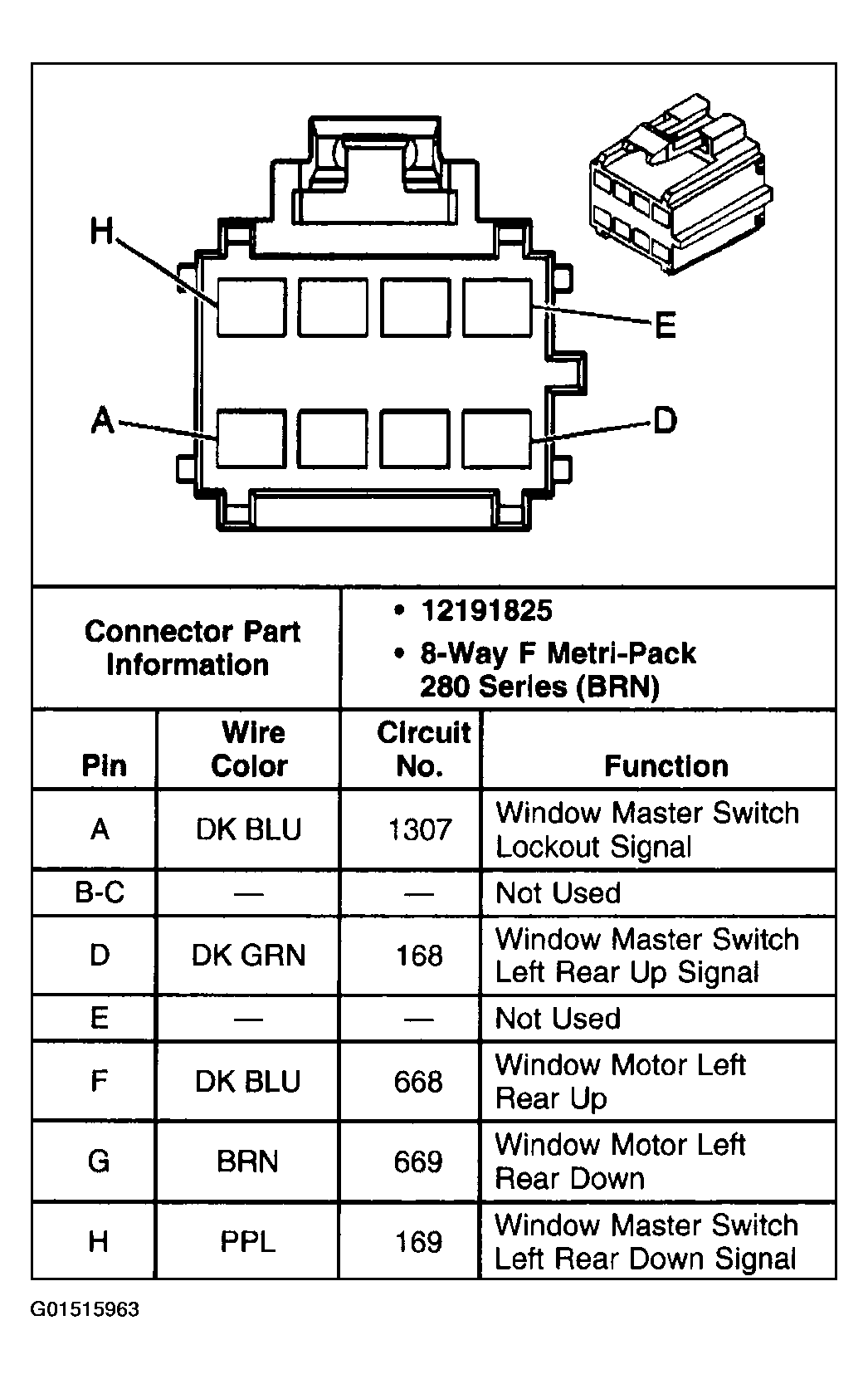

Fig 31: Identifying LR Window Switch Connector Pins
G01515963Courtesy of GENERAL MOTORS CORP.

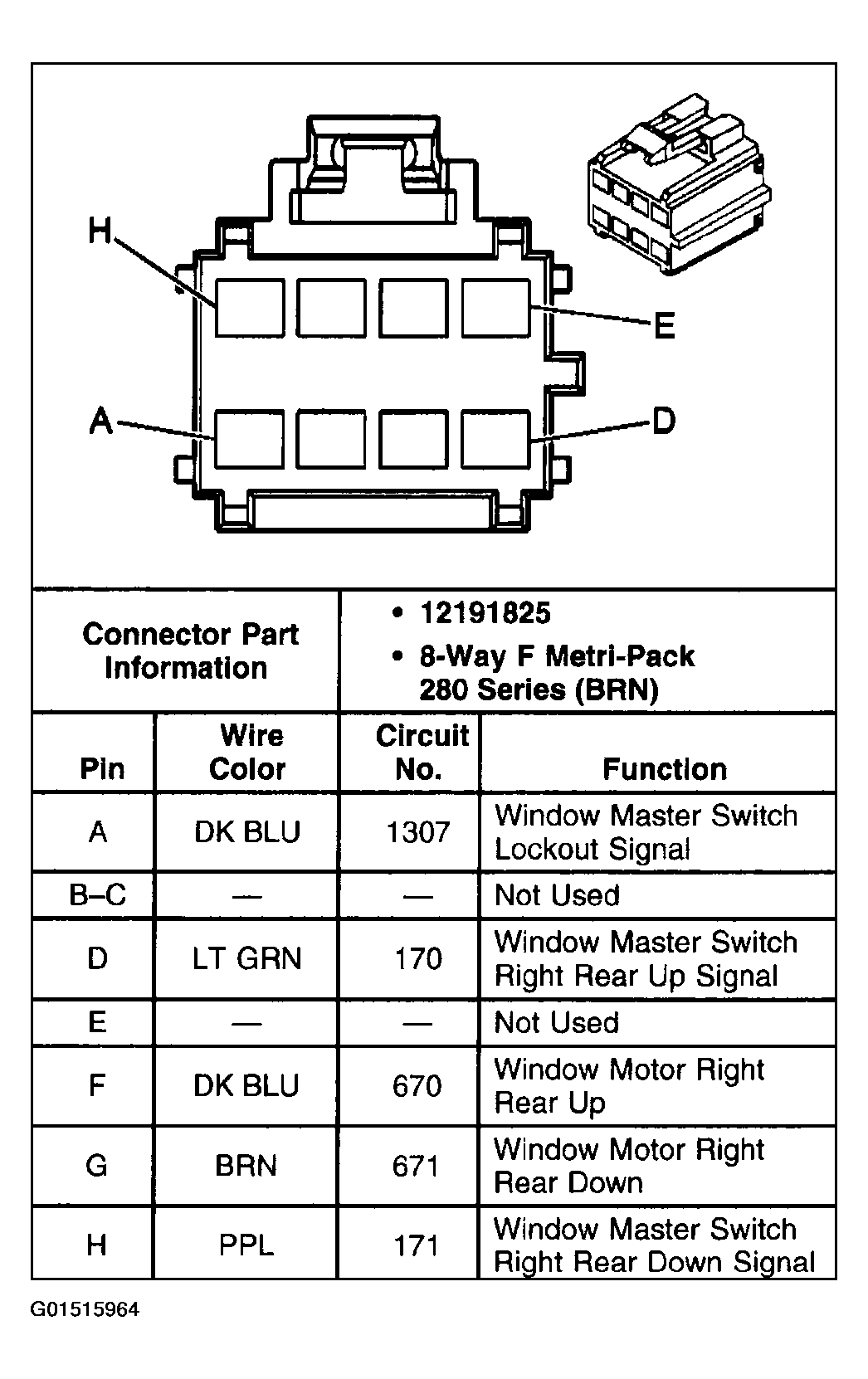

Fig 32: Identifying RR Window Switch Connector Pins
G01515964Courtesy of GENERAL MOTORS CORP.
