Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  2. Remove the nuts from the outside rearview mirror.
  3. Disconnect the electrical connector from the outside rearview mirror.
  4. Remove the outside rearview mirror from the front door.

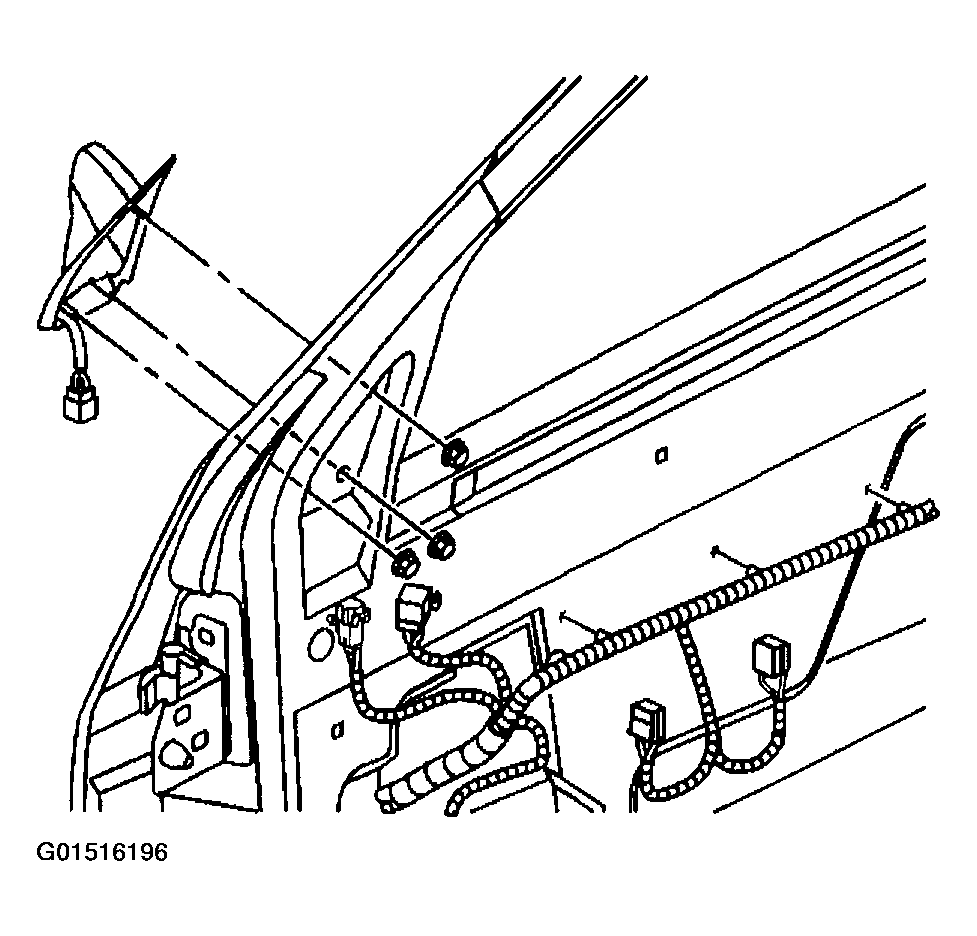

    Fig 1: Removing Power Mirror
    G01516196Courtesy of GENERAL MOTORS CORP.
