Installation Procedure

  1. Install the front door window control switch (2) into the front door window switch plate.
  2. Connect the electrical connectors to the front door window control switch.
  3. Install the front door window control switch plate to the front door panel pressing into place until fully seated.

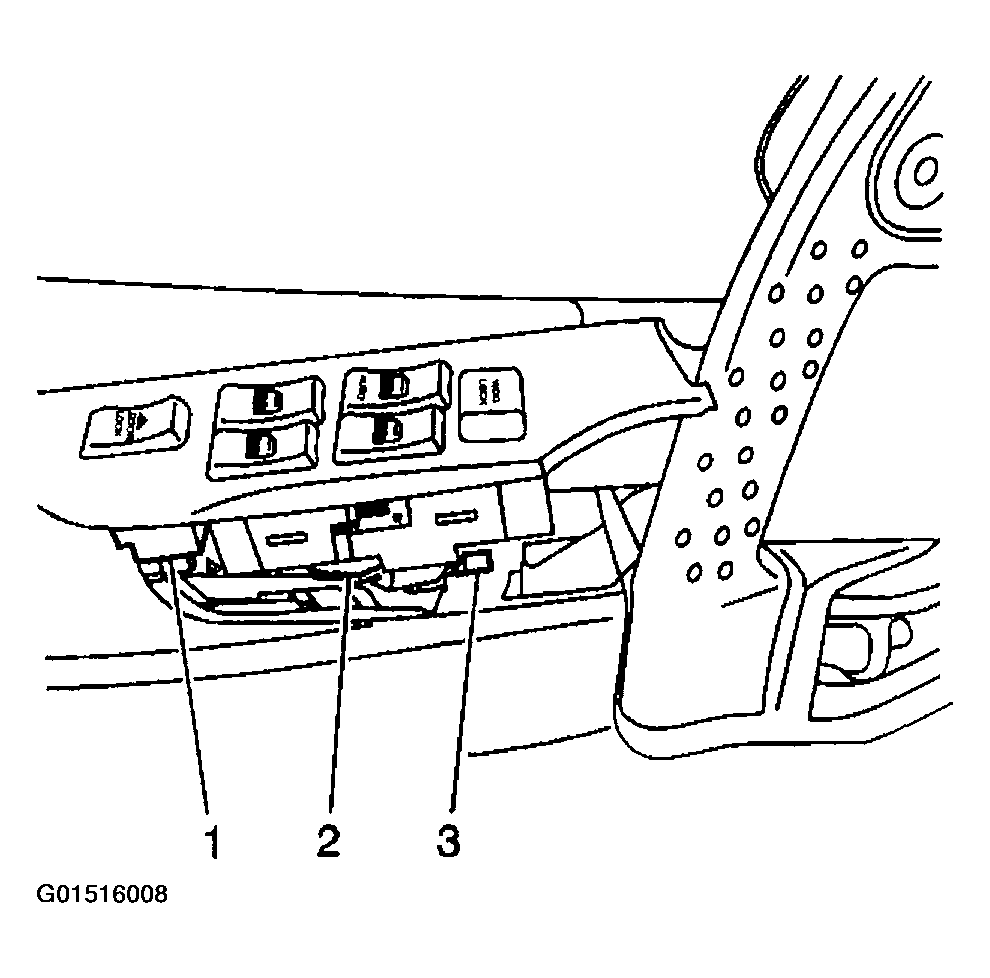

    Fig 1: Installing Left Front Power Window Switch (Aztek)
    G01516008Courtesy of GENERAL MOTORS CORP.
