Removal Procedure

  1. Open the front door.
  2. Apply protective coating/tape at the point of insertion of the flat bladed tool.
  3. Remove the warning reflector from the front door trim panel using a small flat bladed tool, pressing on the tabs from the top of the warning reflector.

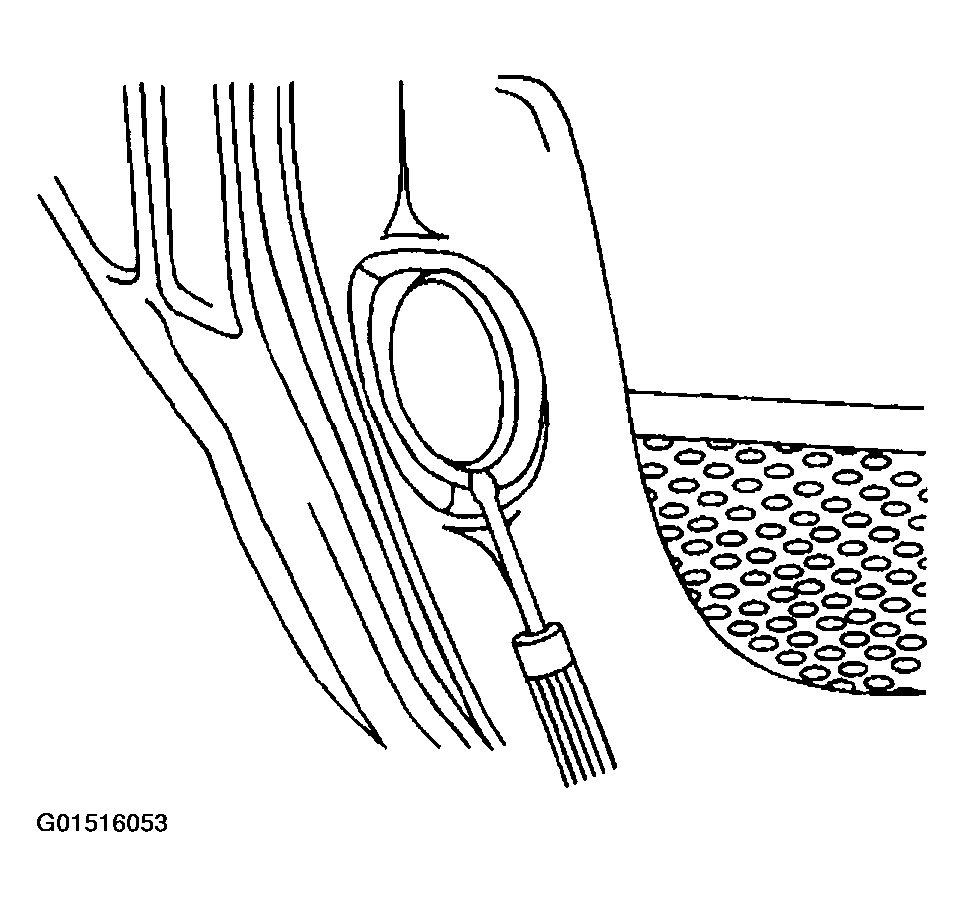

    Fig 1: Removing Front Door Warning Reflector (Aztek - 1 Of 2)
    G01516053Courtesy of GENERAL MOTORS CORP.
  4. Remove the warning reflector from the front door trim panel.

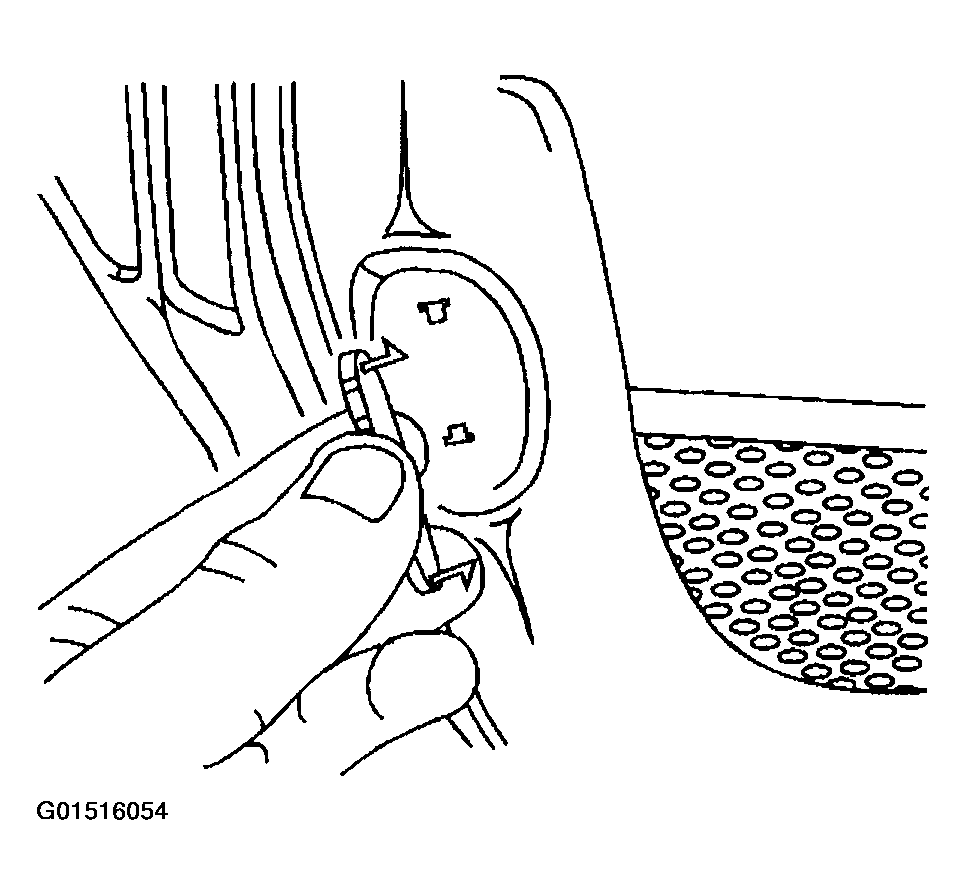

    Fig 2: Removing Front Door Warning Reflector (Aztek - 2 Of 2)
    G01516054Courtesy of GENERAL MOTORS CORP.
