Schematic and Routing Diagrams

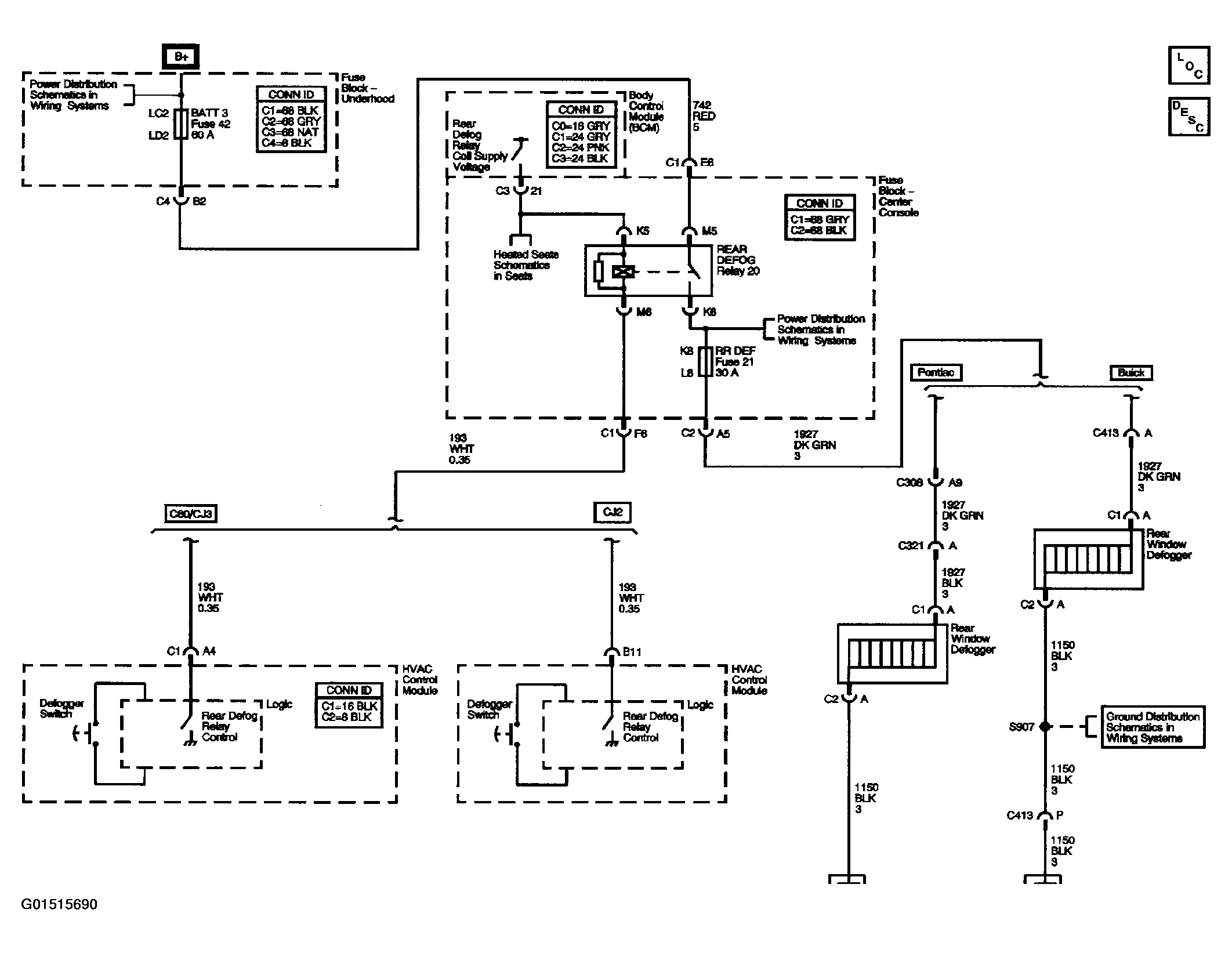

Fig 1: Defogger Schematics Diagram
G01515690Courtesy of GENERAL MOTORS CORP.

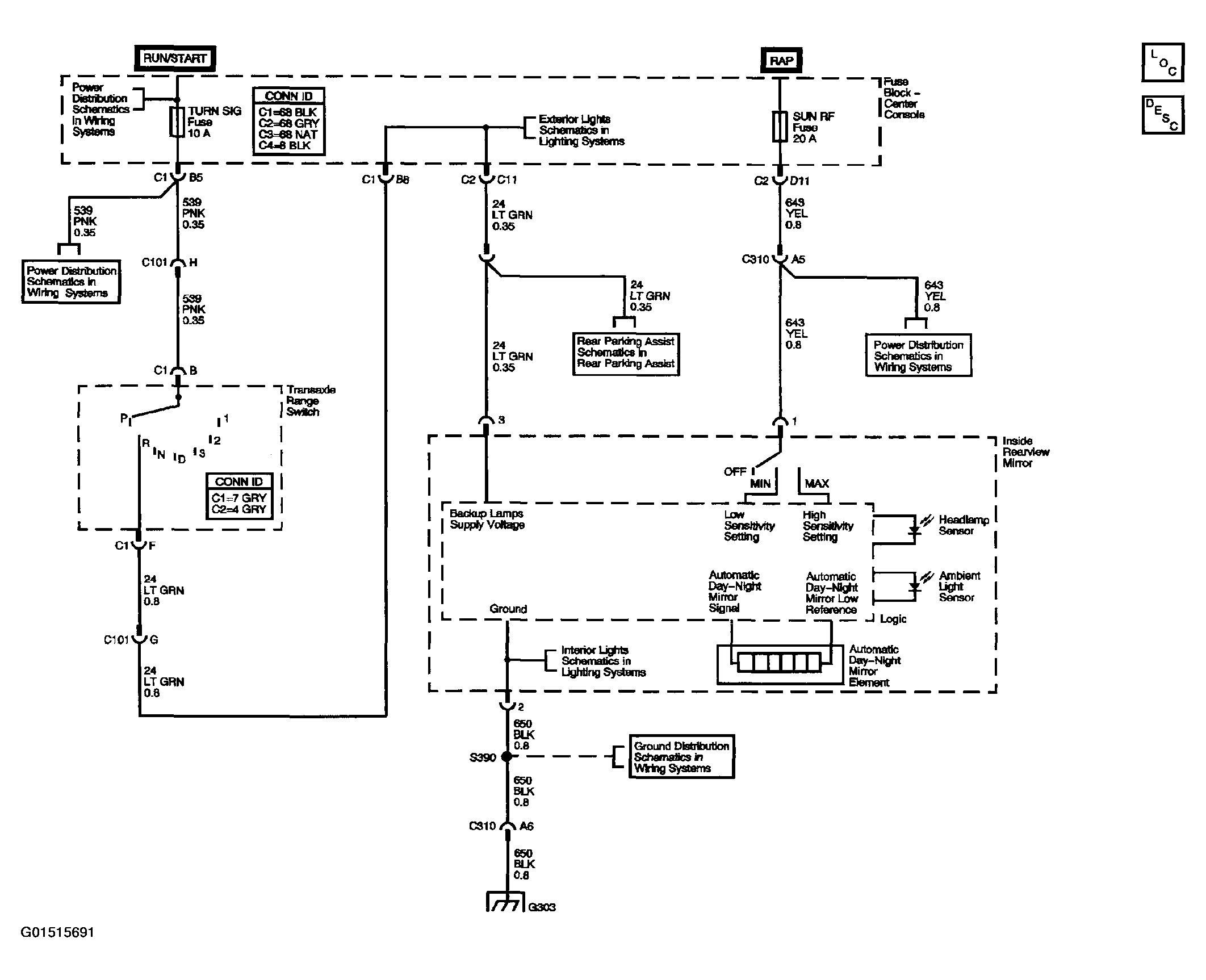

Fig 2: Inside Rearview Mirror Schematics Diagram
G01515691Courtesy of GENERAL MOTORS CORP.
