ABS Component Views

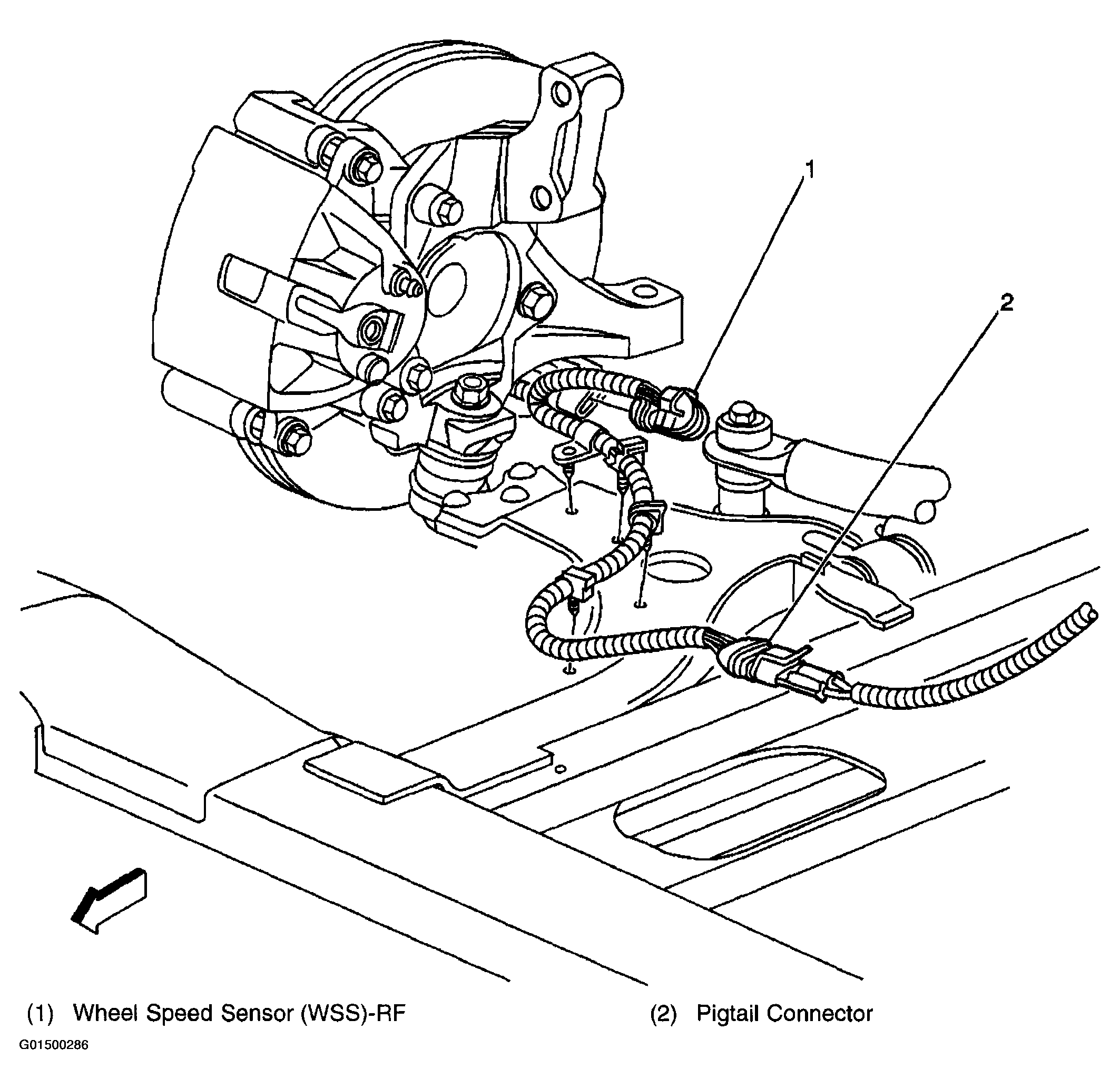

Fig 1: Locating ABS Components - Right Front Wheel

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating ABS Components - LR Engine Compartment

Courtesy of GENERAL MOTORS CORP.

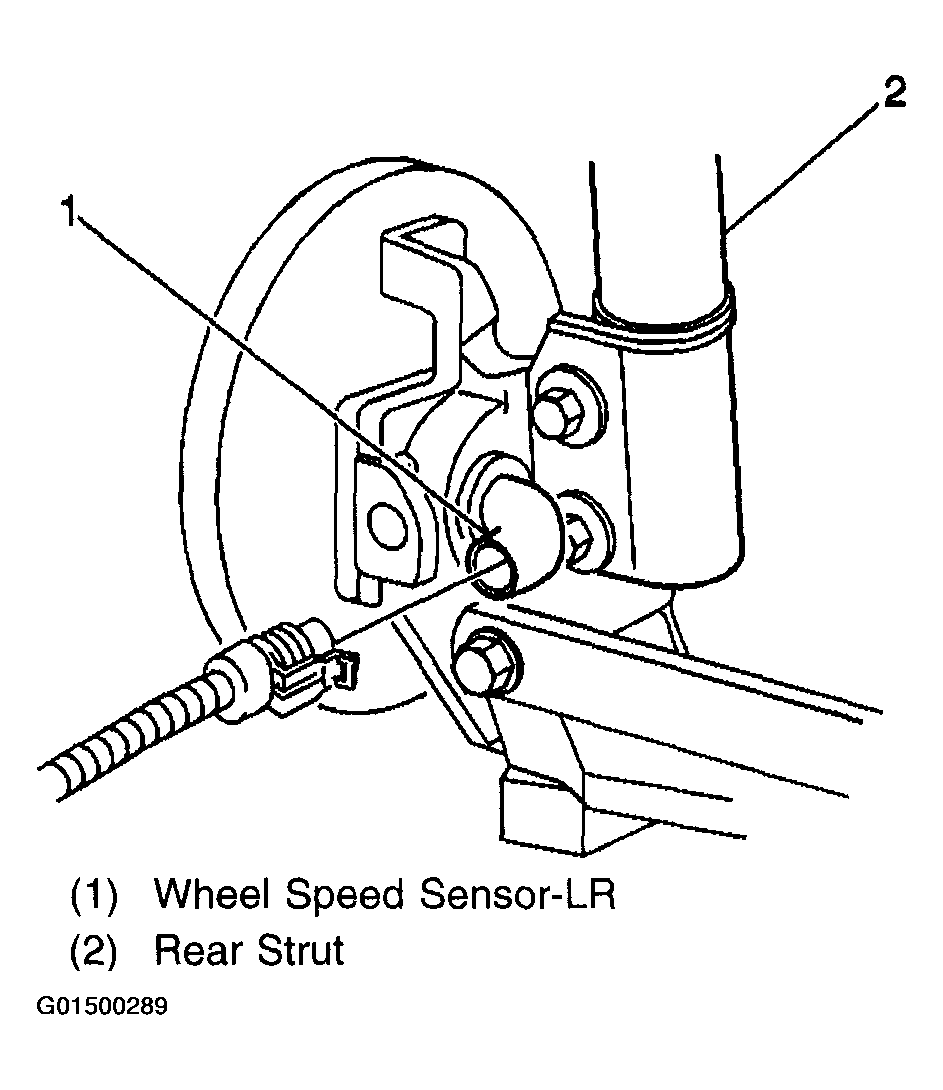

Fig 3: Locating ABS Components - LR Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.
