ABS Connector End Views

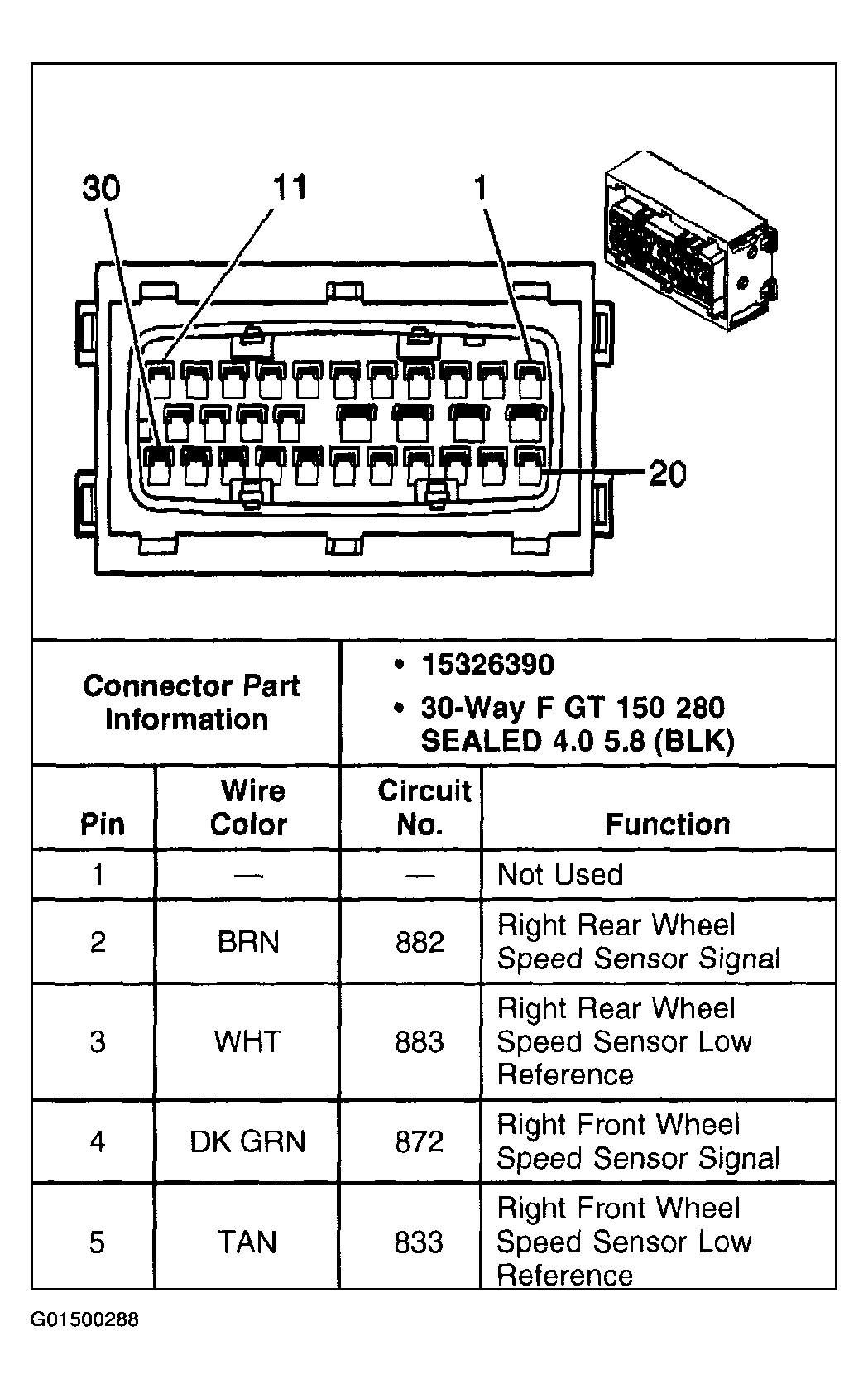

Fig 1: Identifying Electronic Brake Control Module (EBCM) Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

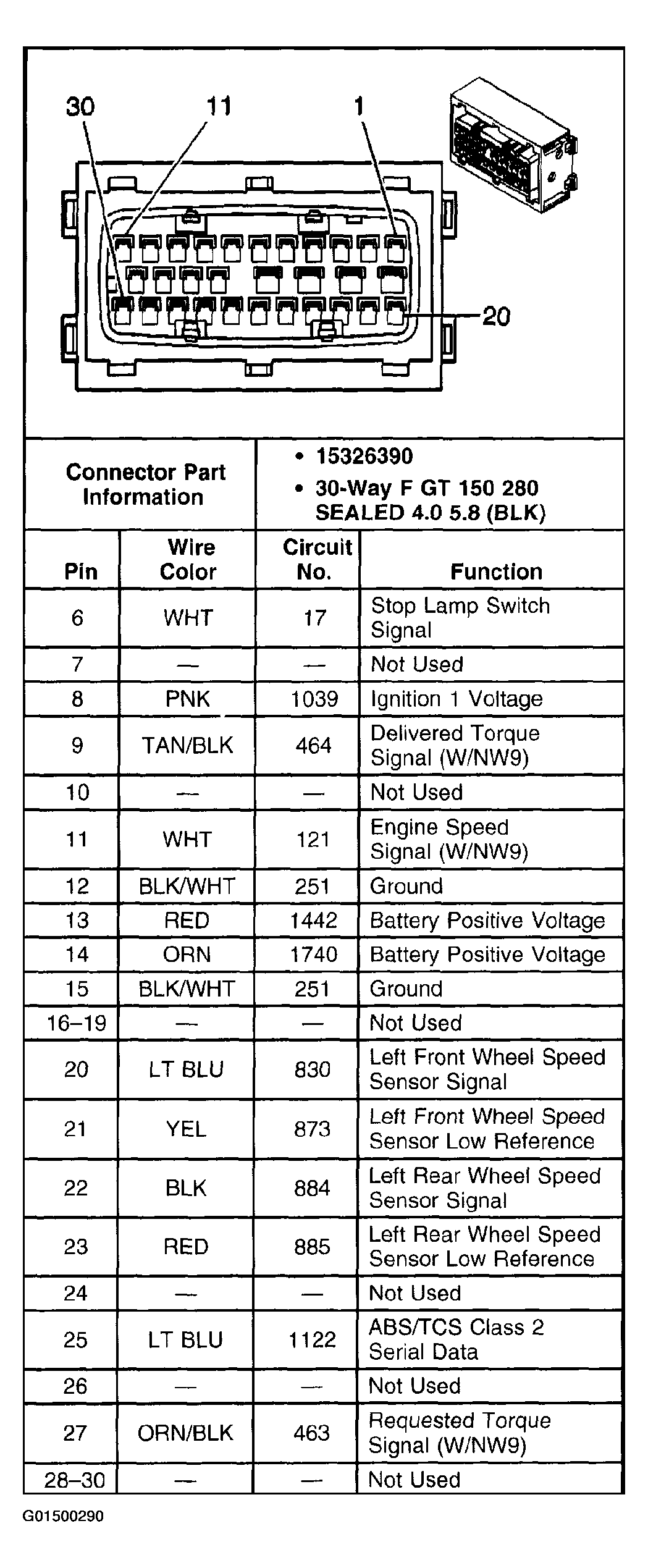

Fig 2: Identifying Electronic Brake Control Module (EBCM) Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

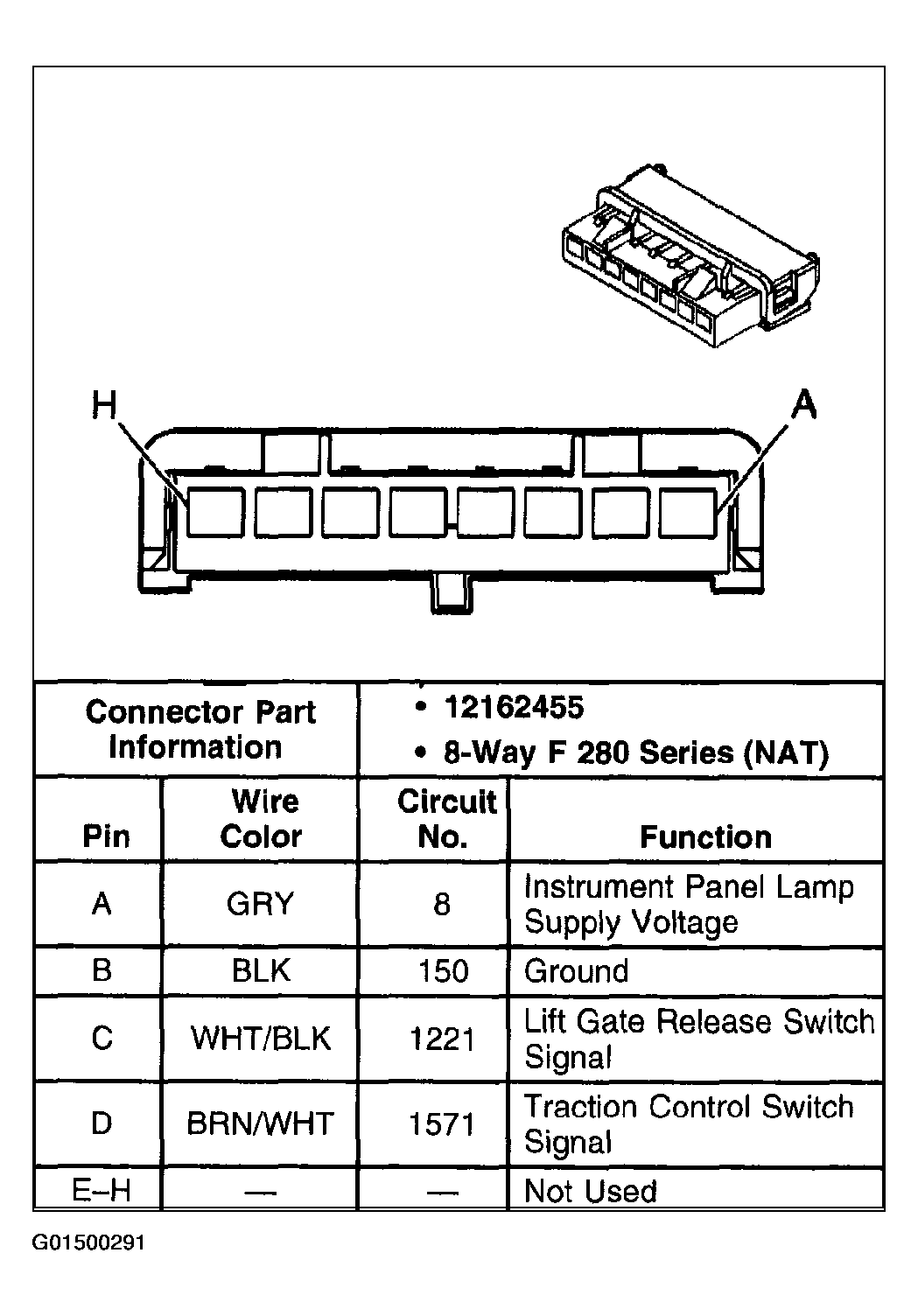

Fig 3: Identifying I/P Switch Assembly - C1 Terminals (Pontiac)

Courtesy of GENERAL MOTORS CORP.

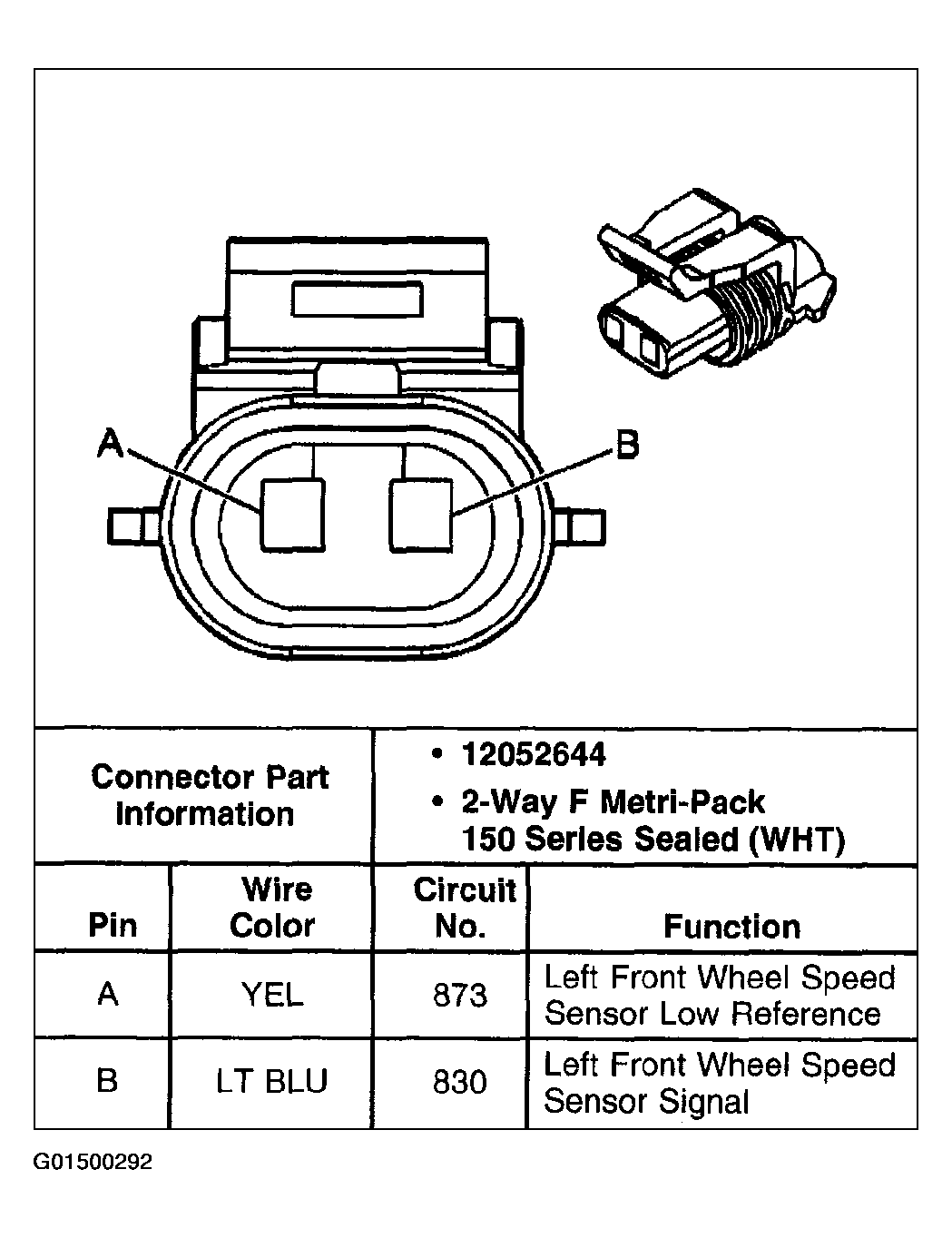

Fig 4: Identifying Wheel Speed Sensor - LF Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Wheel Speed Sensor - LR Terminals

Courtesy of GENERAL MOTORS CORP.

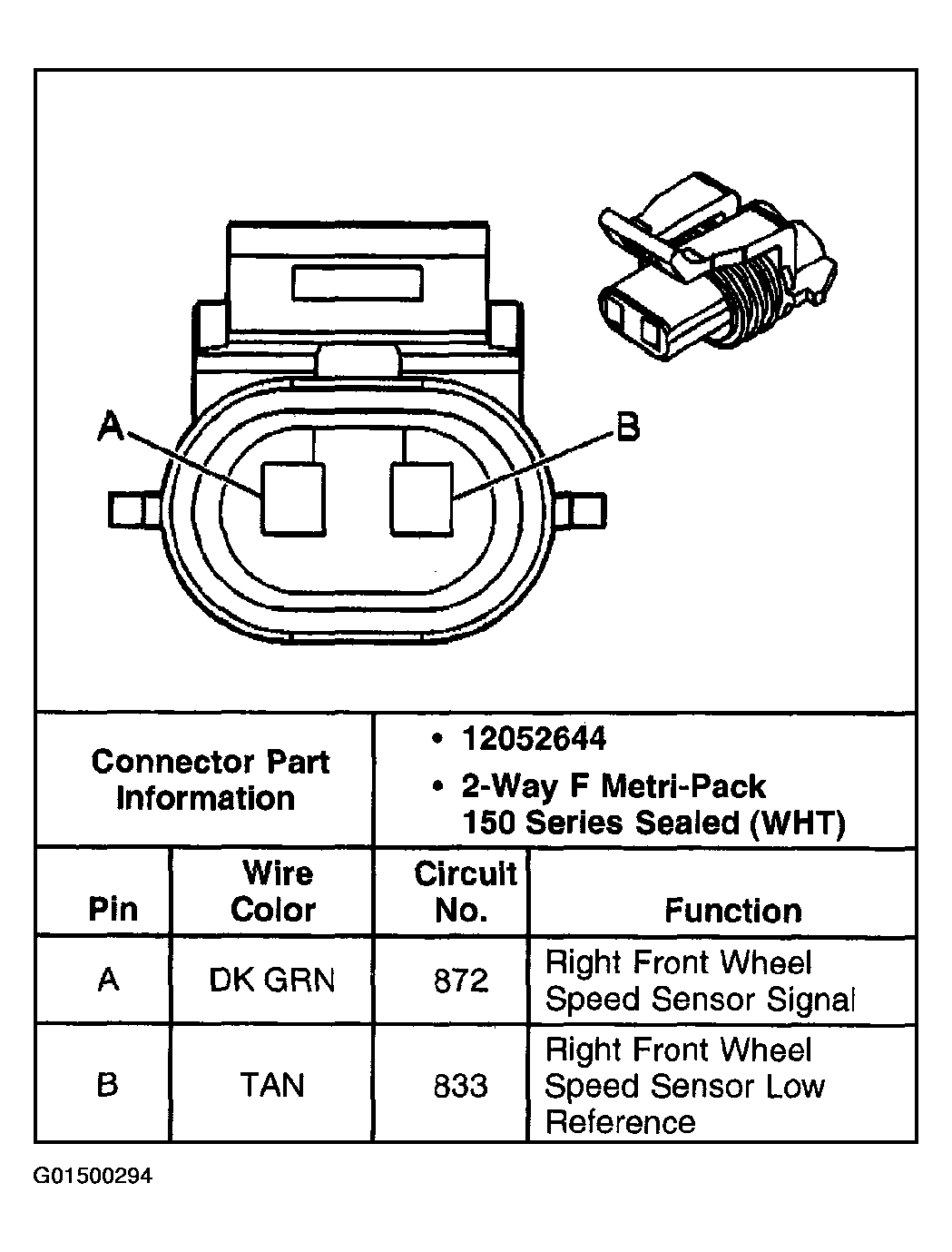

Fig 6: Identifying Wheel Speed Sensor - RF Terminals

Courtesy of GENERAL MOTORS CORP.

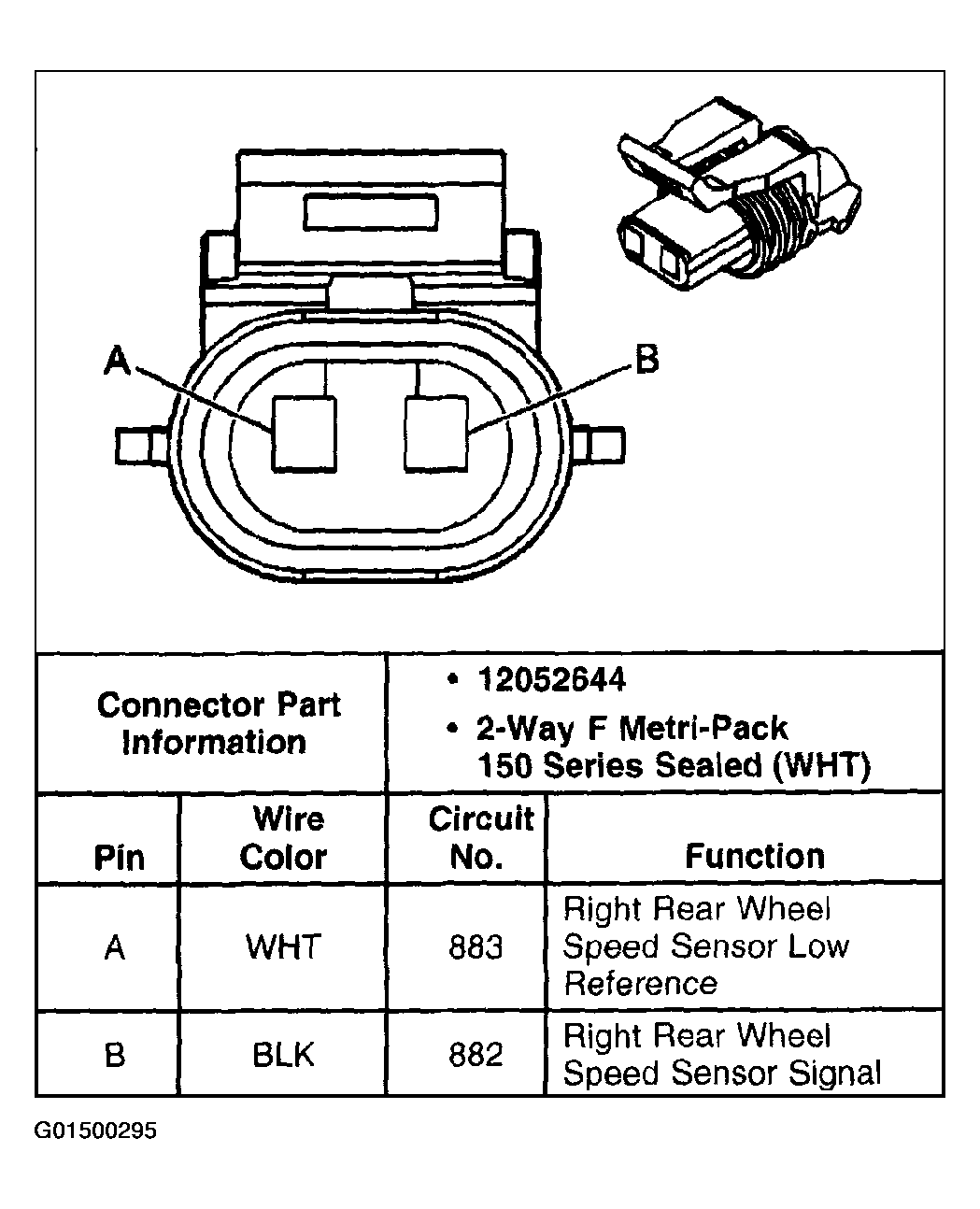

Fig 7: Identifying Wheel Speed Sensor - RR Terminals

Courtesy of GENERAL MOTORS CORP.
