Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | Part of HVAC module, behind glove box, in front of blower motor. |
| Body Control Module | In console, above fuse block, in center console. |

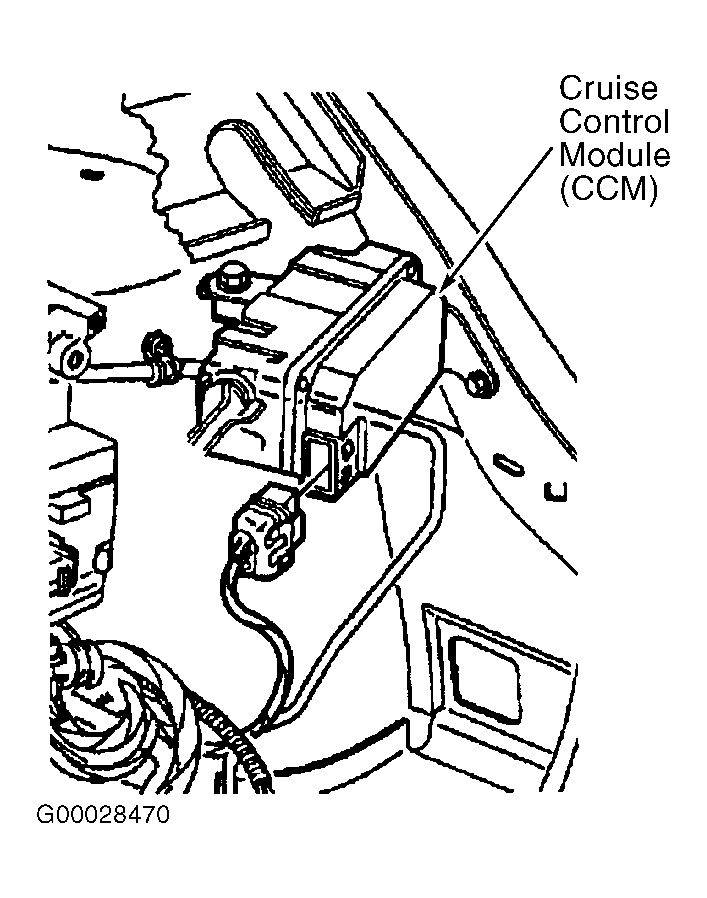

| Cruise Control Module (CCM) | At left side of engine compartment, near strut tower. See Figure . |

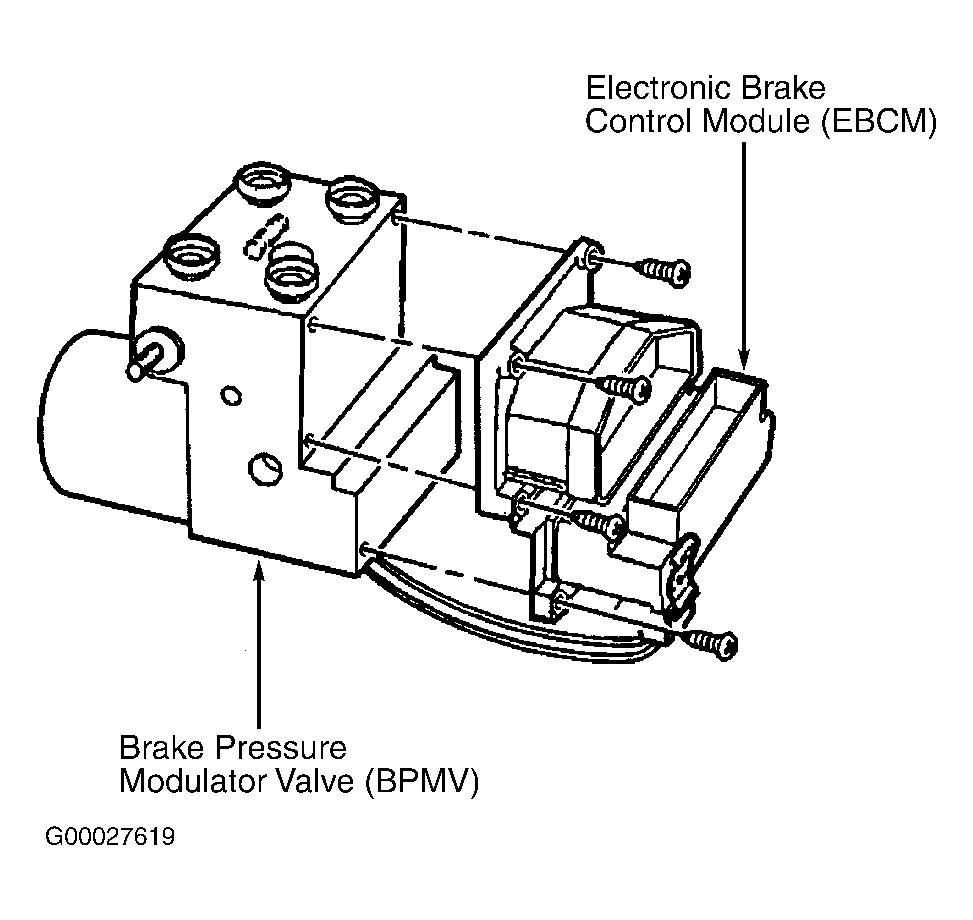

| Electronic Brake Control Module (EBCM) | Left side of engine compartment. See Figure . |
| HVAC Control Module | Center of dash, below radio. |
| Ignition Control Module | On top of right valve cover. |
| Inflatable Restraint I/P Module | Right side of dash, above glove box. |
| Inflatable Restraint Sensing & Diagnostic Module | Under right front seat. |
| Inflatable Restraint Side Impact Module (Left) | Left side of driver seat back cover. |
| Inflatable Restraint Side Impact Module (Right) | Right side of passenger seat back cover. |
| Memory Seat & Mirror Module | Under driver seat. |
| OnStar(R) Transceiver | Under dash, left of blower motor. |

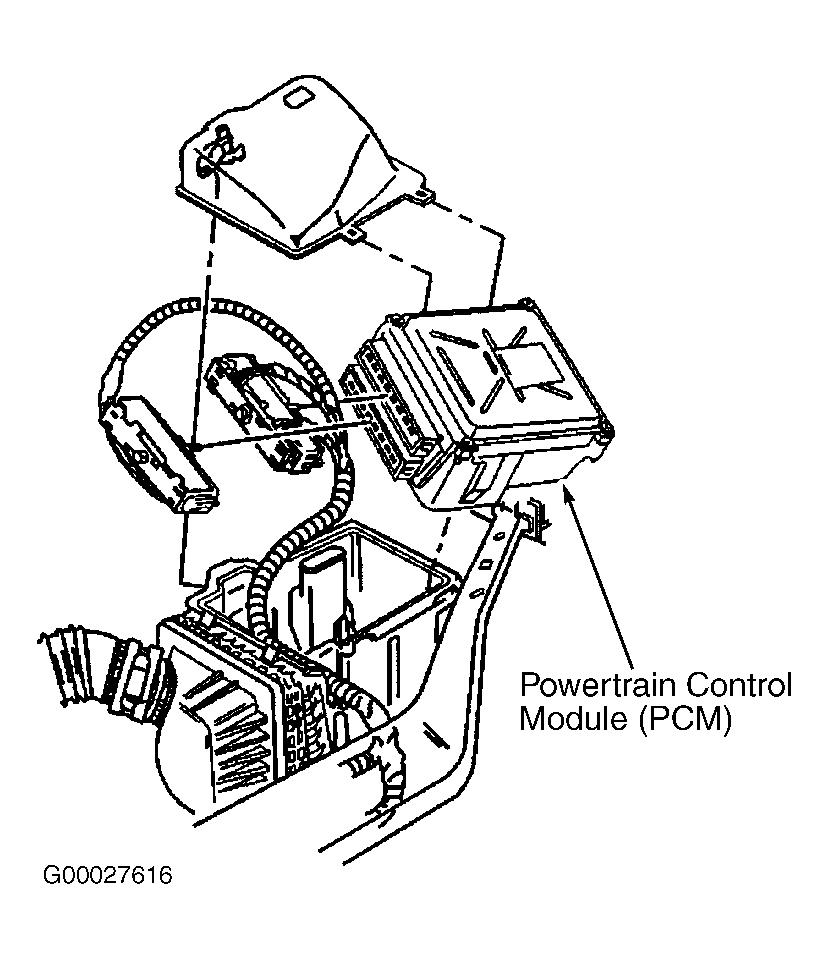

| Powertrain Control Module (PCM) | At left side of engine compartment, in air cleaner assembly. See Figure . |
| Rear Parking Assist Sensors | Behind left rear wheelhouse. |
| Remote Control Door Lock Receiver | Behind center of dash, near windshield defrost vent, in sun roof assembly. |
| Sun Roof Module | In sun roof assembly. |
| Theft Deterrent Control Module | In steering column, at ignition switch. |
| Turn Signal/Multifunction Flasher Module | In center console fuse block. |
