Installation Procedure

  1. Install the muffler over the rear axle and towards the rear of the vehicle.
  2. Install the exhaust hanger insulators to the muffler.
  3. If the vehicle is equipped with AWD, use the utility stand to raise and install the crossmember.

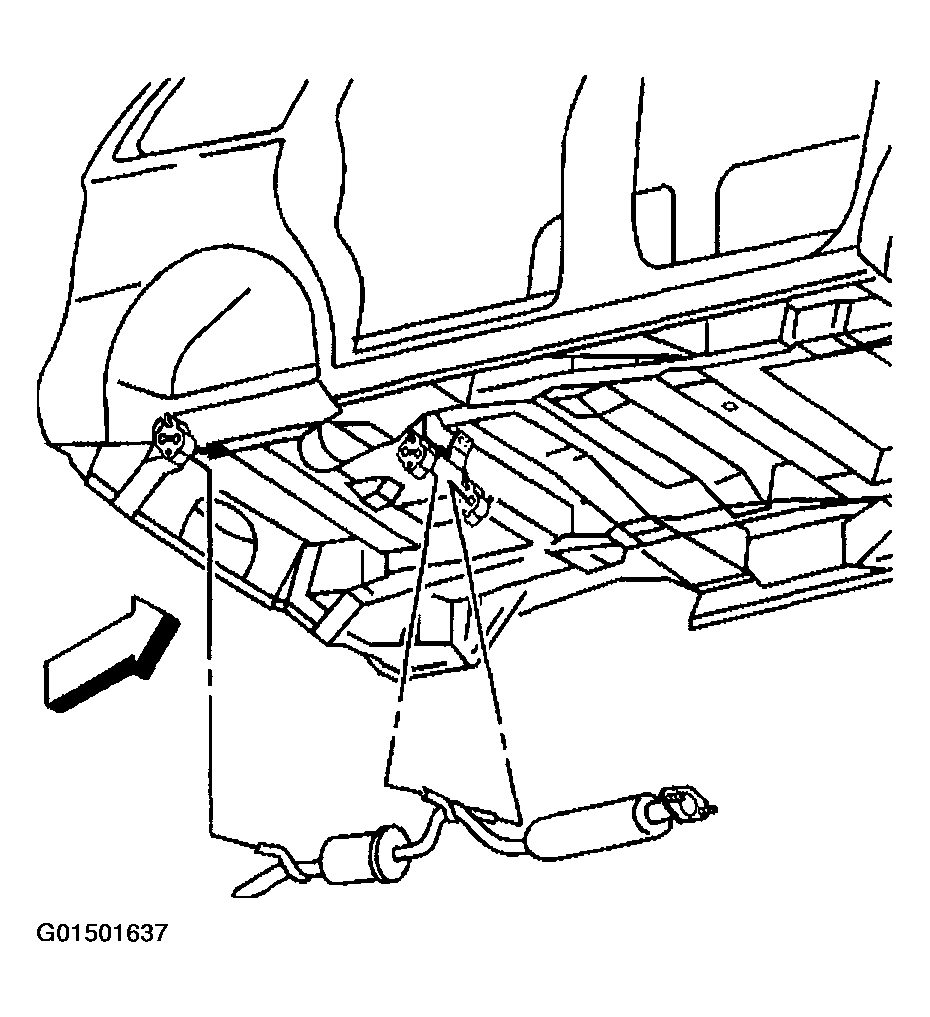

    Fig 1: Installing Muffler Towards Rear Of Vehicle
    G01501637Courtesy of GENERAL MOTORS CORP.
  4. Install a new catalytic converter gasket.
  5. Install the catalytic converter bolts.

    Tighten

    Tighten the bolts to 34 N.m (25 lb ft).

  6. Lower the vehicle.

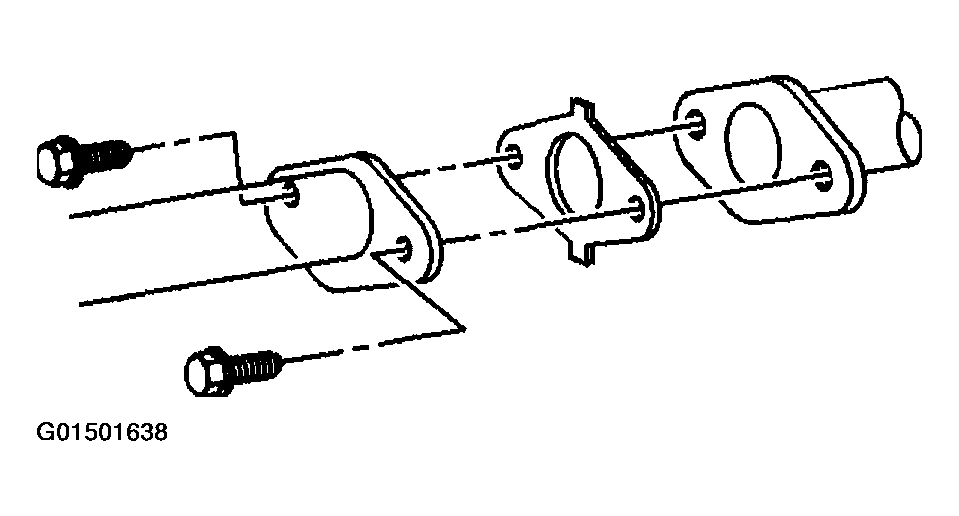

    Fig 2: Installing Catalytic Converter Gasket And Bolts - Muffler Replacement
    G01501638Courtesy of GENERAL MOTORS CORP.
