Fuel Pump Electrical Circuit Diagnosis: Notes

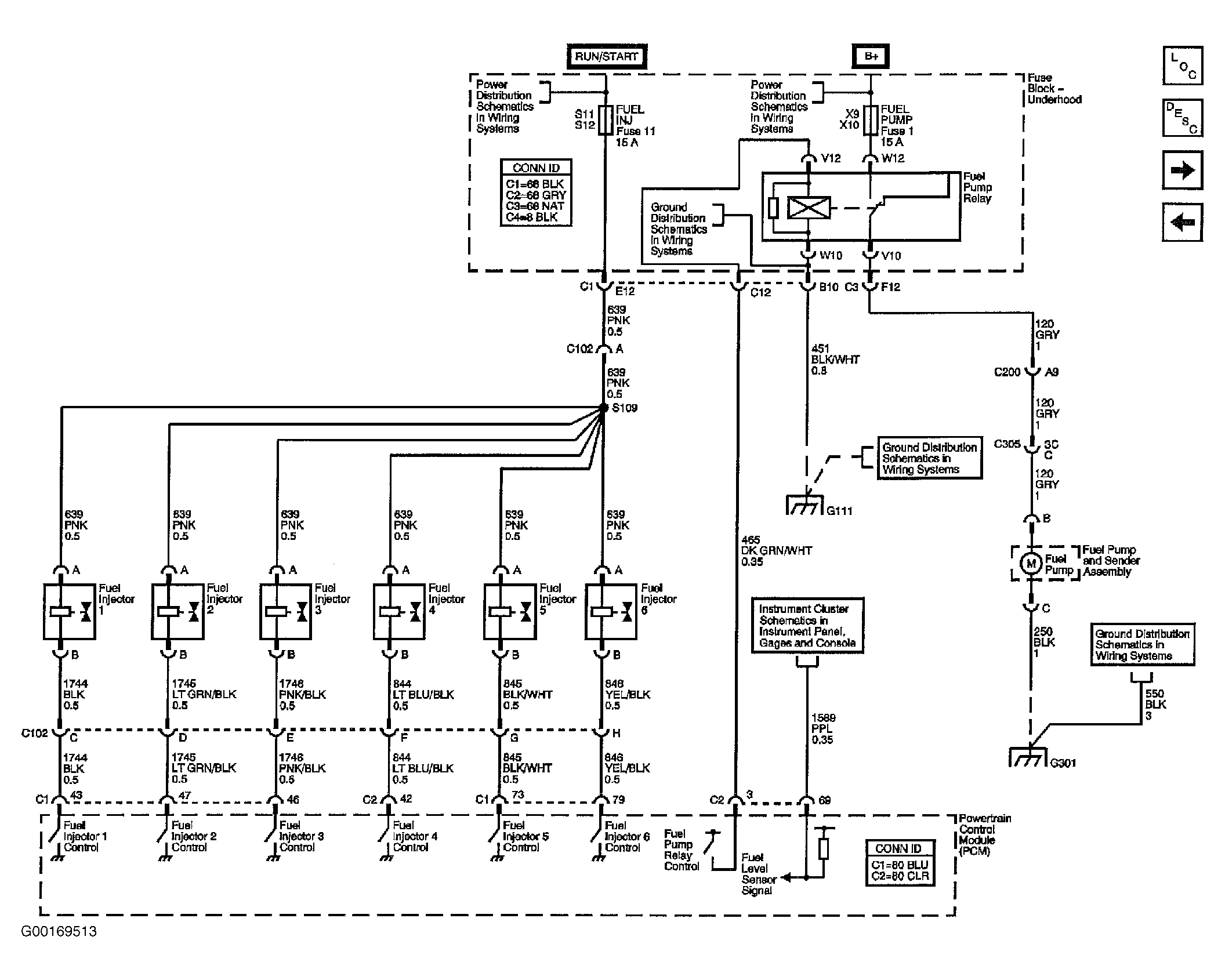

Fig 1: Fuel System Electrical Schematic
G00169513Courtesy of GENERAL MOTORS CORP.
