Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  3. Disconnect the BCM electrical connectors.
  4. Push the BCM up and move the bottom of the BCM away from and out of the mounting bracket slot in order to remove the BCM.

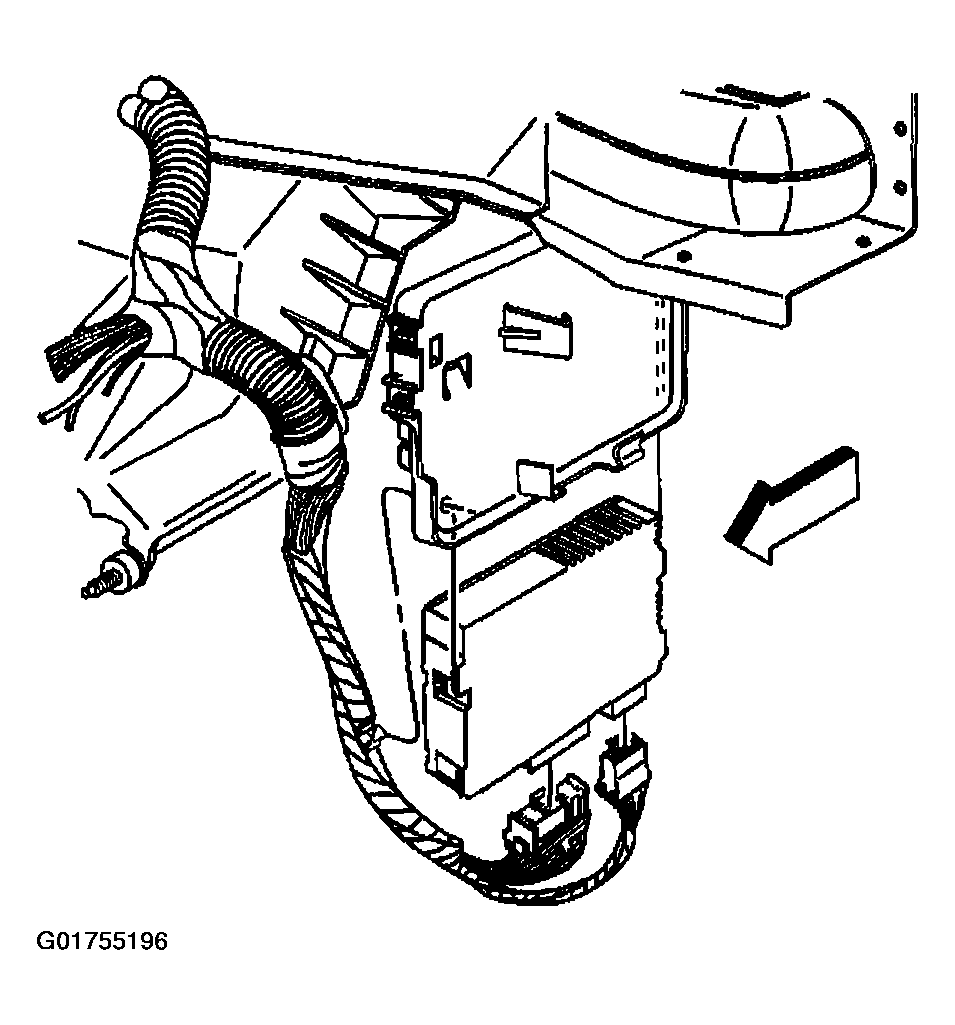

    Fig 1: Identifying Body Control Module
    G01755196Courtesy of GENERAL MOTORS CORP.
