Reverse Servo: Installation

  1. Raise the driver (left) side of the vehicle until it is higher than the passenger (right) differential side. This ensures the reverse band is in the proper location.
    NOTE: Failure to perform the following step may result in no reverse gear due to the servo pin not aligning with the reverse band.

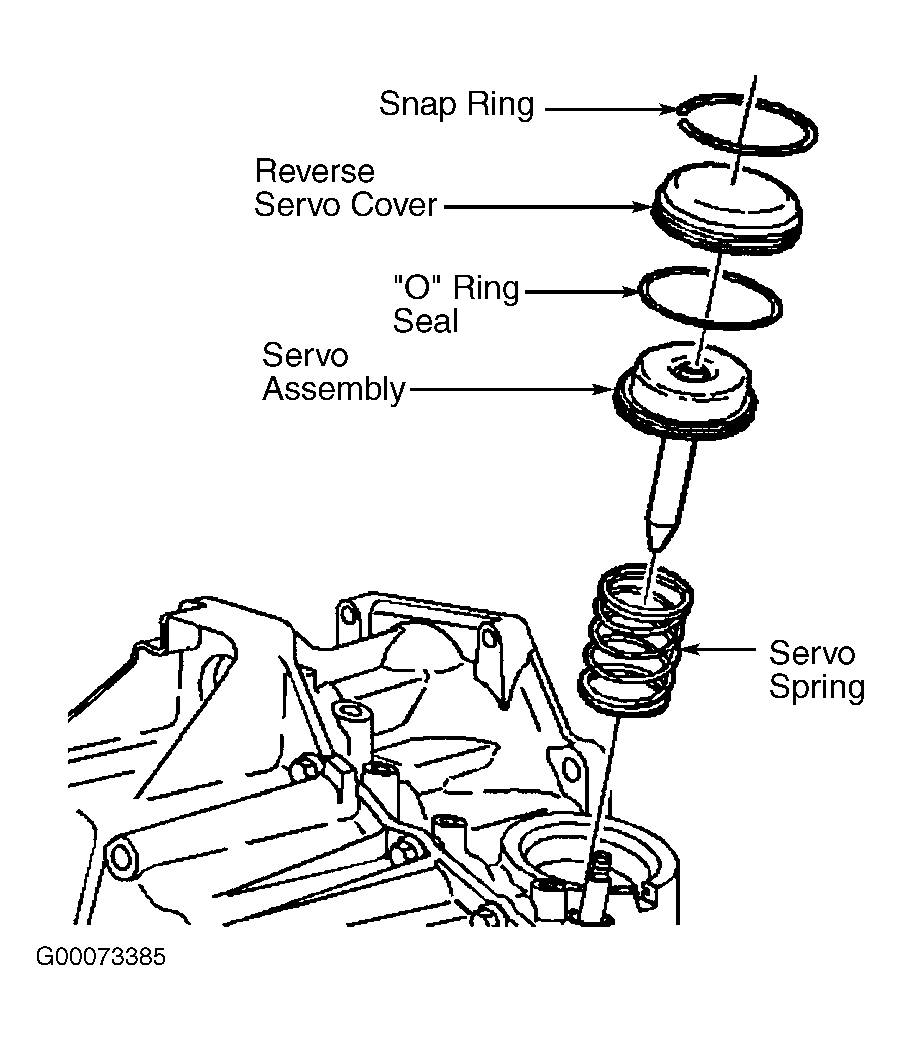

  2. Install the servo spring. See Figure . Install the servo assembly.
  3. Install the reverse servo cover with new "O" ring seal. See Figure . Install the snap ring. Install the throttle body air inlet duct.
