Tools Required

J 41207-C  Off-Board Programming Adapter Kit

The J 41207-C  is required when a module must be programmed without having the vehicle present. The adapter allows the module to be turned ON and communicate with the scan tool.

For additional SPS information, refer to Service Programming System (SPS) Description  .

Important:  Ensure the Tech 2 and the terminal are both equipped with the latest software before performing SPS.

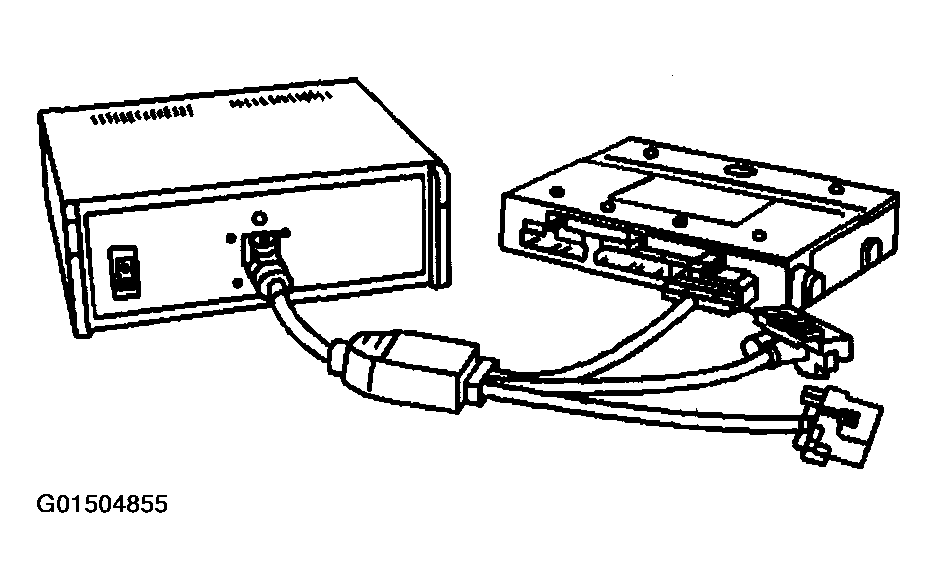

Fig 1: Using J 41207-C

Courtesy of GENERAL MOTORS CORP.
