Component Locations

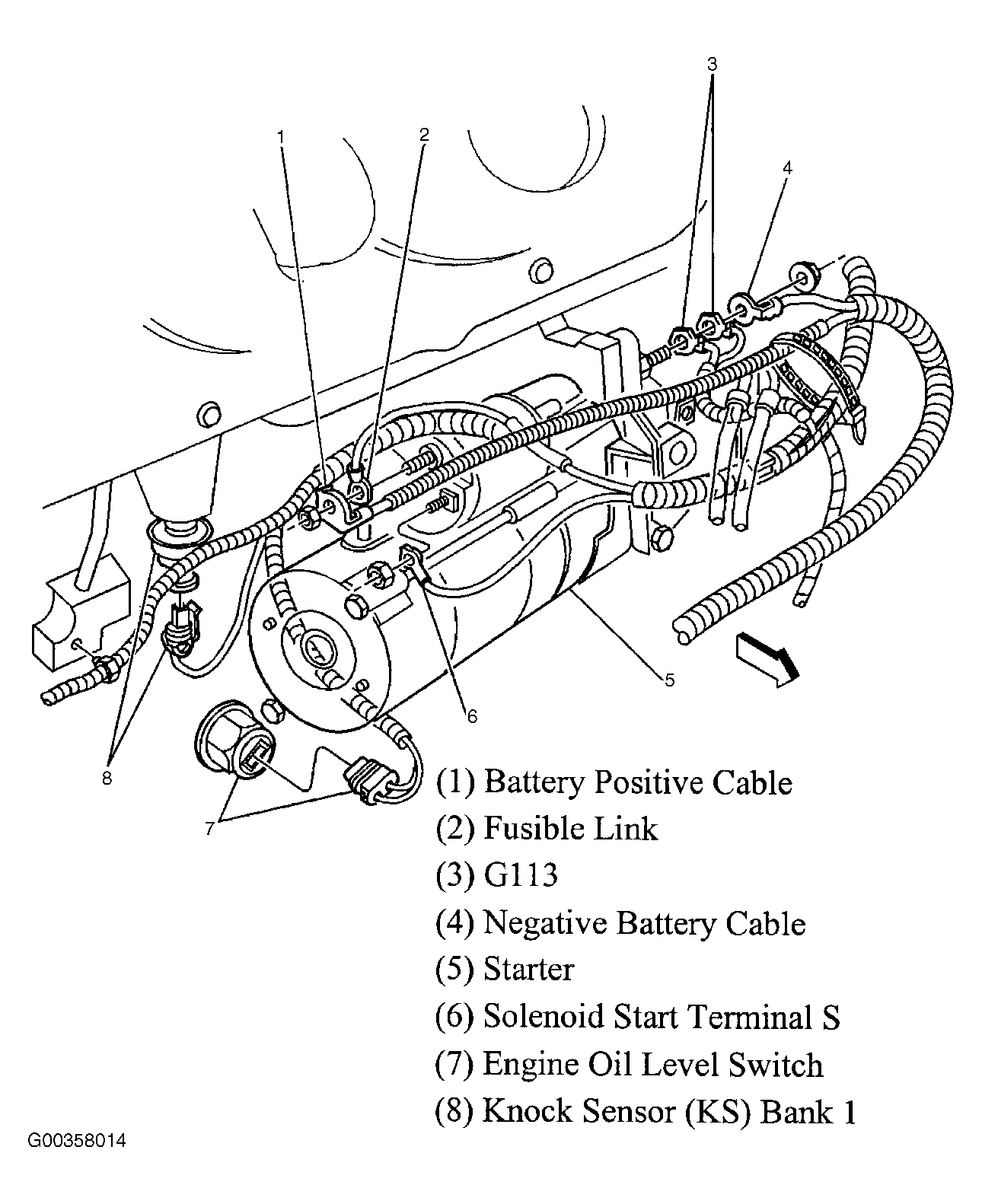

Fig 1: Identifying Starter Motor Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
