Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the data link connector to the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the data link connector. Tighten the screws to 2 N.m (18 lb in).

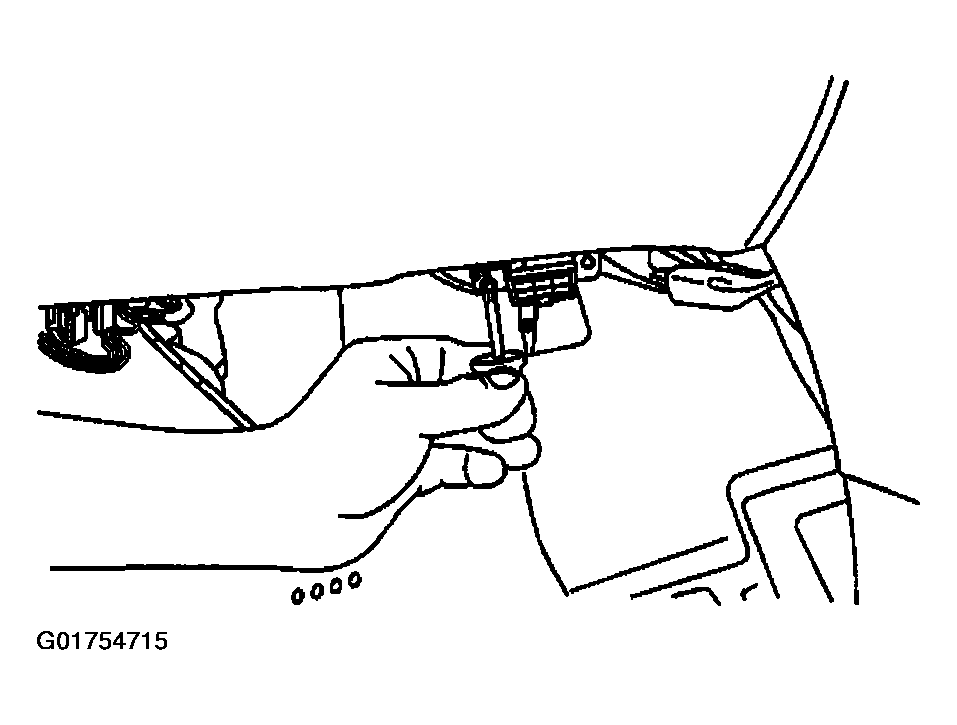

Fig 1: Identifying Data Link Connector
G01754715Courtesy of GENERAL MOTORS CORP.
