Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the data link connector.
  2. Reposition the data link connector from the instrument panel.

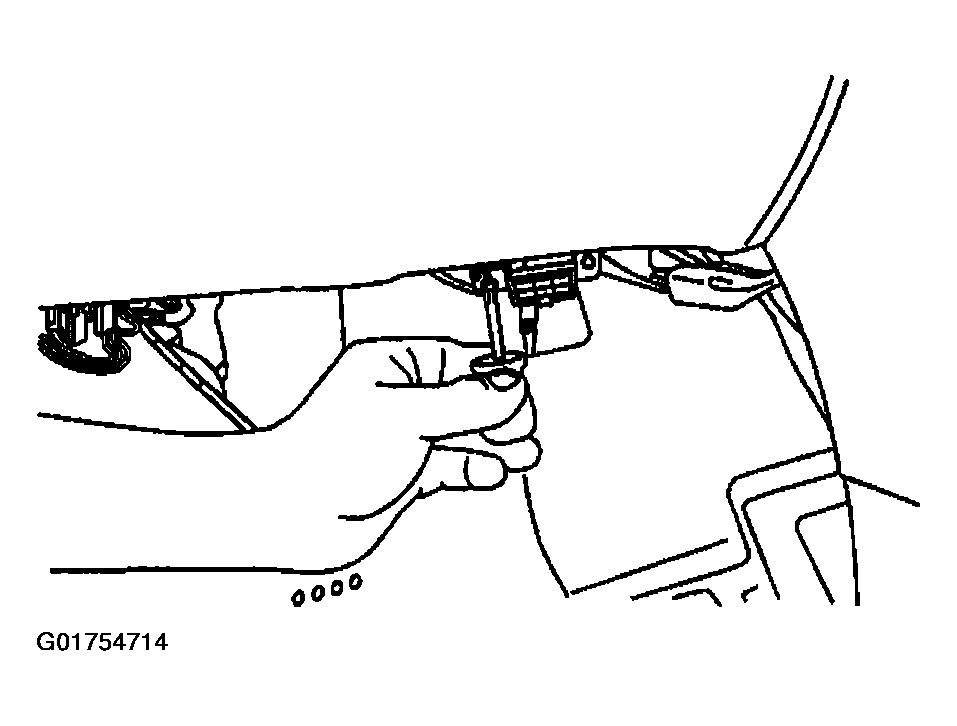

    Fig 1: Identifying Data Link Connector
    G01754714Courtesy of GENERAL MOTORS CORP.
