Installation Procedure

  1. Position the child seat tether brackets to the slot in the rear shelf.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the child seat tether brackets.

    Tighten

    Tighten the screws to the child seat tether brackets to 20 N.m (15 lb ft).

  3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

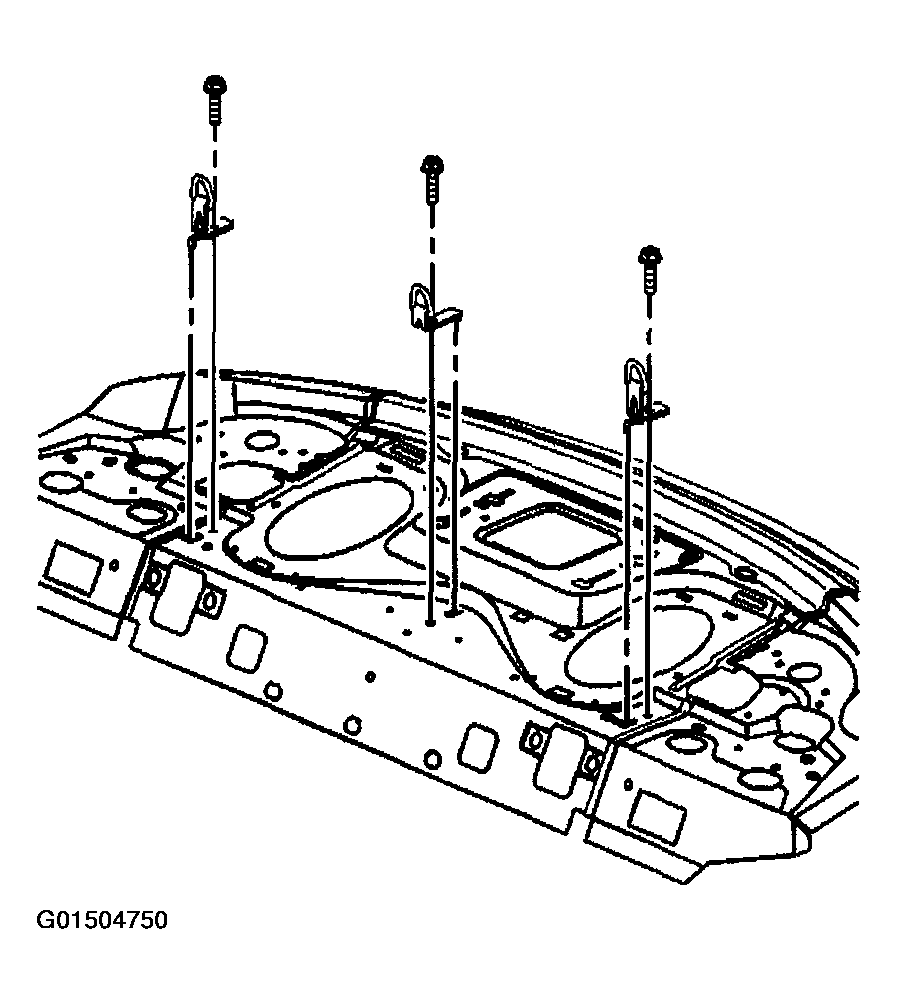

    Fig 1: Installation Procedure Child Restraint Tether Anchor
    G01504750Courtesy of GENERAL MOTORS CORP.
