Installation Procedure

Important:  Verify that the release lever at the top of the bracket is in the full up position.

1. Position shoulder belt guide adjuster bracket to the upper center pillar.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. Install the shoulder belt guide belt adjuster bracket bolts.

   Tighten  Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).

3. Install the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) in Interior Trim.

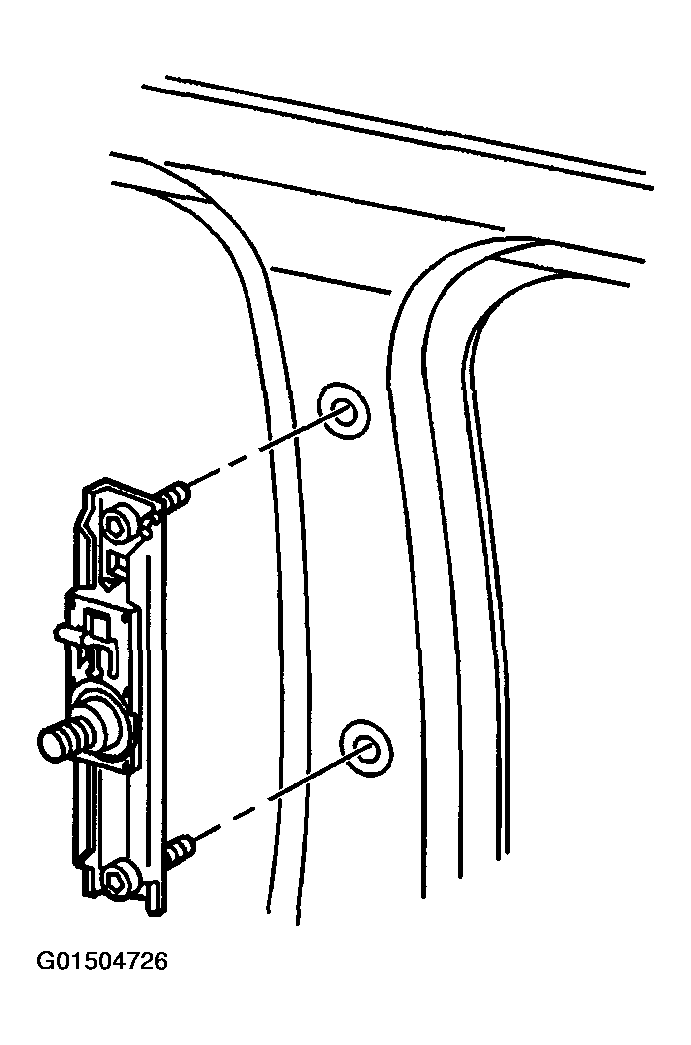

   Fig 1: Installation Shoulder Belt Guide Adjuster Bracket

   Courtesy of GENERAL MOTORS CORP.
