Automatic Transmission Shift Lock Control Component Views

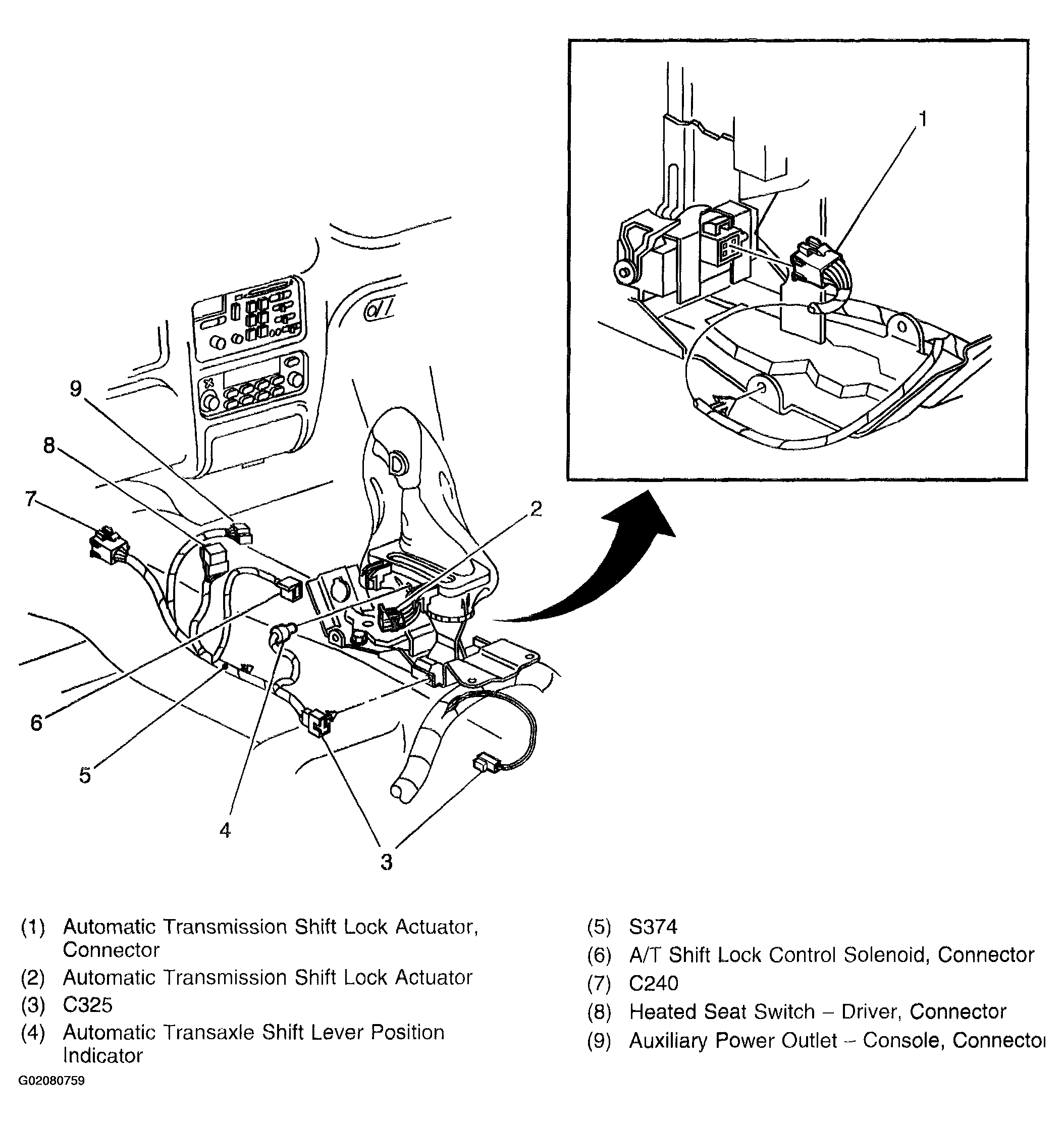

Fig 1: Floor Console Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
