Automatic Transmission Shift Lock Control Connector End Views

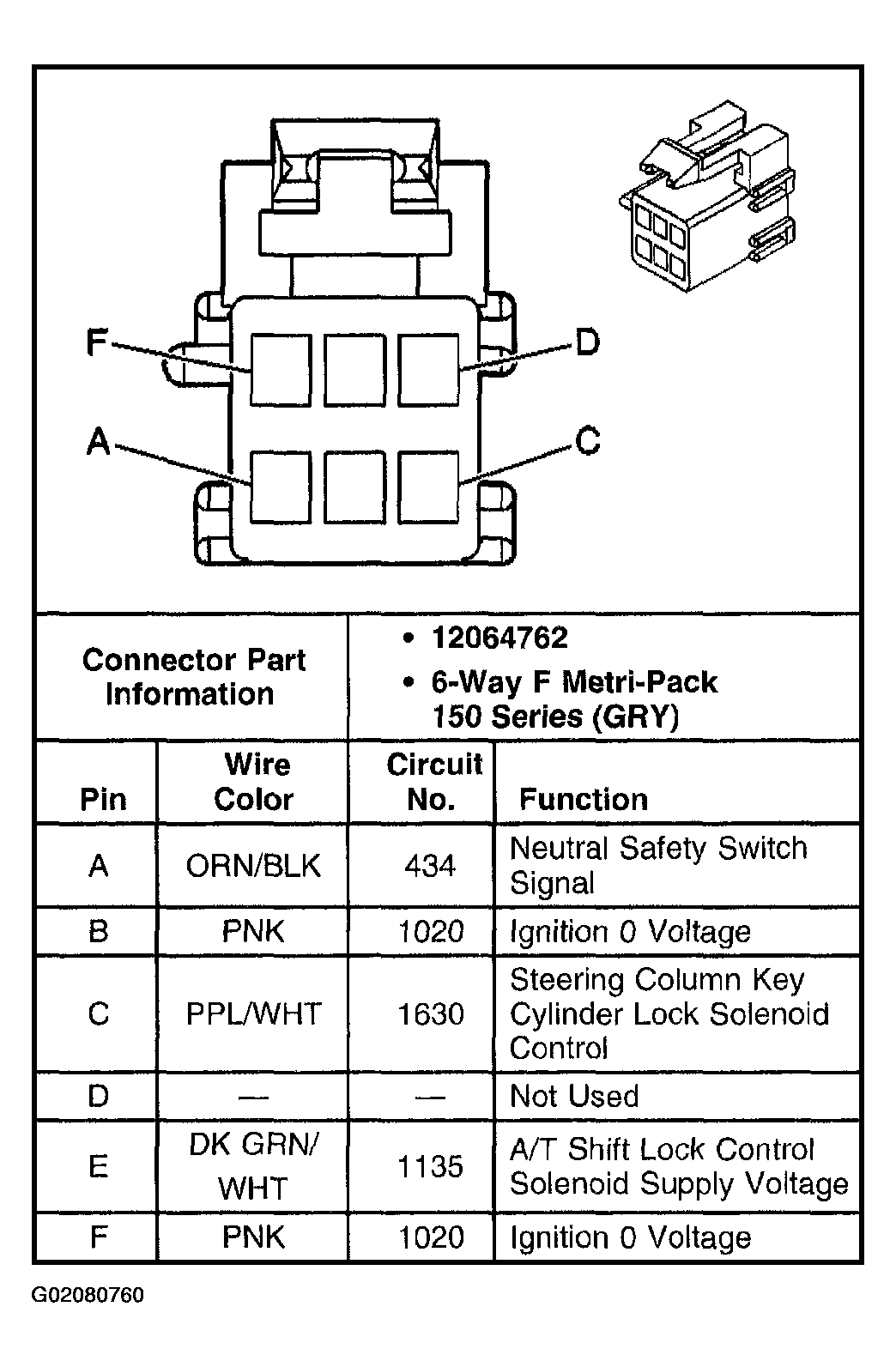

Fig 1: A/T Shift Lock Control Solenoid Connector End View
G02080760Courtesy of GENERAL MOTORS CORP.
