Installation Procedure

  1. Install both ends of the automatic transmission shift lock control actuator to the pivot points (1).

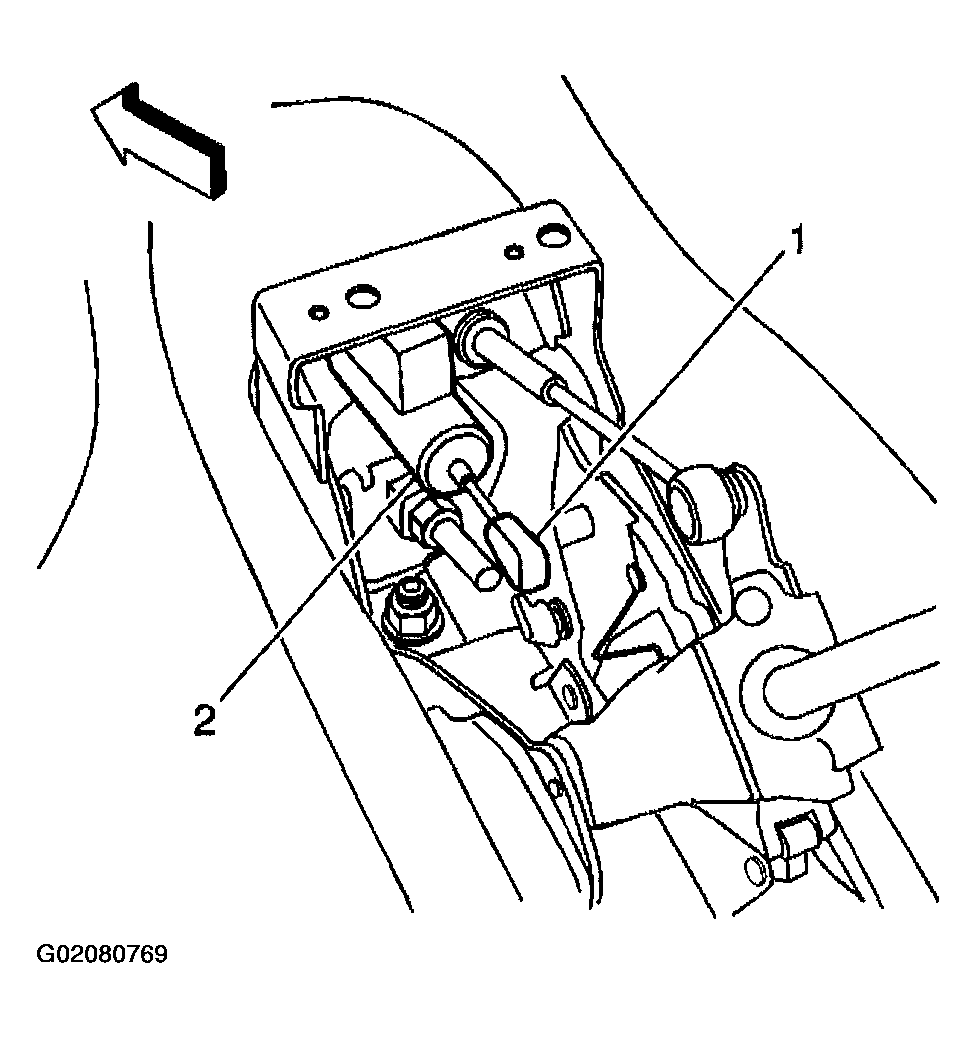

    Fig 1: Installing Ends Of Automatic Transmission Shift Lock Control Actuator To Pivot Points
    G02080769Courtesy of GENERAL MOTORS CORP.
  2. Connect the automatic transmission shift lock control actuator electrical connector.
  3. Install the Center Console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages, and Console.
  4. Connect negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.

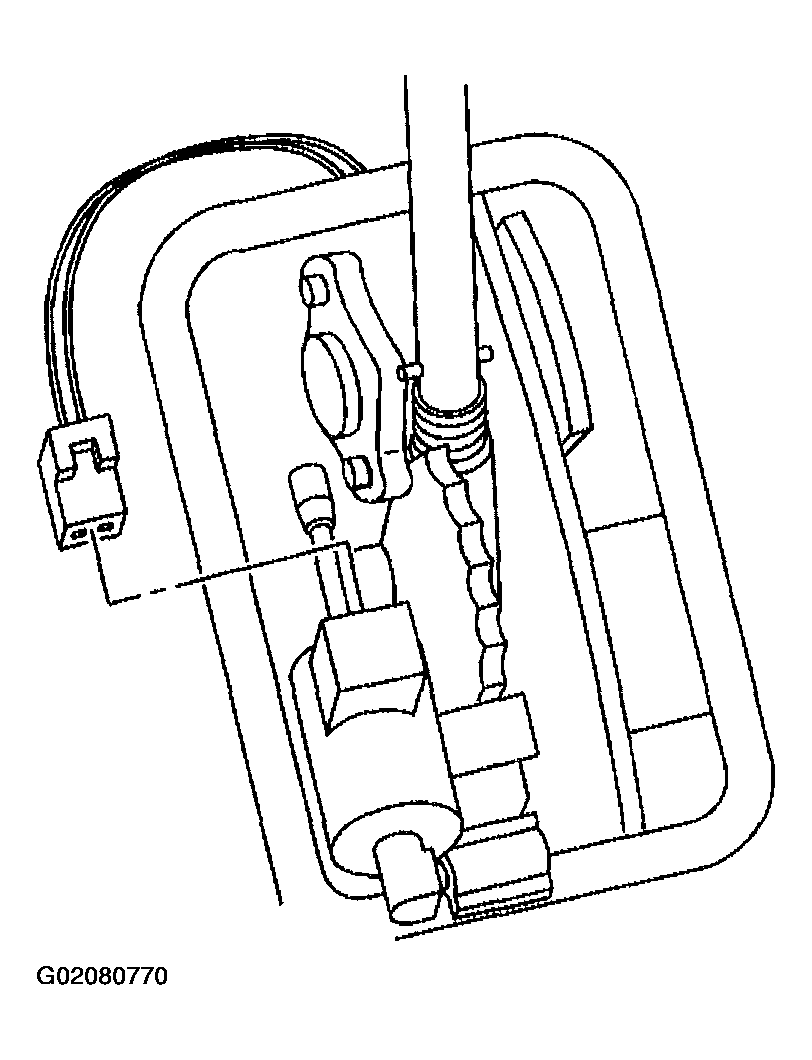

    Fig 2: Connecting Automatic Transmission Shift Lock Control Actuator Electrical Connector
    G02080770Courtesy of GENERAL MOTORS CORP.
