Stationary Windows Component Views

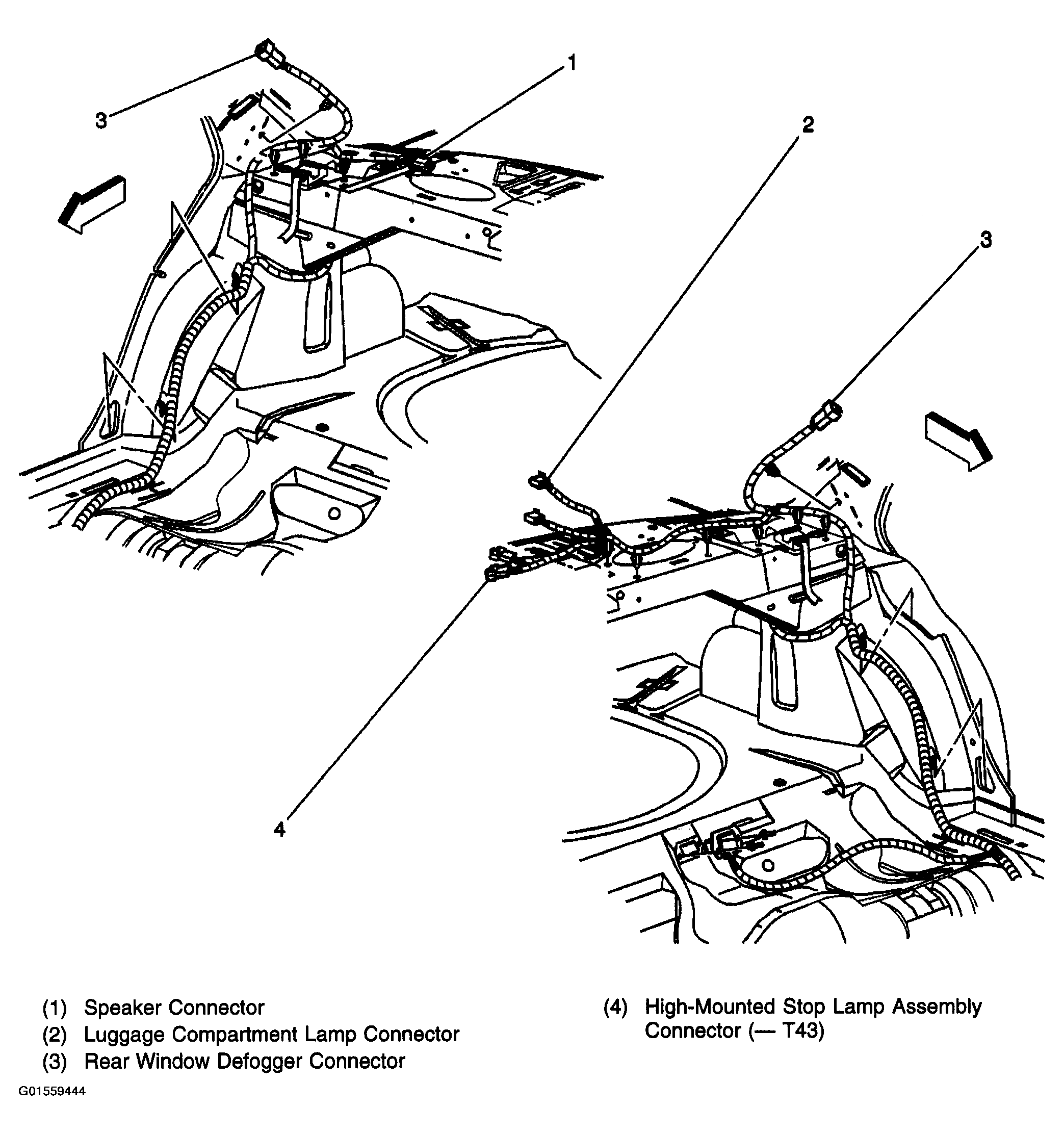

Fig 1: Component Location - Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
