Installation Procedure

  1. Install a stationary window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS  .
  2. Connect the rear window electrical connectors.
  3. Install the rear quarter trim panels. Refer to COAT HOOK REPLACEMENT in Interior Trim.
  4. Close the rear compartment lid.
  5. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

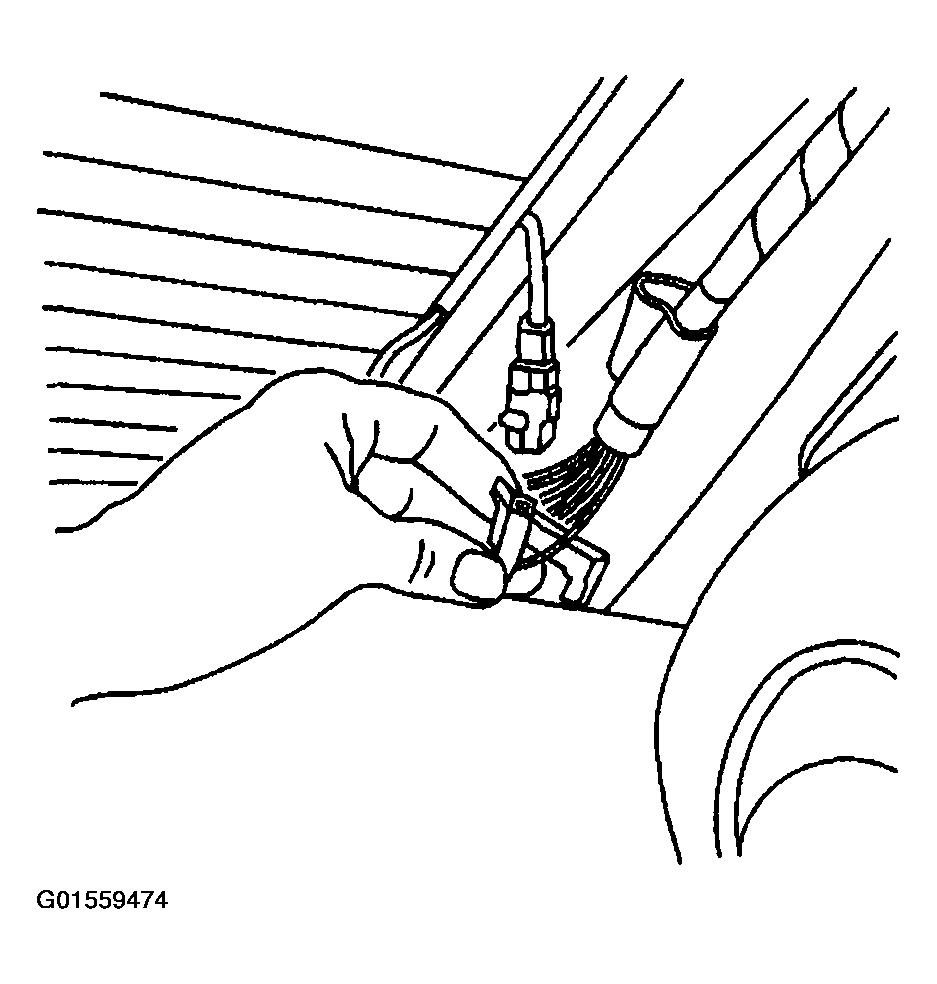

    Fig 1: Connecting Rear Window Electrical Connectors
    G01559474Courtesy of GENERAL MOTORS CORP.
