ABS Component Views

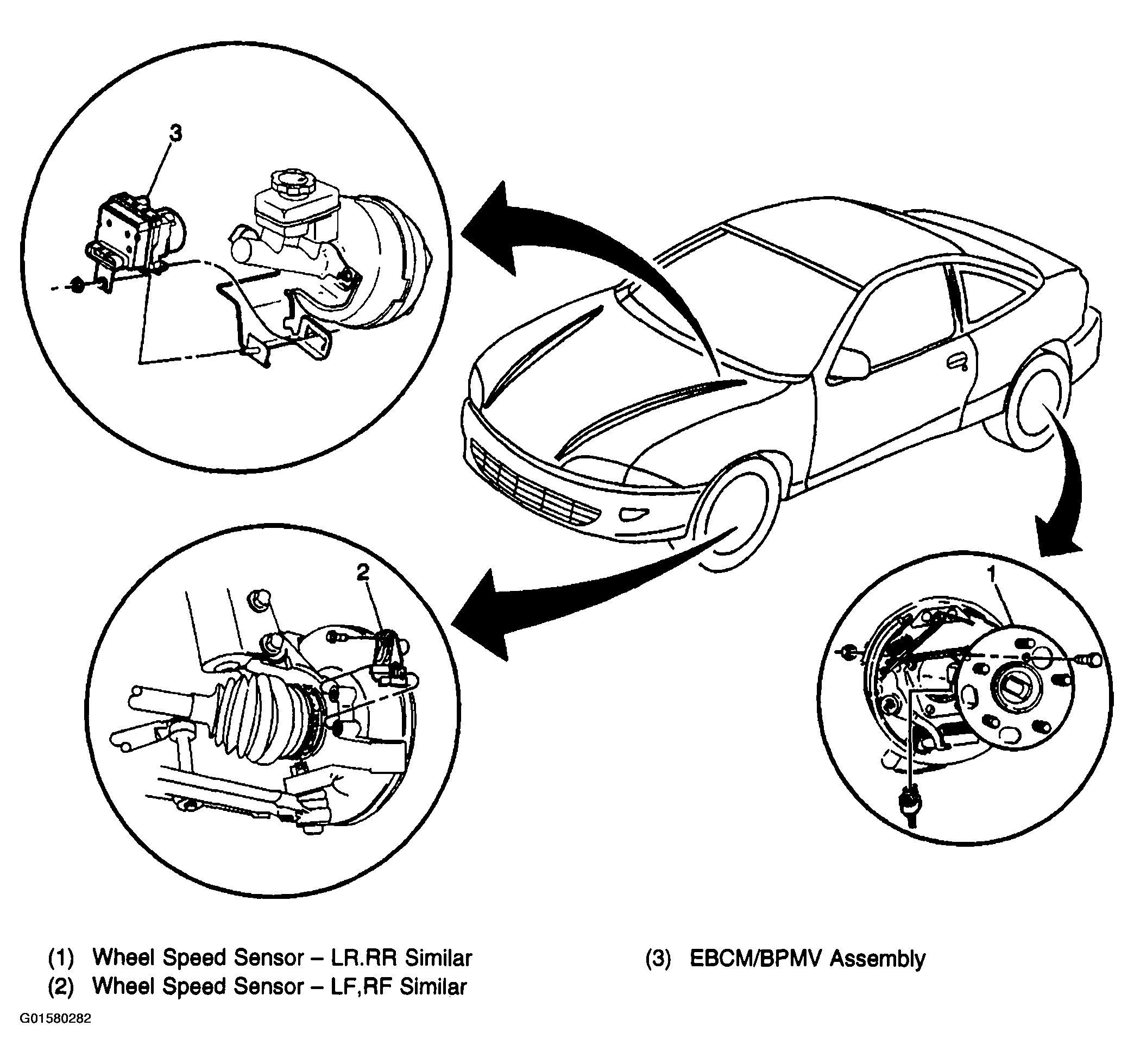

Fig 1: Locating ABS Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
