ABS Connector End Views

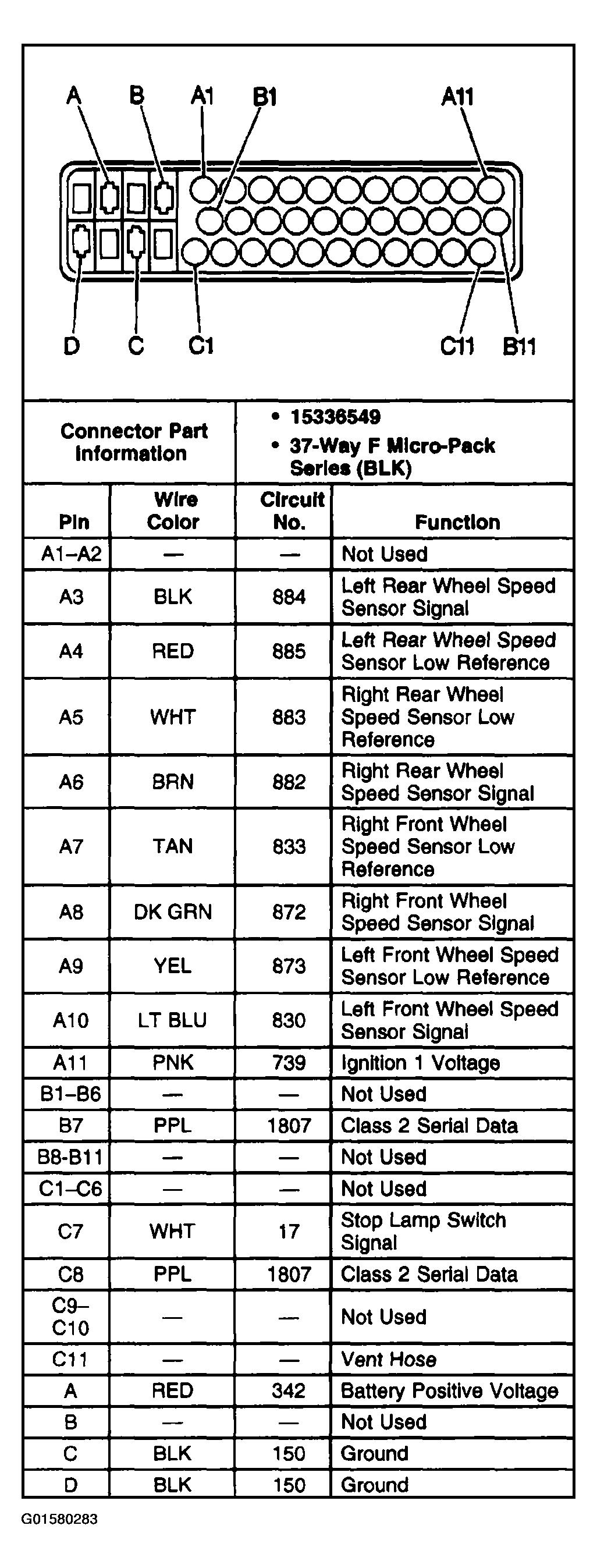

Fig 1: Identifying Electronic Brake Control Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.

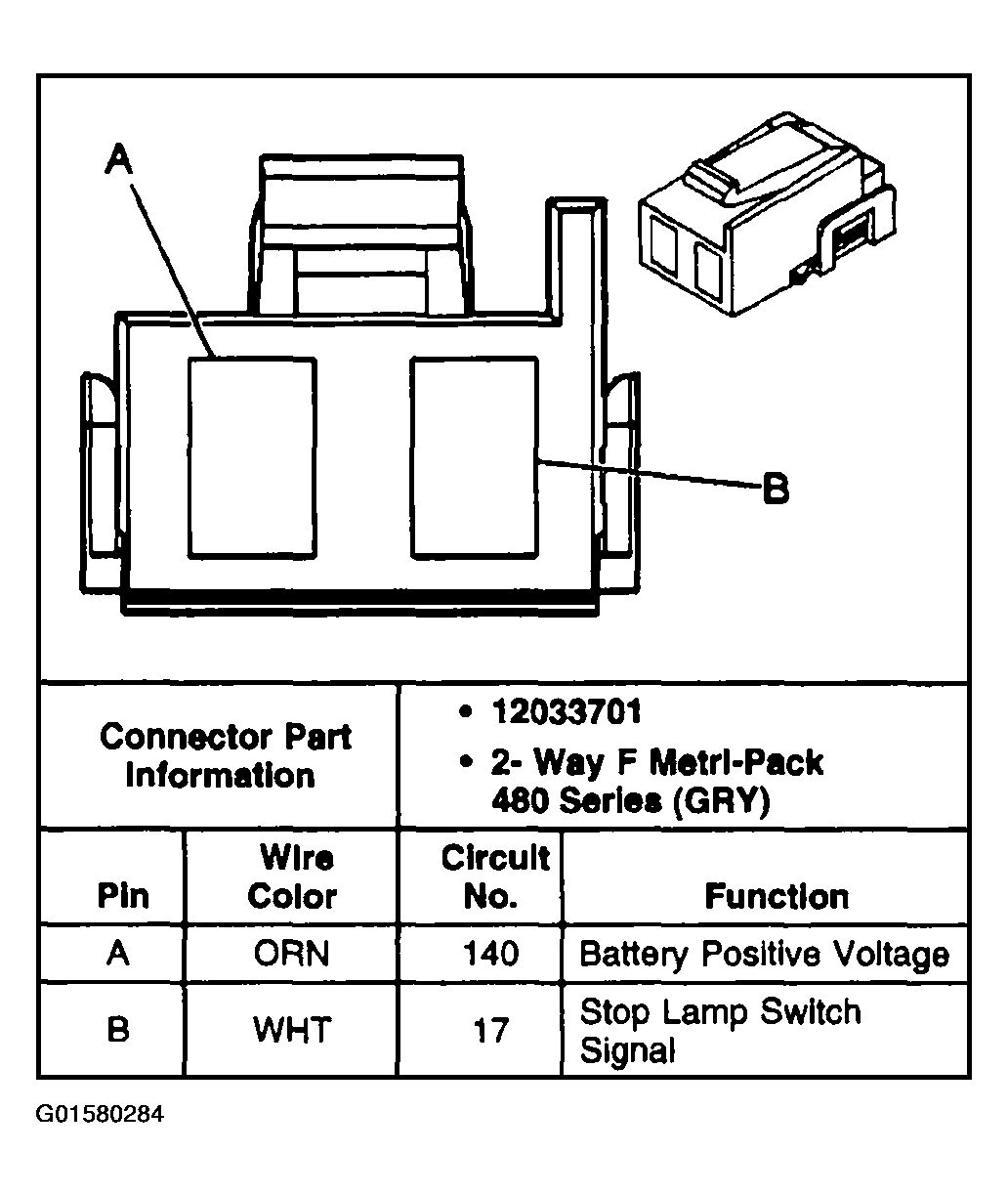

Fig 2: Identifying Stop Lamp Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

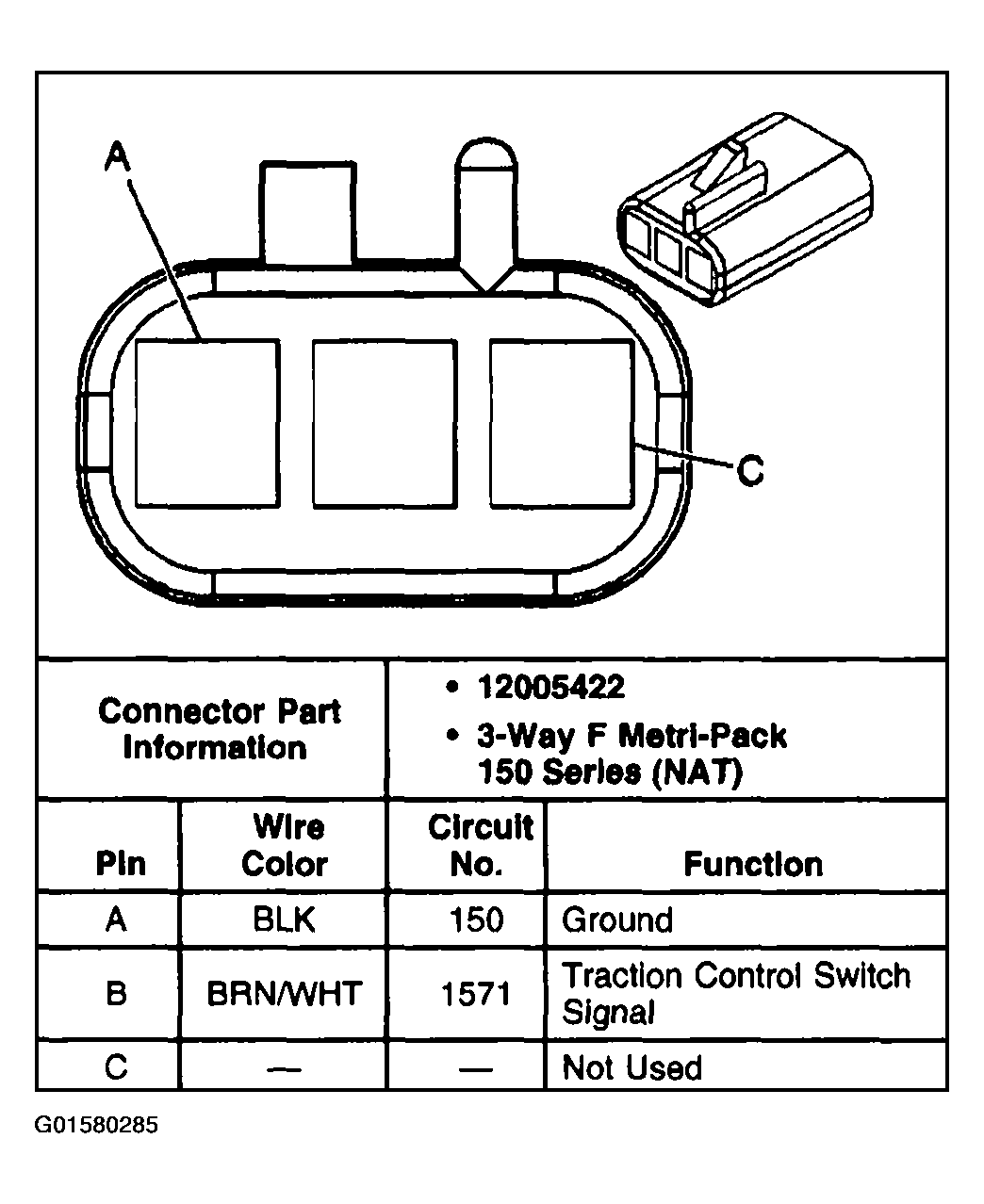

Fig 3: Identifying Traction Control Switch Connector Terminals - Pontiac

Courtesy of GENERAL MOTORS CORP.

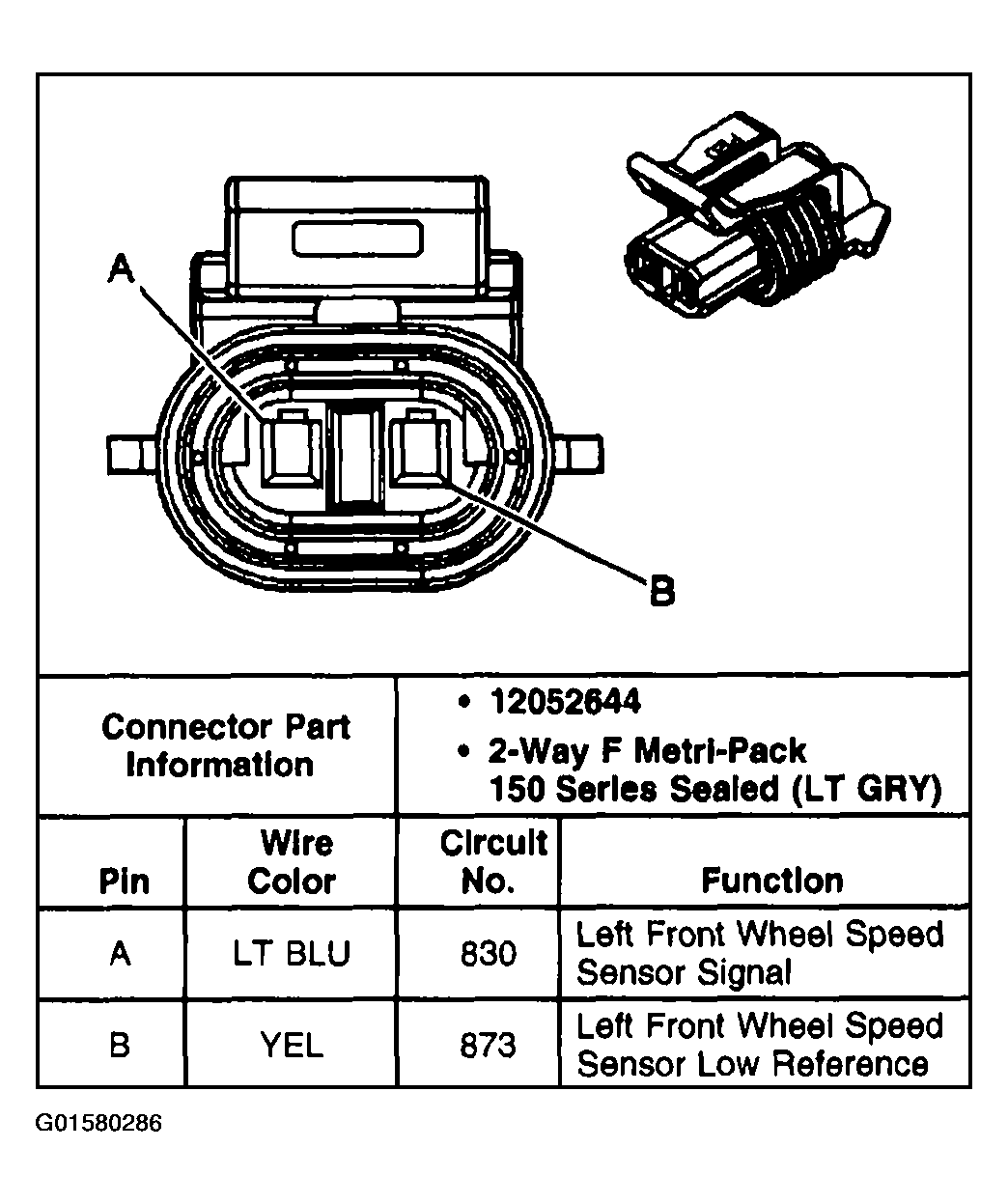

Fig 4: Identifying Wheel Speed Sensor Connector Terminals - LF

Courtesy of GENERAL MOTORS CORP.

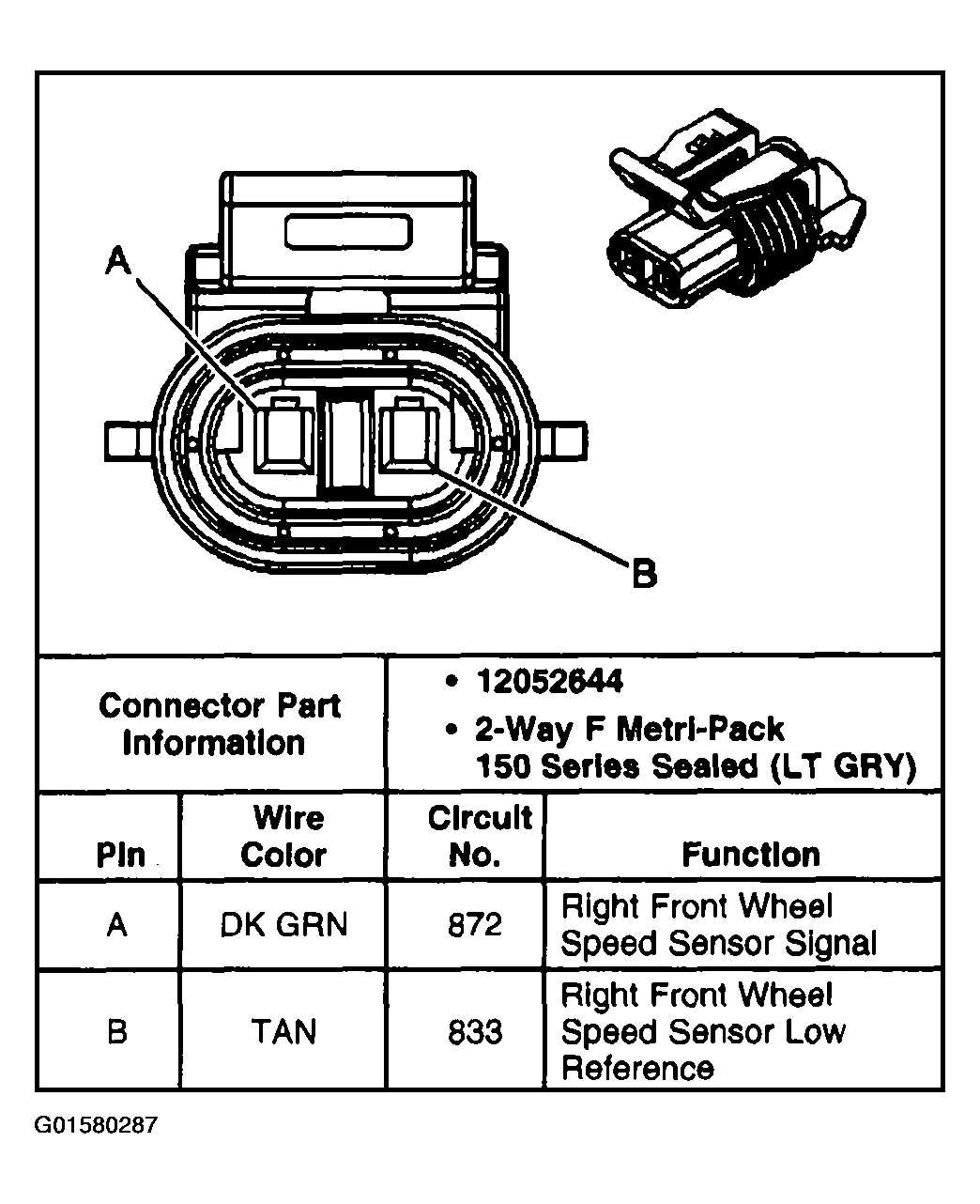

Fig 5: Identifying Wheel Speed Sensor Connector Terminals - RF

Courtesy of GENERAL MOTORS CORP.

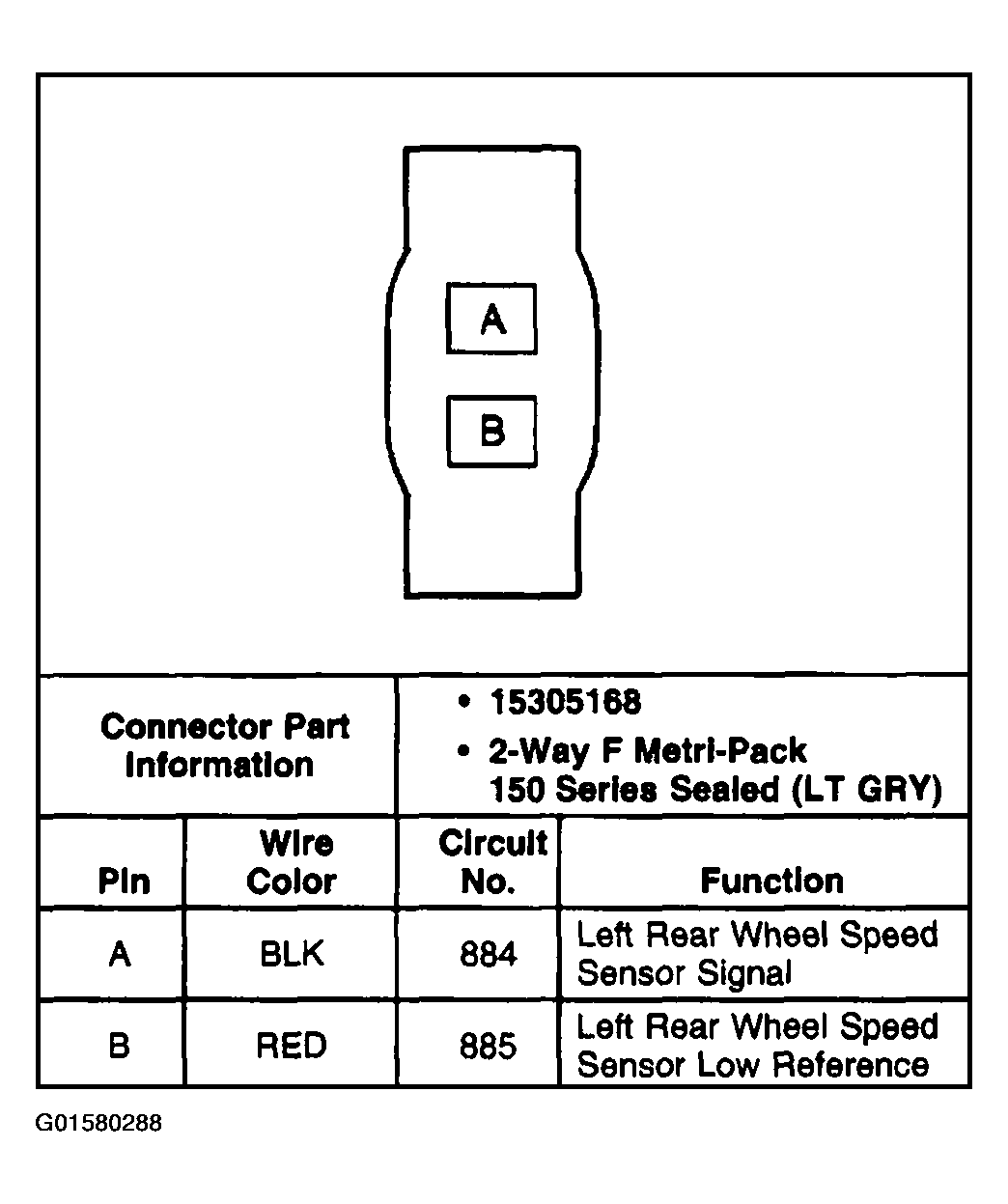

Fig 6: Identifying Wheel Speed Sensor Connector Terminals - LR

Courtesy of GENERAL MOTORS CORP.

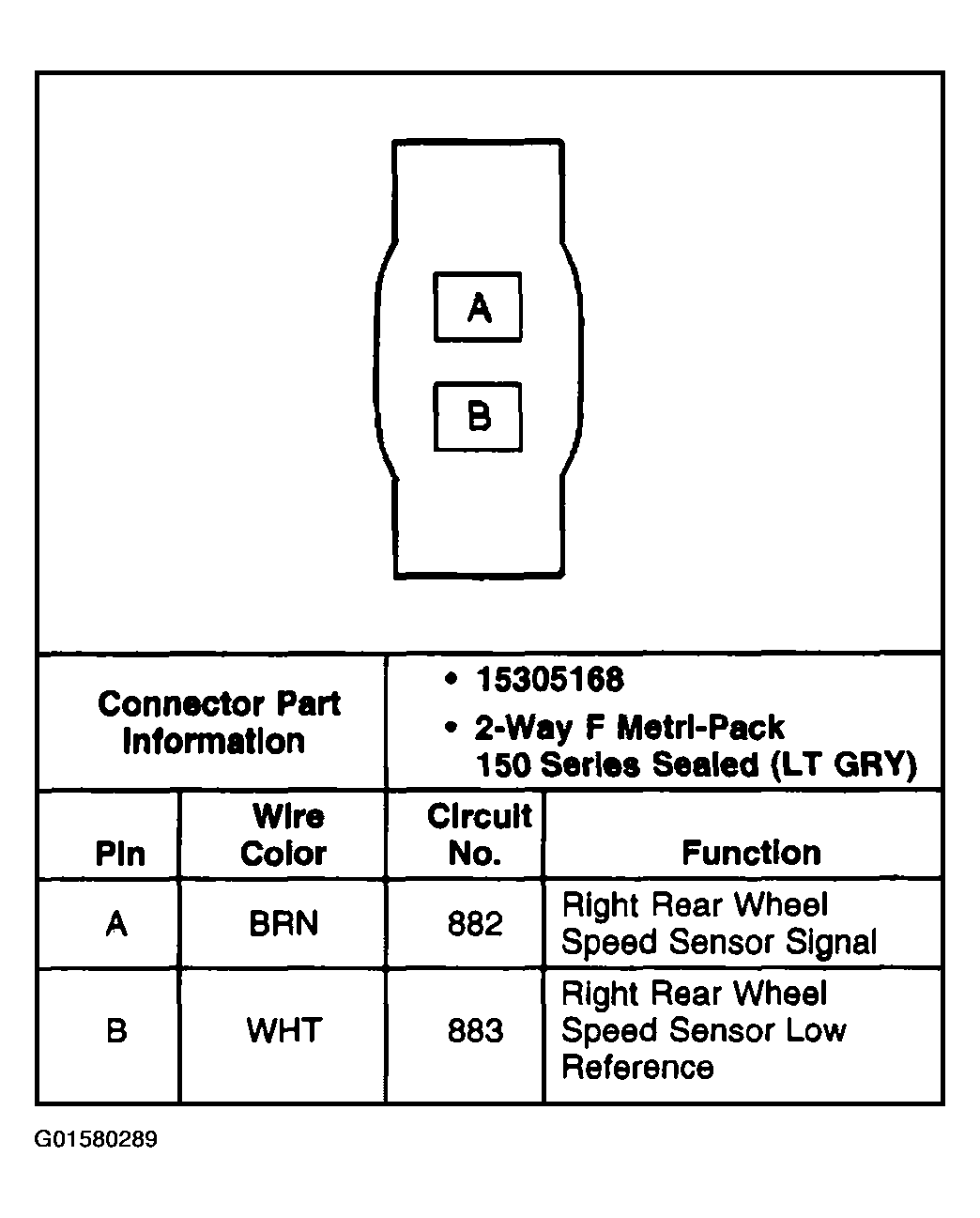

Fig 7: Identifying Wheel Speed Sensor Connector Terminals - RR

Courtesy of GENERAL MOTORS CORP.
