Installation Procedure

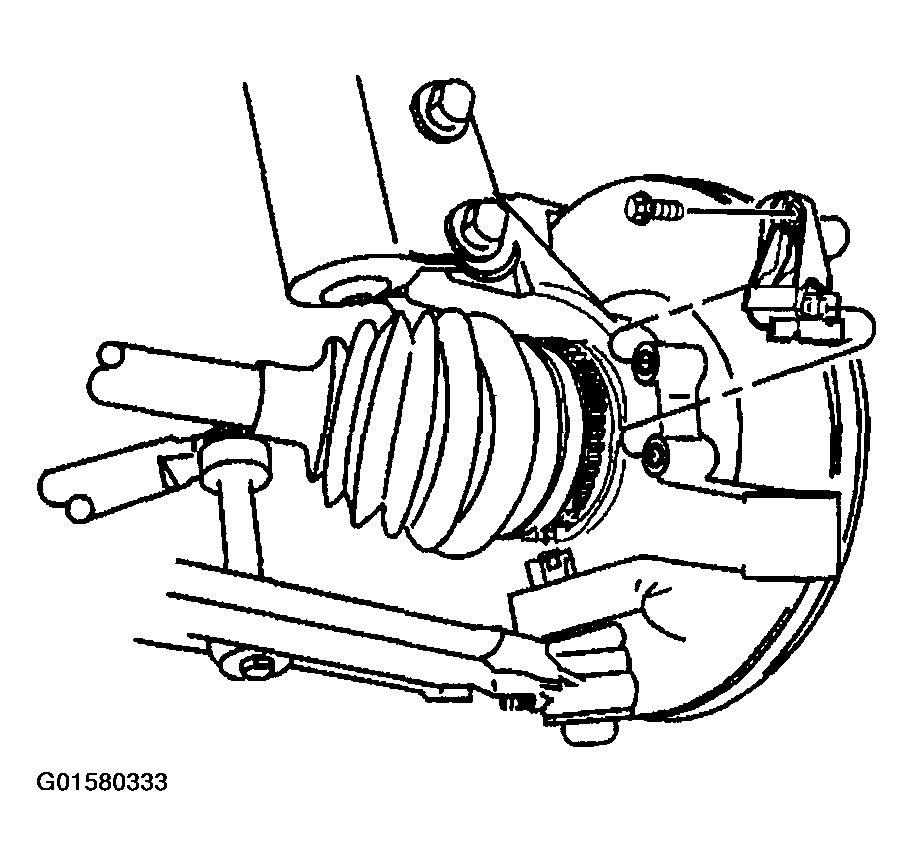

Fig 1: Installing Front Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Install the front wheel speed sensor to the steering knuckle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the retaining bolt.
Tighten

Tighten the retaining bolt to 12 N.m (107 lb in).
Connect the front wheel speed sensor electrical connector.
Lower the vehicle.
Perform the DIAGNOSTIC SYSTEM CHECK - ABS .
