Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

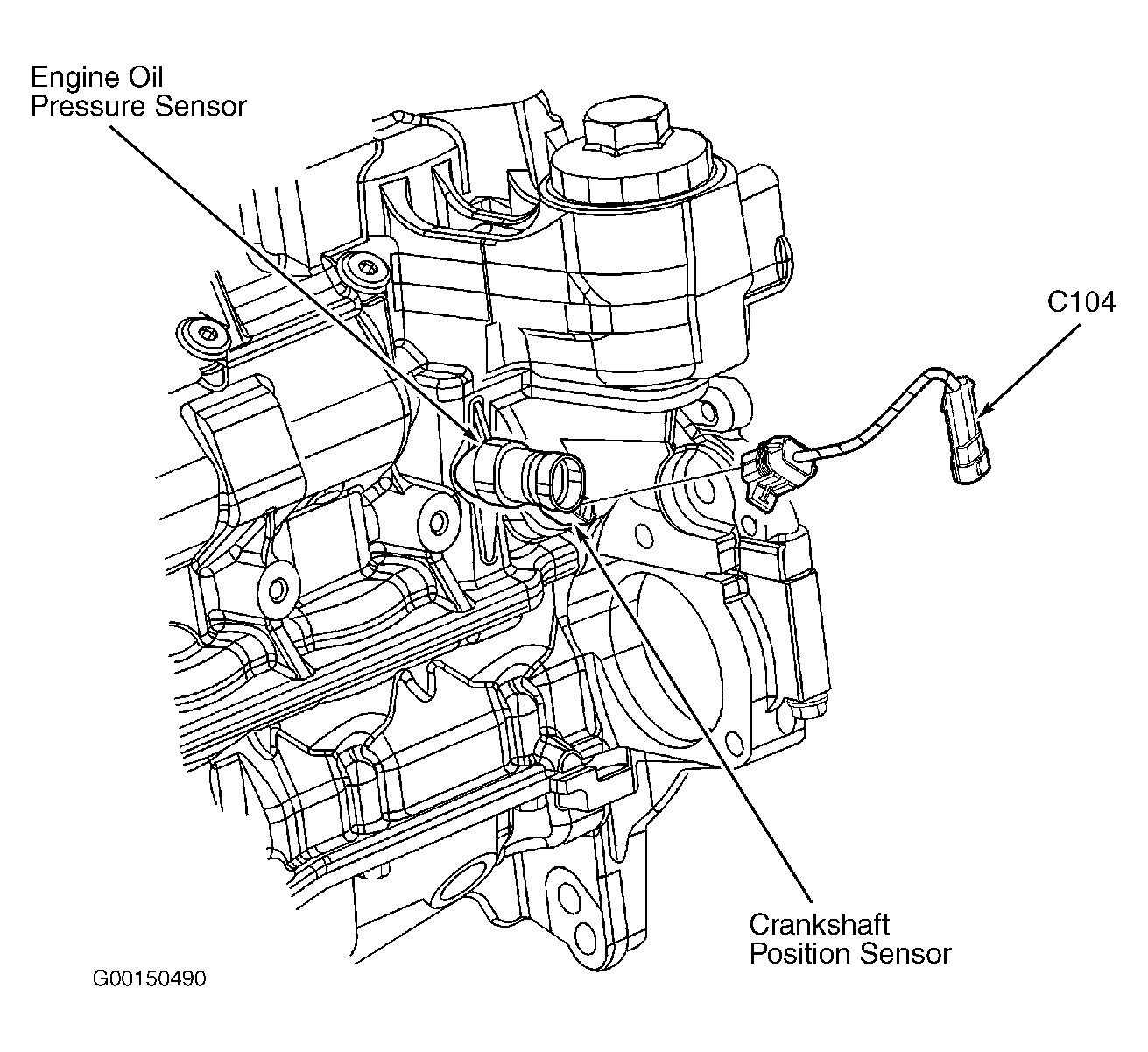

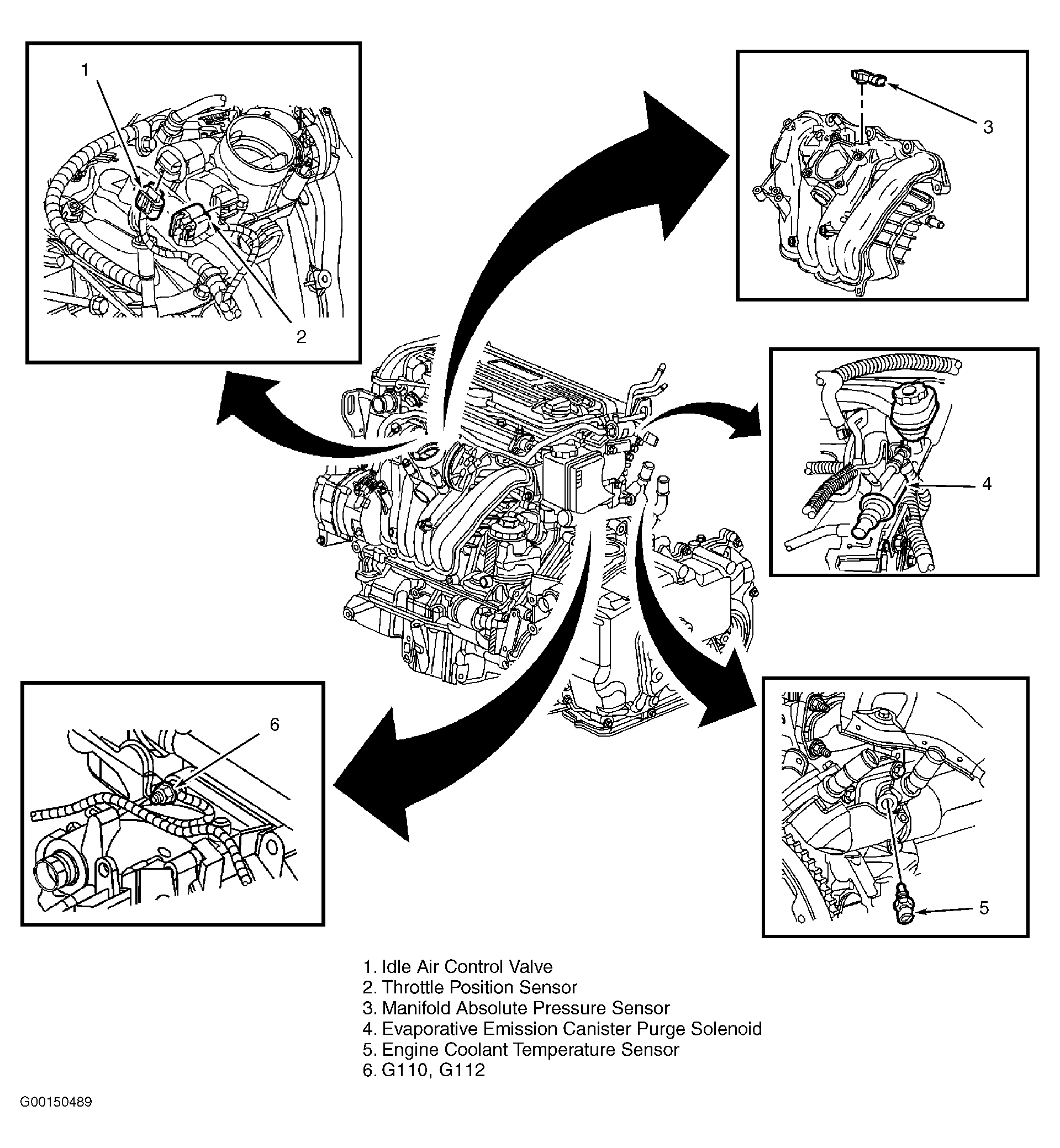

Fig 1: Left Side Of Engine

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Rear Of Engine

Courtesy of GENERAL MOTORS CORP.

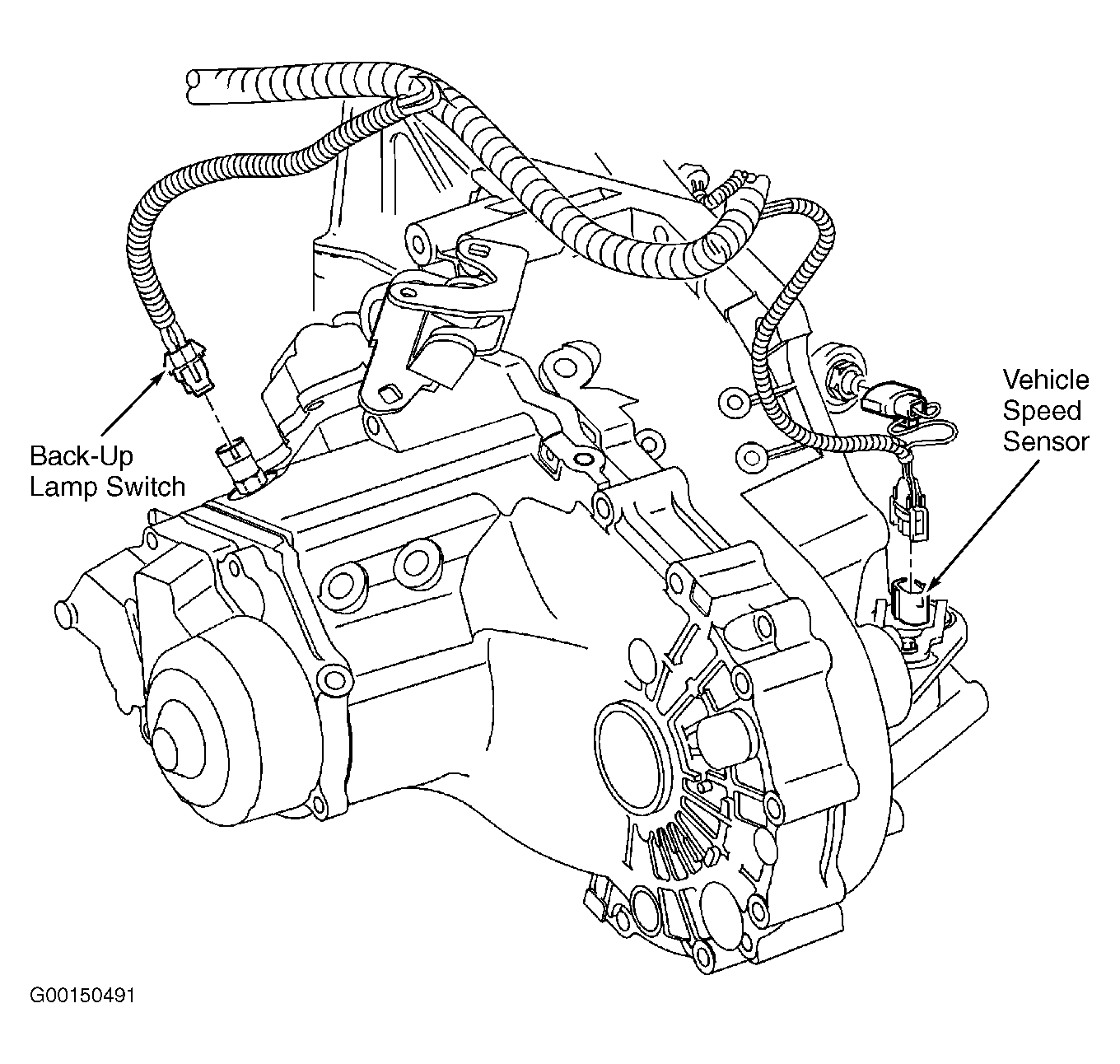

Fig 3: Right Rear Of Transaxle

Courtesy of GENERAL MOTORS CORP.

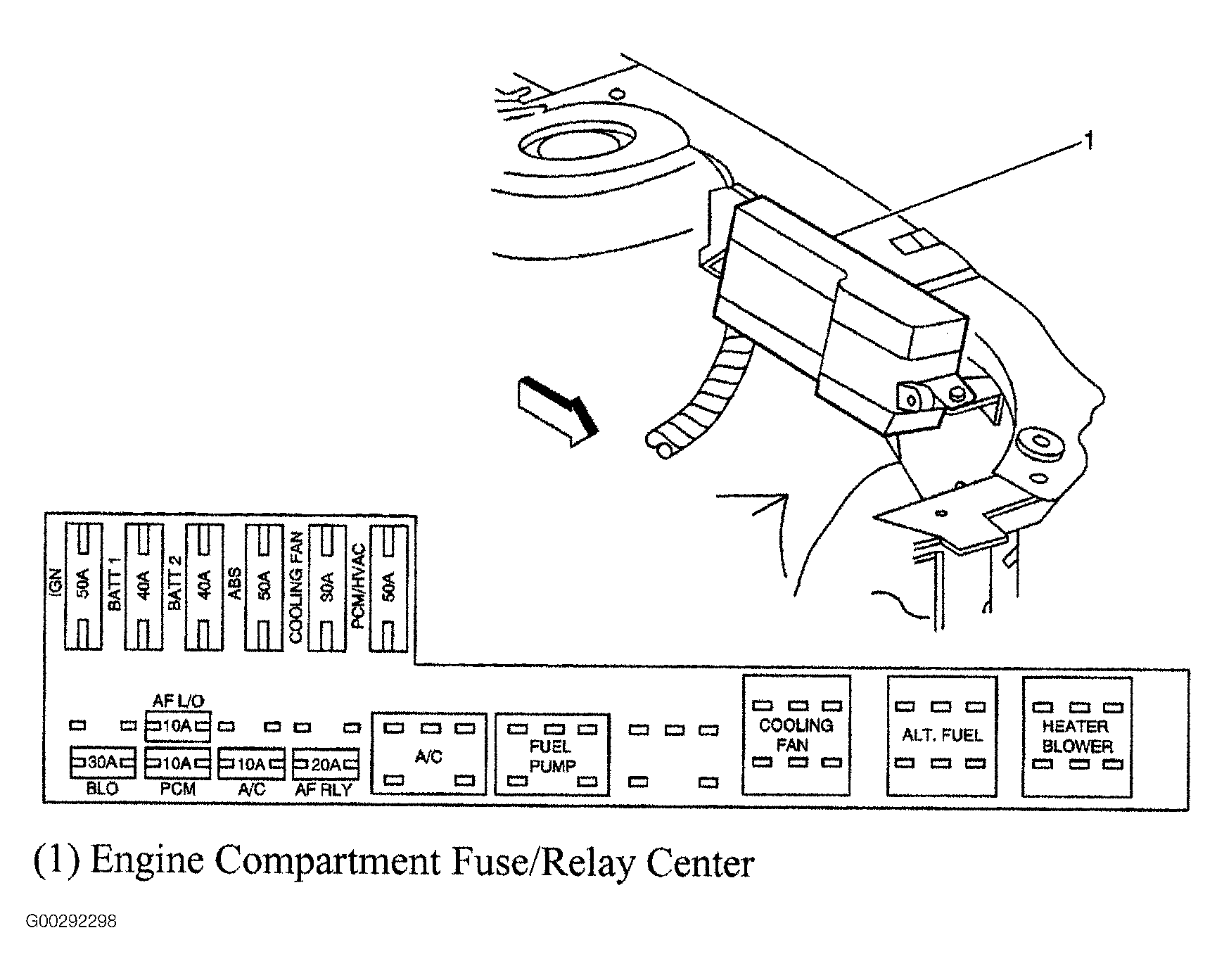

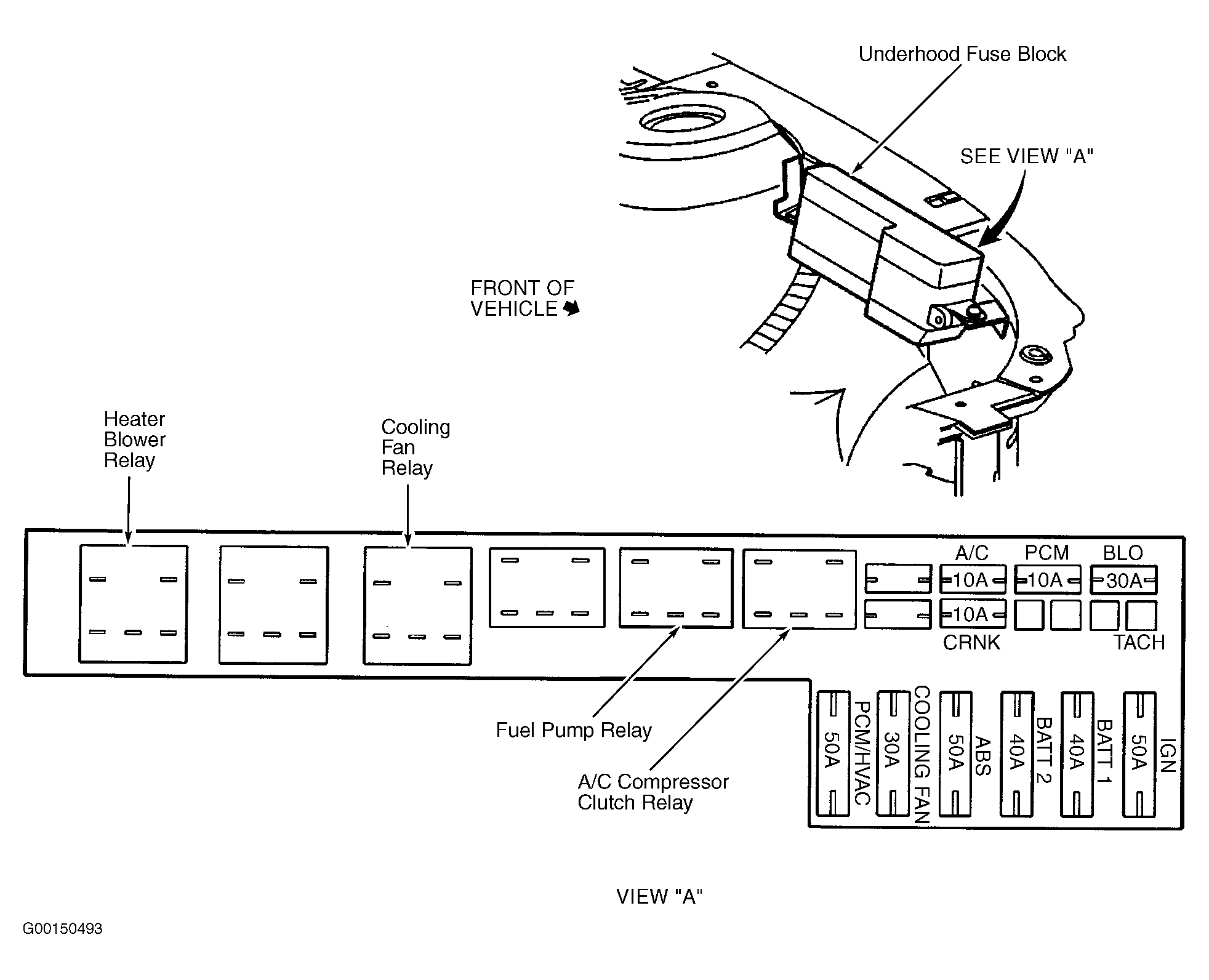

Fig 4: Right Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 5: Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

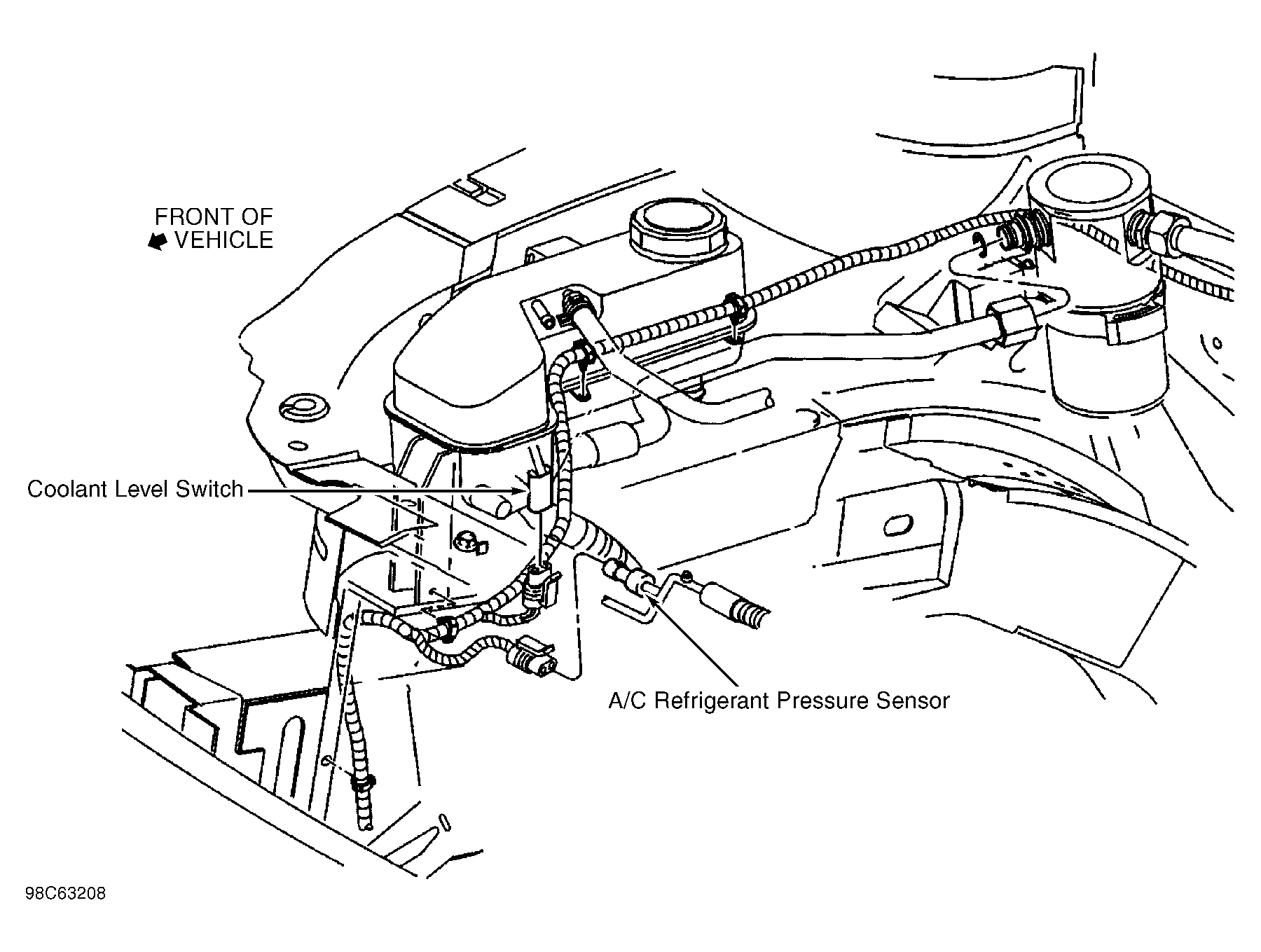

Fig 6: Right Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 7: Vehicle Overview Of Engine Controls (CNG) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

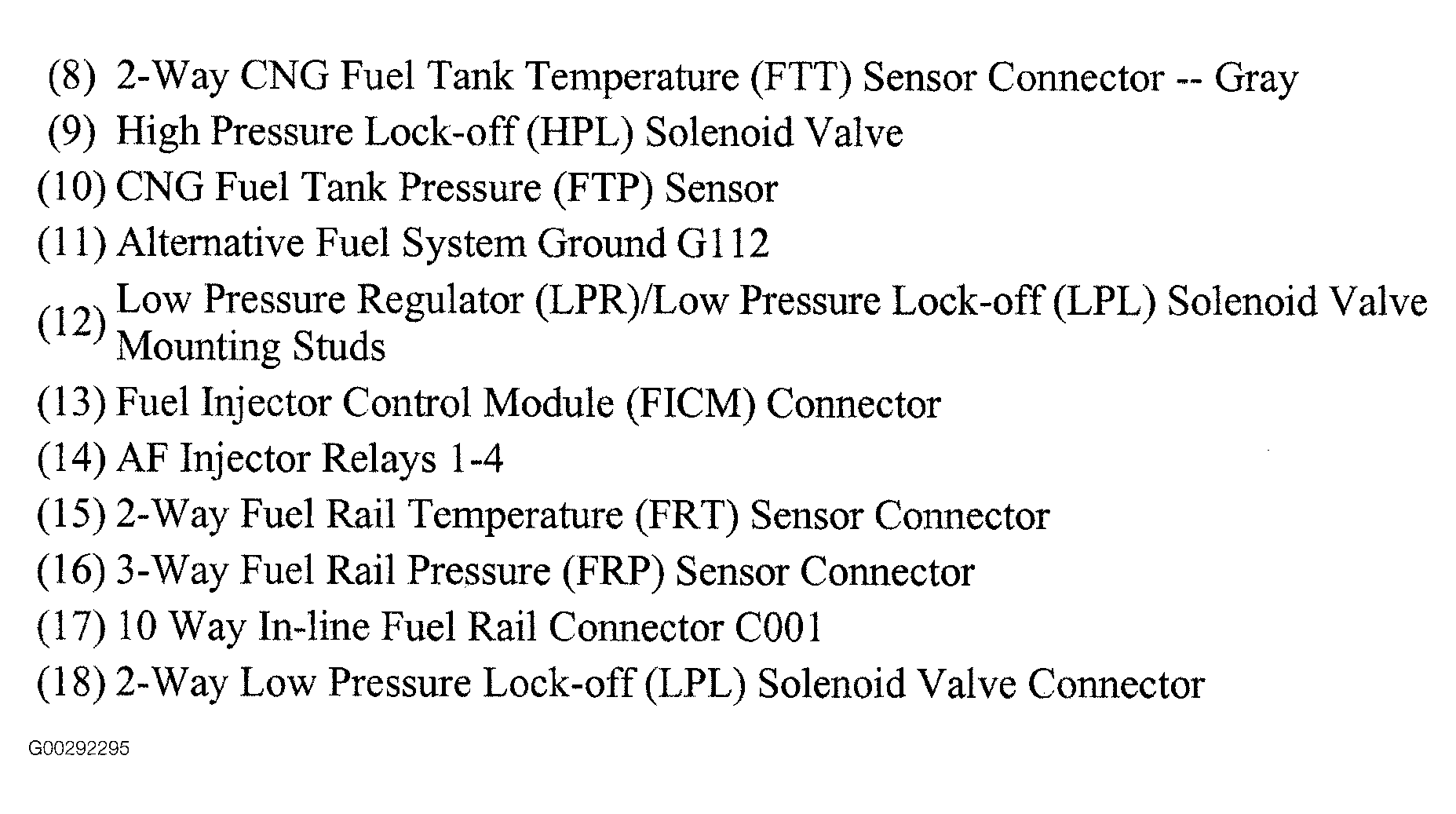

Fig 8: Vehicle Overview Of Engine Controls (CNG) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

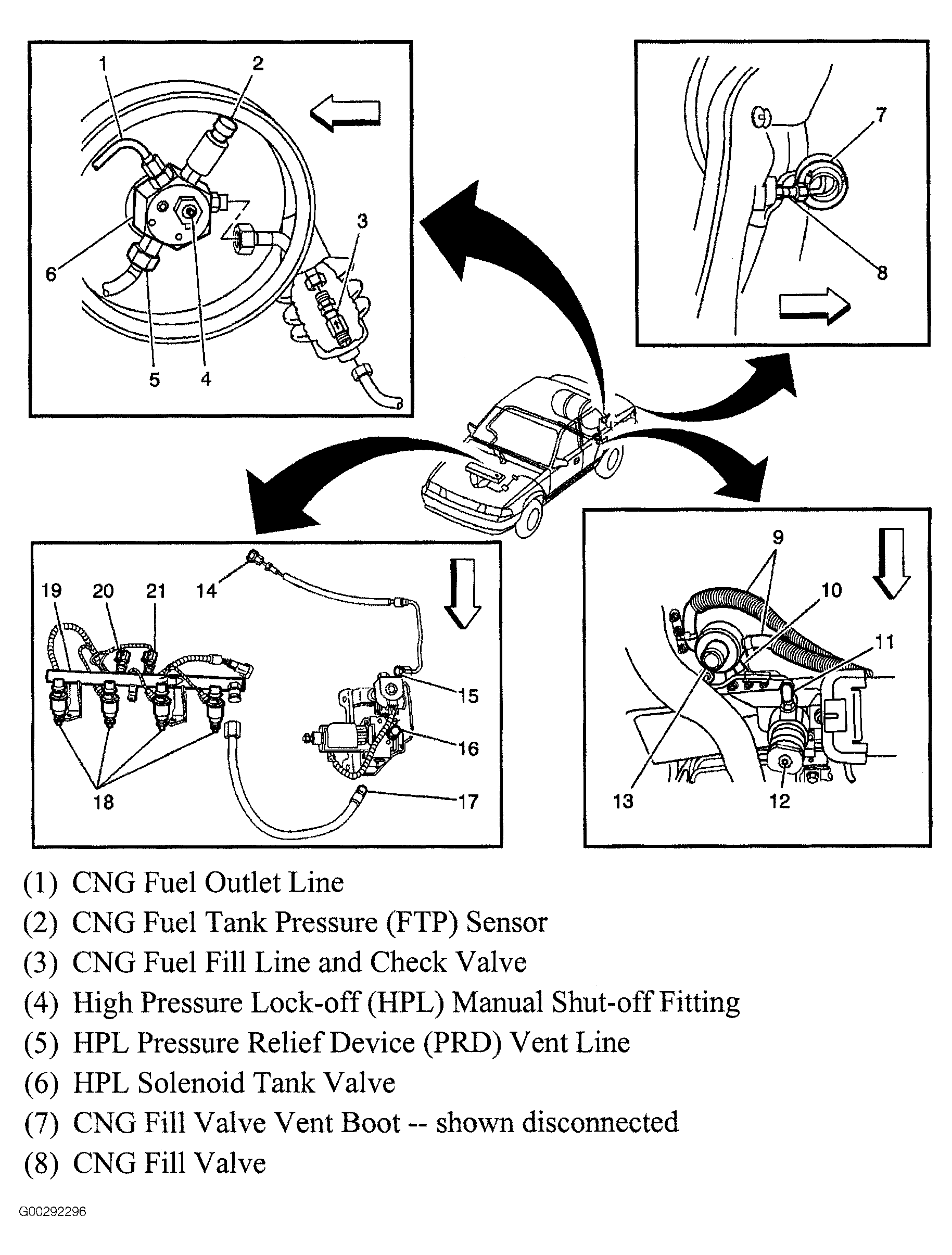

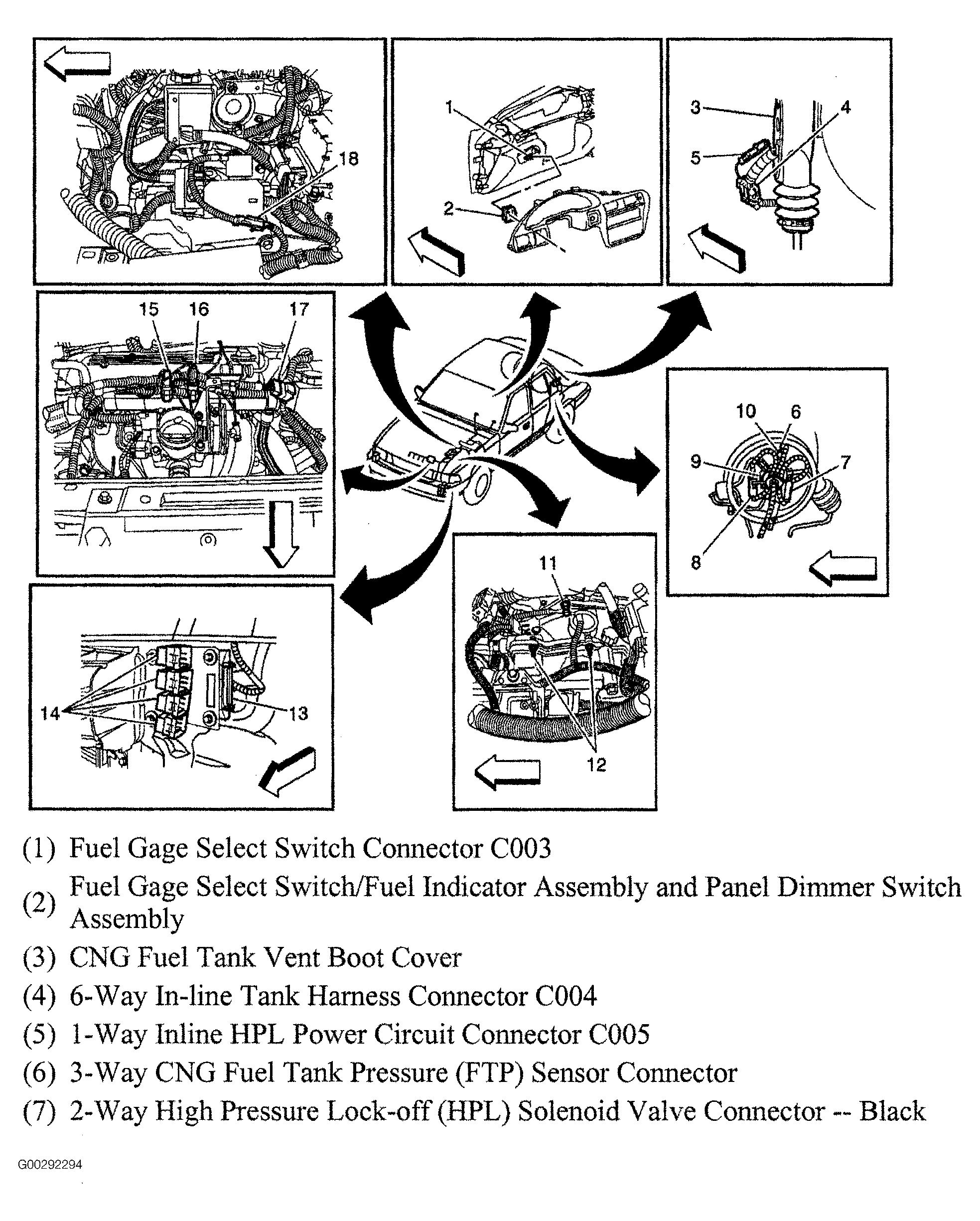

Fig 9: Vehicle Overview Of Fuel Controls (CNG) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

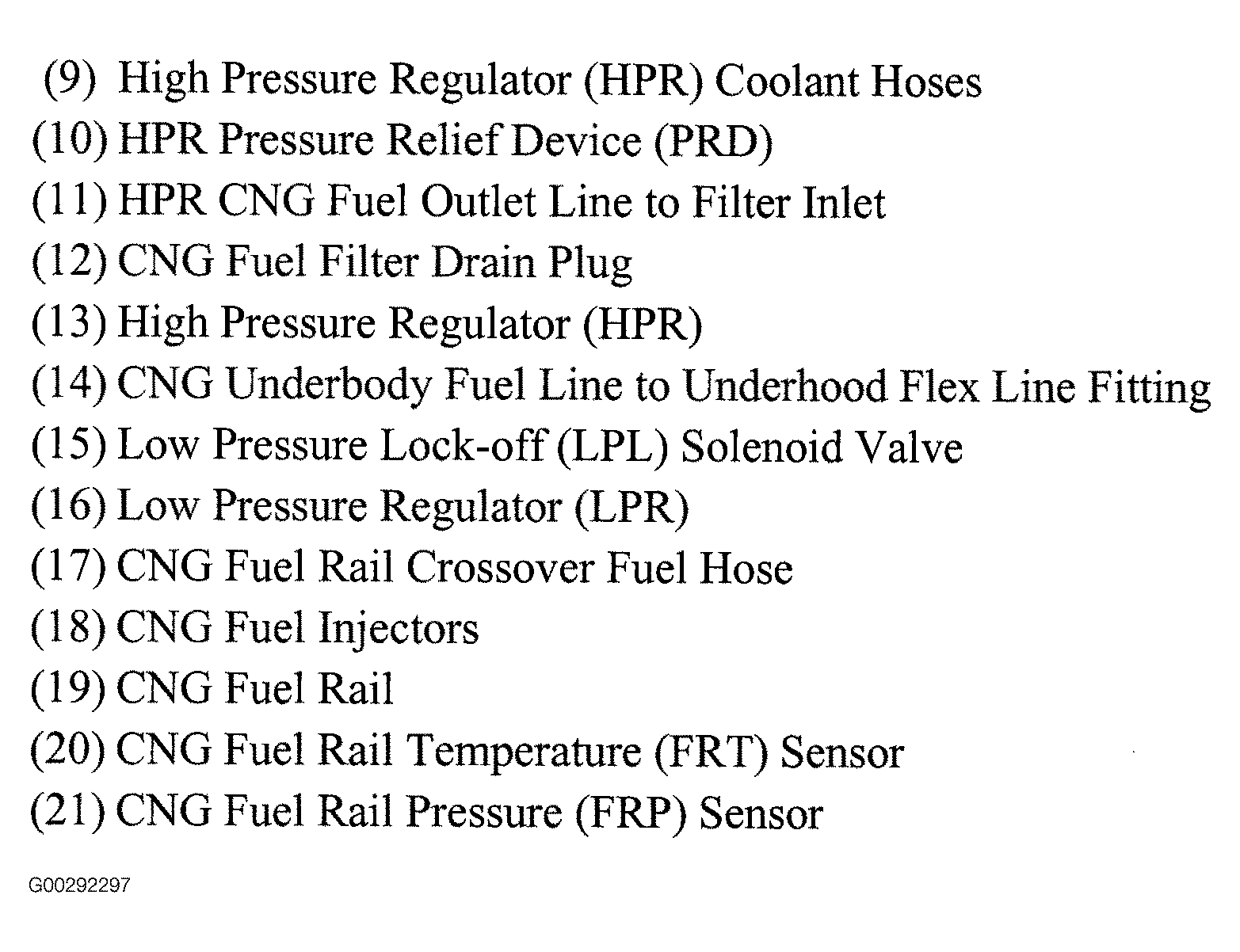

Fig 10: Vehicle Overview Of Fuel Controls (CNG) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Left Side Of Engine Compartment (CNG)

Courtesy of GENERAL MOTORS CORP.
