Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module | Behind lower left side of dash. |

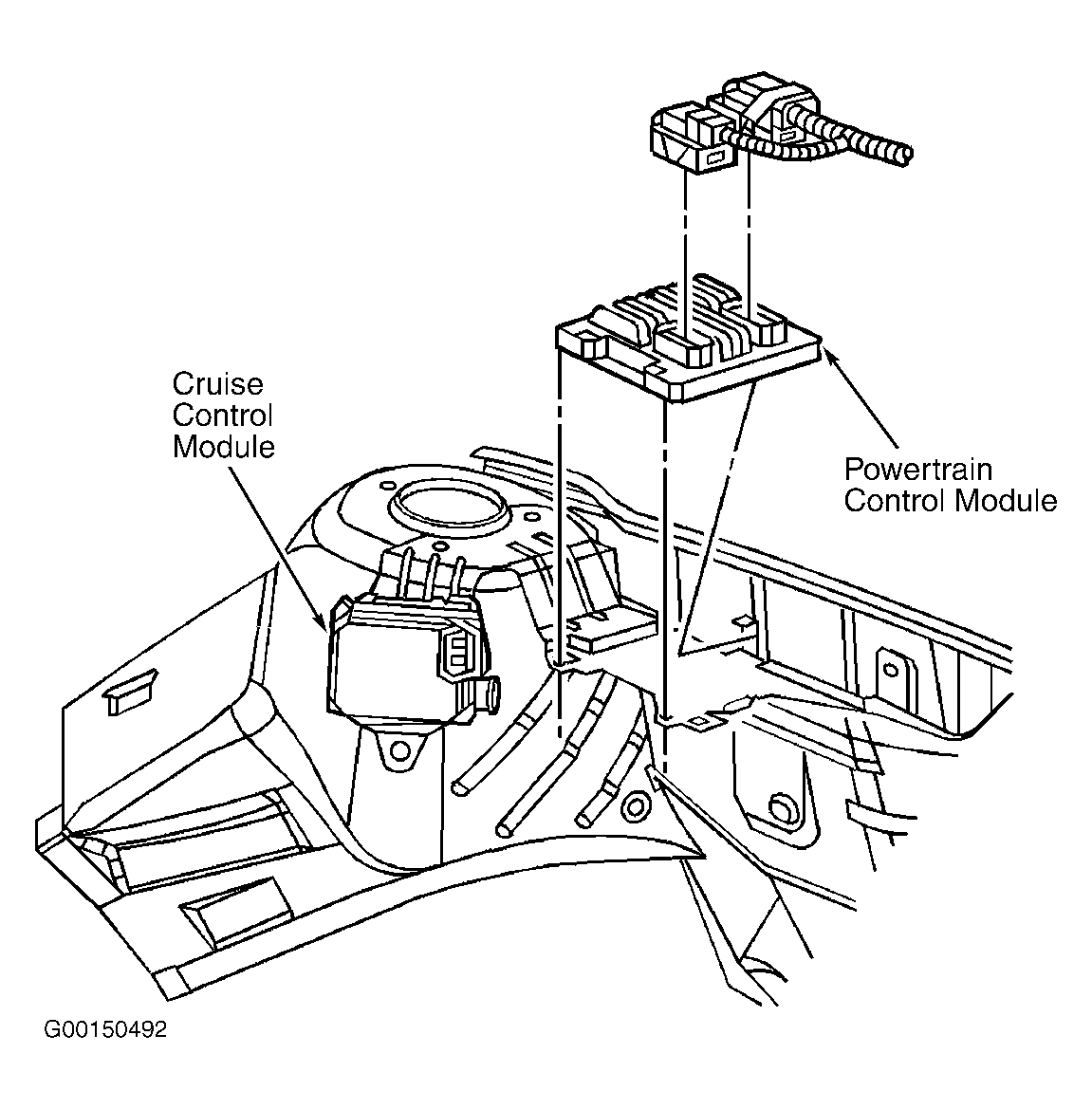

| Cruise Control Module | On rear right side of engine compartment. See Figure . |
| Electronic Brake Control Module | Next to master cylinder. |
| Fuel Tank Module | Under rear of passenger compartment, at fuel tank. |
| Ignition Control Module | On top left of engine. |
| Inflatable Restraint Sensing & Diagnostic Module | Under front passenger seat, under carpet. |
| Inflatable Restraint Side Impact Module (Left Front) | On driver seat back. |
| Inflatable Restraint Side Impact Module (Right Front) | On passenger seat back. |

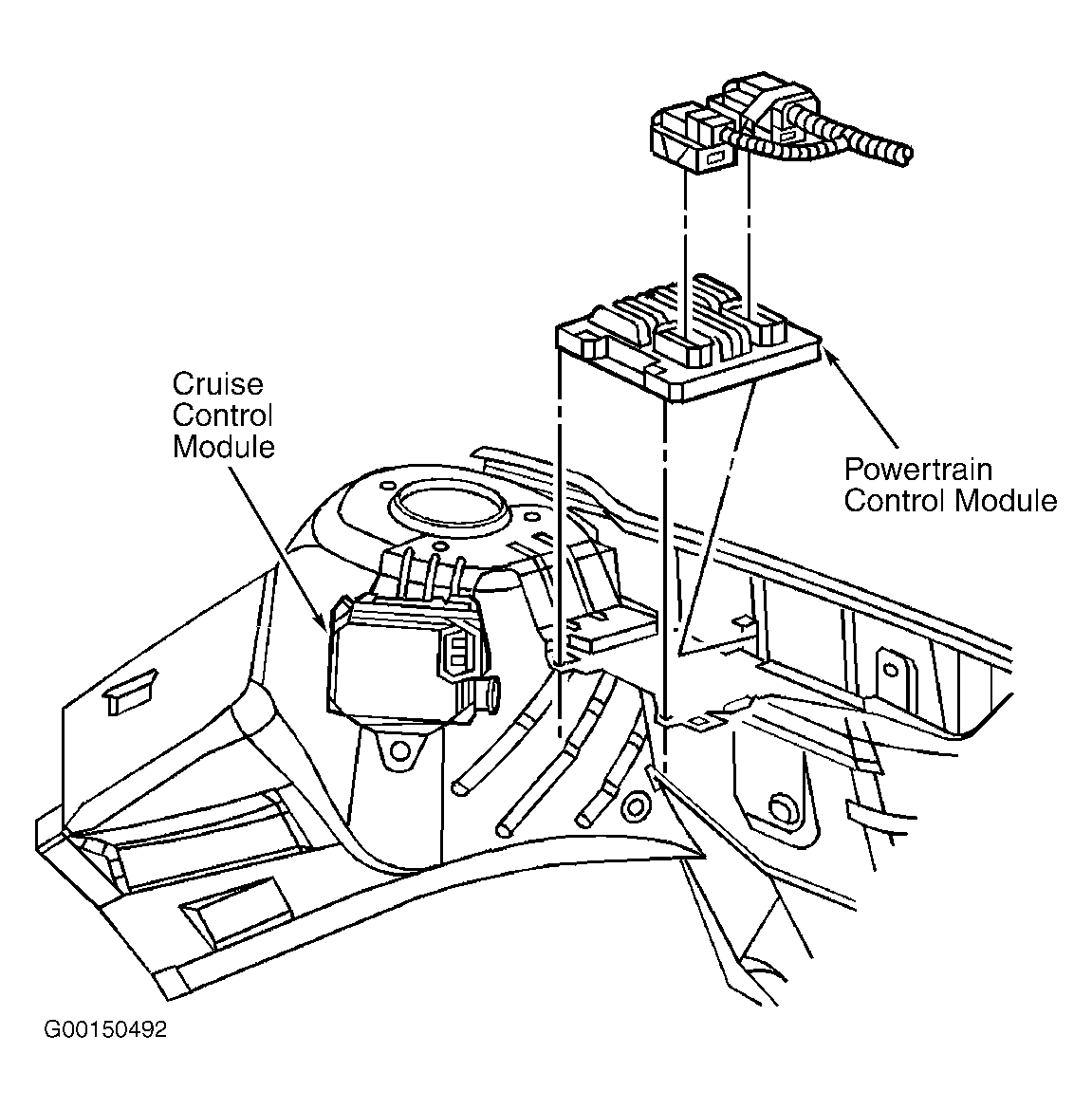

| Powertrain Control Module | On right rear of engine compartment. See Figure . |
| Turn Signal/Hazard Flasher Module | On dash harness, near steering column. |
| Vehicle Communication Interface Module | Under right side of dash, right of blower motor. |
