Removal Procedure

NOTE: Do not over-flex or damage the flex decoupler joint when moving the flex decoupler joint from the normal mounting position. The flex decoupler joint will flex a maximum of six degrees which is equivalent to the pipes connected at the joint which move 1 inch for each foot length of pipe. A three foot pipe would move a maximum of three inches.

Important: A service muffler will be needed when replacing the intermediate pipe on an originally equipped, welded system.

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Support the three way catalytic converter.

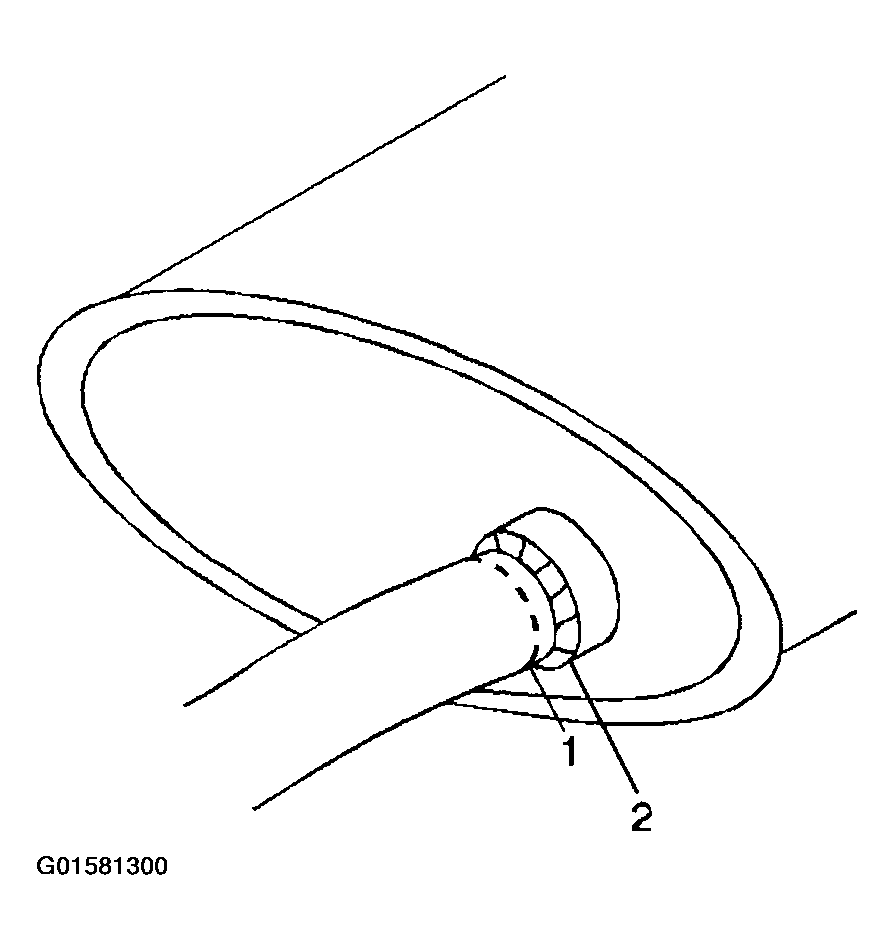

Cut the intermediate pipe (1) at the muffler (2).

Fig 1: Cutting Intermediate Pipe At Muffler
Courtesy of GENERAL MOTORS CORP.
Remove the intermediate pipe bolts at catalytic converter.

Fig 2: Removing/Installing Intermediate Pipe Bolts At Catalytic Converter
Courtesy of GENERAL MOTORS CORP.

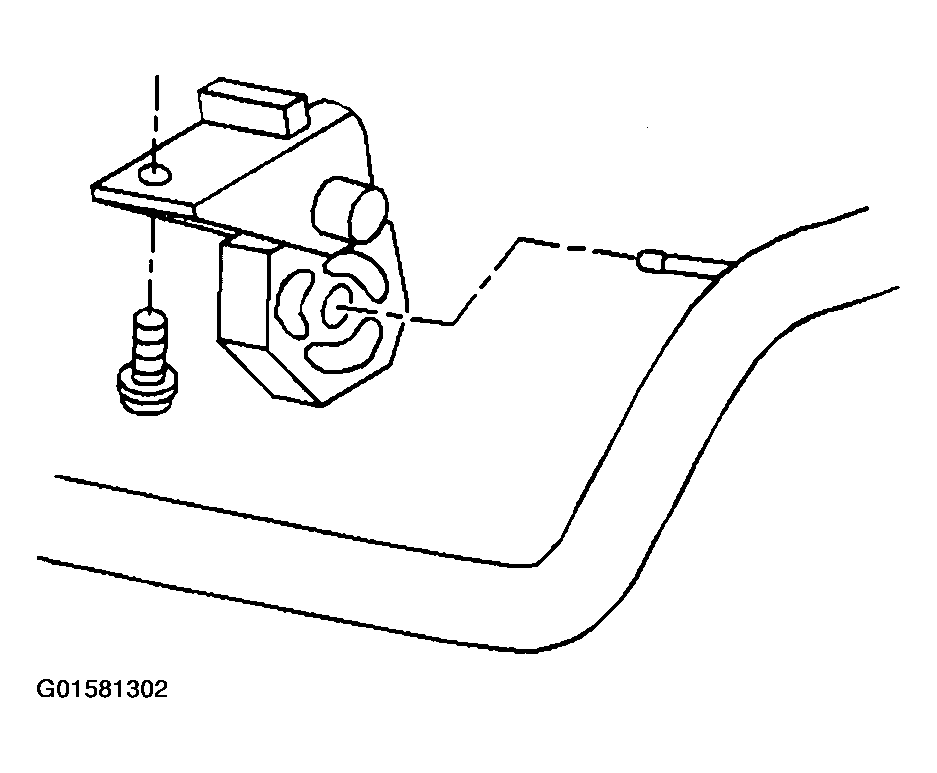

Remove the intermediate pipe from the hanger.

Fig 3: Removing Intermediate Pipe From Hanger
Courtesy of GENERAL MOTORS CORP.
Remove the intermediate pipe.
Remove the three way catalytic converter seals.

Fig 4: Removing/Installing Three Way Catalytic Converter Seals
Courtesy of GENERAL MOTORS CORP.
Clean the flange surface.
