Installation Procedure

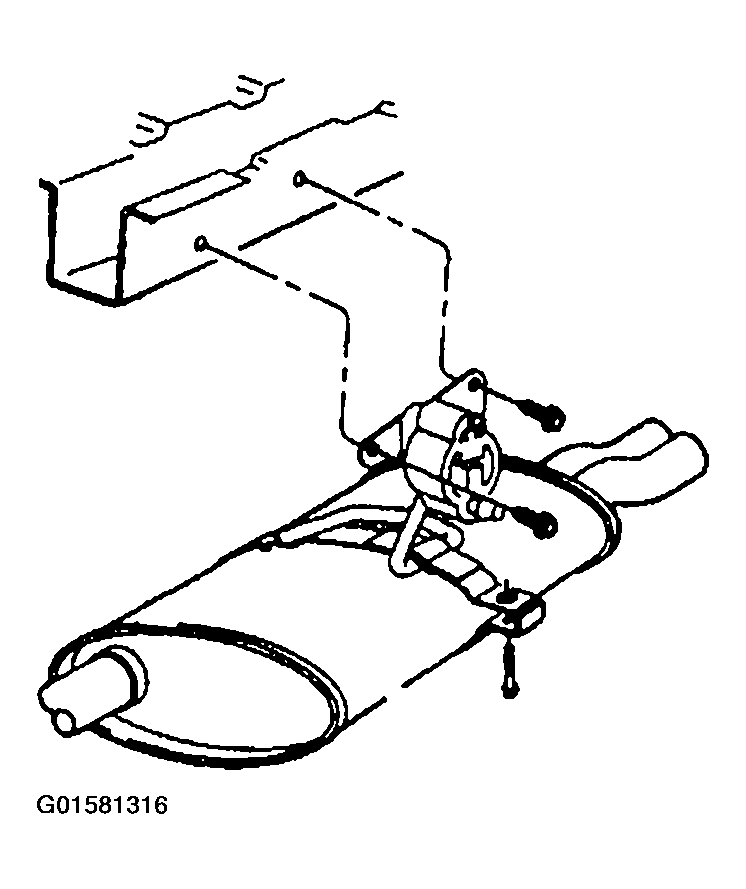

Fig 1: Installing Muffler Hanger Bolts
G01581316Courtesy of GENERAL MOTORS CORP.
  1. Install the muffler hanger bolts.

    Tighten

    Tighten the muffler hanger bolts to 16 N.m (12 ft lbs).

  2. Clamp the muffler to the intermediate pipe.

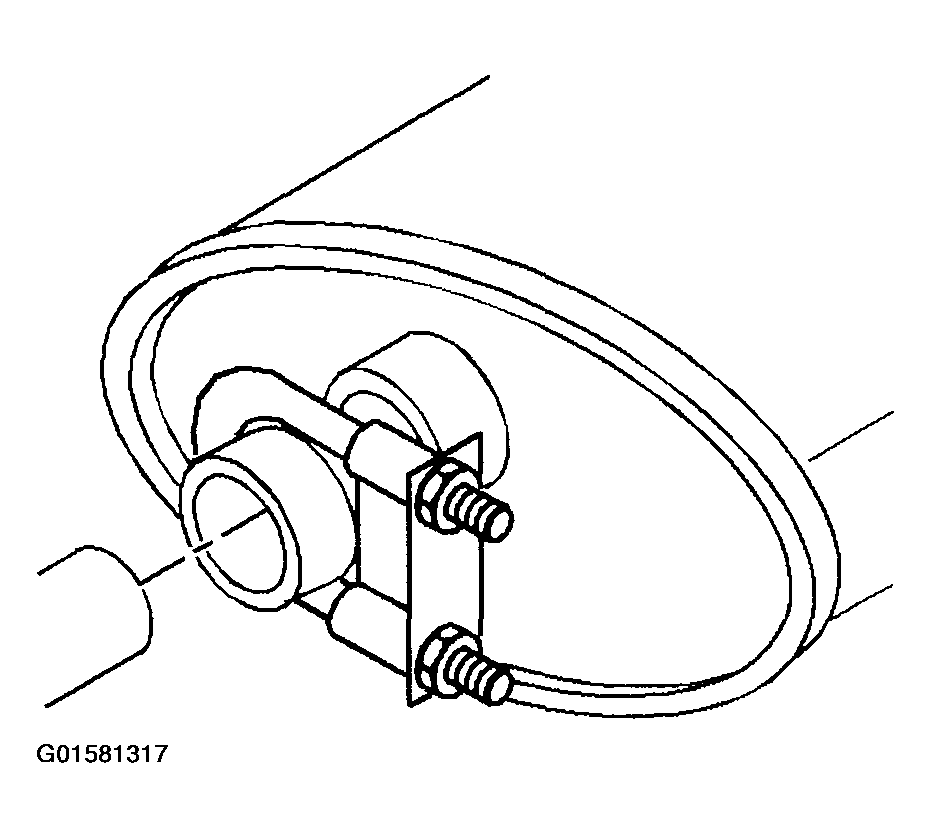

    Fig 2: Clamping Muffler To Intermediate Pipe
    G01581317Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
