Connector Identification

NOTE: For CNG related connector identification, see SELF-DIAGNOSTICS - 2.2L CAVALIER - BI-FUEL - CNG/GASOLINE article.

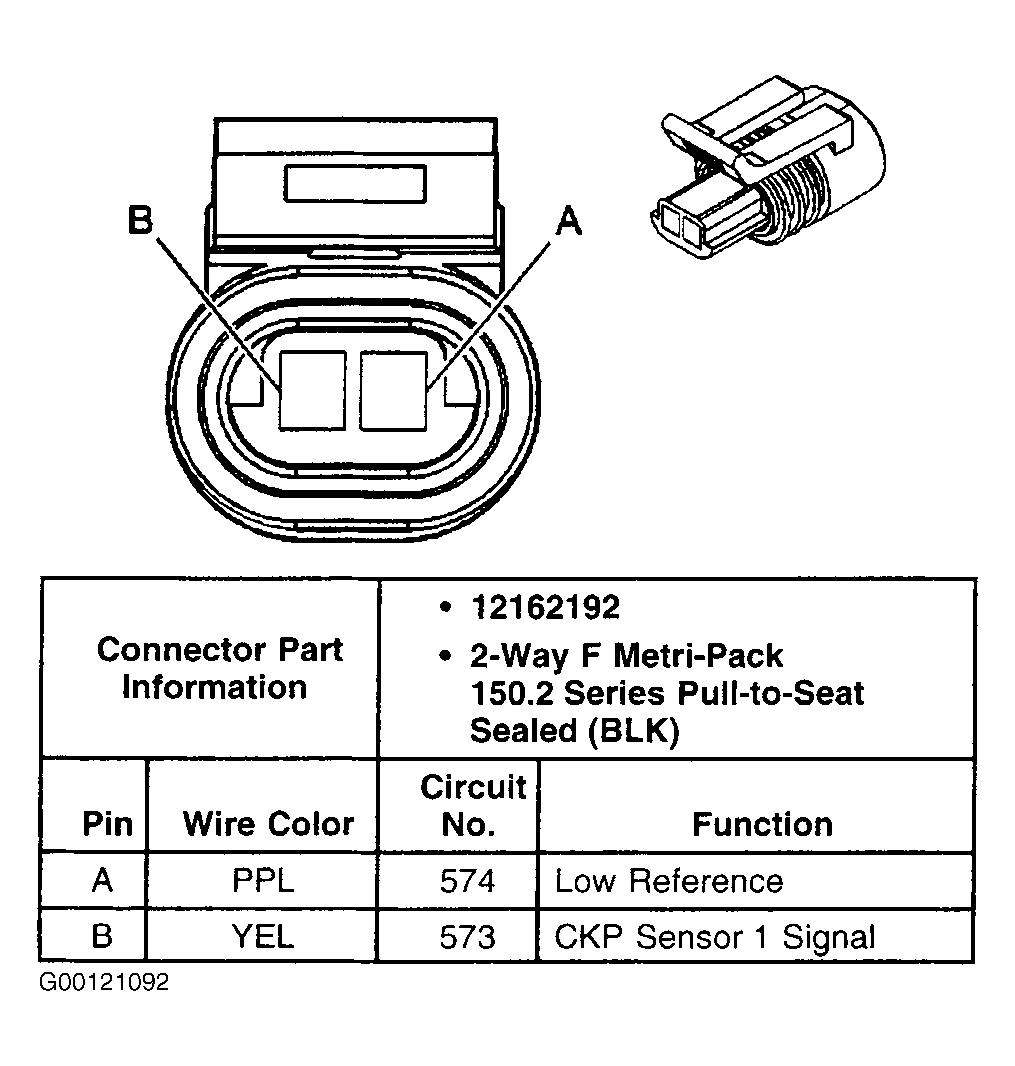

Fig 1: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00121092

Courtesy of GENERAL MOTORS CORP.

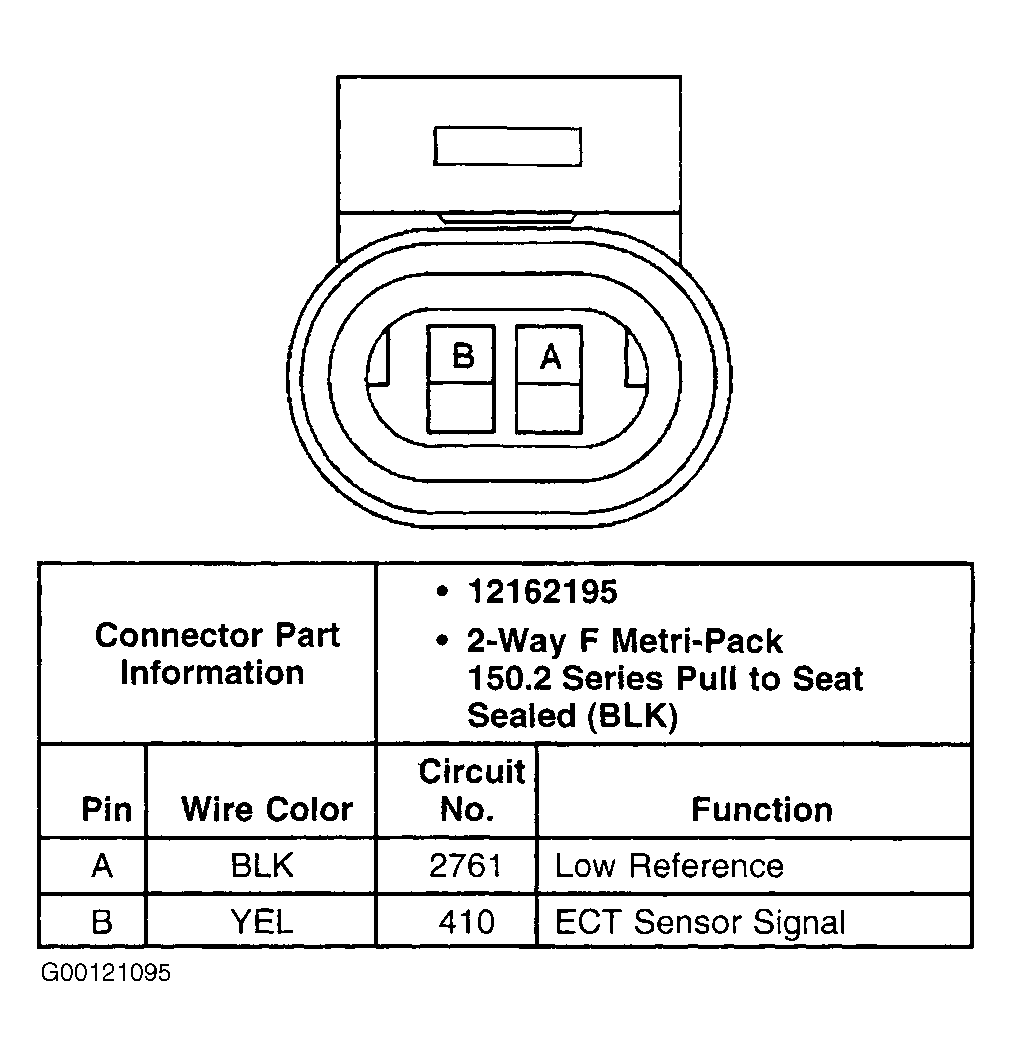

Fig 2: Identifying ECT Sensor Harness Connector Terminals (Cavalier)

G00121095

Courtesy of GENERAL MOTORS CORP.

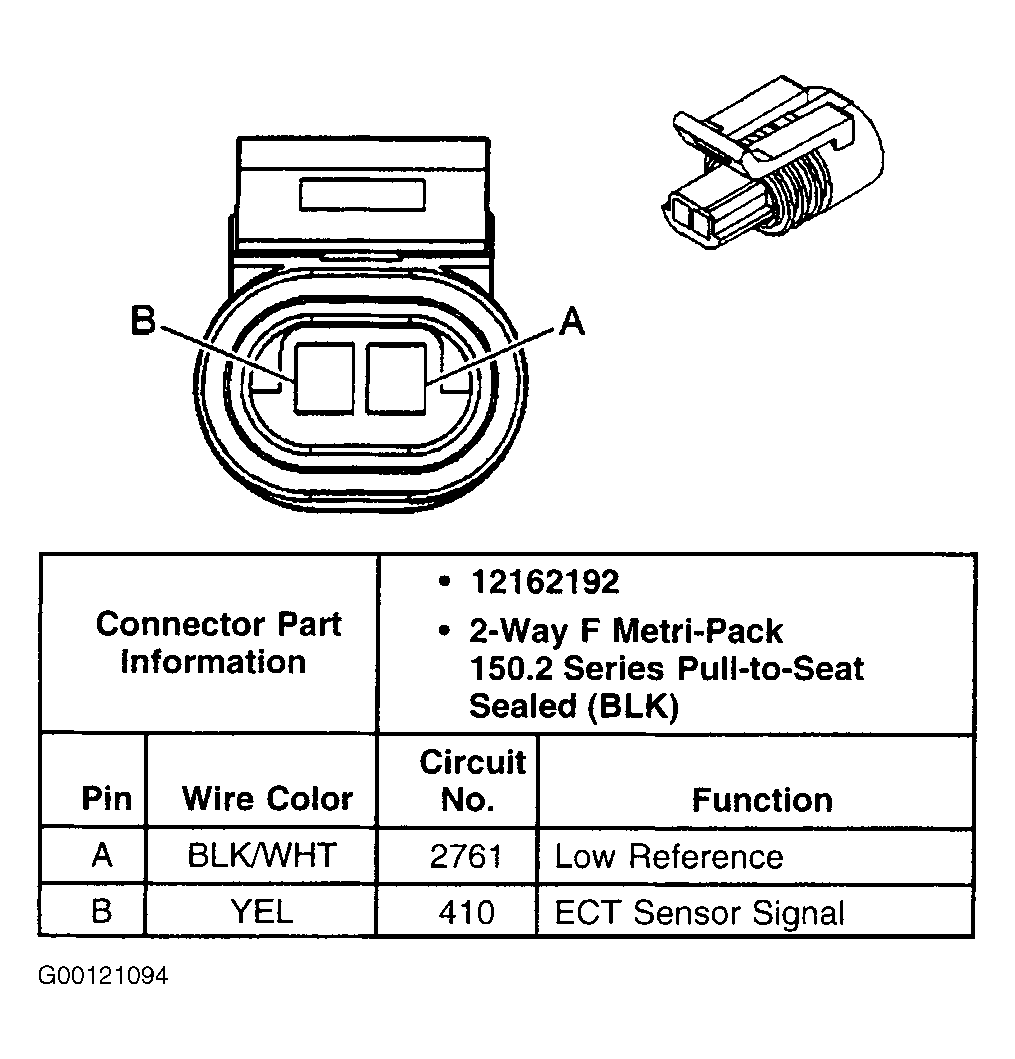

Fig 3: Identifying ECT Sensor Harness Connector Terminals (Except Cavalier)

G00121094

Courtesy of GENERAL MOTORS CORP.

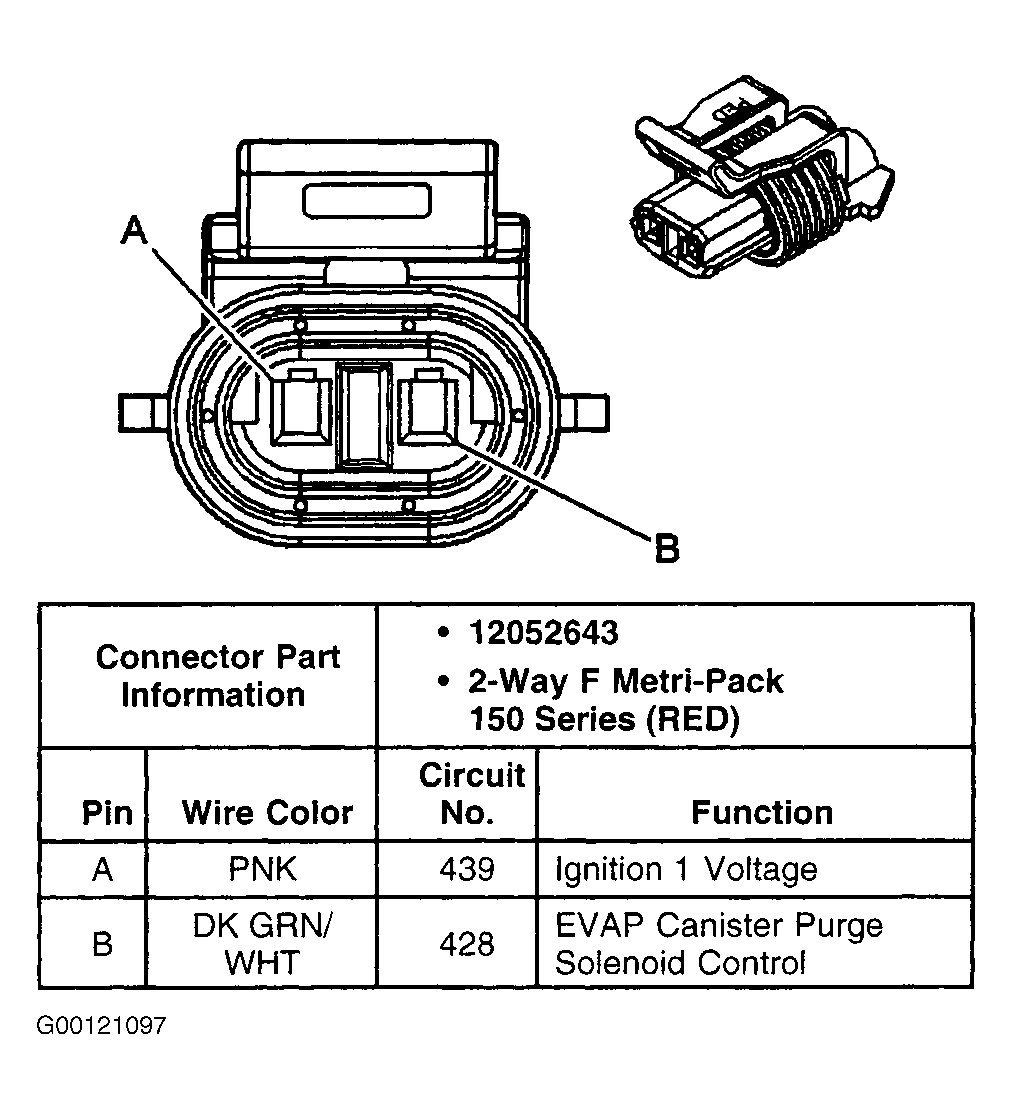

Fig 4: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Cavalier)

G00121097

Courtesy of GENERAL MOTORS CORP.

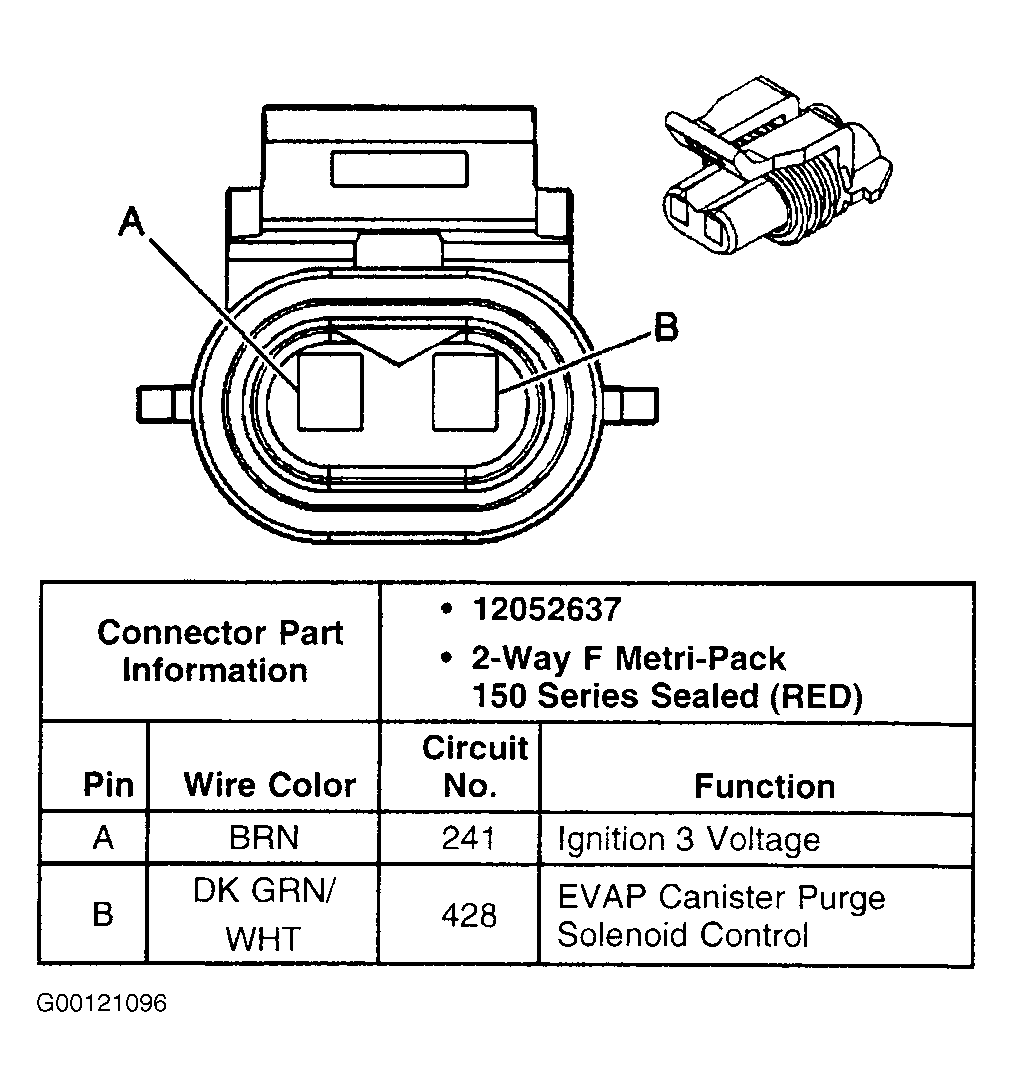

Fig 5: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Except Cavalier)

G00121096

Courtesy of GENERAL MOTORS CORP.

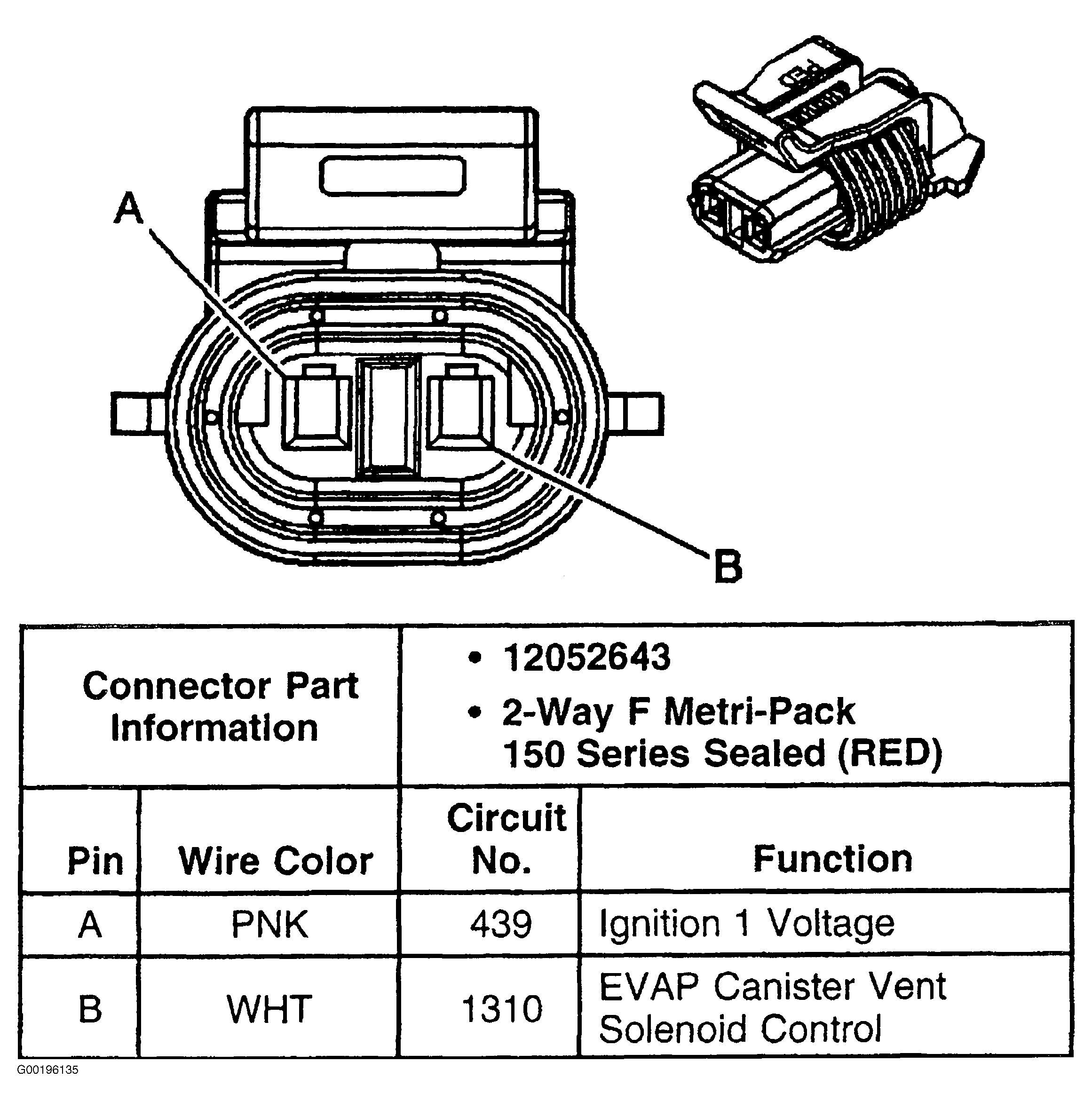

Fig 6: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Cavalier)

G00196135

Courtesy of GENERAL MOTORS CORP.

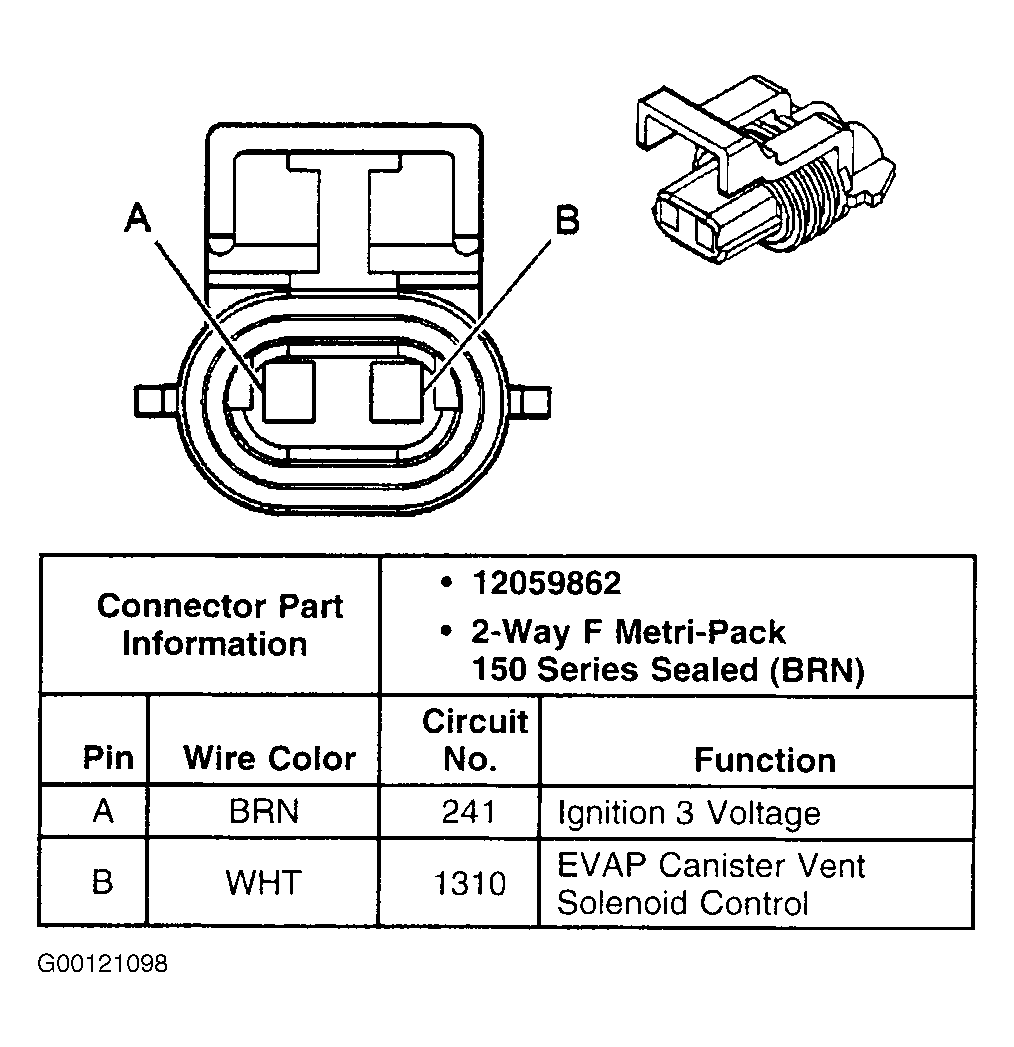

Fig 7: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Except Cavalier)

G00121098

Courtesy of GENERAL MOTORS CORP.

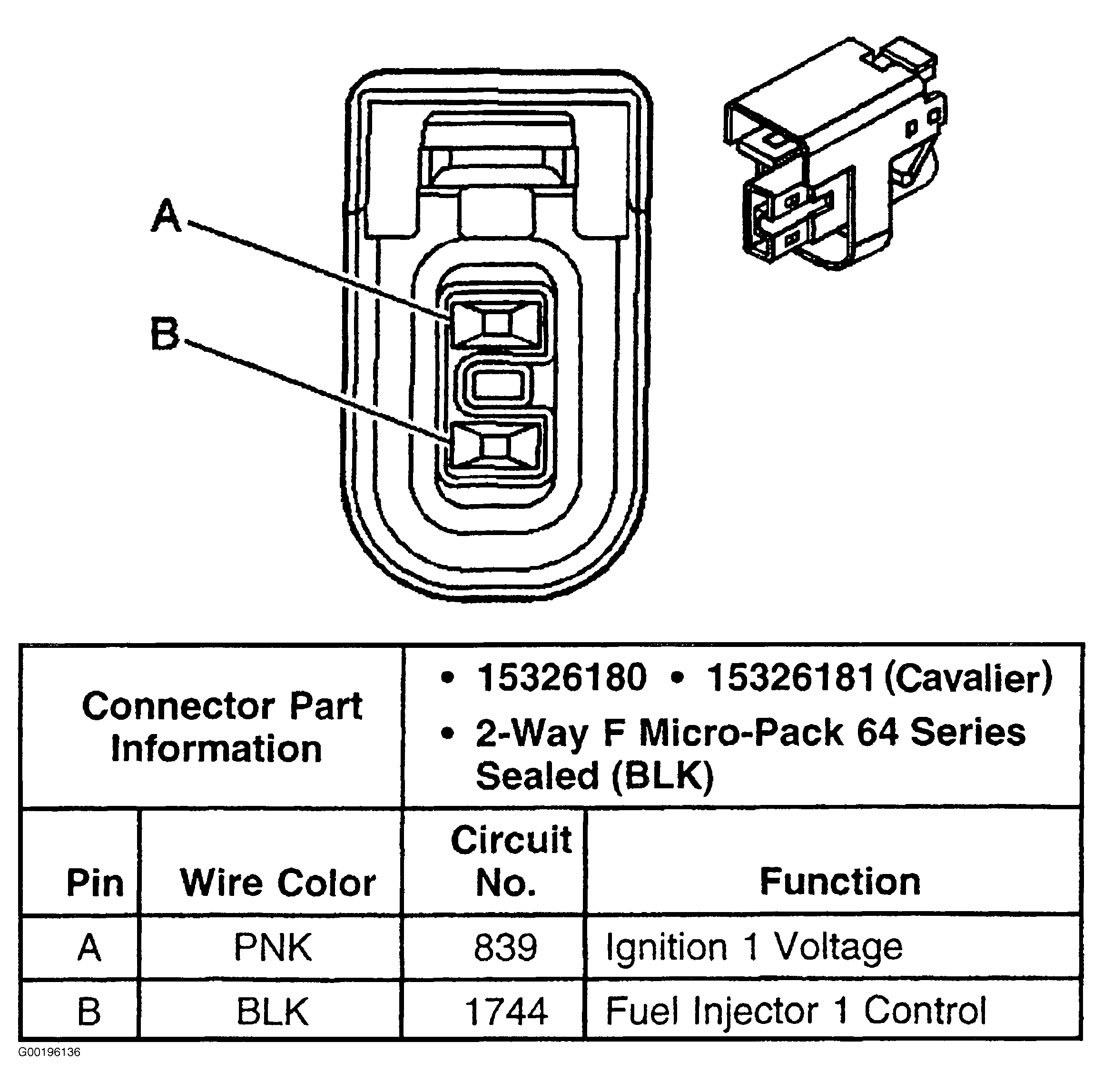

Fig 8: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00196136

Courtesy of GENERAL MOTORS CORP.

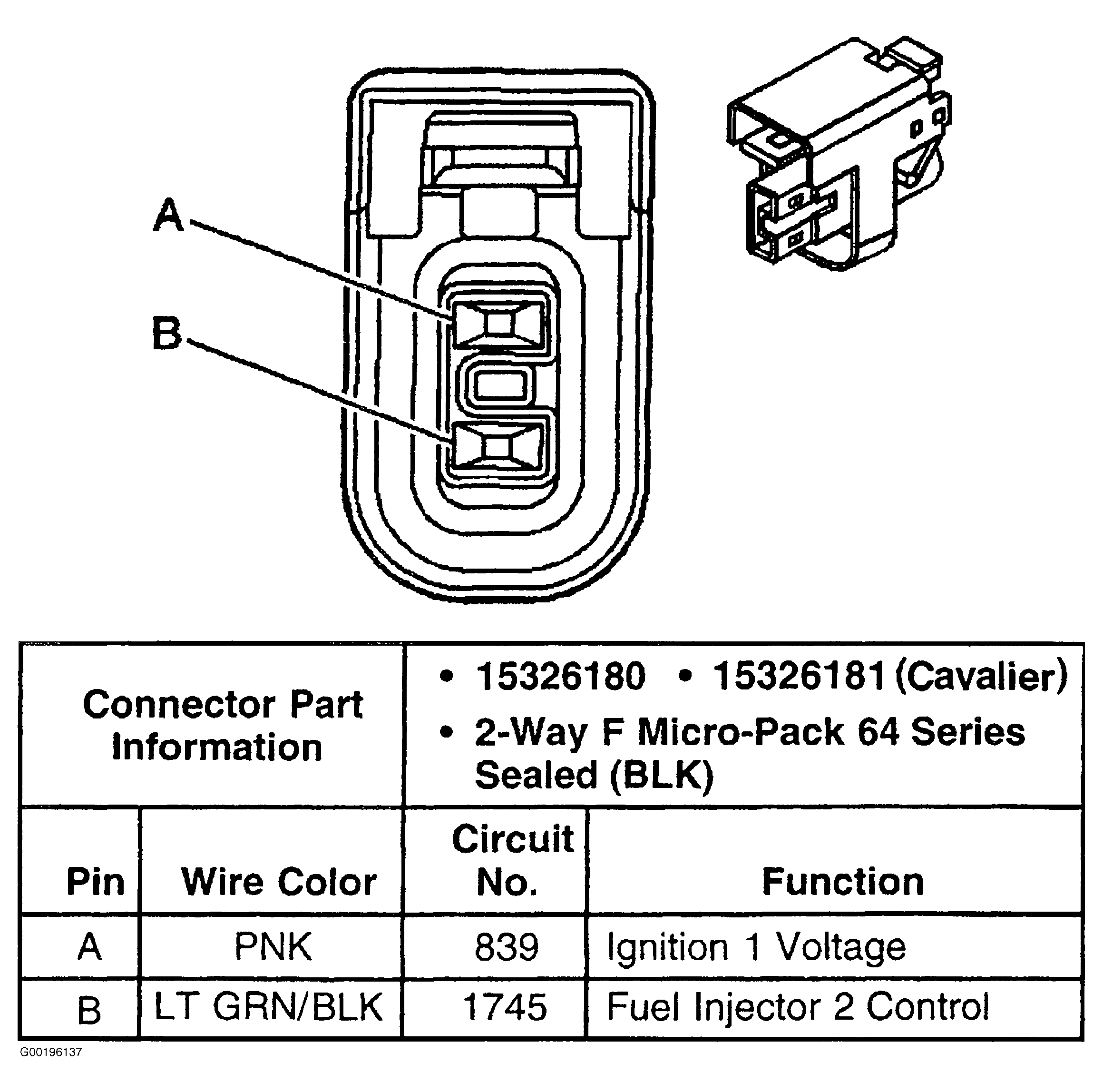

Fig 9: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00196137

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00196138

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00196139

Courtesy of GENERAL MOTORS CORP.

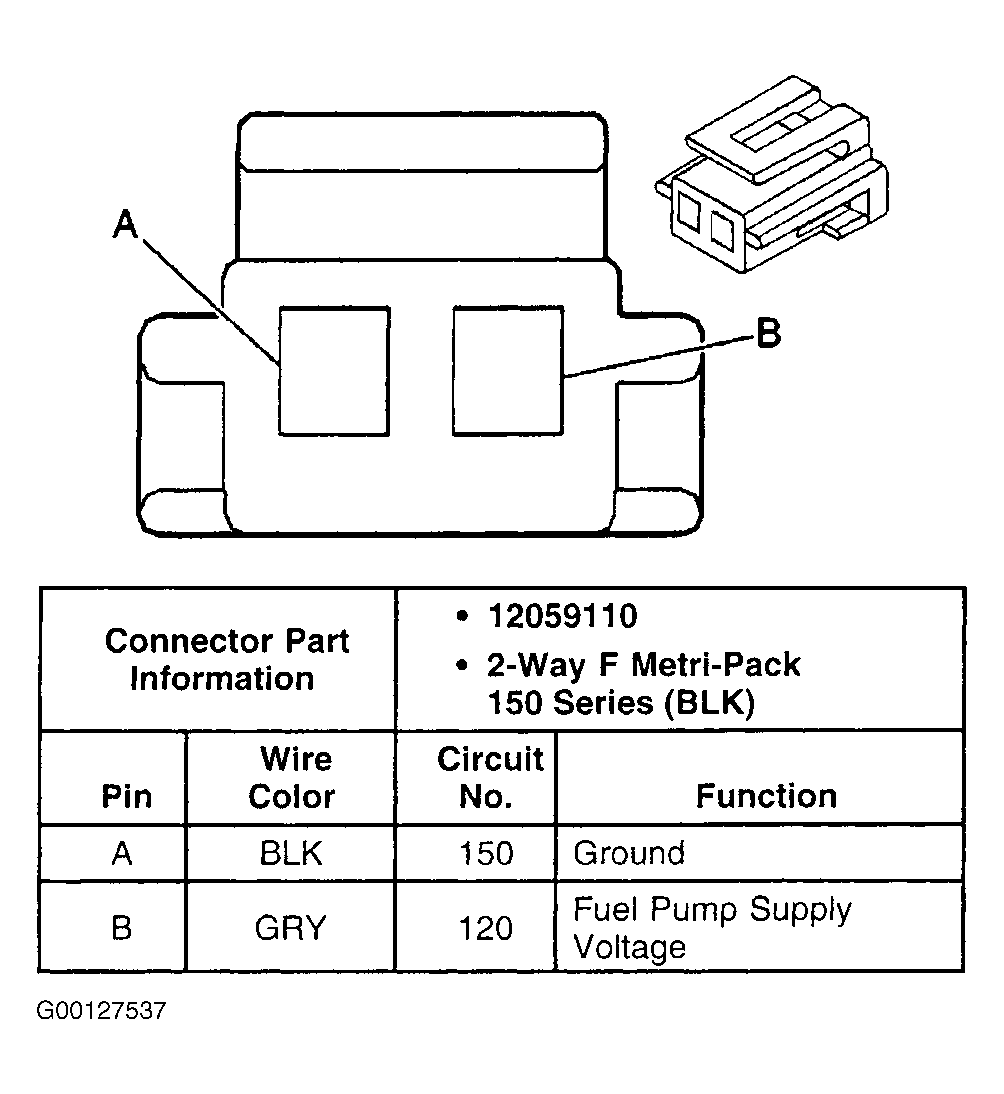

Fig 12: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Alero & Grand Am)

G00127537

Courtesy of GENERAL MOTORS CORP.

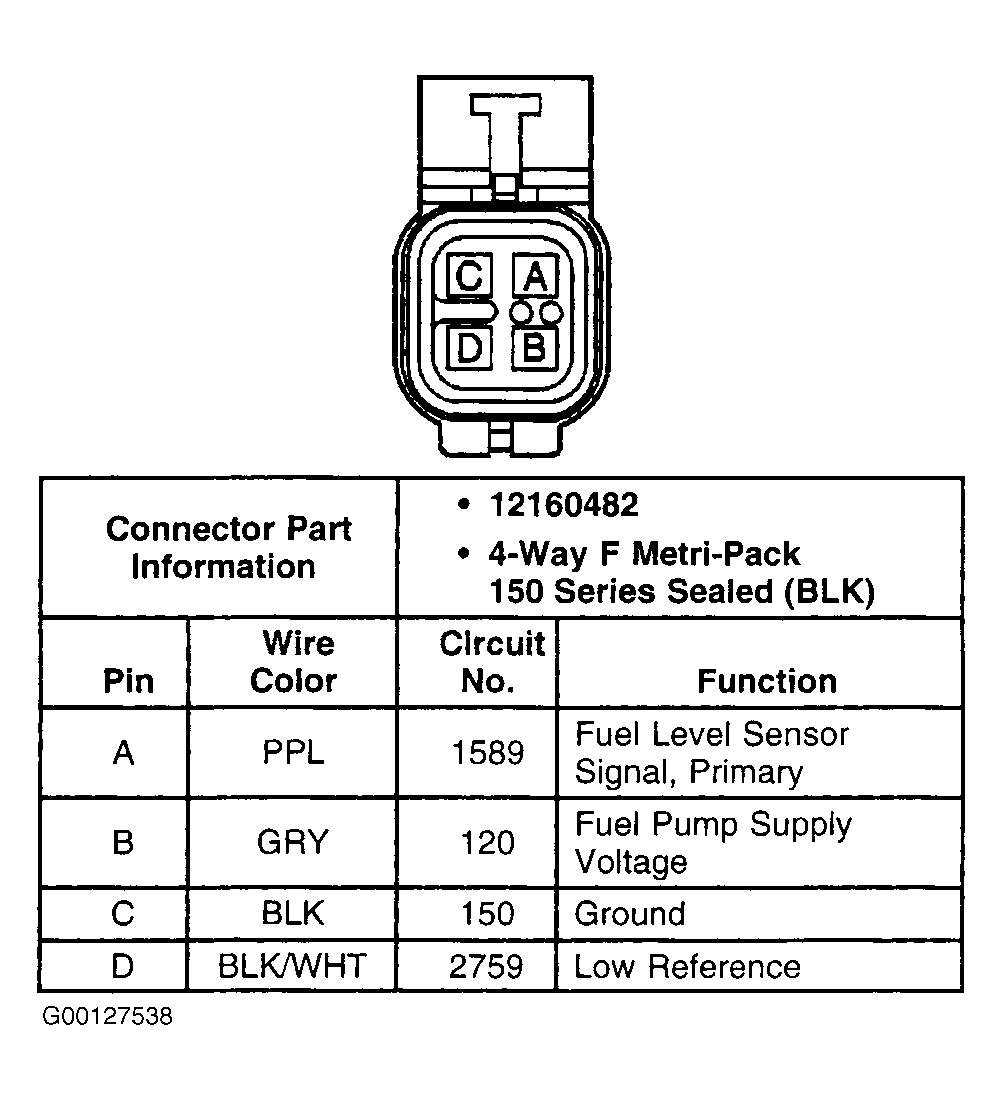

Fig 13: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Cavalier & Sunfire)

G00127538

Courtesy of GENERAL MOTORS CORP.

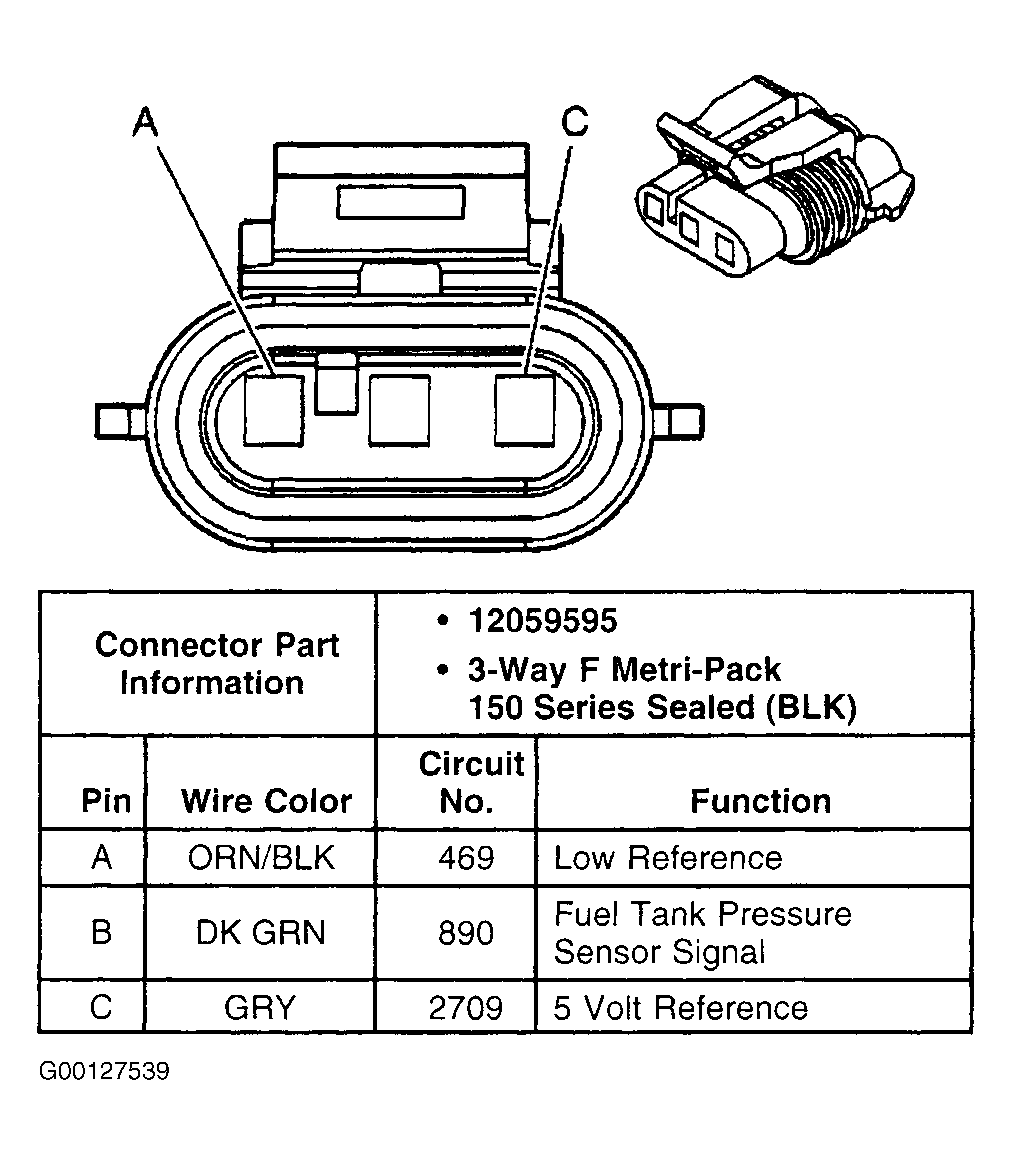

Fig 14: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Alero & Grand Am)

G00127539

Courtesy of GENERAL MOTORS CORP.

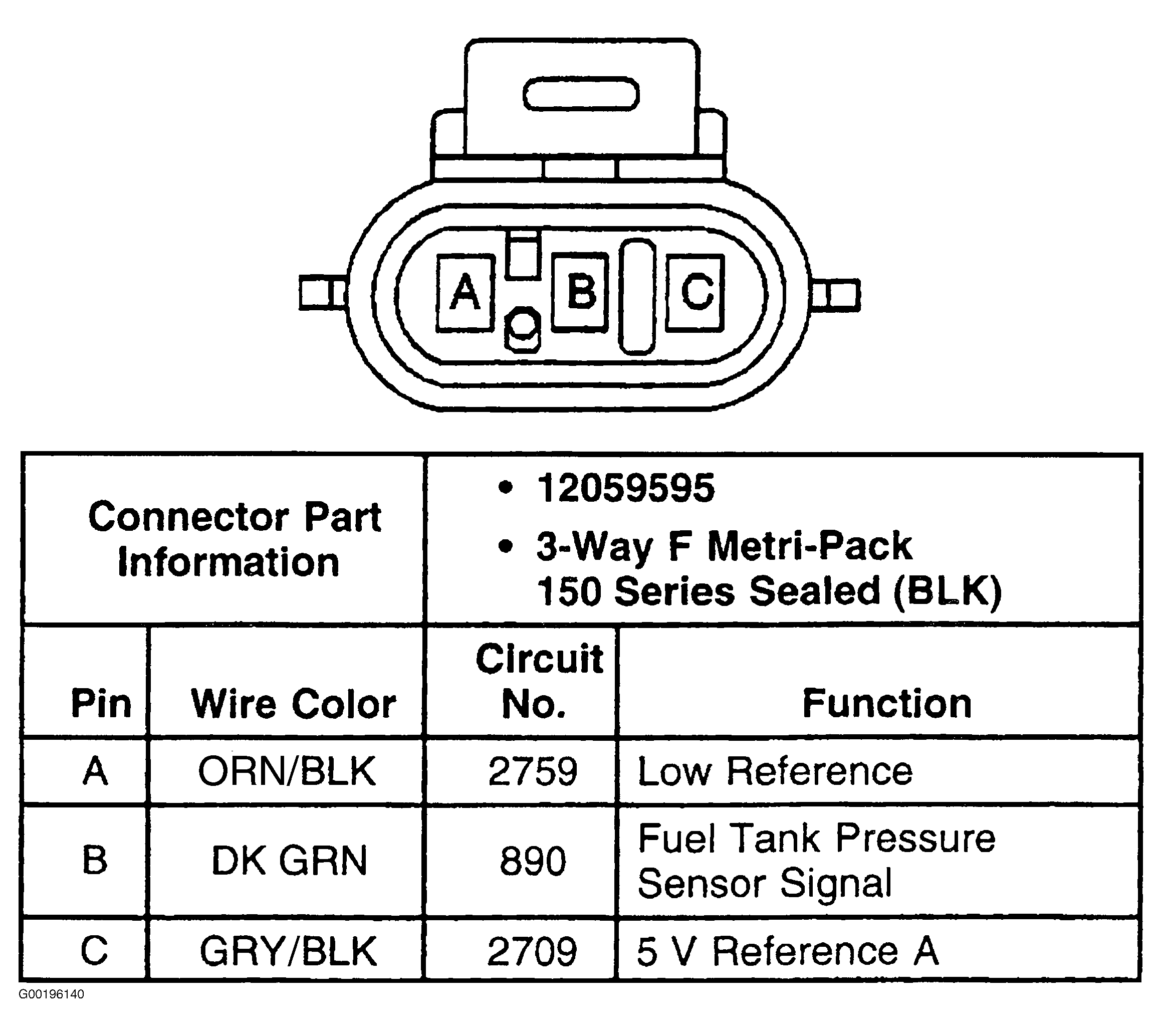

Fig 15: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Cavalier & Sunfire)

G00196140

Courtesy of GENERAL MOTORS CORP.

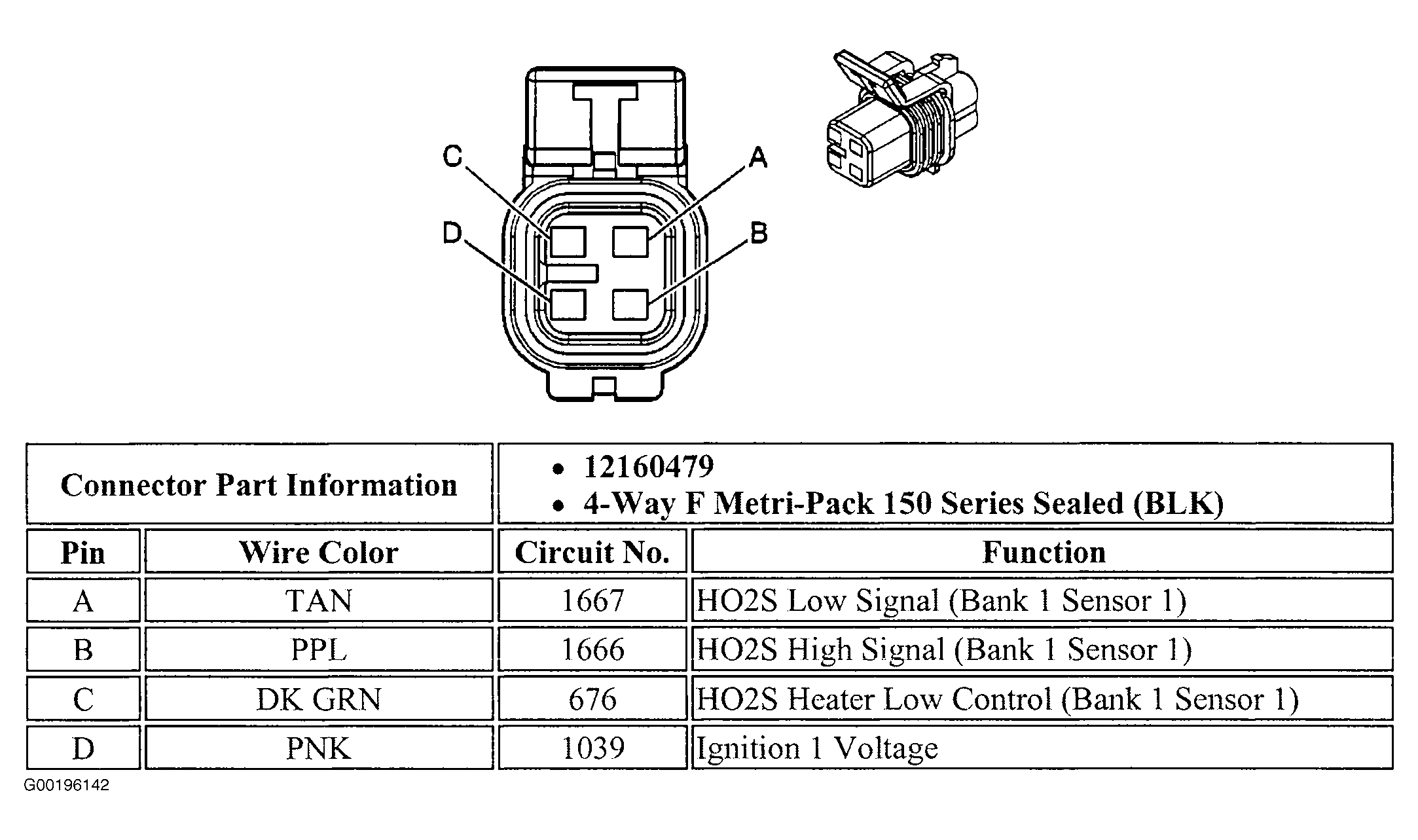

Fig 16: Identifying HO2S 1 Harness Connector Terminals (Alero & Grand Am)

G00196142

Courtesy of GENERAL MOTORS CORP.

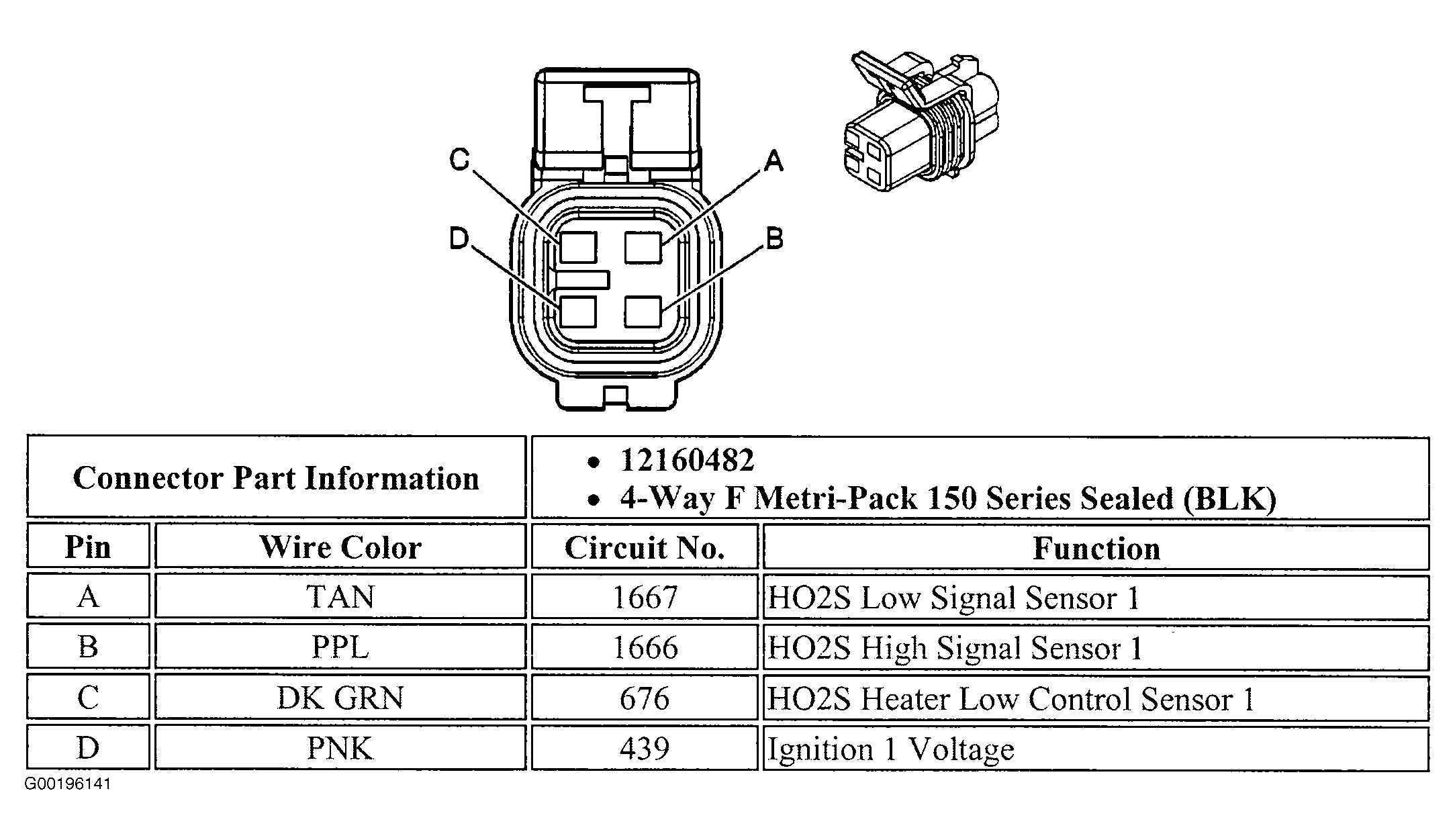

Fig 17: Identifying HO2S 1 Harness Connector Terminals (Cavalier & Sunfire)

G00196141

Courtesy of GENERAL MOTORS CORP.

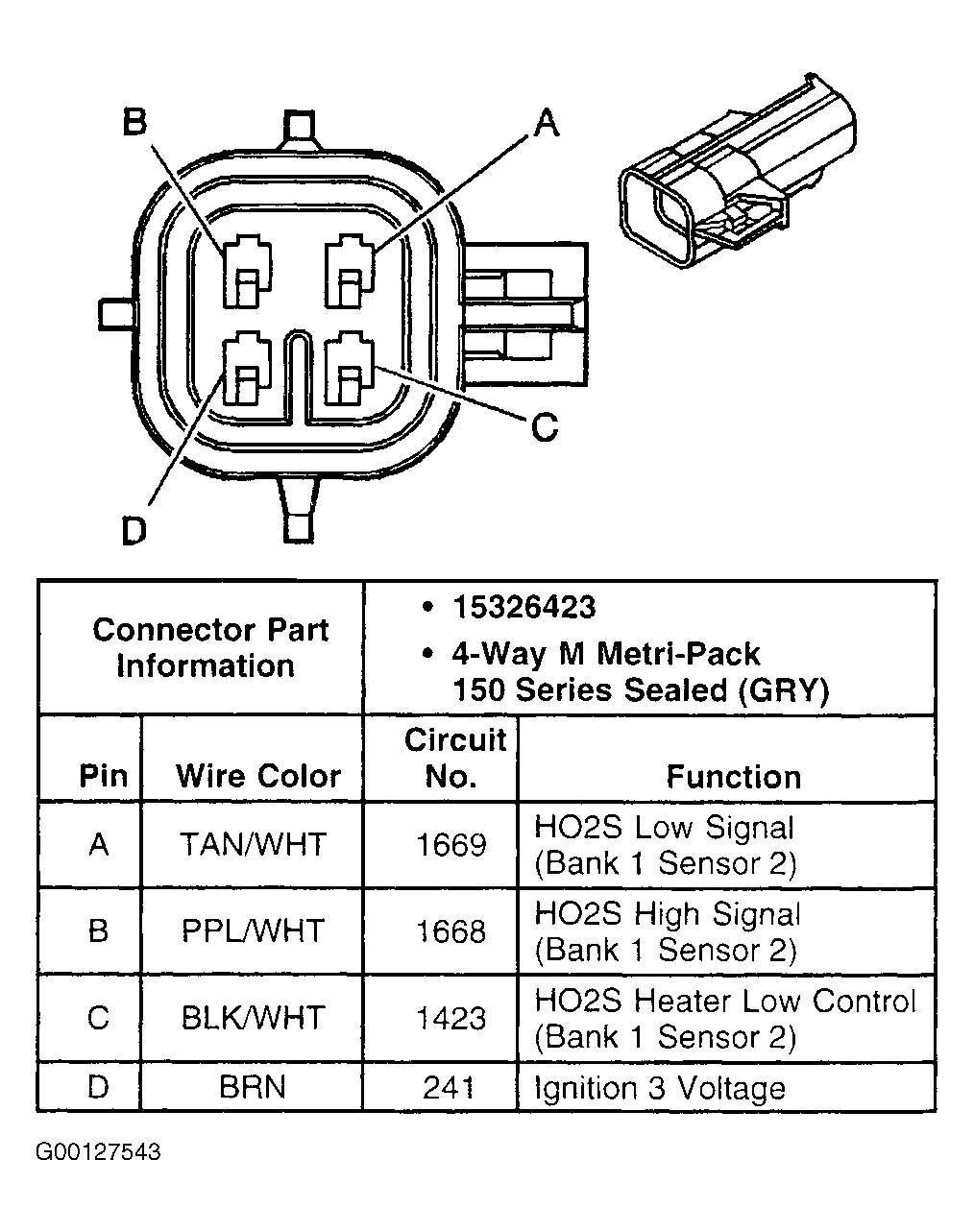

Fig 18: Identifying HO2S 2 Harness Connector Terminals (Alero & Grand Am)

G00127543

Courtesy of GENERAL MOTORS CORP.

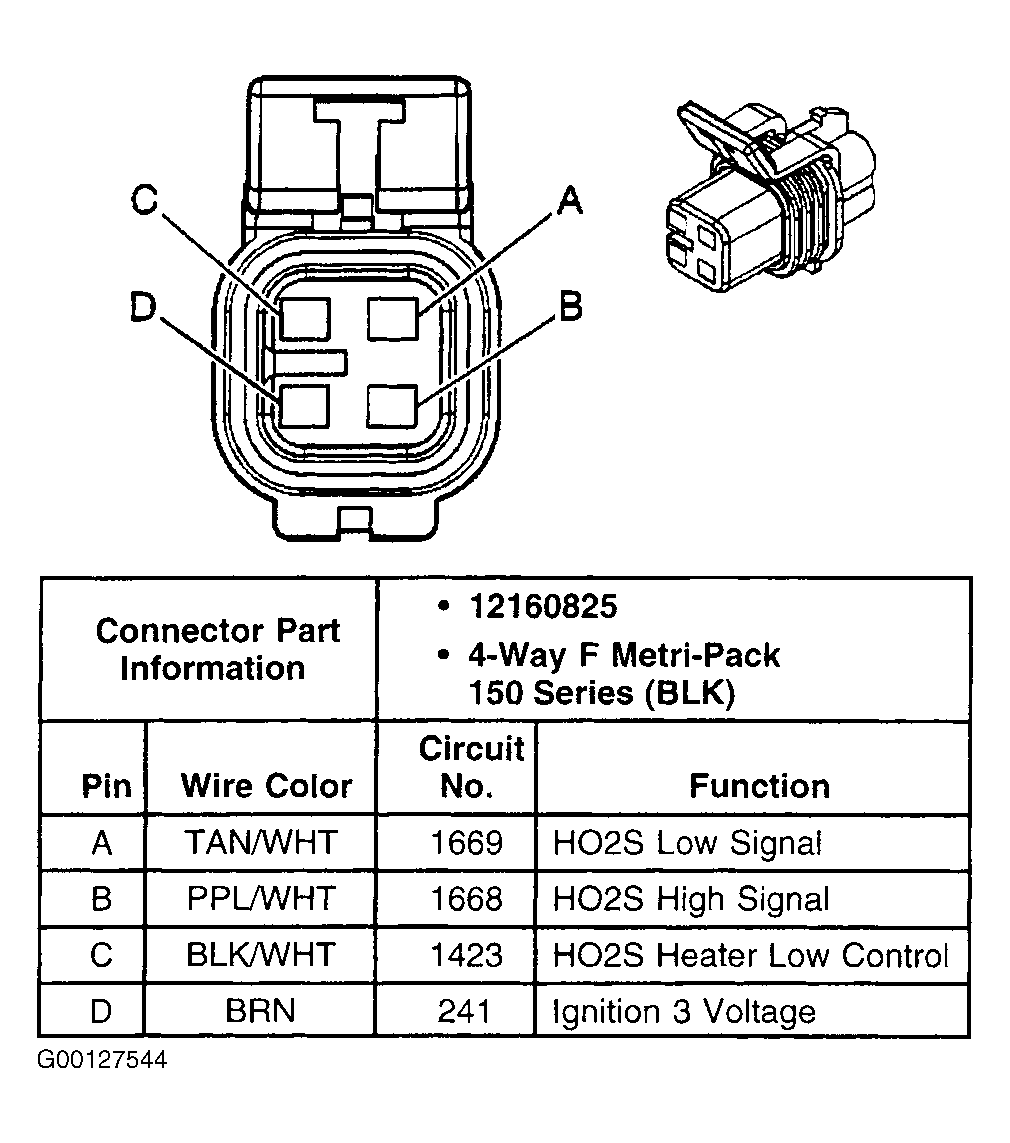

Fig 19: Identifying HO2S 2 Harness Connector Terminals (Cavalier & Sunfire)

G00127544

Courtesy of GENERAL MOTORS CORP.

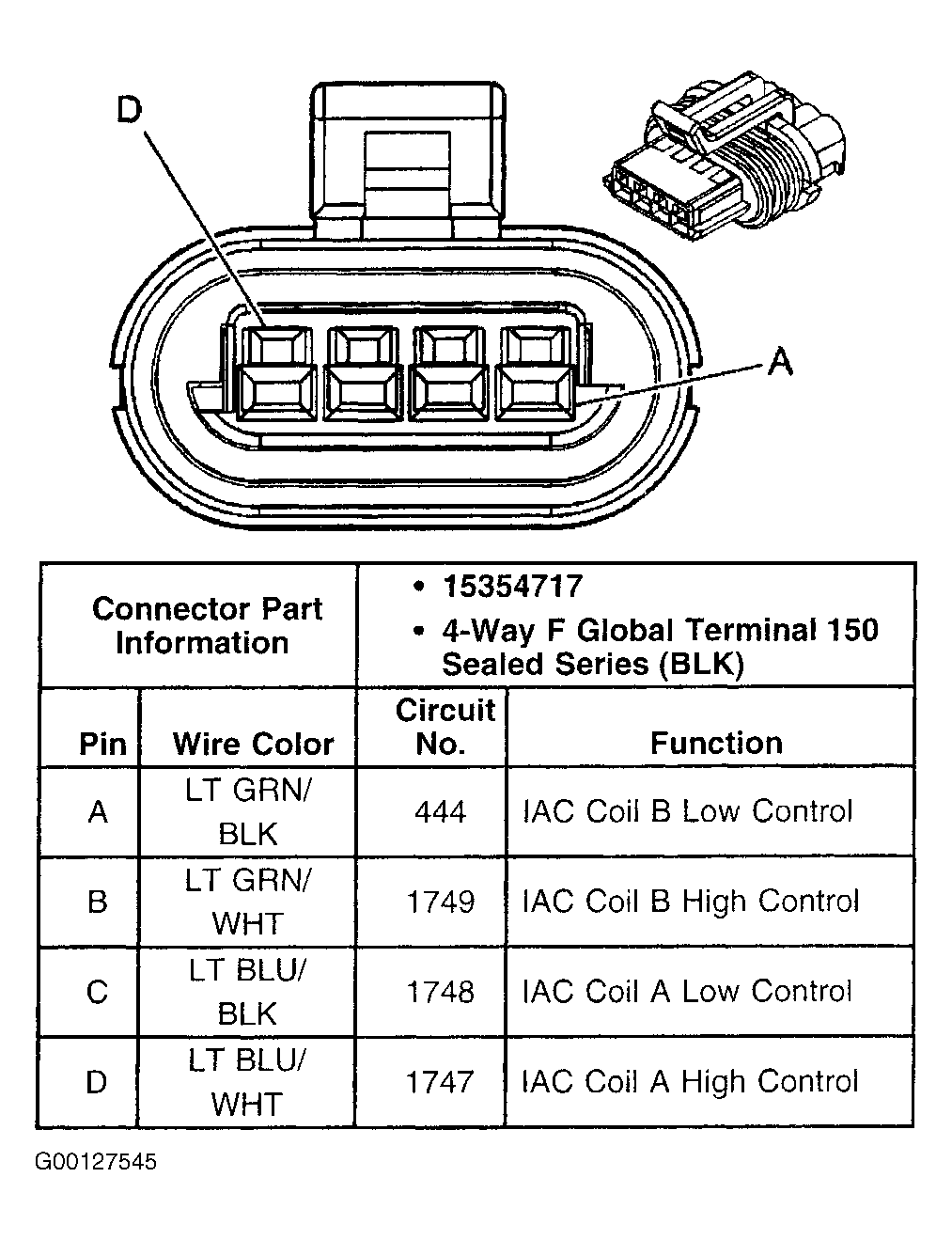

Fig 20: Identifying IAC Valve Harness Connector Terminals (Alero & Grand Am)

G00127545

Courtesy of GENERAL MOTORS CORP.

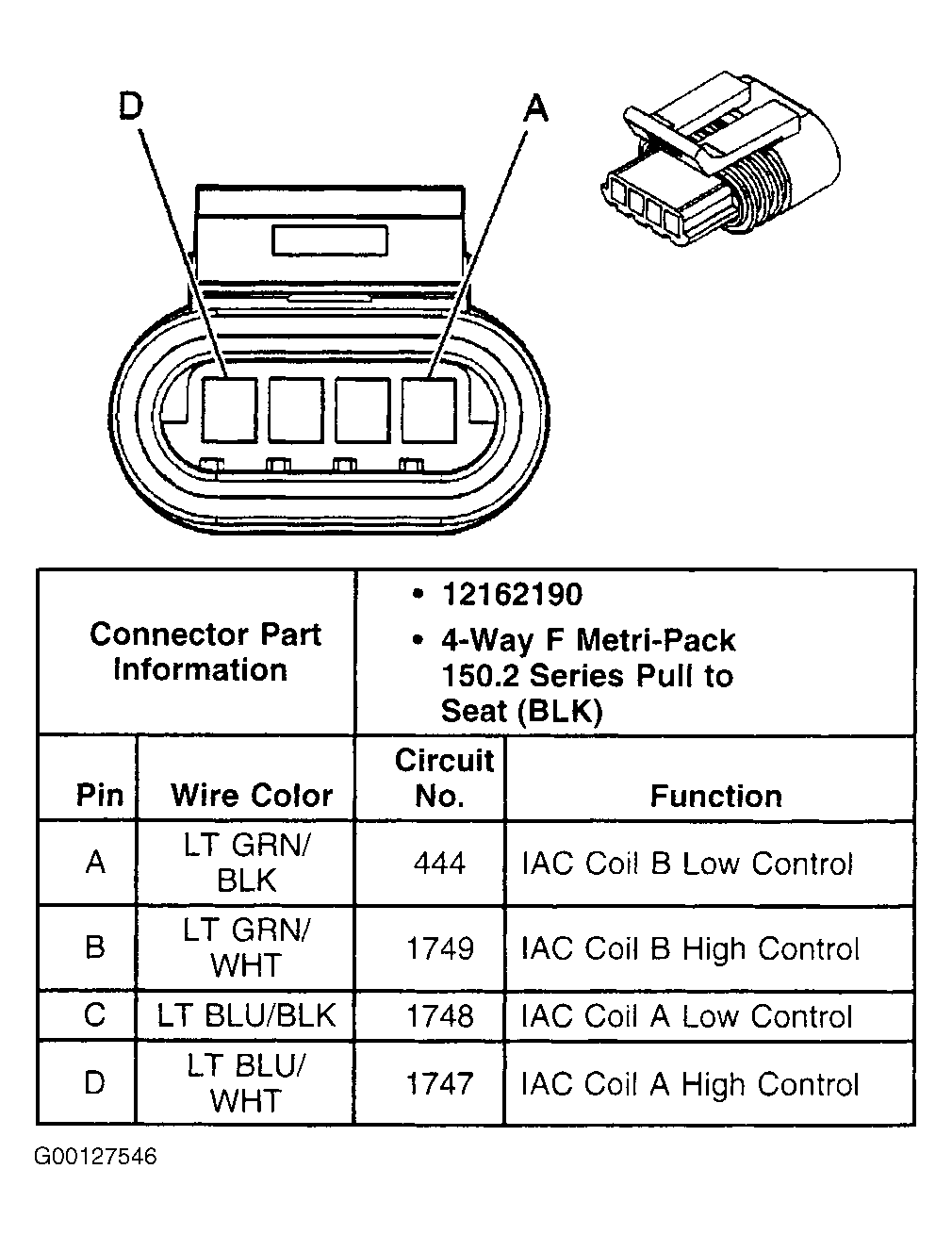

Fig 21: Identifying IAC Valve Harness Connector Terminals (Cavalier & Sunfire)

G00127546

Courtesy of GENERAL MOTORS CORP.

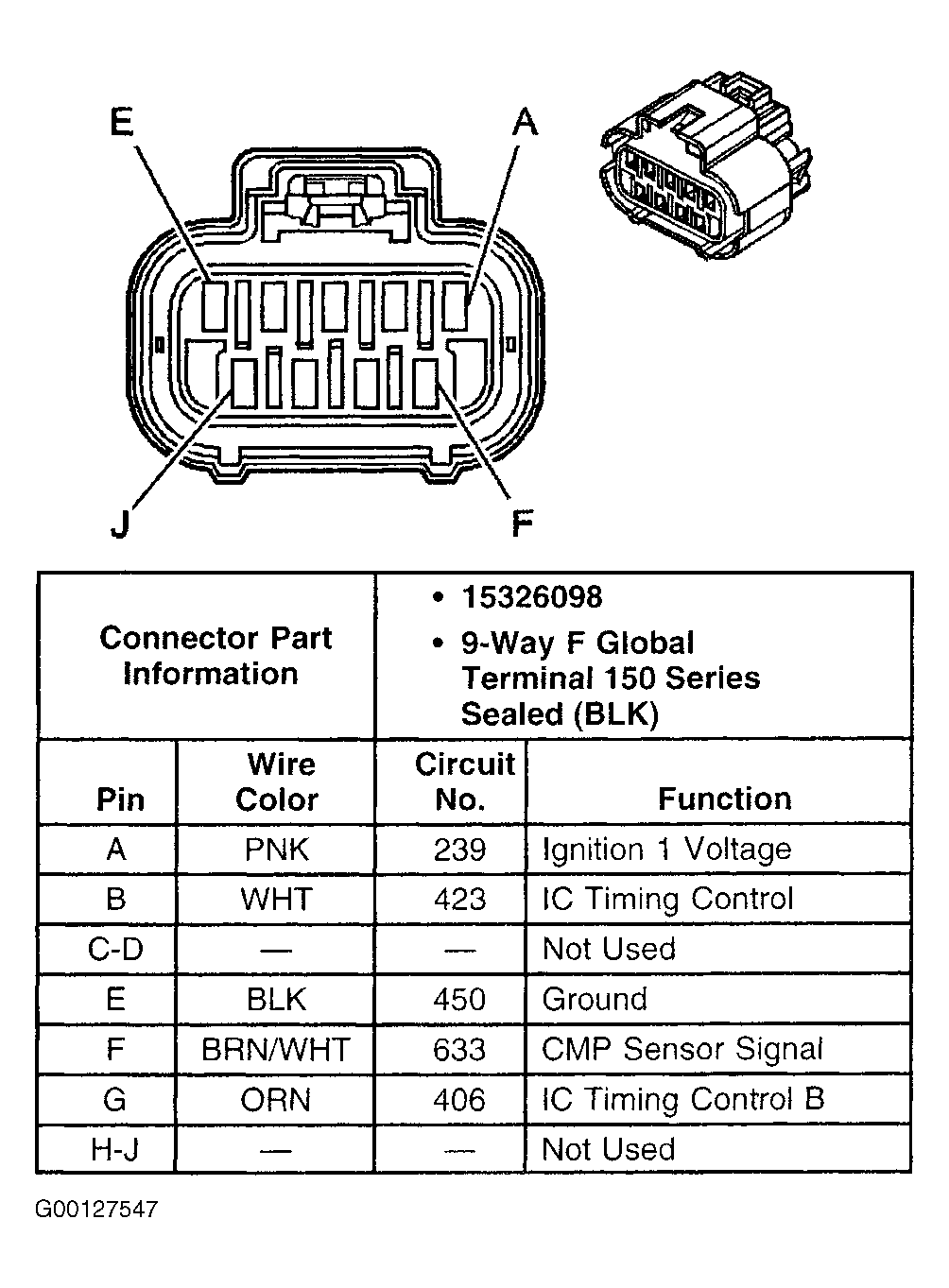

Fig 22: Identifying Ignition Control Module Harness Connector Terminals (Alero & Grand Am)

G00127547

Courtesy of GENERAL MOTORS CORP.

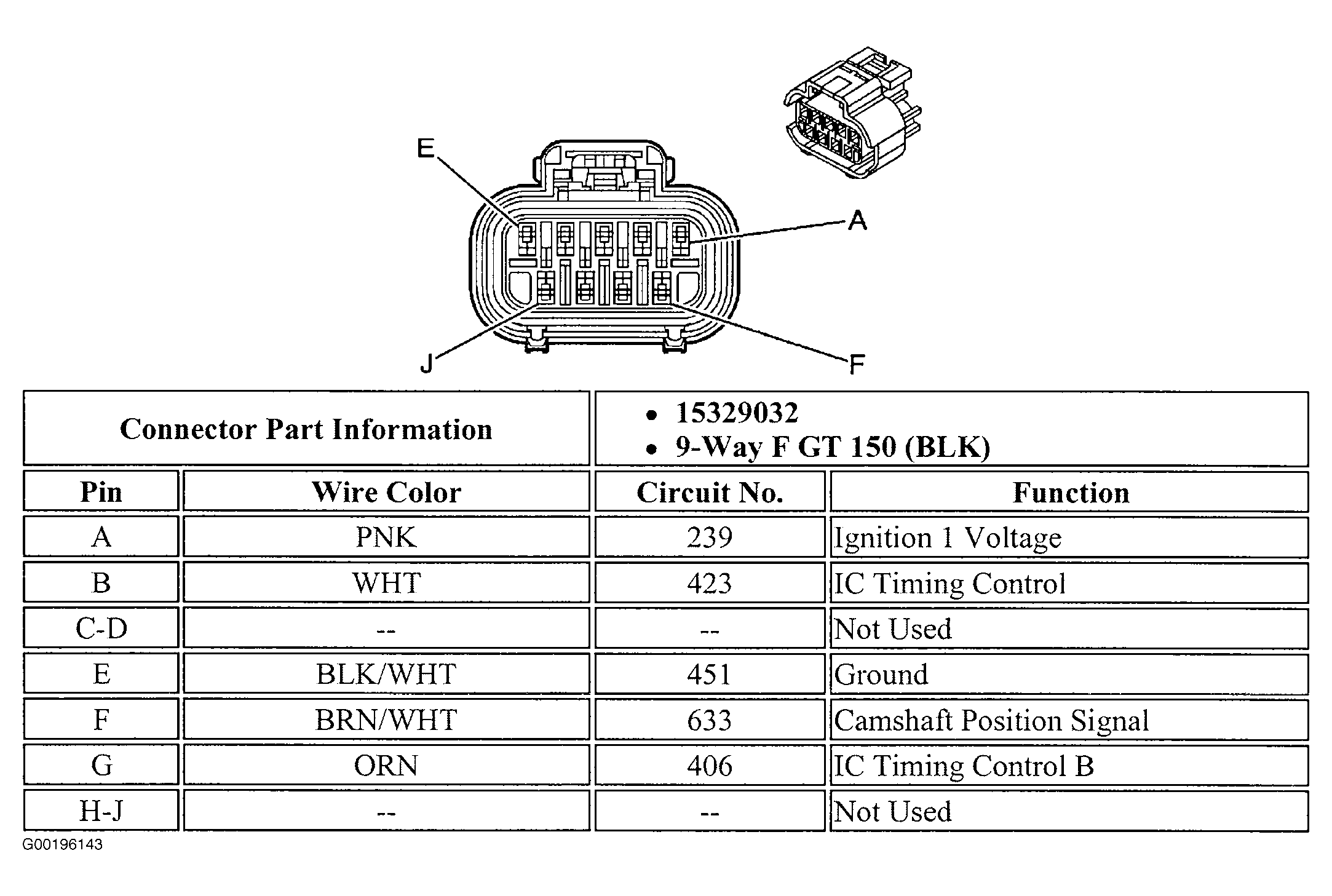

Fig 23: Identifying Ignition Control Module Harness Connector Terminals (Cavalier & Sunfire)

G00196143

Courtesy of GENERAL MOTORS CORP.

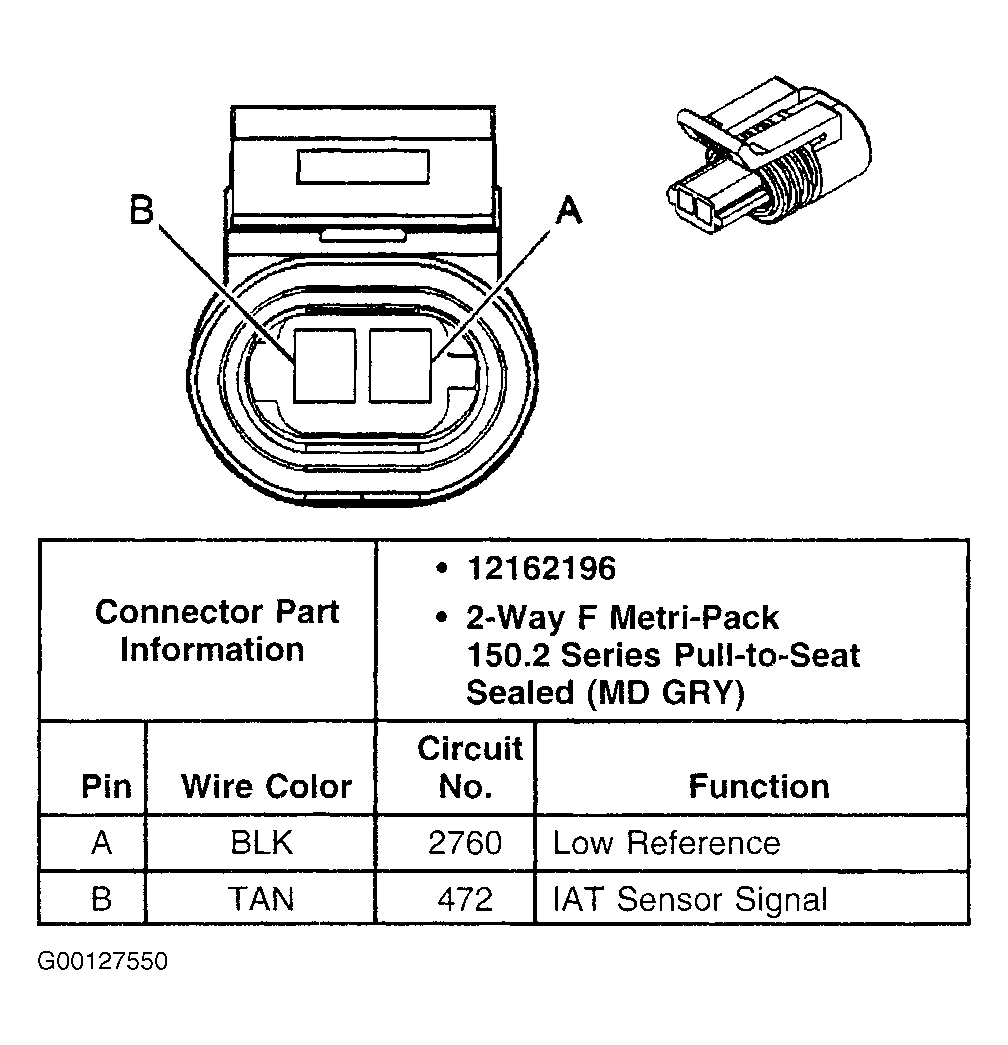

Fig 24: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Alero & Grand Am)

G00127550

Courtesy of GENERAL MOTORS CORP.

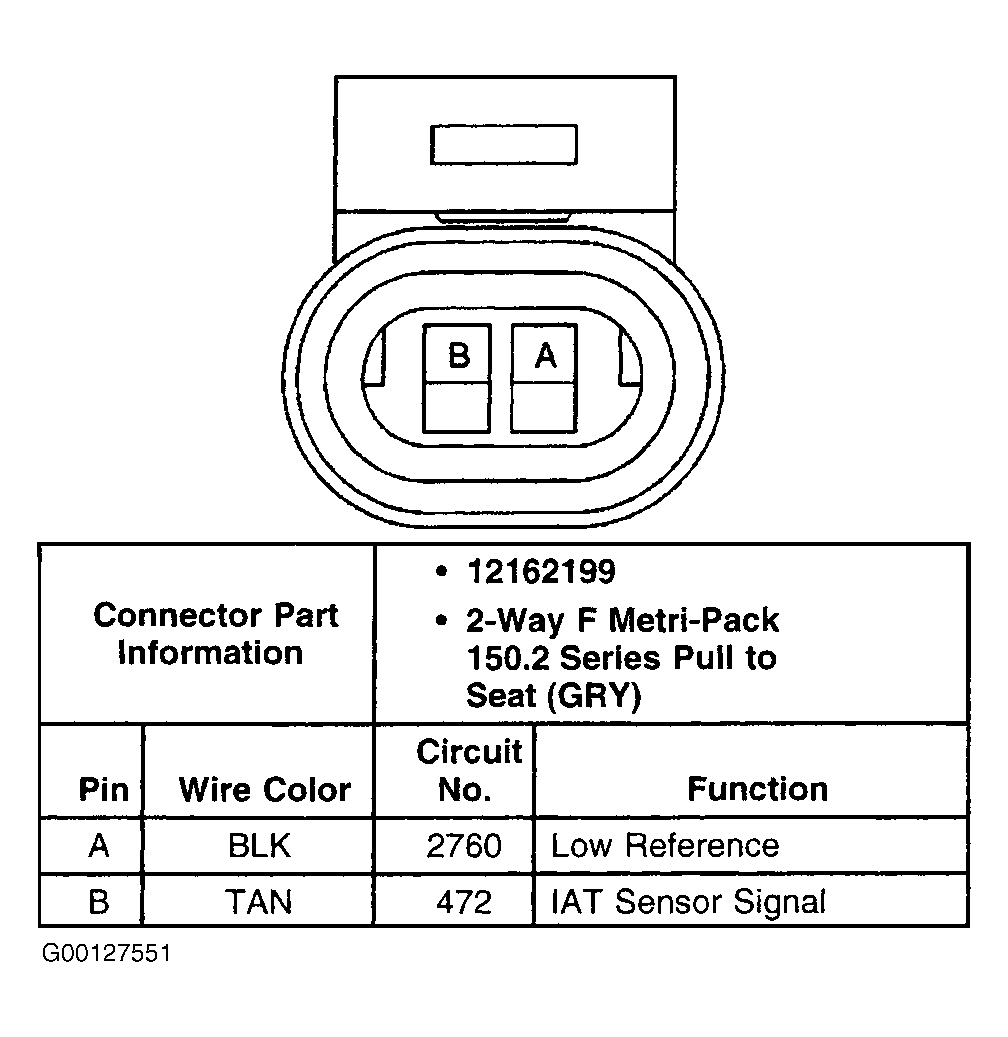

Fig 25: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Cavalier & Sunfire)

G00127551

Courtesy of GENERAL MOTORS CORP.

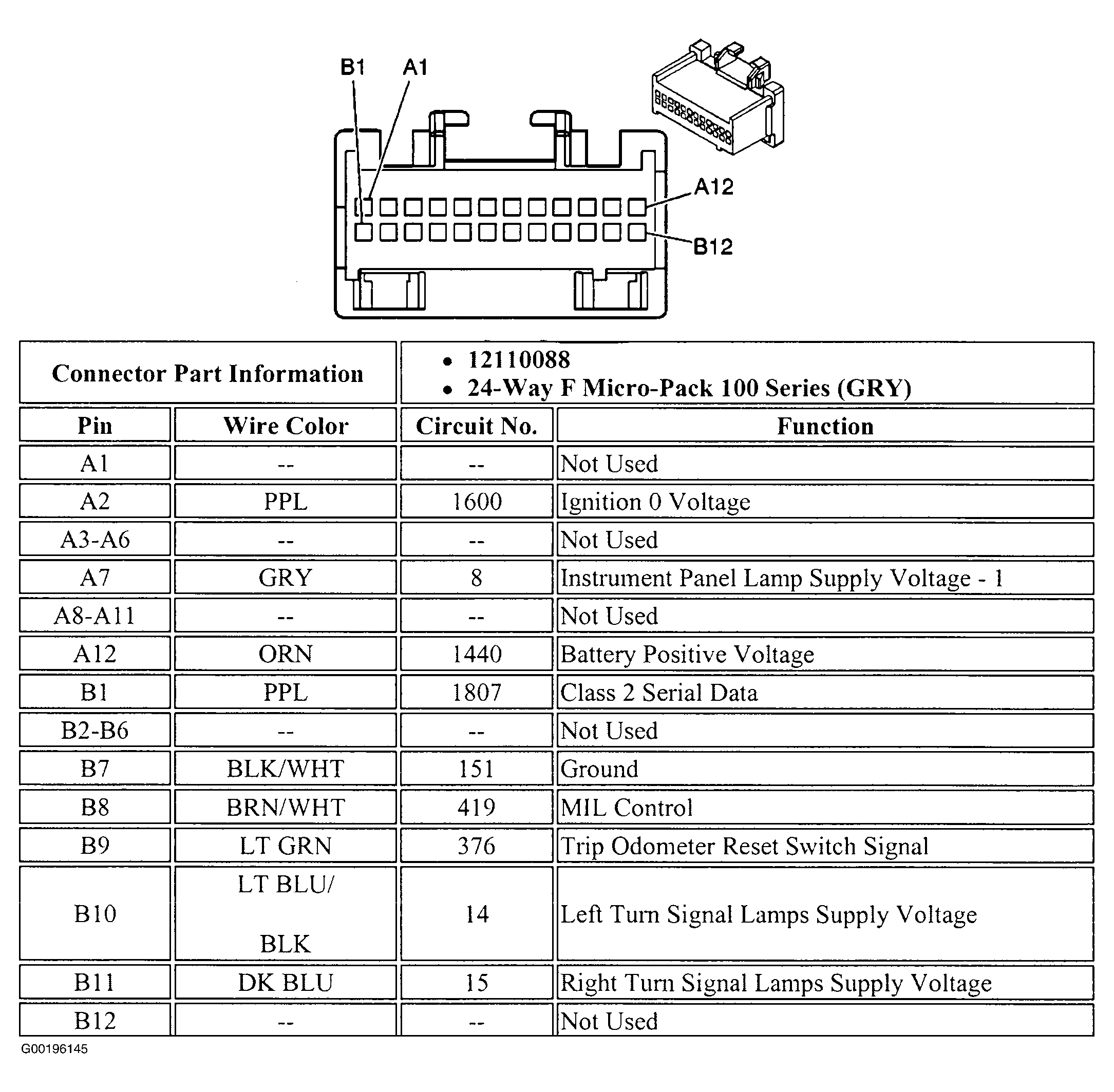

Fig 26: Identifying Instrument Panel Cluster Harness Connector Terminals (Alero)

G00196145

Courtesy of GENERAL MOTORS CORP.

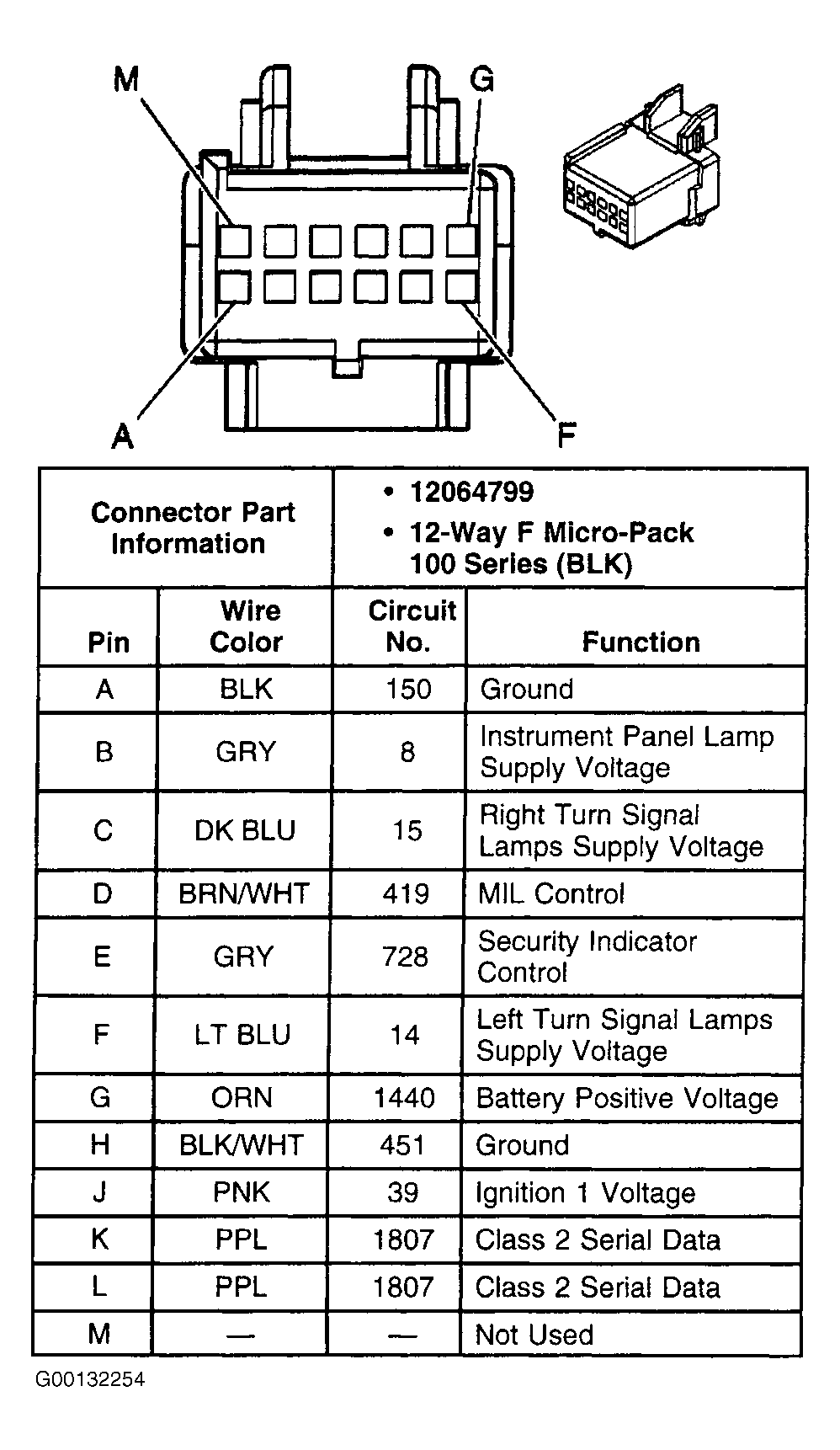

Fig 27: Identifying Instrument Panel Cluster Harness Connector Terminals (Cavalier & Sunfire)

G00132254

Courtesy of GENERAL MOTORS CORP.

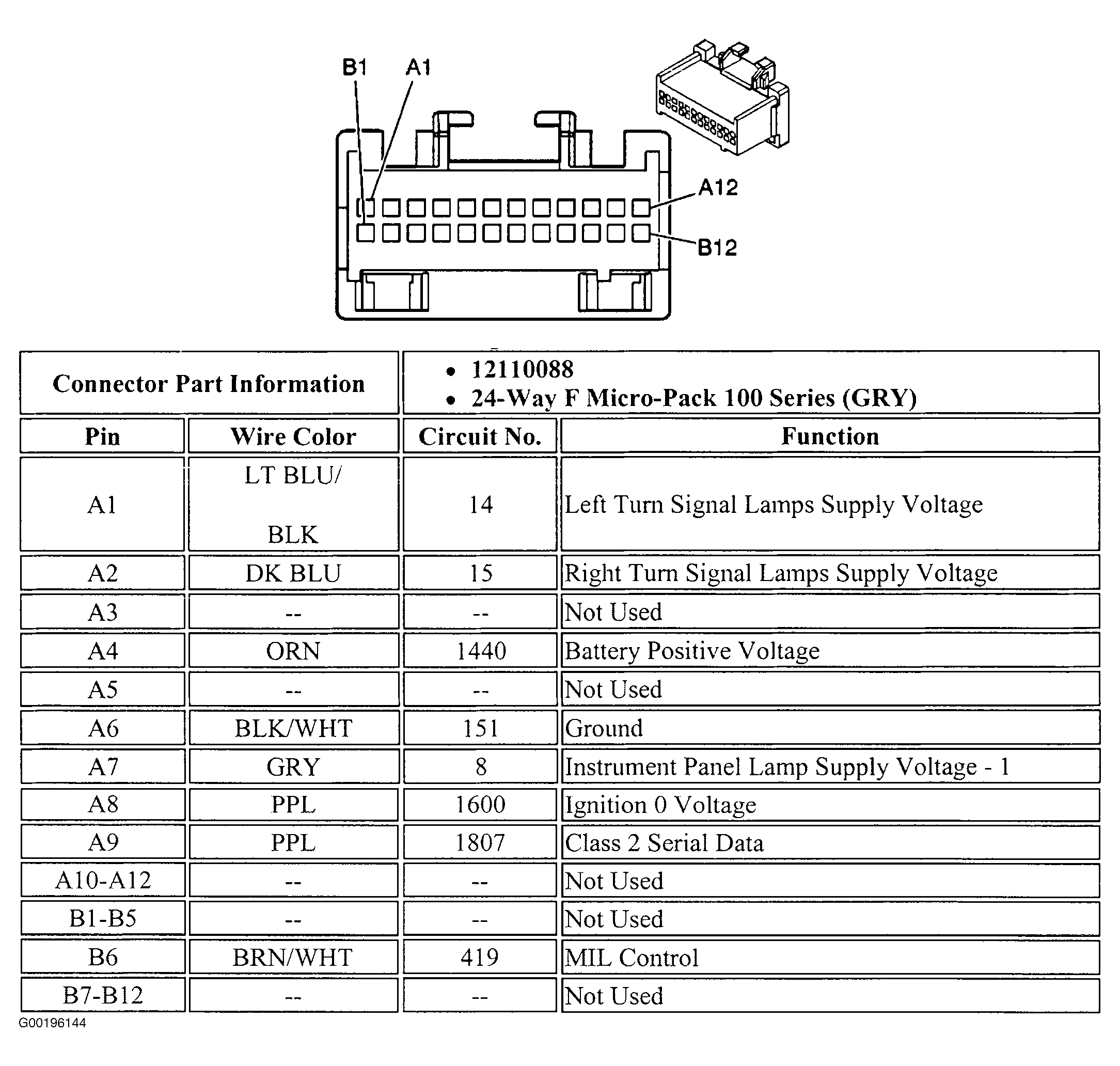

Fig 28: Identifying Instrument Panel Cluster Harness Connector Terminals (Grand Am)

G00196144

Courtesy of GENERAL MOTORS CORP.

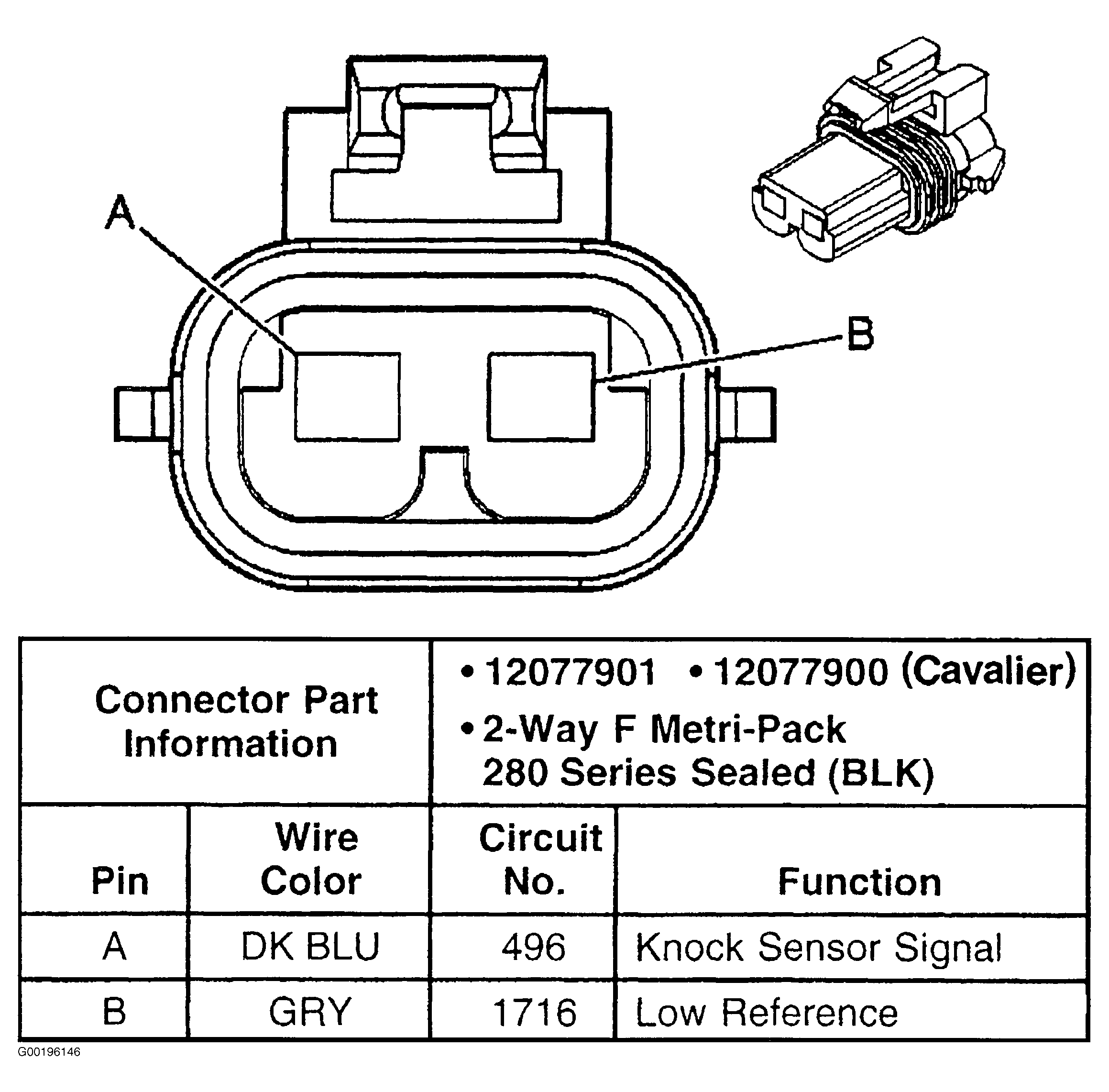

Fig 29: Identifying Knock Sensor Harness Connector Terminals

G00196146

Courtesy of GENERAL MOTORS CORP.

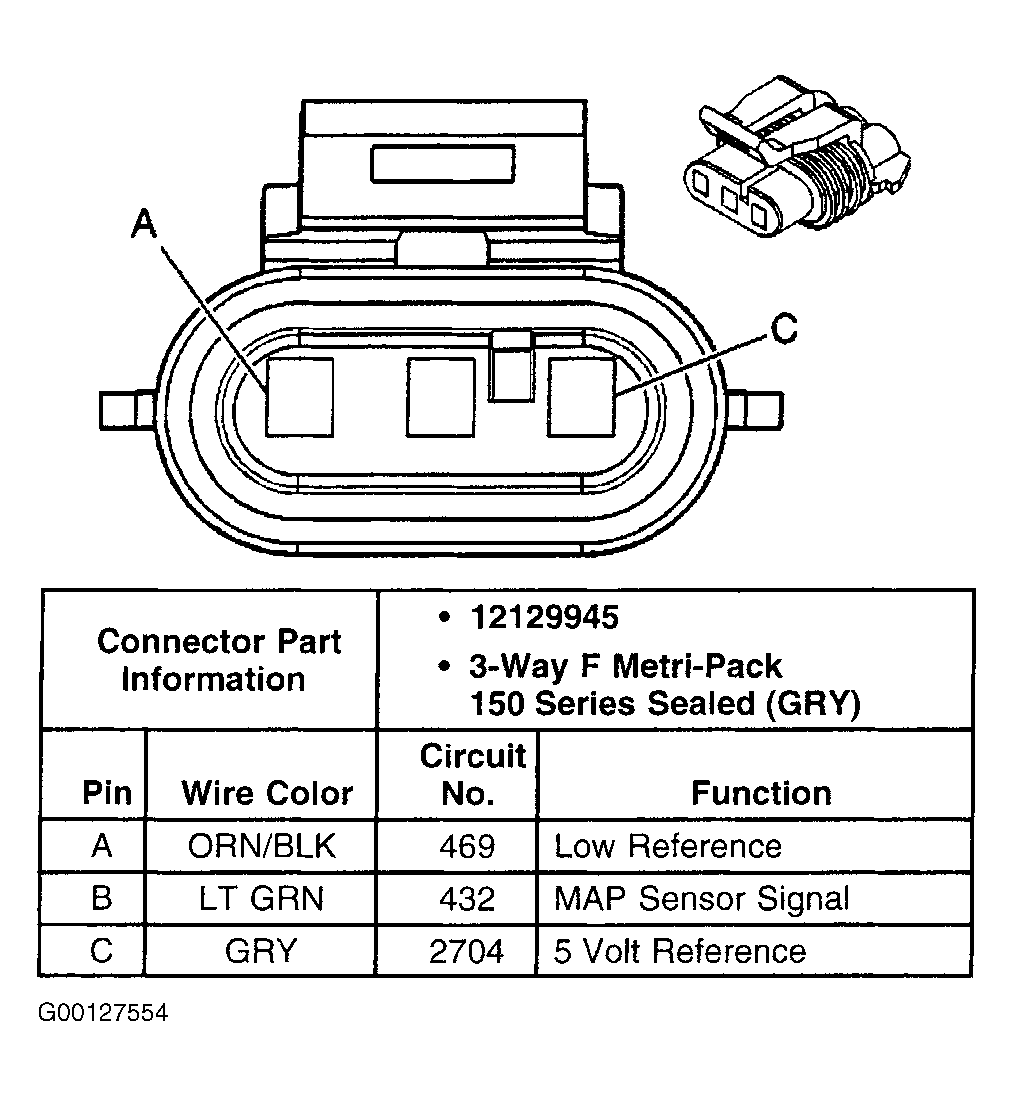

Fig 30: Identifying MAP Sensor Harness Connector Terminals (Alero & Grand Am)

G00127554

Courtesy of GENERAL MOTORS CORP.

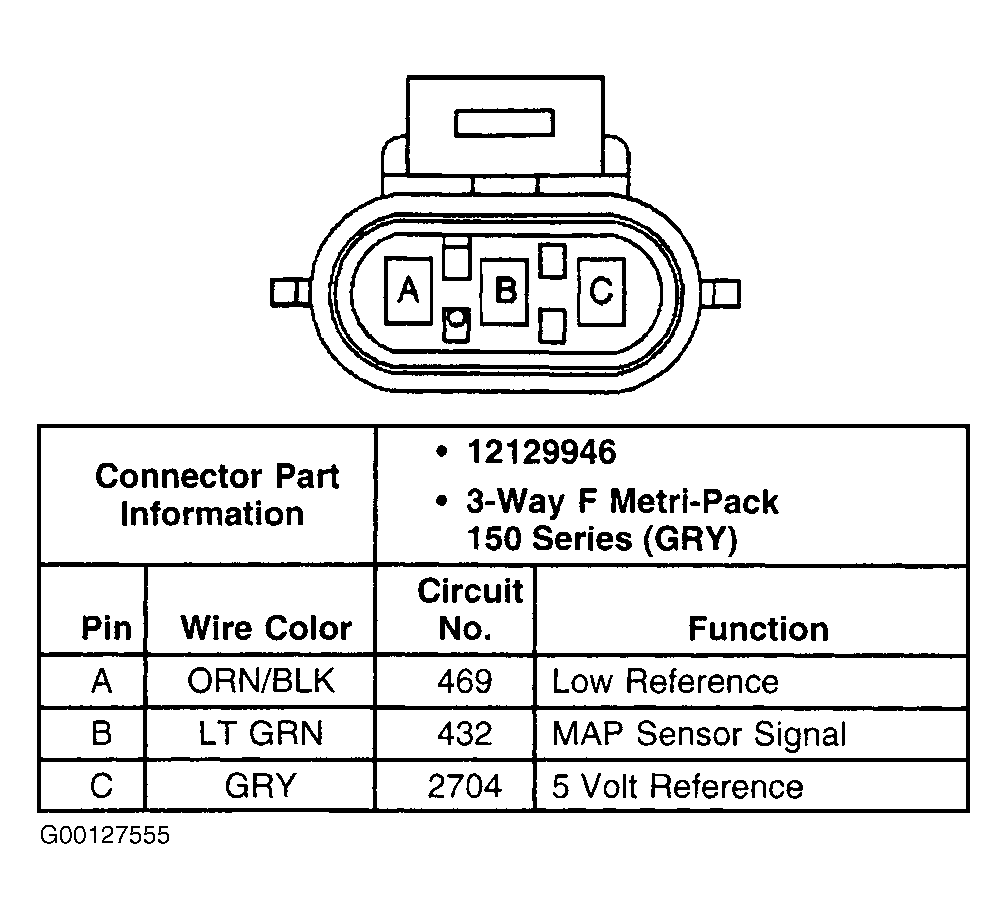

Fig 31: Identifying MAP Sensor Harness Connector Terminals (Cavalier & Sunfire)

G00127555

Courtesy of GENERAL MOTORS CORP.

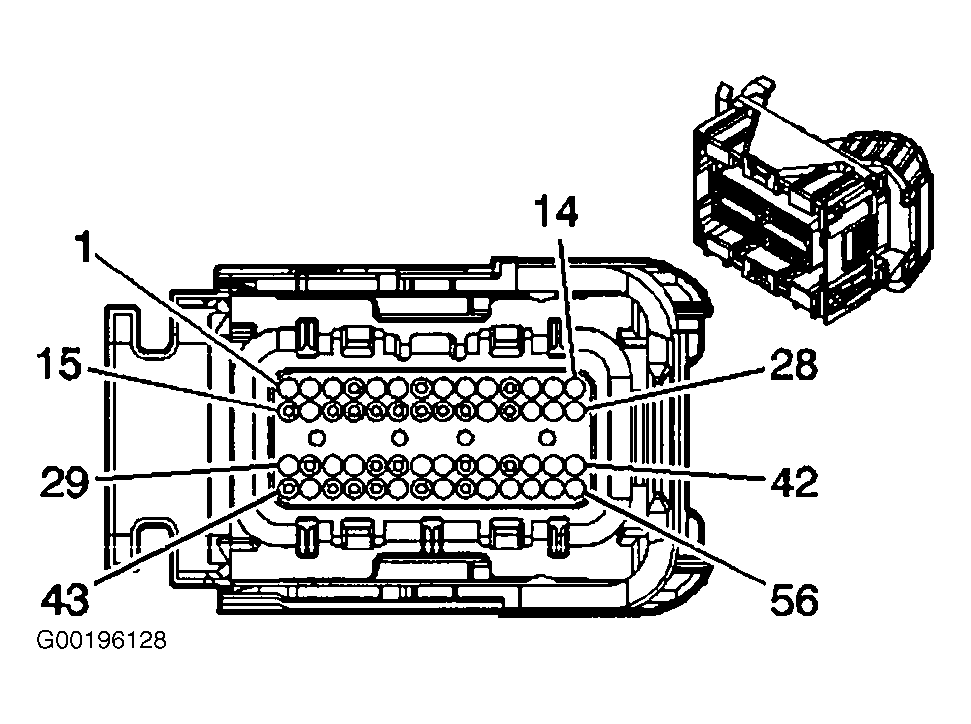

Fig 32: Identifying PCM 56-Pin Harness Connector C1 Terminals

G00196128

Courtesy of GENERAL MOTORS CORP.

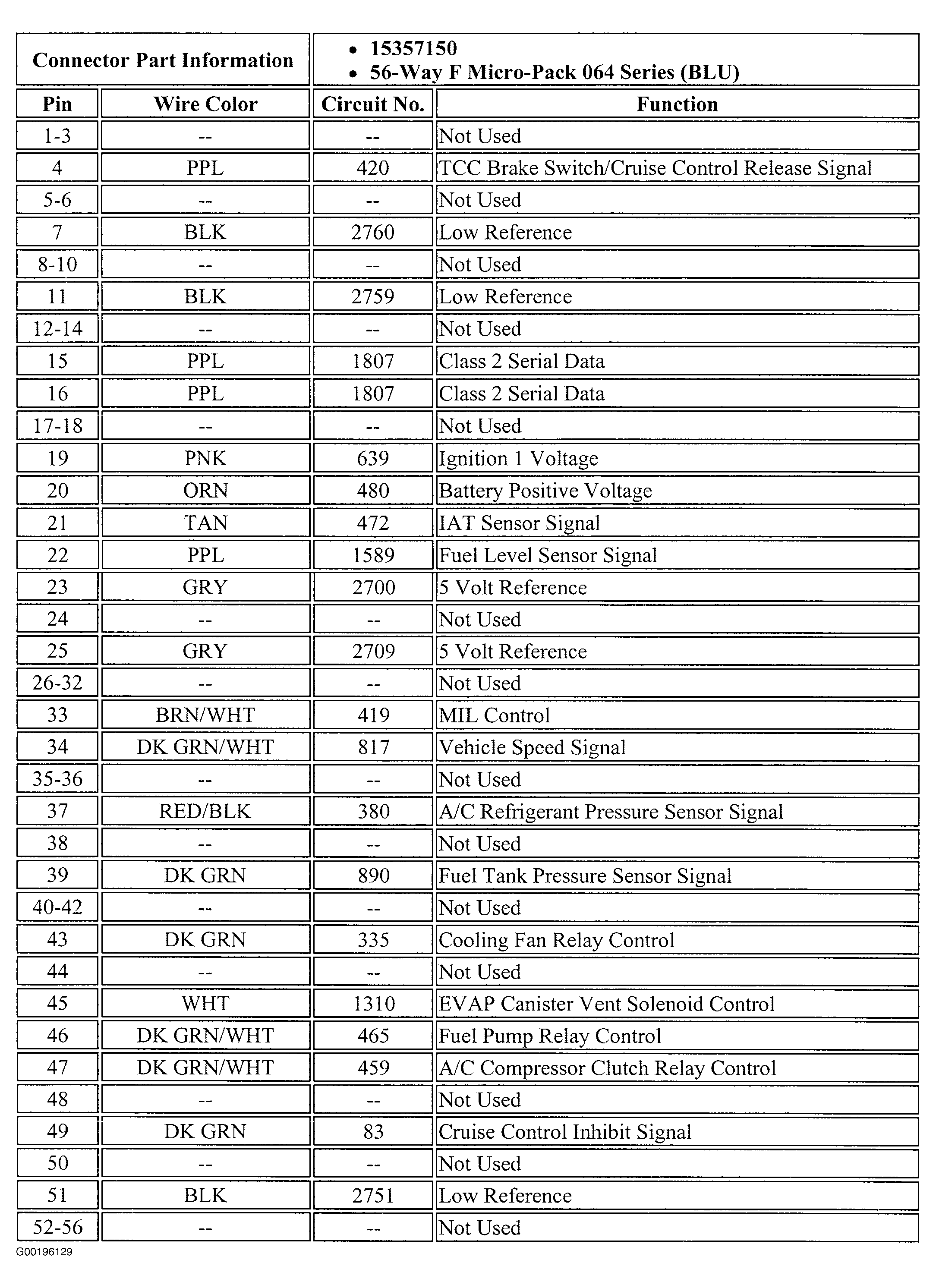

Fig 33: Identifying PCM Harness Connector C1 Terminals, Wire Color, Circuit No. & Function (Cavalier)

G00196129

Courtesy of GENERAL MOTORS CORP.

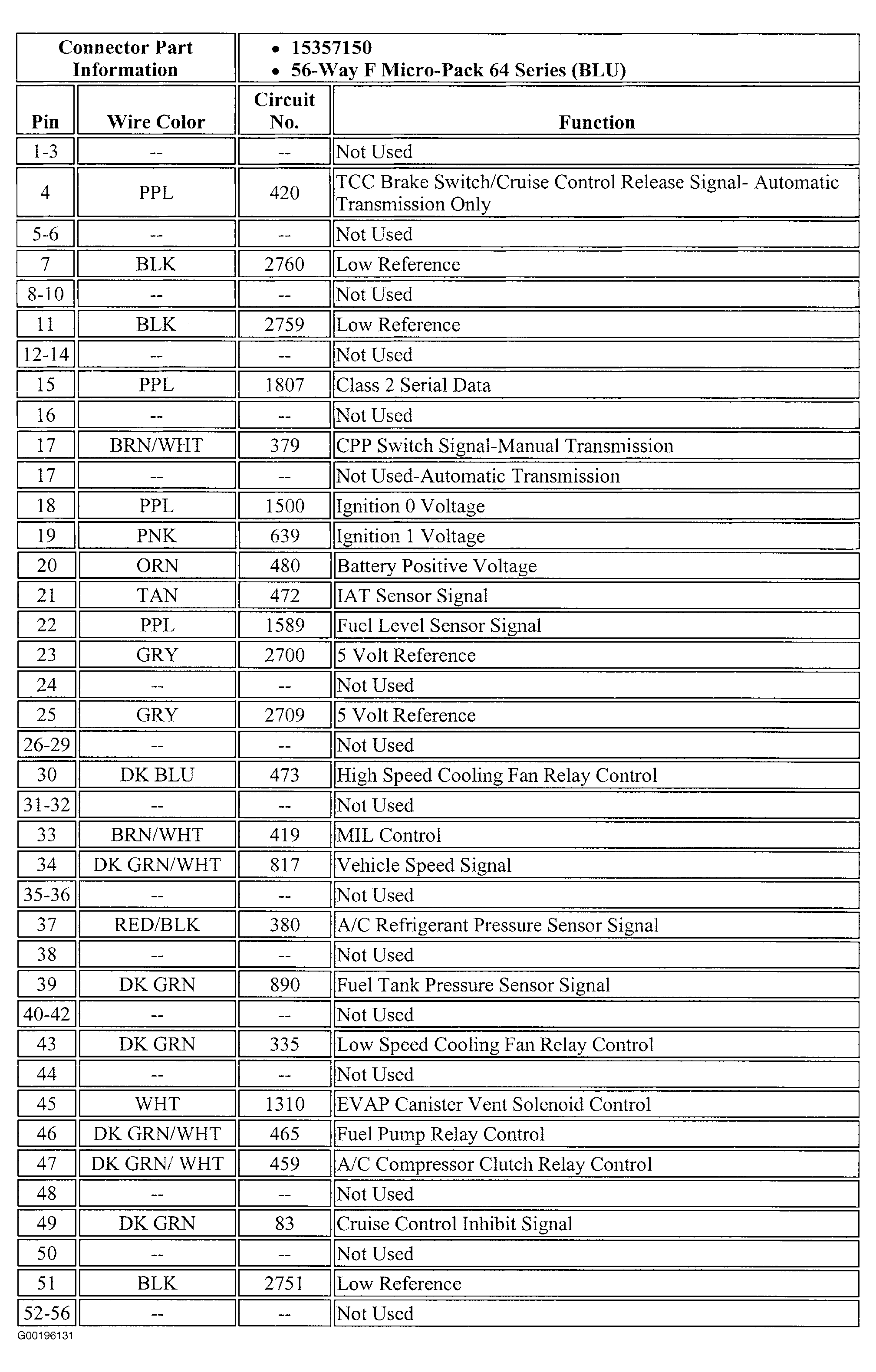

Fig 34: Identifying PCM Harness Connector C1 Terminals, Wire Color, Circuit No. & Function (Except Cavalier)

G00196131

Courtesy of GENERAL MOTORS CORP.

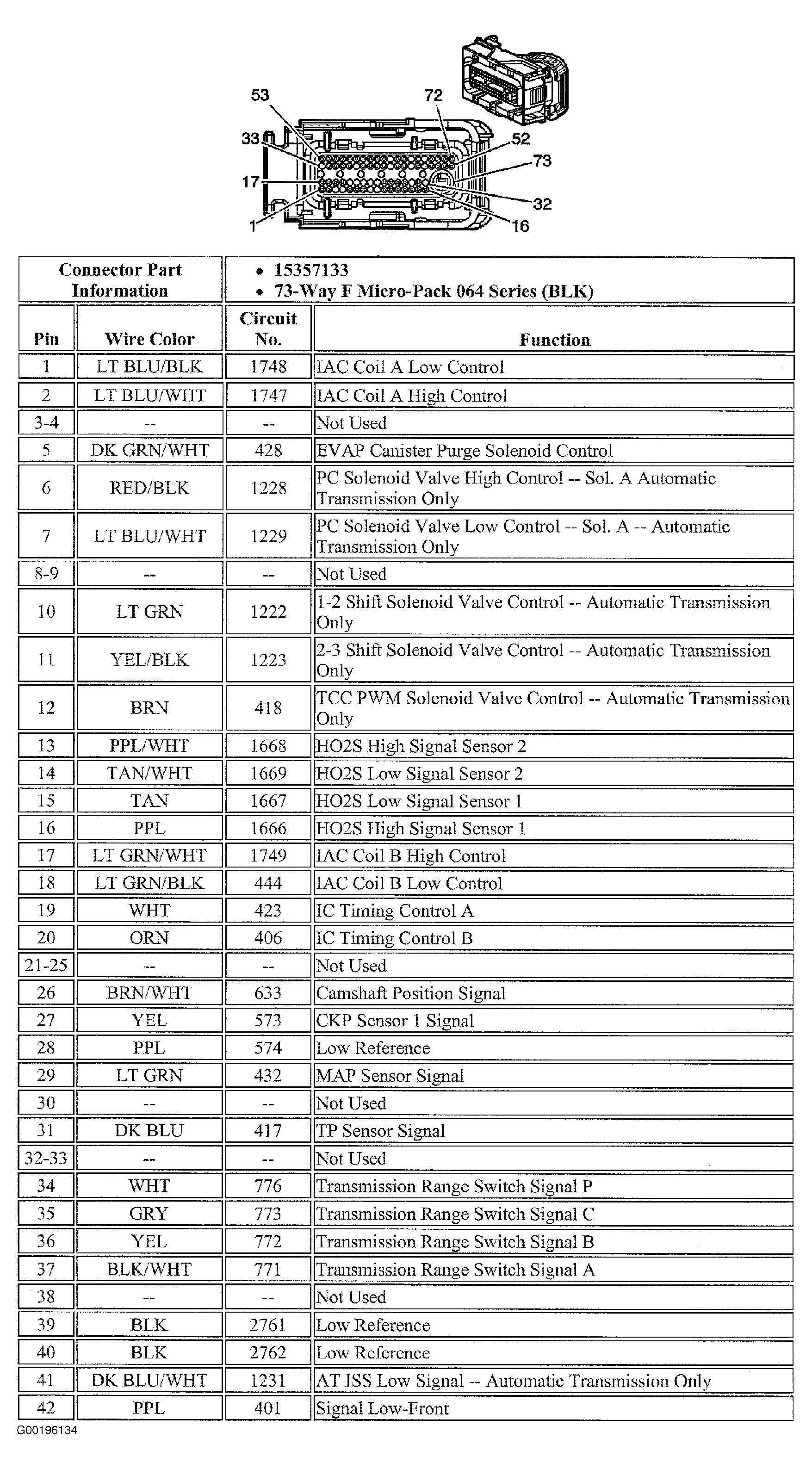

Fig 35: Identifying PCM Harness Connector C2 Terminals (Cavalier - 1 Of 2)

G00196134

Courtesy of GENERAL MOTORS CORP.

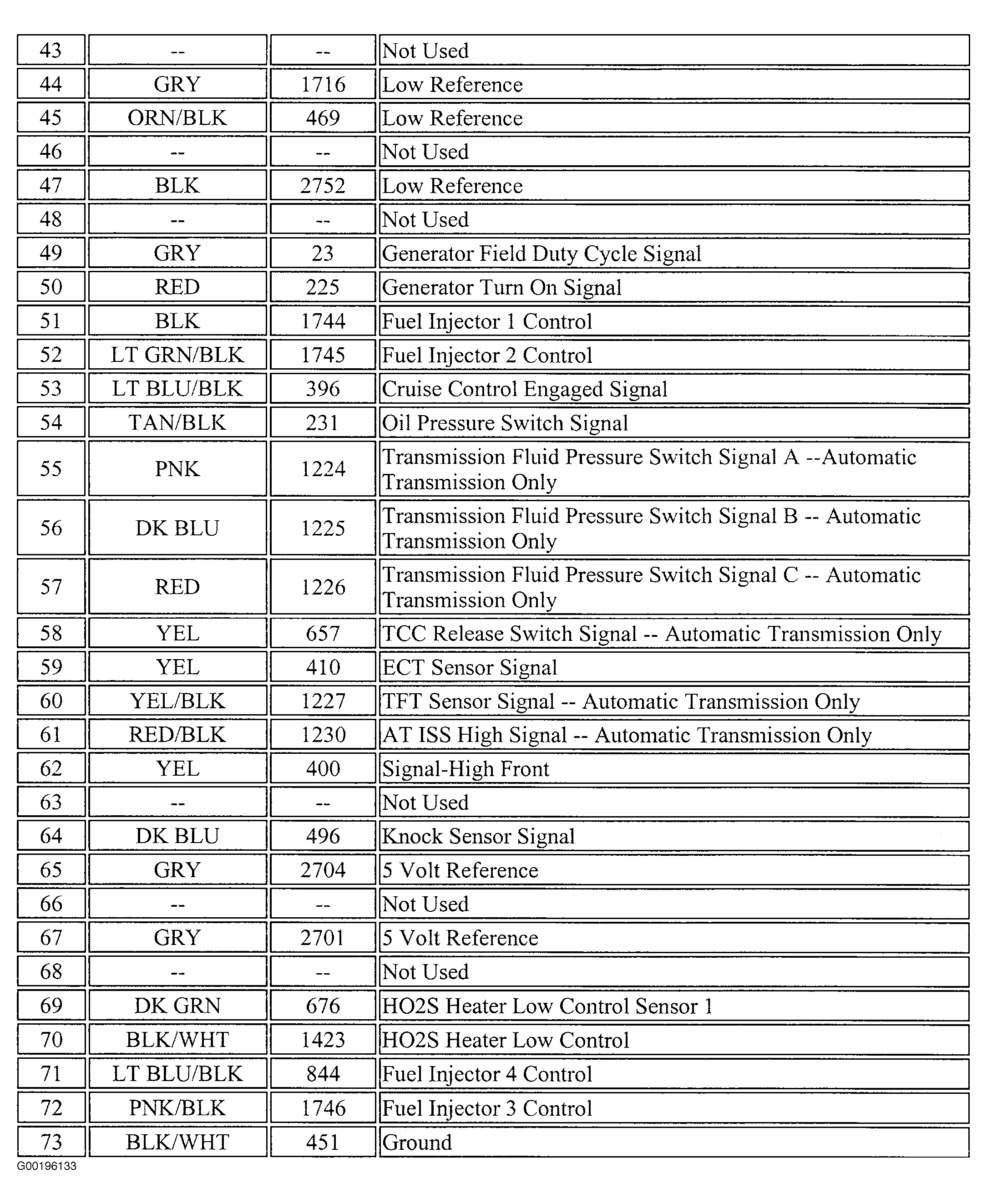

Fig 36: Identifying PCM Harness Connector C2 Terminals (Cavalier - 2 Of 2)

G00196133

Courtesy of GENERAL MOTORS CORP.

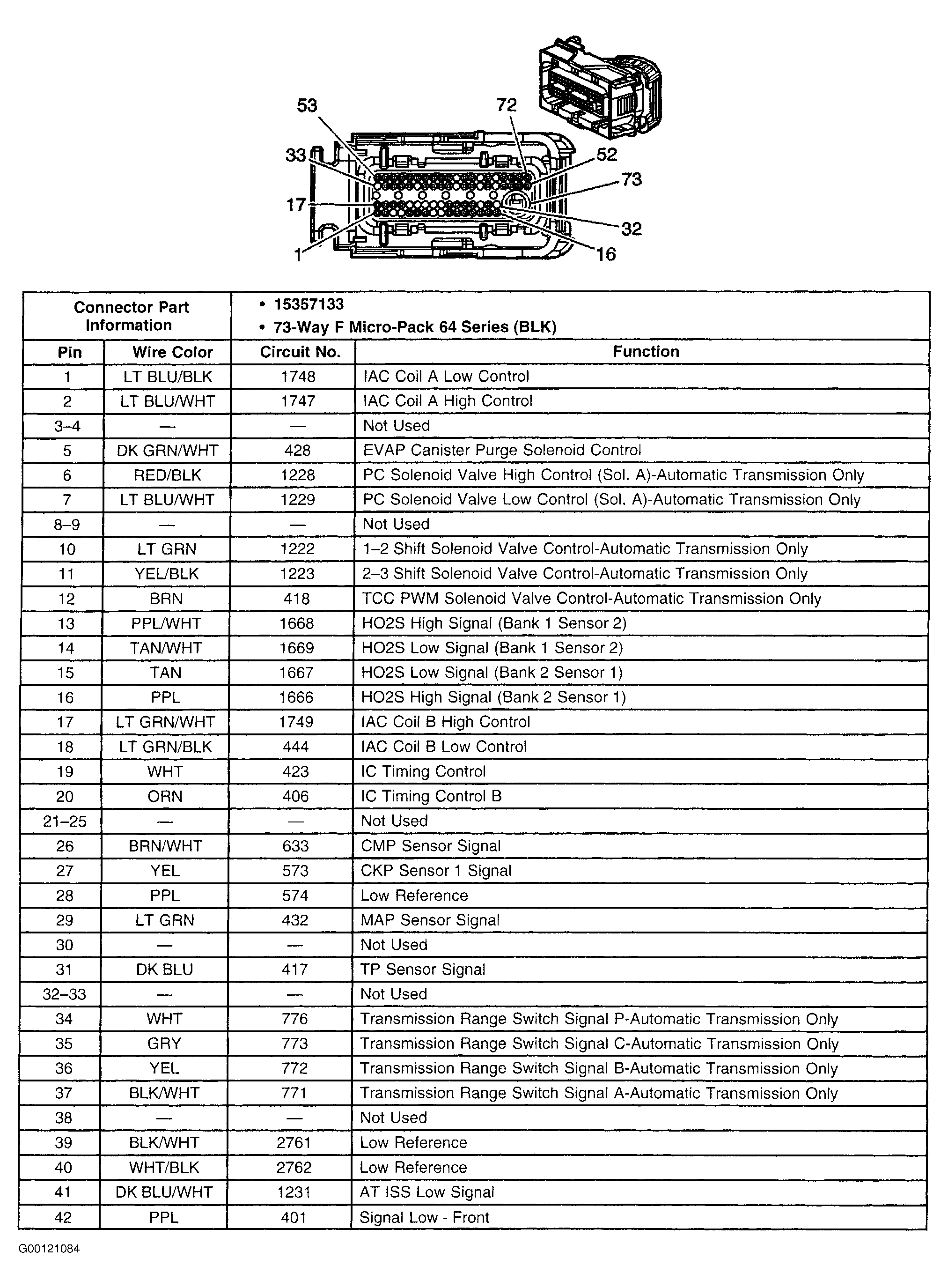

Fig 37: Identifying PCM Harness Connector C2 Terminals (Except Cavalier - 1 Of 2)

G00121084

Courtesy of GENERAL MOTORS CORP.

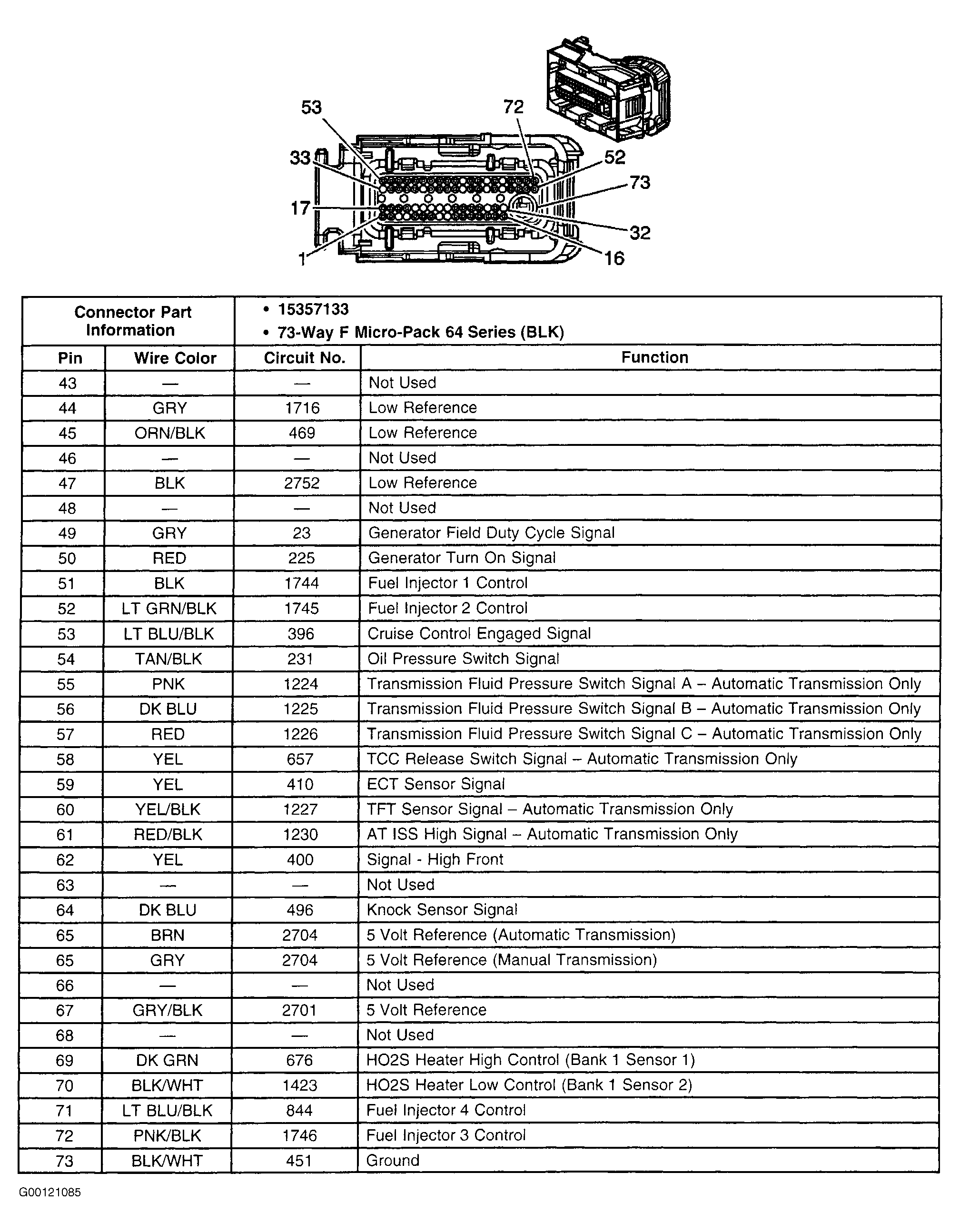

Fig 38: Identifying PCM Harness Connector C2 Terminals (Except Cavalier - 2 Of 2)

G00121085

Courtesy of GENERAL MOTORS CORP.

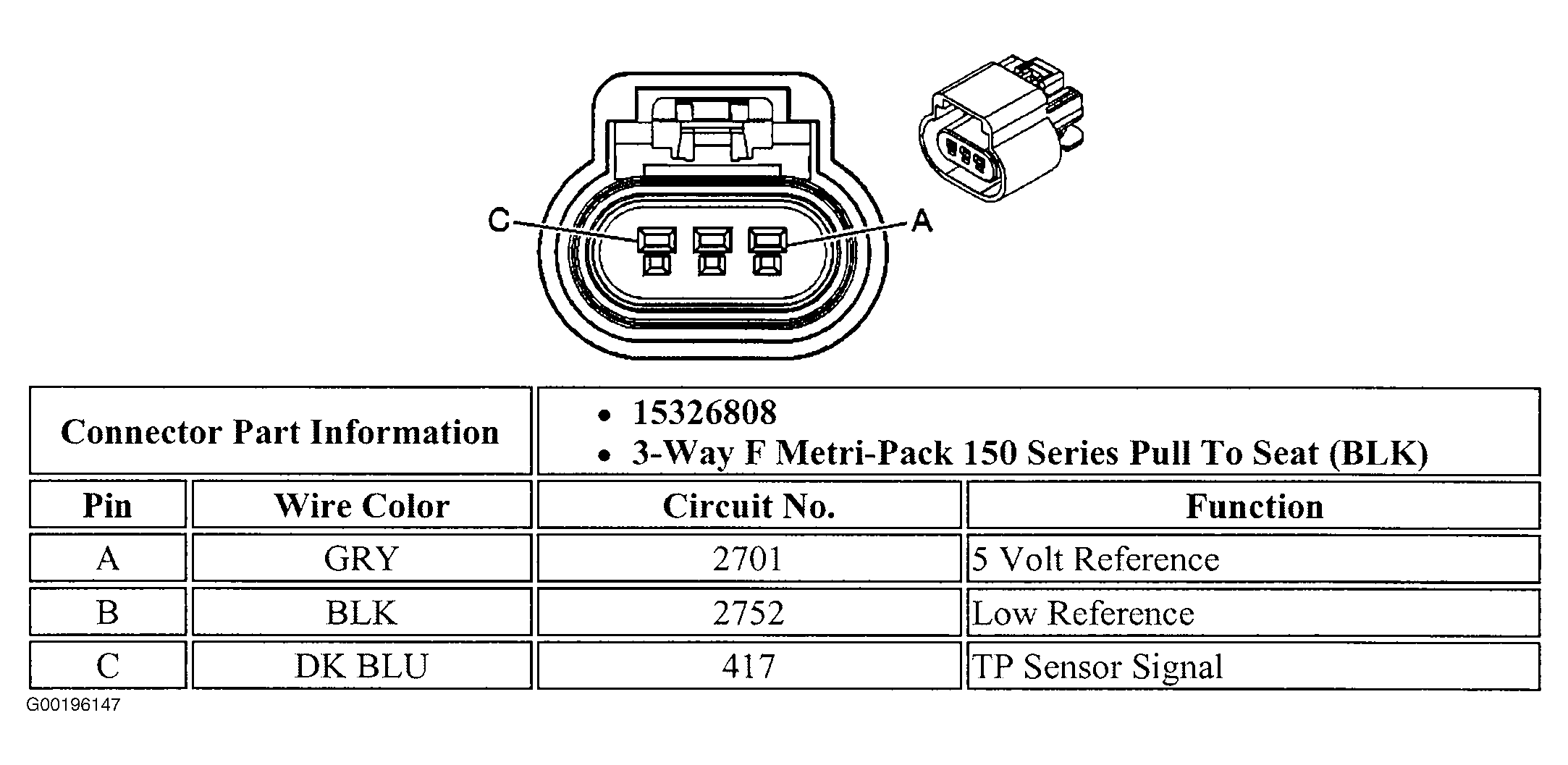

Fig 39: Identifying TP Sensor Harness Connector Terminals (Cavalier)

G00196147

Courtesy of GENERAL MOTORS CORP.

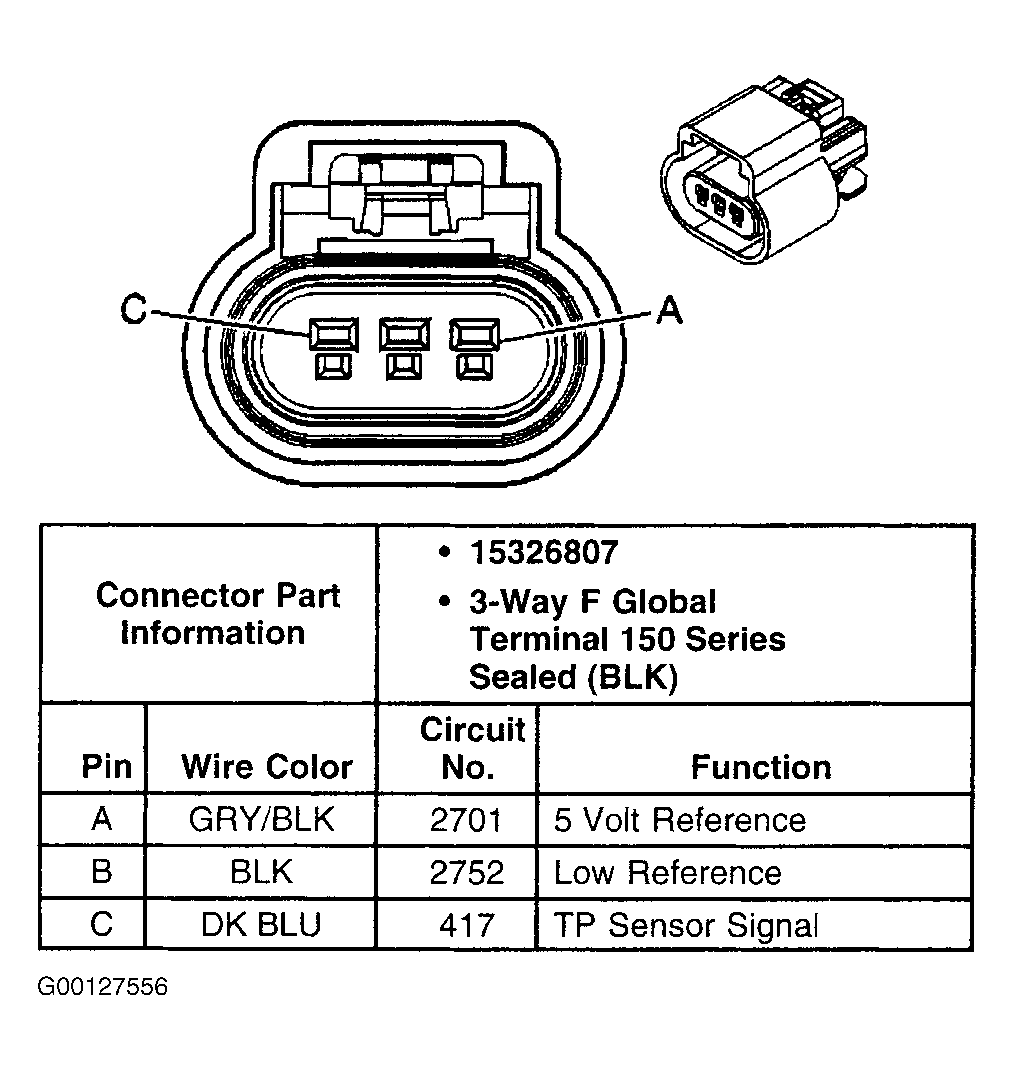

Fig 40: Identifying TP Sensor Harness Connector Terminals (Except Cavalier)

G00127556
