Front Toe Adjustment

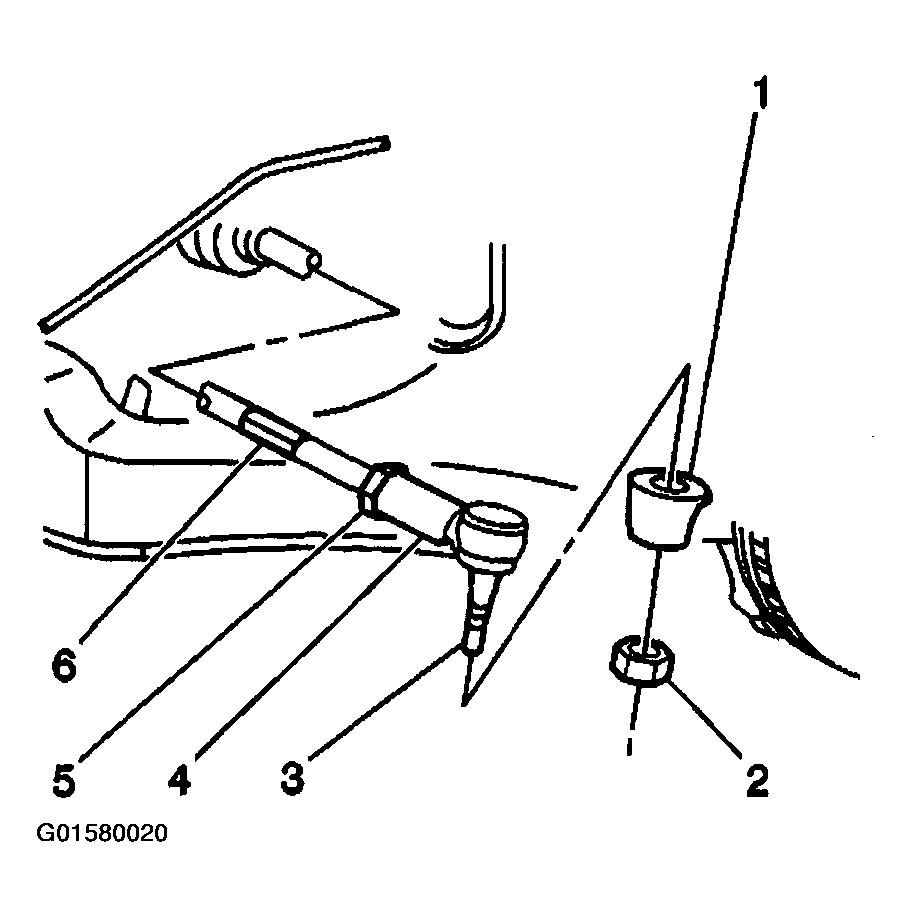

Fig 1: Adjusting Front Toe
G01580020Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the steering wheel is set in a straight ahead position.
  2. Loosen the tie rod jam nut (5).
  3. Adjust the toe to specification by turning the adjuster (6). Refer to Wheel Alignment Specifications  .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the tie rod jam nut (5).

    Tighten

    Tighten the tie rod jam nut (5) to 68 N.m (50 lb ft).
