Low-Reverse Servo Assembly: Installation

  1. Assemble the low reverse servo assembly. See appropriate OVERHAUL article.

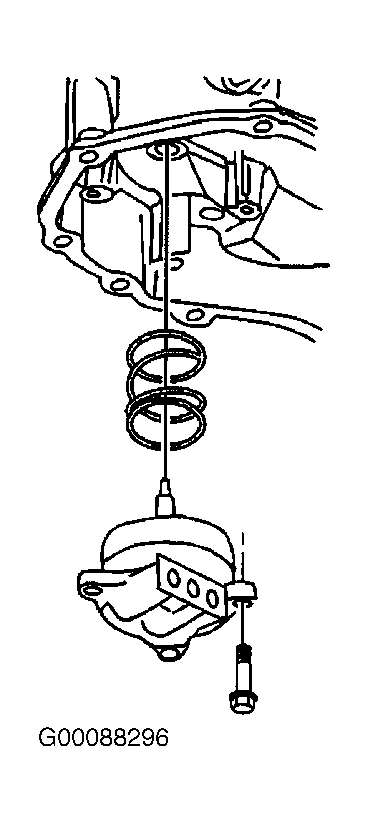

  2. Install the low-reverse band servo and cover. See Figure. Install and tighten the bolts to specification. See TORQUE SPECIFICATIONS .
  3. Install the oil feed pipe. See OIL FEED PIPES .
