Seat Belt Connector End Views

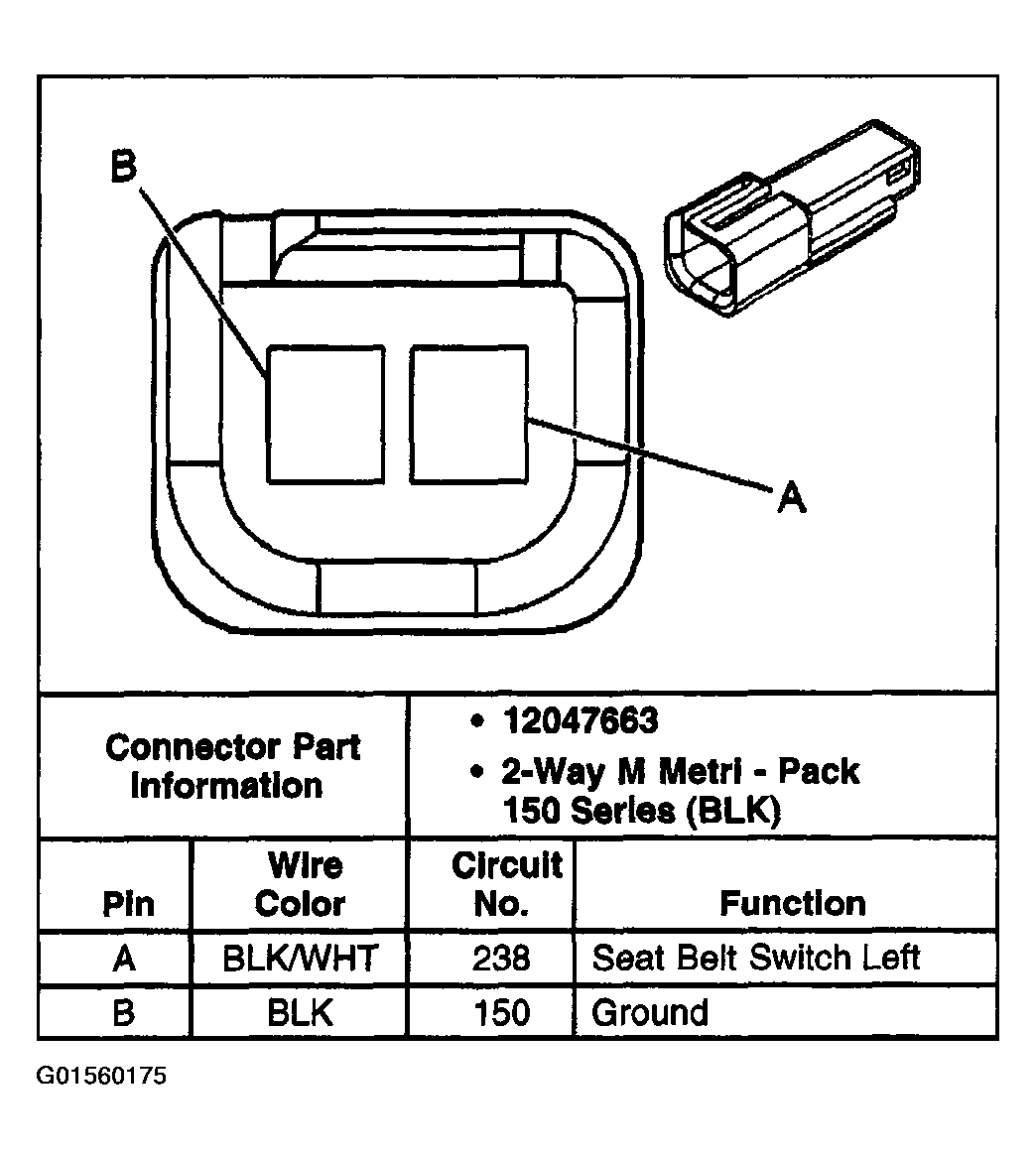

Fig 1: Identifying Seat Belt Connector End Views (Seat Belt Switch)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
